Hi -
Have a 2p simpsons PCB which was working ok (apart from no sound through the jamma) - went into the settings changed the sound to stereo then it has got stuck on a 12c Bad rom error, reversing the screen stuck in loop. Read about trying hold test on startup, no joy so far. Appreciate suggestions, not experienced on fixes etc,



cheers matt


djsheep

Multi Boyz Overlord
Immortal
Multi Boyz
Joined
May 20, 2016
Messages
6,269
Reaction score
9,723
Location
Brisbane, Australia
That repair log answers your question. You’ll need to pull that chip and replace it.


lastspaceship

Student
Joined
Mar 28, 2021
Messages
30
Reaction score
28
Location
London
thanks, appreciated. i read elsewhere a case where the chip was actually ok, just kind of needed re-intialising. looks like it might be the fix route.


ShootTheCore

Enlightened
Joined
Jan 20, 2016
Messages
2,130
Reaction score
3,619
Location
Logan UT
Remove the ROM chip, blow out the socket, and give the legs of the ROM chip some light sanding with an emery board. Reinstall the ROM chip, power up and cross your fingers.

If it still fails the diagnostic check, you may have to replace the ROM.


AlxUnderBase

Champion
Joined
Jan 25, 2018
Messages
1,867
Reaction score
2,083
Location
Constanta,Romania
Matt, 12C is a ER5911 . Like what Caius wrote in the repair log , the best way is to probe it or check it with an IC tester if you have the posibillity to do that to see if is indeed that you need to replace on your pcb :happy:


lastspaceship

Student
Joined
Mar 28, 2021
Messages
30
Reaction score
28
Location
London
ha, all help greatly appreciated all. don't have the kit to probe etc but at least i can see the path to sorting it. One thing i'm checking is im actually doing the re-initialisation attempt right. Connected via a supergun. ie power off> press test (on PCB) hold > power on > hold(20seconds or so) > release. Hopefully marge can get back to knocking people out with her hoover soon.


lastspaceship

Student
Joined
Mar 28, 2021
Messages
30
Reaction score
28
Location
London
20 seconds is too much sir ... she take around 5 seconds to initialize the roms ✌️

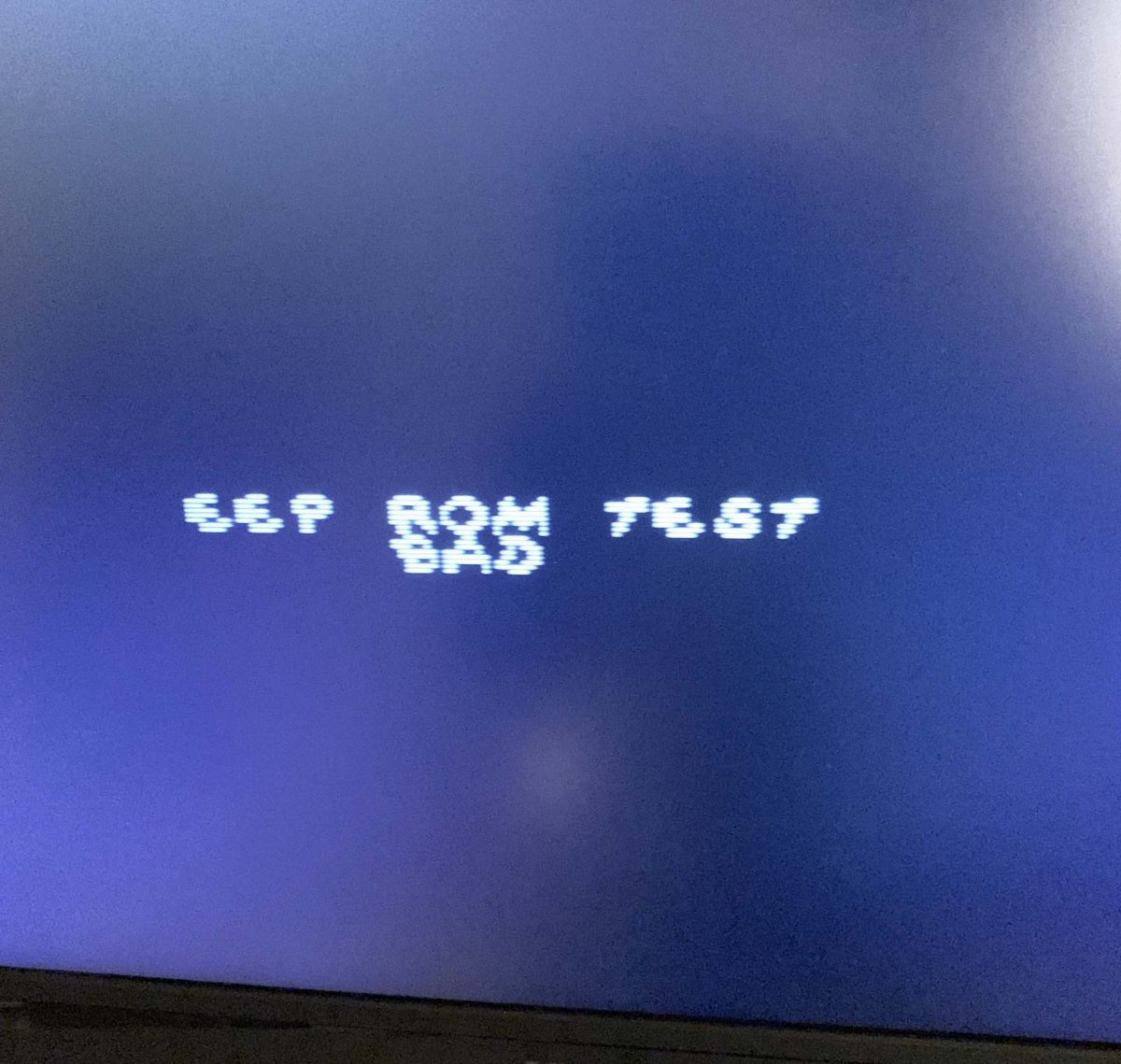

thanks for the tip , been trying shorter time. it flashes this message while i hold test and then when i release back into the inverted loop rom check with bad 12c. maybe can't test button my way out of this one!

bad eeprom.jpg


djsheep

Multi Boyz Overlord
Immortal
Multi Boyz
Joined
May 20, 2016
Messages
6,269
Reaction score
9,723
Location
Brisbane, Australia
Nice taste in records there bro... Mike Nock, Oliver Sain, Andy Bey, Johnny Jenkins :)

Assuming you’re a beat head? Hit me up @lastspaceship


lastspaceship

Student
Joined
Mar 28, 2021
Messages
30
Reaction score
28
Location
London
Just to summarise this one if anyone has an issue. follow the suggestions from those who know what they're doing above. In my case i guess eeprom was ok. I did read that ER5911 stores settings, and i (maybe) caused this by adjusting settings then possibly (though i don't recall) pressing test which caused some issue with the eeprom getting stuck somehow - so just watch out playing with test and settings maybe - and persevere with the re-intialisation - after that into following the proper diagnostic fix advice above or get help! thanks for assistance all on here. helpful. cheers, matt



channelmaniac

Student
Joined
Mar 19, 2021
Messages
54
Reaction score
110
Location
Dallas, TX, Metromess
There are a couple of chips that gate the access to the EEPROM. If they are Fujitsu, they are suspect and should be changed before you try changing the ER5911.


channelmaniac

Student
Joined
Mar 19, 2021
Messages
54
Reaction score
110
Location
Dallas, TX, Metromess

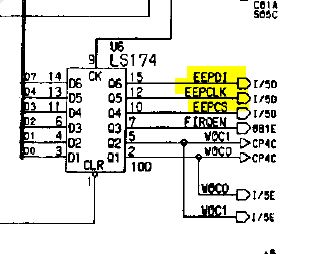

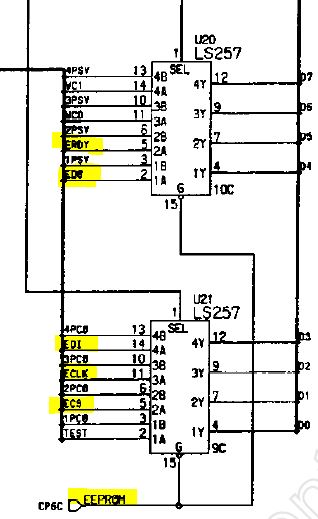

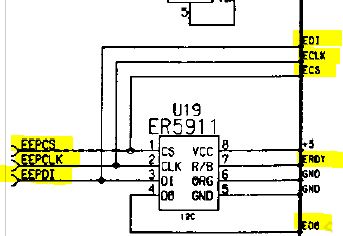

Here's what you need to check... the LS174 at U6, the LS257 at U20, and the LS257 at U21. Beware that there are at least 2 revisions of the Simpsons PCB so don't be surprised if the U numbers don't line up. Use a multimeter and you can quickly ID which chip is which by their connections.


Attachments

  • LS174.JPG
    27 KB · Views: 8
  • LS257.JPG
    39.6 KB · Views: 9
  • ER5911.JPG
    24.5 KB · Views: 9

lastspaceship

Student
Joined
Mar 28, 2021
Messages
30
Reaction score
28
Location
London

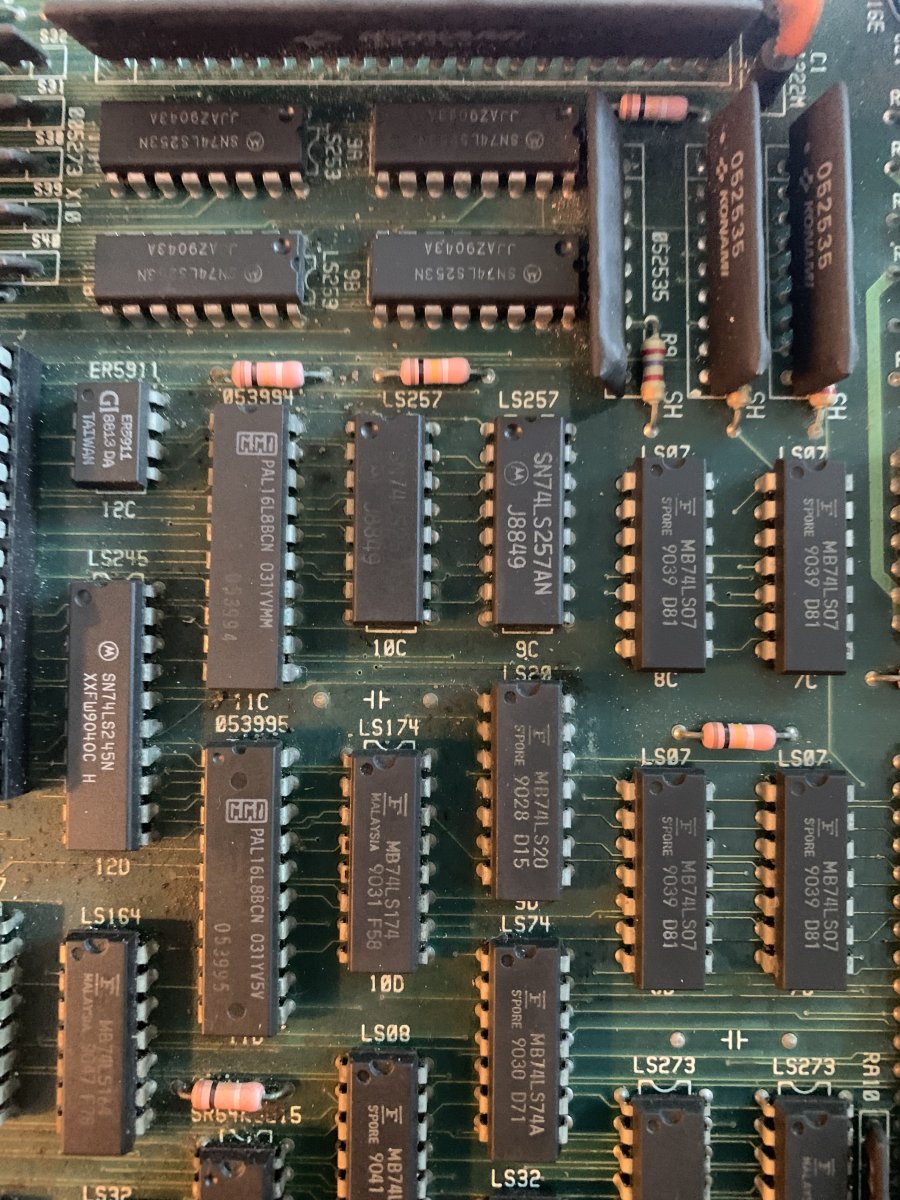

Much Appreciated - yeah don’t think the u’s match on mine. Sorry for basic question, Prob need to step up my kit, you’re saying test these with logic probe right ? Haven’t got too far into testing socketed EEPROMs. Matt


Attachments

  • 307E7117-63D8-4F9E-981C-CC1A466A267F.jpeg
    265.7 KB · Views: 8

channelmaniac

Student
Joined
Mar 19, 2021
Messages
54
Reaction score
110
Location
Dallas, TX, Metromess
Yes, logic probe. They may look dead until the chip is being read or written to so you may have to 1) power cycle the board and keep testing... and 2) use the "Memory" switch on the logic probe to capture very fast signals.

This is where a logic probe with audio beep rises above a regular logic probe. The beep helps a lot.
