This is a case for the Quick Programing Board for the Sat2Neo adapter that the awesome @Arthrimus and FrankFJS collaborated on here
https://www.arcade-projects.com/threads/sega-saturn-to-neo-geo-controller-adapters.8858/

This is NOT a case for the adapter itself (the case for that it here)
https://www.arcade-projects.com/threads/3d-printed-case-for-sat2neo-adapter-v1-1.19064/

This is a case for the Quick Programing Board. Basiclly the Quick Programing board makes it easy to correctly attach your Sat2Neo to an ISP programmer so you can push new code to it from your PC (probably using AVRdude). This case for the QPB is designed to match the look of the case for the Sat2Neo, which will match the look of the 4-player adapter, which will match the look of the Minigun Supergun itself.

Eventually I will put it on Thingiverse with the "do what the hell you like" licence - but until then here are the files if you want to print your own. I printed these on a creality ender 3 pro, flashforge black PLA, 200/60 degrees, 4 walls, .2mm layer height, 5 top/bottom layers.

Will post some pics in a minute


Attachments

  • SAT2NEO QPB case.zip
    205.1 KB · Views: 2

hatmoose

Grand Master
Joined
Mar 25, 2021
Messages
339
Reaction score
670
Location
Auckland
The BOM for this is
1 x sat2neo QPB
2 x M3 20mm socket head bolts
2 x M3 nuts
2 x M2 20m socket head bolts
2 x M2 nuts

Renders
Screen Shot 2021-11-24 at 12.14.12 PM.pngScreen Shot 2021-11-24 at 12.13.59 PM.pngScreen Shot 2021-11-24 at 12.13.39 PM.pngScreen Shot 2021-11-24 at 12.13.27 PM.png

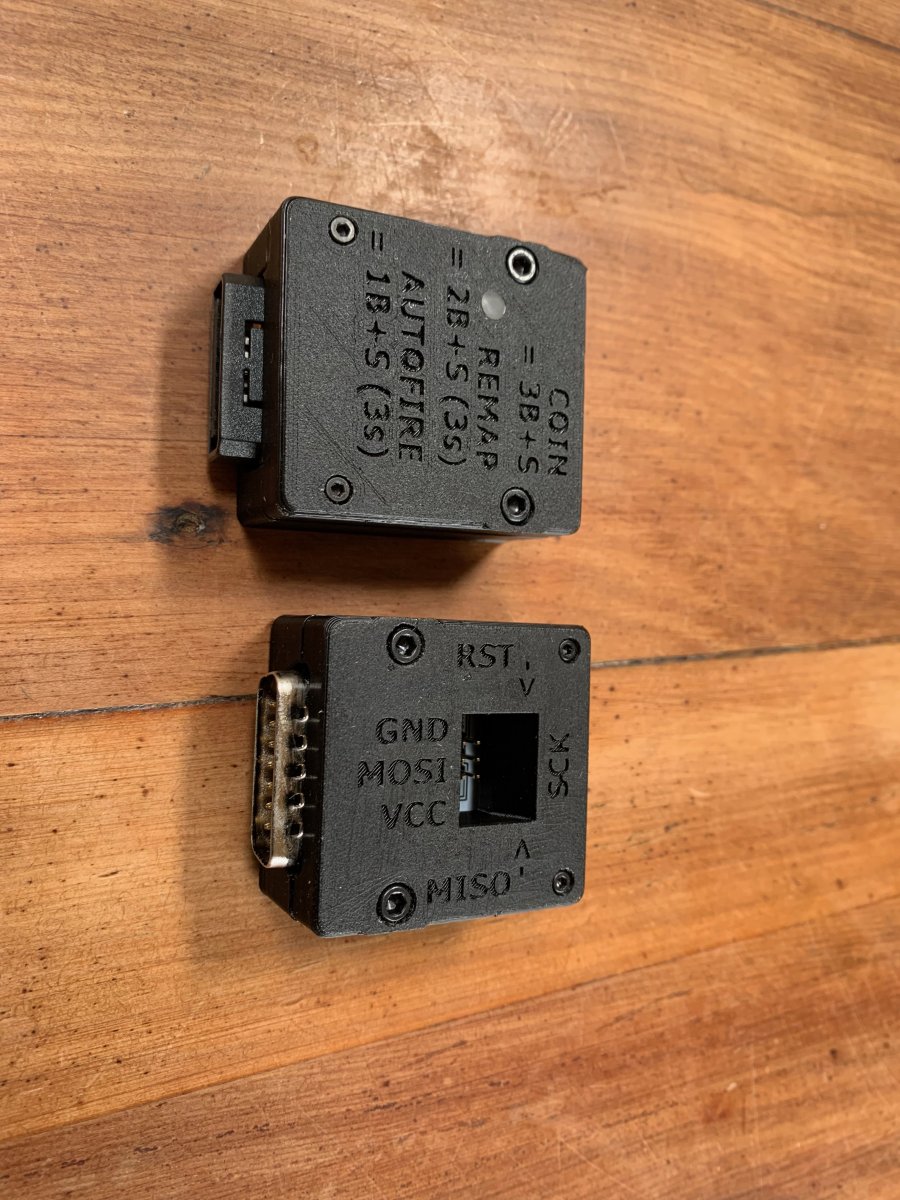

Printed

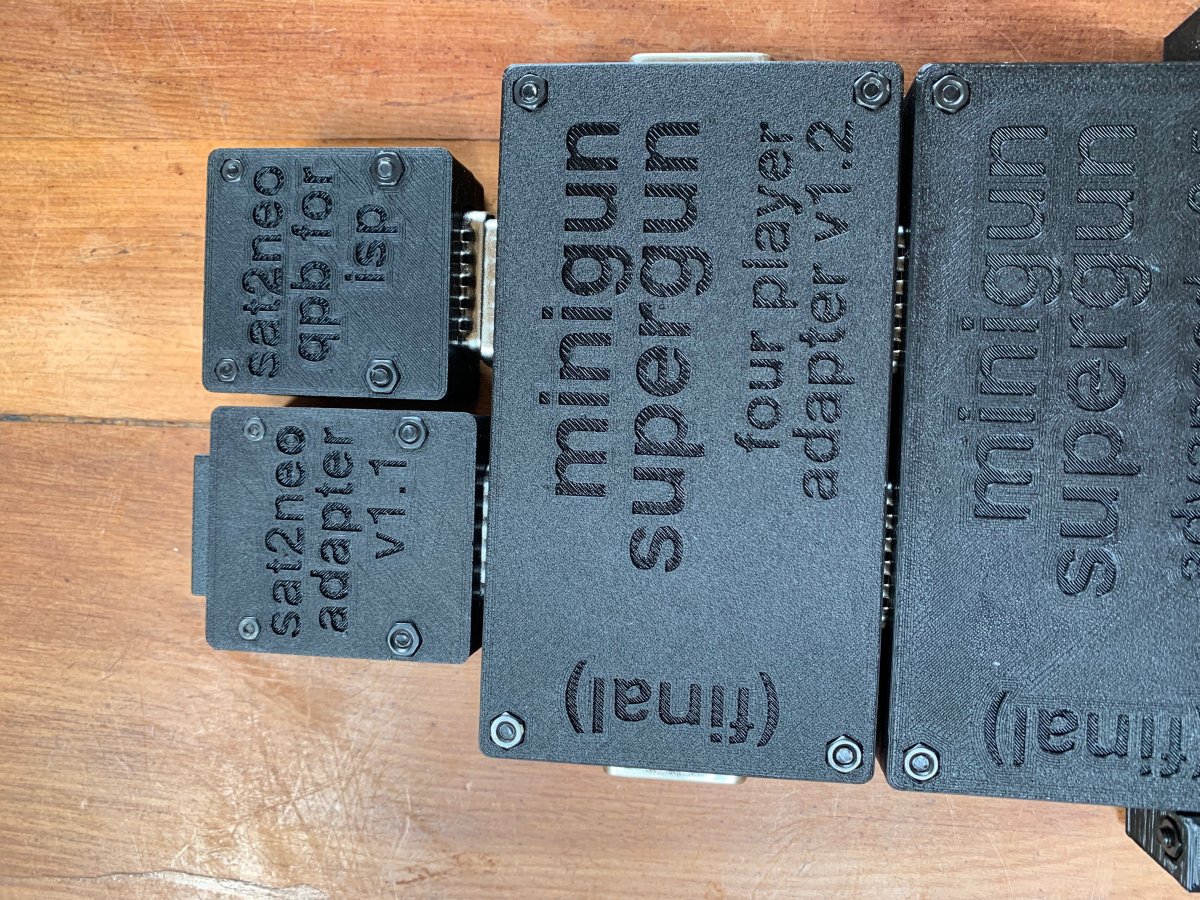

Matchy-matchy

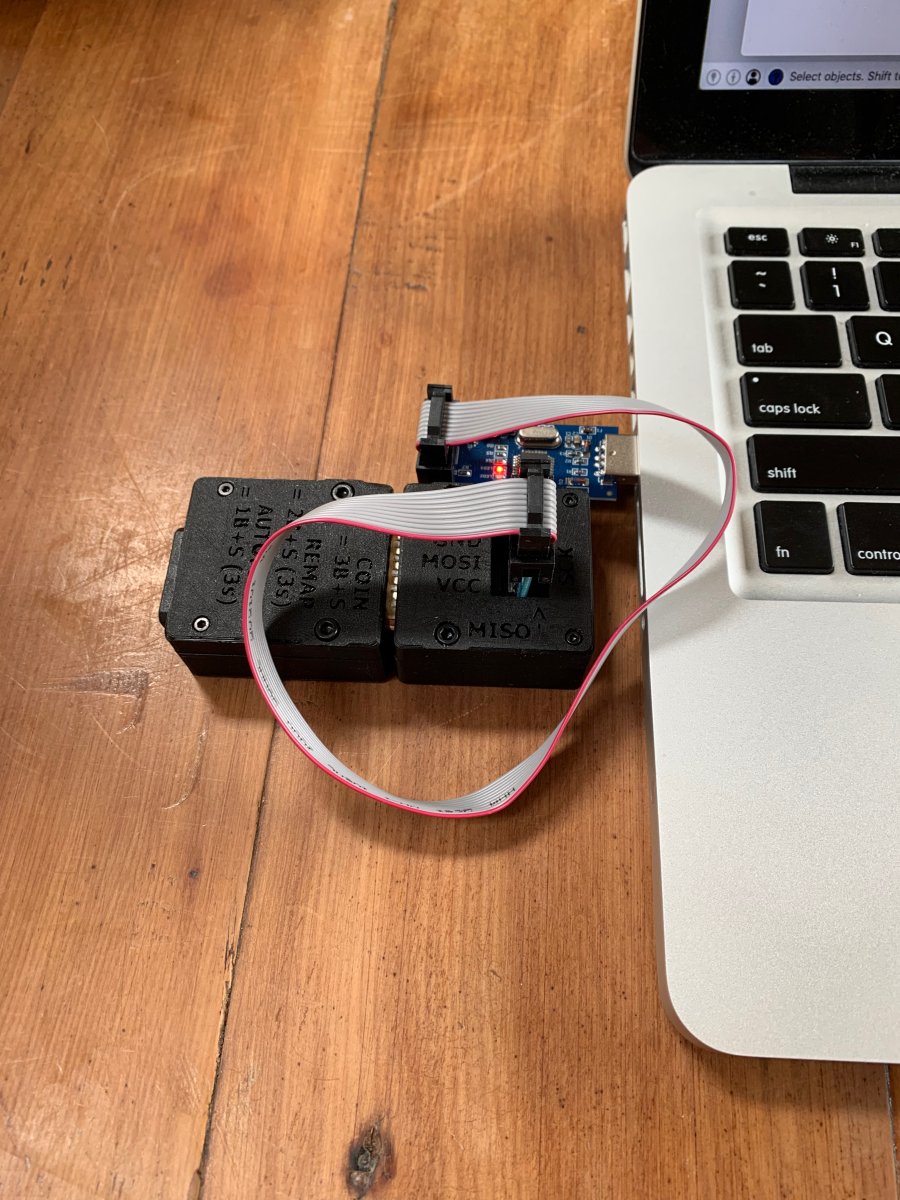

And ready to use
