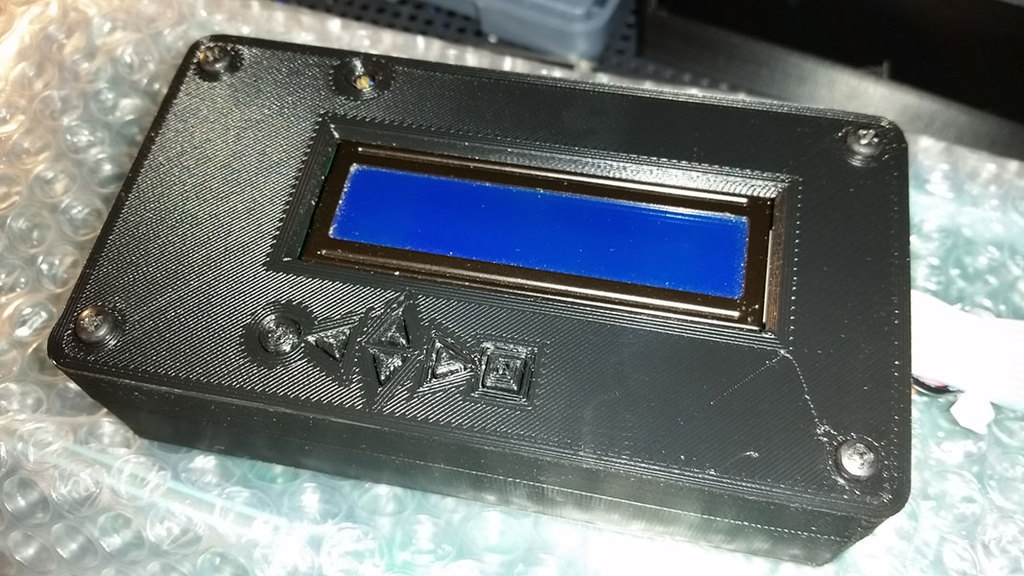

3D Printed Sega ST-V Multi LCD Selector Case

[twistedsymphony]

You can thank @brentradio for encouraging me to do this project and lending me his LCD Selector to design the case.

The case requires no supports to print, the only special requirement I recommend is printing the buttons with a 10mm brim as it will make installing them much much easier. Also included is a small support block that fits under the LCD to prevent it from flexing when pushing the buttons.

it requires 4 30mm M3 screws to hold it together
As always you can download the design on thingiverse for free.

BUY ONE FROM ME HERE: https://bit-district.com/arcade/sega-st-v-titan/stv-multi-selector-lcd-housing.html
DOWNLOAD THE FILES TO PRINT YOUR OWN HERE: http://www.thingiverse.com/thing:1881571

----------------

If you want a Housing for the ST-V Multi Cart itself, more info on that can be found here: 3D Printed Sega ST-V Multi-Cart Housing



[Derick2k]

Nice work as usual T

Gonna try this one on the resin printer and see how it comes out.

Thanks.



[MissionFailed]

neat. you made buttons as well. pretty cool. thanks for keeping your projects opensource. Much Respect. let me know when you need extra likes.



[twistedsymphony]

let me know when you need extra likes

I'll take all your likes

Seriously though, photos, if anyone prints one of these I love to see photos of my designs on other people's printers.



[Malenko]

Im printing one for @chrisapple I'll take a pic when its done. Printing on a crummy Makerbot, but hey, its my employers so it didnt cost me anything.



[twistedsymphony]

this should print easier than most of my other stuff since I wasn't constrained to making it fit into something else externally I was able to design it to not need supports.



[Brentradio]

Yea!!!

Thanks again for doing this!

Brent

Now if I can just get the software edited...



[Malenko]

apparently print time is like 5 hours so it wont be done before I leave work today. So, pix tomorrow!



[Malenko]

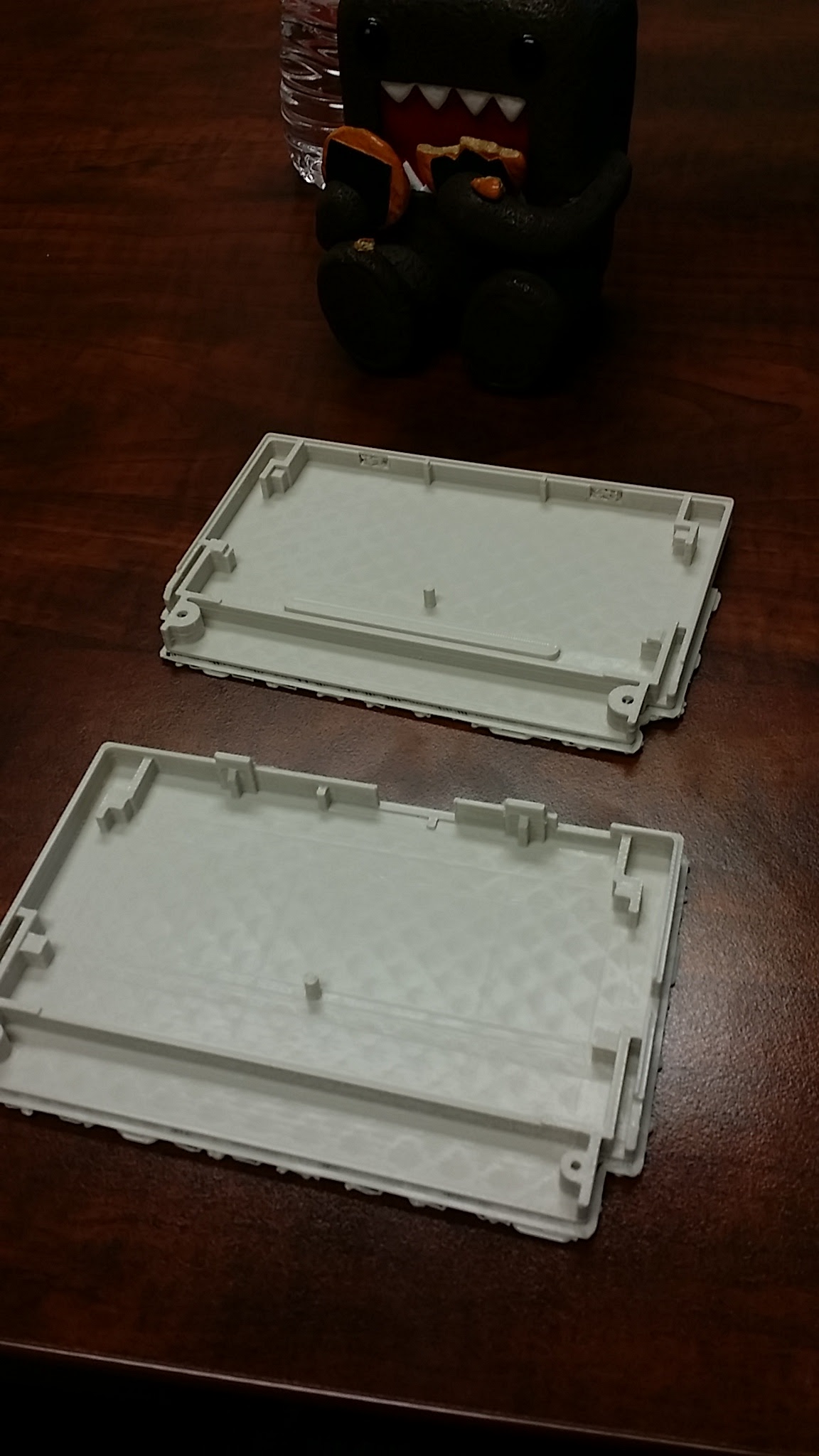

so I printed the wrong STV thing, but heres what I did print for no reason!



[twistedsymphony]

did you print that on a raft?



[Malenko]

did you print that on a raft?

We raft everything for some reason. told em it wasnt needed, still. rafted.



[twistedsymphony]

weird, I know some people who raft everything. seems like a waste of time and material if the part doesn't call for it. my prints usually turn out like garbage when I try it though...



[Malenko]

I cant even get the fucking raft off of the print.poked a buncha holes in my thumb though!
Im gonna prolly send it to chrisapple for free, I dont have a use for it, and if he breaks it pullin the raft, hey, FREE!



[Brentradio]

Print different color buttons to make it pop!



[KalessinDB]

Anyone selling them? It's too big for my friend's printer and I'm always happier dealing with people I (kinda) know rather than for example Shapeways when possible.



[Brentradio]

Not that I know of.

This forum has a 3D printer section.

Post in there, someone should be able to print and sell you one.



[hyp36rmax]

Will this be available on your store again?



[twistedsymphony]

Will this be available on your store again?

Not Likely, I'm discontinuing this since it's a real pain to print and eats up a huge amount of material.

I do have some "blemished" ones I'd sell at a discount if you're interested.



[hyp36rmax]

Not Likely, I'm discontinuing this since it's a real pain to print and eats up a huge amount of material.

I do have some "blemished" ones I'd sell at a discount if you're interested.

Cool Interested
