3rd Party IO - Pinout?

PASTBLASTER

PASTBLASTER

Grand Master
Joined
Oct 31, 2018
Messages
586
Reaction score
1,228
Location
Florida, USA

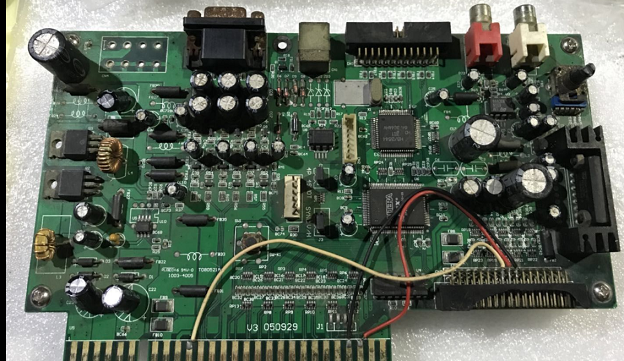

I recently got my Naomi CF setup running, and wanted to see if there was a pinout available for this bootleg / 3rd party IO I had.

I am hoping to build a 2 player Kick Harness for this so I can play the Fighting Games on Naomi.

Anyone happen to know a pinout, or have any information on these IOs?


Attachments

  • IO.png
    474 KB · Views: 71
The CPS2 Kick harness doesn't fit into the connector, and was hoping someone maybe had already done the work. Thanks for the info and I'll keep on looking. If I find anything, I'll post it up here.

twistedsymphony said:
pretty sure it's one of the knock-offs. Dead give away is the CPS2 header is just a generic header on the knock-offs instead of the proper Hirose connector. the originals have a slider switch by the JAMMA edge to swap the expansion header between 4P and Kick modes, this seems to have a jumper.
Click to expand...
From the sounds of it it's just a change of connector, not a change of pinout. So the above pinout info should still stand.

Read through it, and you're right. That is the info I needed.

Weirdly, after modifying the CPS 2 kick plug, it fits now and works! BUT - Nothing on the Player 2 side is working, even the Joystick and buttons 1-3.....

The cab is wired properly on the Jamma edge as it works for every other Jamma game I have used in the cab. There is a Jumper to toggle the IO between 2 and 4 plyer, and I have verified it is on 2 player, but no inputs.

Is there a setting somewhere I could have missed?

I'm not sure unfortunately. I don't own a Capcom IO to test with anymore.

Maybe try 4 player. Could be wired backwards?
