Recapped a few of these the other day. Quite a few caps had started leaking. One actually broke off when I pulled on it leaving a leg behind. So if you have one these in original state, I suggest putting some new caps on it.

Anyway,


400-5081, 400-5149 & 400-5198 (same PSUs basically, components just differently laid out and a different set of connectors)

Input: 90-138VAC
Output: +5V 7A, +12V 1.5A, -5V 0.1A


(400-5081 on top, 400-5149 / 400-5198 at bottom)


Code:
Capacitor     Diameter  Qty  Location

0.47uF 50V    5mm       1    C11
3.3uF 50V     5mm       1    C25
47uF 25V      7mm       1    C24
330uF 200V    25mm      1    C5
470uF 16V     10mm      1    C22
1000uF 35V    16mm      2    C20, C21
4700uF 10V    16mm      4    C12, C13, C14, C15

Last edited:

Hedonism Bot 2.0

Grand Master
Joined
Aug 12, 2017
Messages
741
Reaction score
969
Location
USA
Recapped a few of these the other day. Quite a few caps had started leaking. One actually broke off when I pulled on it leaving a leg behind. So if you have one these in original state, I suggest putting some new caps on it.

Anyway,


400-5081 & 400-5149 (same PSUs basically, components just differently laid out and a different set of connectors)

Input: 90-138VAC
Output: +5V 7A, +12V 1.5A, -5V 0.1A


(400-5081 on top, 400-5149 at bottom)
Code:
Capacitor     Diameter  Qty  Location

0.47uF 50V    5mm       1    C11
3.3uF 50V     5mm       1    C25
47uF 25V      7mm       1    C24
330uF 200V    25mm      1    C5
470uF 16V     10mm      1    C22
1000uF 35V    16mm      2    C20, C21
4700uF 10V    16mm      4    C12, C13, C14, C15
Going to order up today, I use one of these in my canary.


hoagtech

Champion
Joined
Mar 28, 2019
Messages
1,163
Reaction score
1,236
Location
Bellingham WA
Thanks for the list Nem.

I tried started to use digipen as a first timer and was wondering what style of capacitors I should order for this application?

And if there are any features like operating temperature I should look out for and what ones to avoid.

Thanks for the help.


Hedonism Bot 2.0

Grand Master
Joined
Aug 12, 2017
Messages
741
Reaction score
969
Location
USA

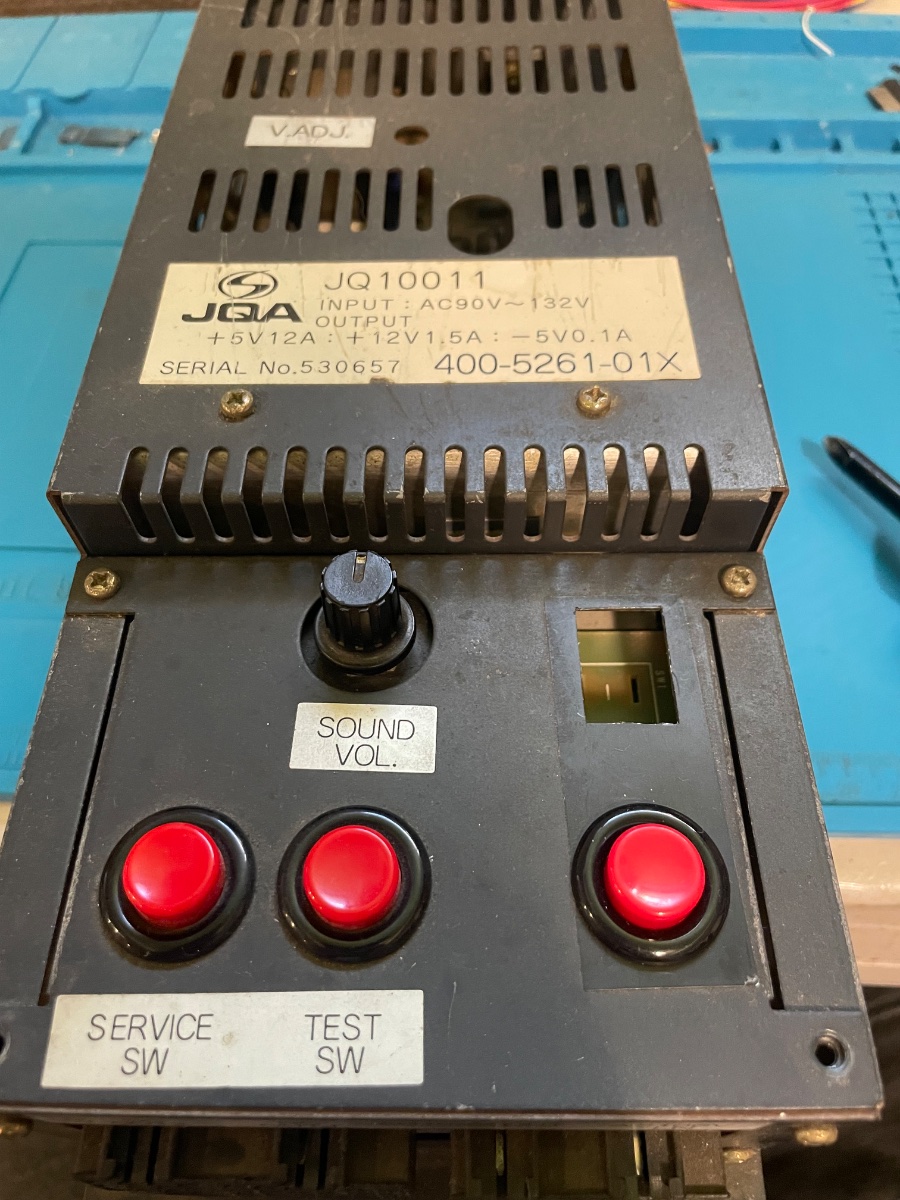

Follow up- I received the caps and did the recap today. Like @nem stated, these OG caps were leaking and some were bulging. Took about 30 mins to change the caps and it’s working great now. If you have one on original caps, might want to open it up and check them.
