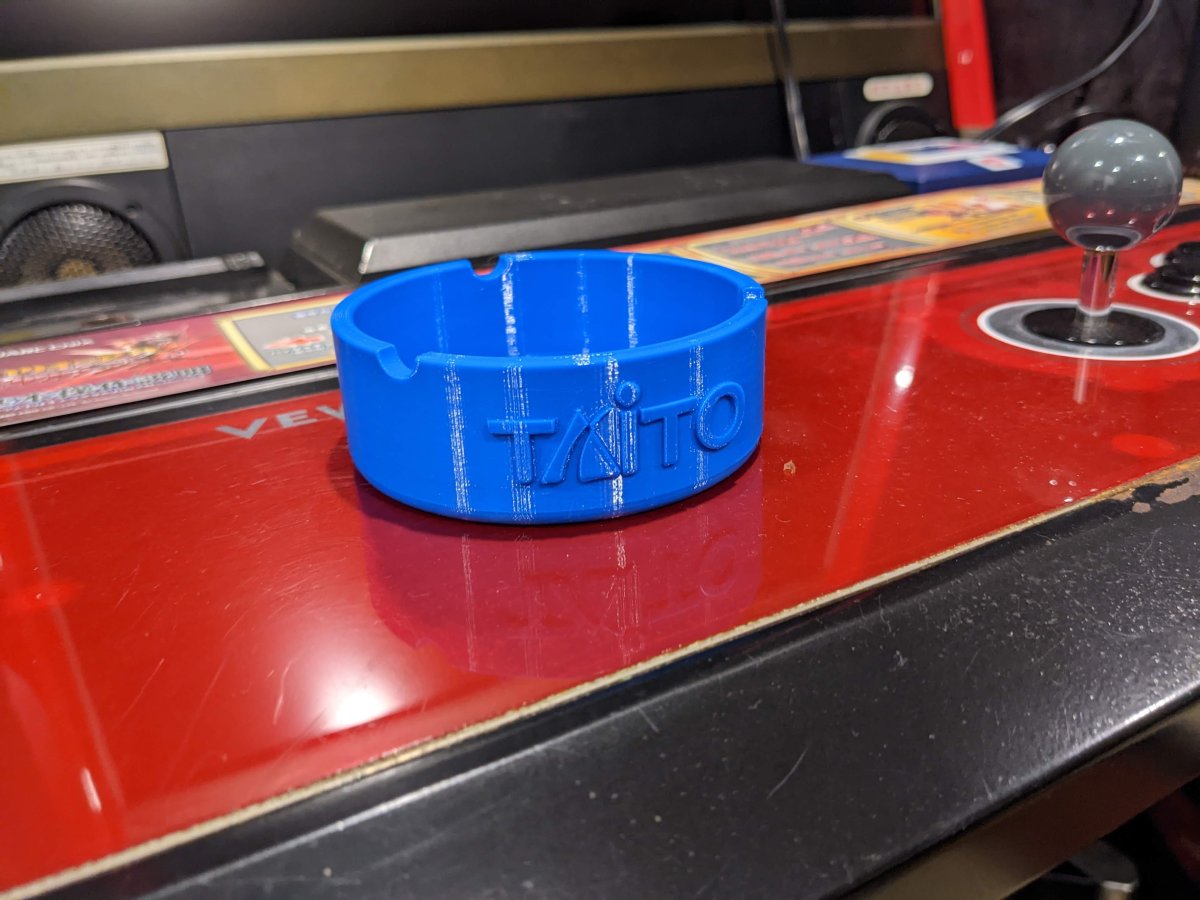

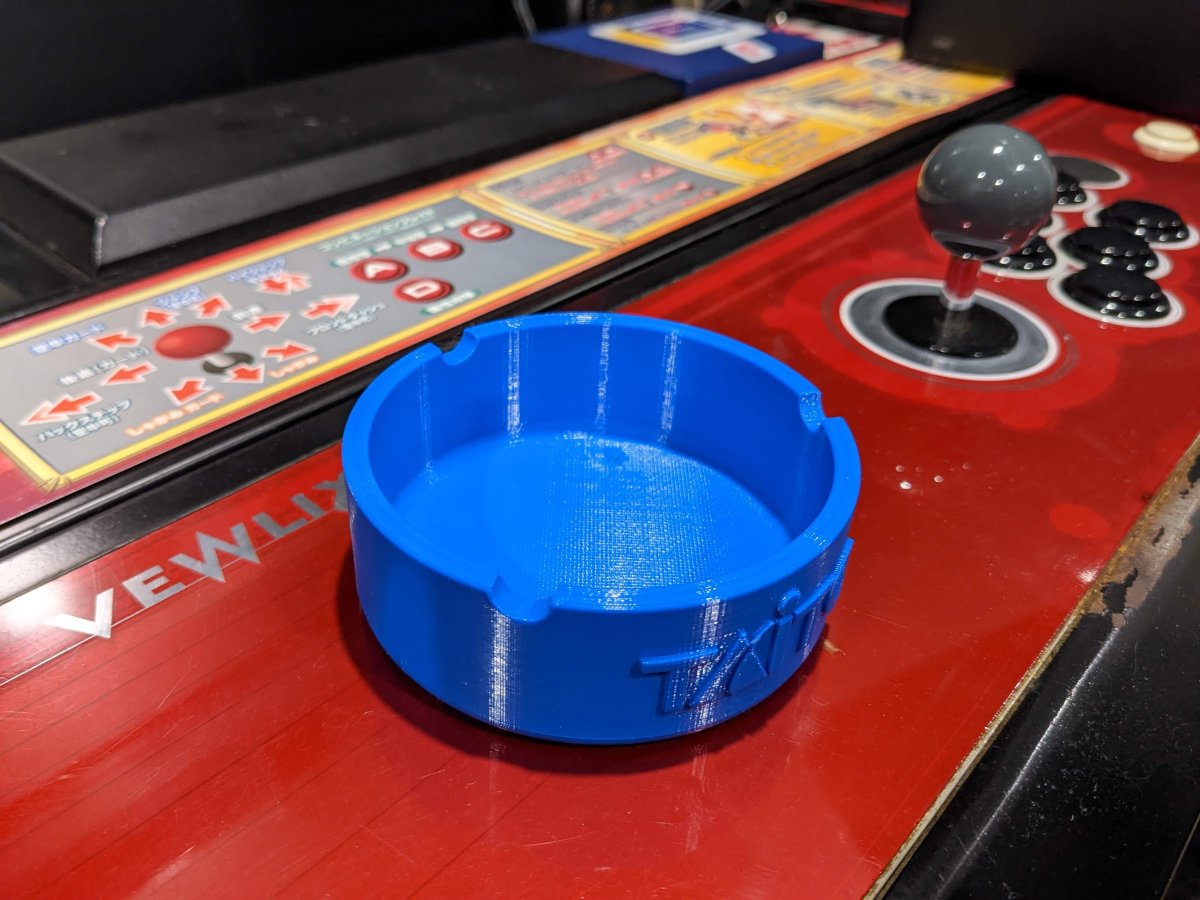

I don't use coins with my cab, and don't want people trying to put coins into the coin slot, so I scaled this ash tray to my blender bottle and printed it. I fed some screws up from the inside of the vewlix CP, silver-sharpied the screw tips, and used that to know where to drill on the underside of the cupholder. Drilled through, countersunk the inside, and screwed it down from top to bottom. Works well!





Source CAD file was https://grabcad.com/library/ashtray-72


I don't let people have drinks at the cab (preventative maintenance, I'm sure people have first-hand horror stories), so it's really just for me for now, and i'm always using this sealing cup. Wish I'd printed it a little wider to serve as a phone holder too. I'm working on a Stream Deck XL holder for the left side of the CP, more on that soon hopefully.


Attachments

  • ashtray v0.zip
    372.4 KB · Views: 41
  • ashtray_component_stl.zip
    280.3 KB · Views: 40

spartan1337

Student
Joined
Jul 12, 2022
Messages
19
Reaction score
16
Location
Maryland

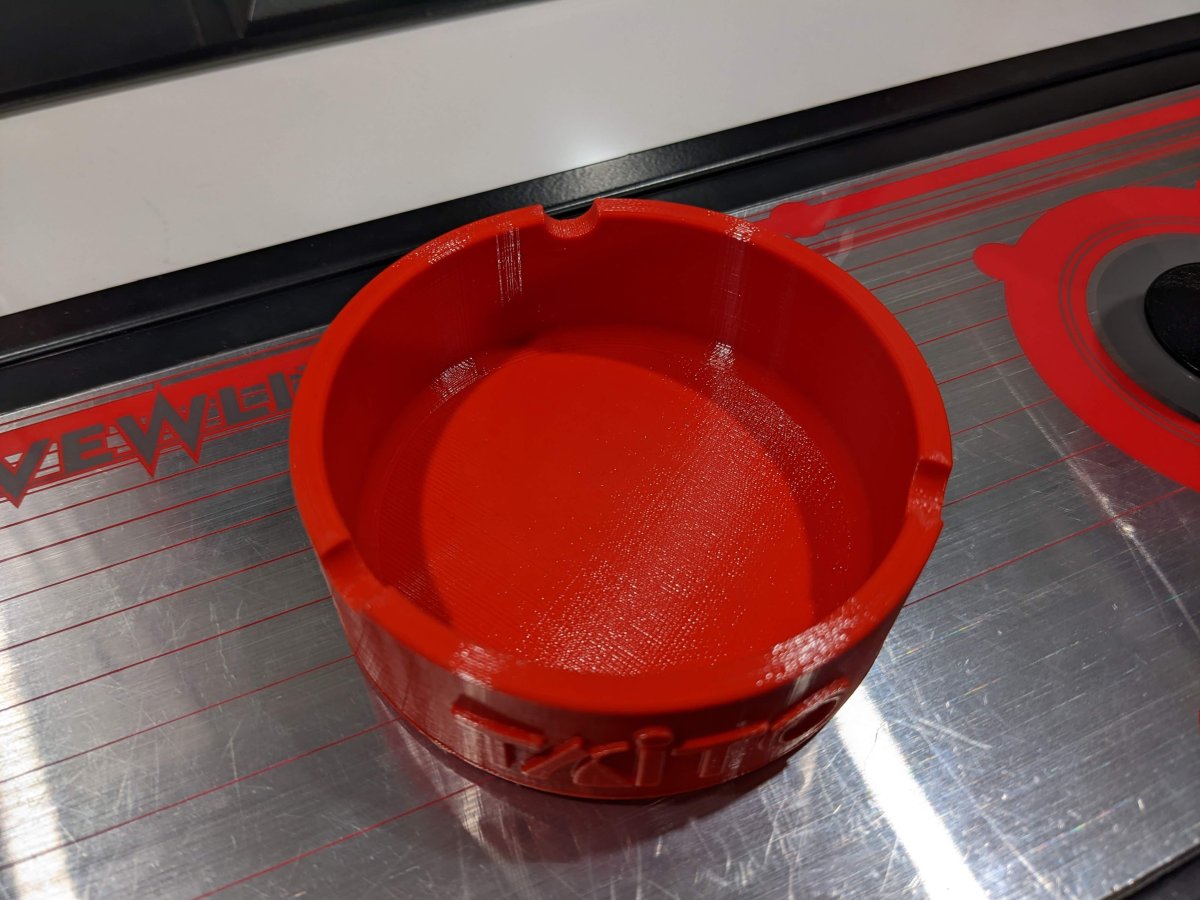

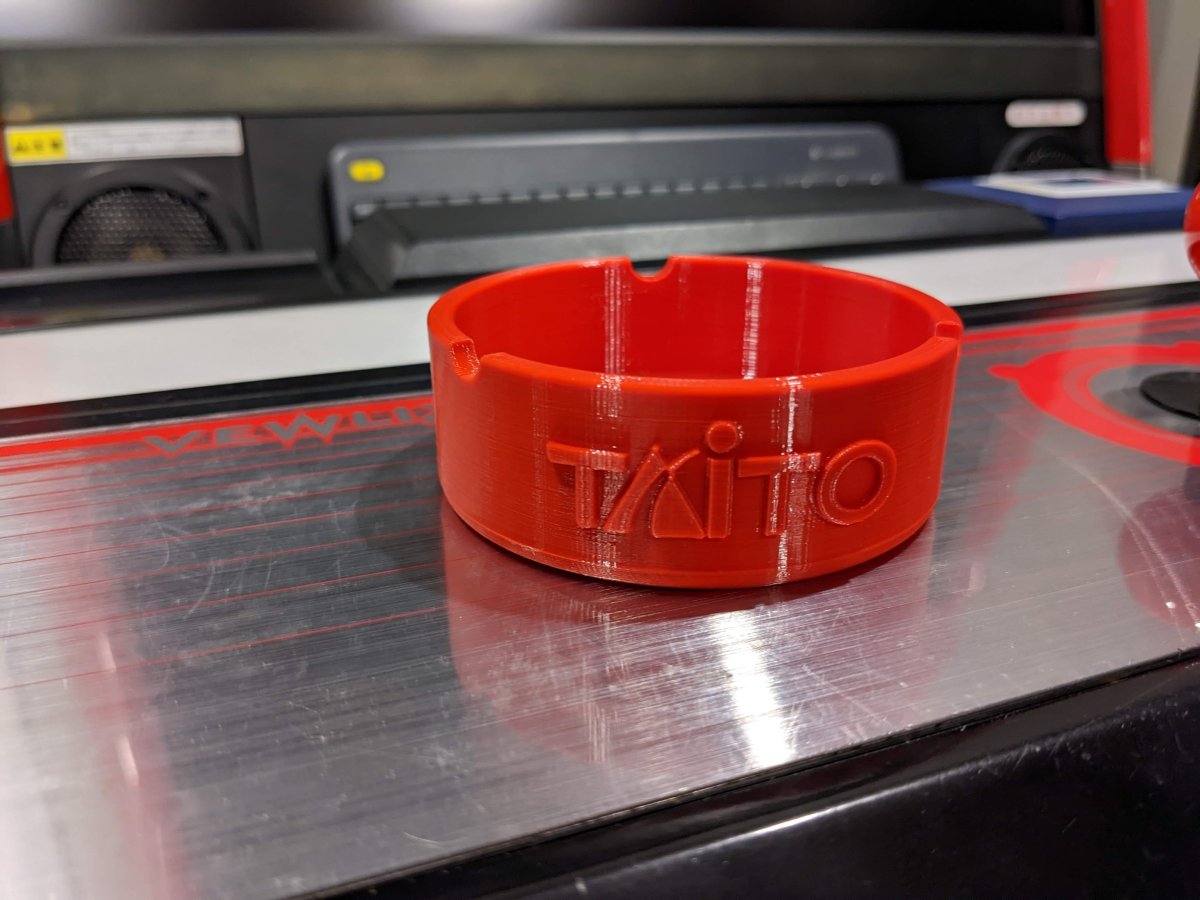

I printed two of these and they turned out great. Thanks for the share. I'll have to get some pictures and share them.

Did you design a 3d printed solution for the panel as well?
Can you share where you got the files if not?


socalcade

Professional
Joined
Jun 24, 2019
Messages
301
Reaction score
267
Location
Southern California
Oh great! Glad to hear it worked for you.

Here's my solution for the panel, but it's not that sleek. I was much more novice as a modeler back then (didn't know about heat-set inserts, printer was more poorly calibrated so I made boxier designs). https://www.arcade-projects.com/thr...iation-owners-thread.8709/page-67#post-280075

I think the STL / CAD files are saved on my PC somewhere, I can find them later if you're interested.
