Hello people
I have recorded a video to explain how to build cabinet.
The PDF file will be ready very soon too.

Please check the video and let me know if there is some missing information about it

Thanks to everyone to help and support me on this project. @rewrite @Derick2k @Rg111 @RealMFnG @Solmin and more...

View: https://youtu.be/YoHx5koDvaI

EDIT:
PDF Fıile for the Wire Harness is ready. Please check the file and inform me if you dont understand any point.
Wire MANUAL for MINI CUTE


and please contact with @Lemony Vengeance for the ISO wire Harness. He did great job with that ;)




Last edited:

AlxUnderBase

Champion
Joined
Jan 25, 2018
Messages
1,956
Reaction score
2,259
Location
Constanta,Romania
Hursit does one of the best things in this hobby ! Awesome to see him in action ! Thank you very buddy for all what you've did until now ! :happy:


dennisfxm

Student
Joined
Jul 23, 2020
Messages
35
Reaction score
31
Location
Philadelphia
I'm just going through some things building out the cab and I have some questions. I'll probably have more later :)

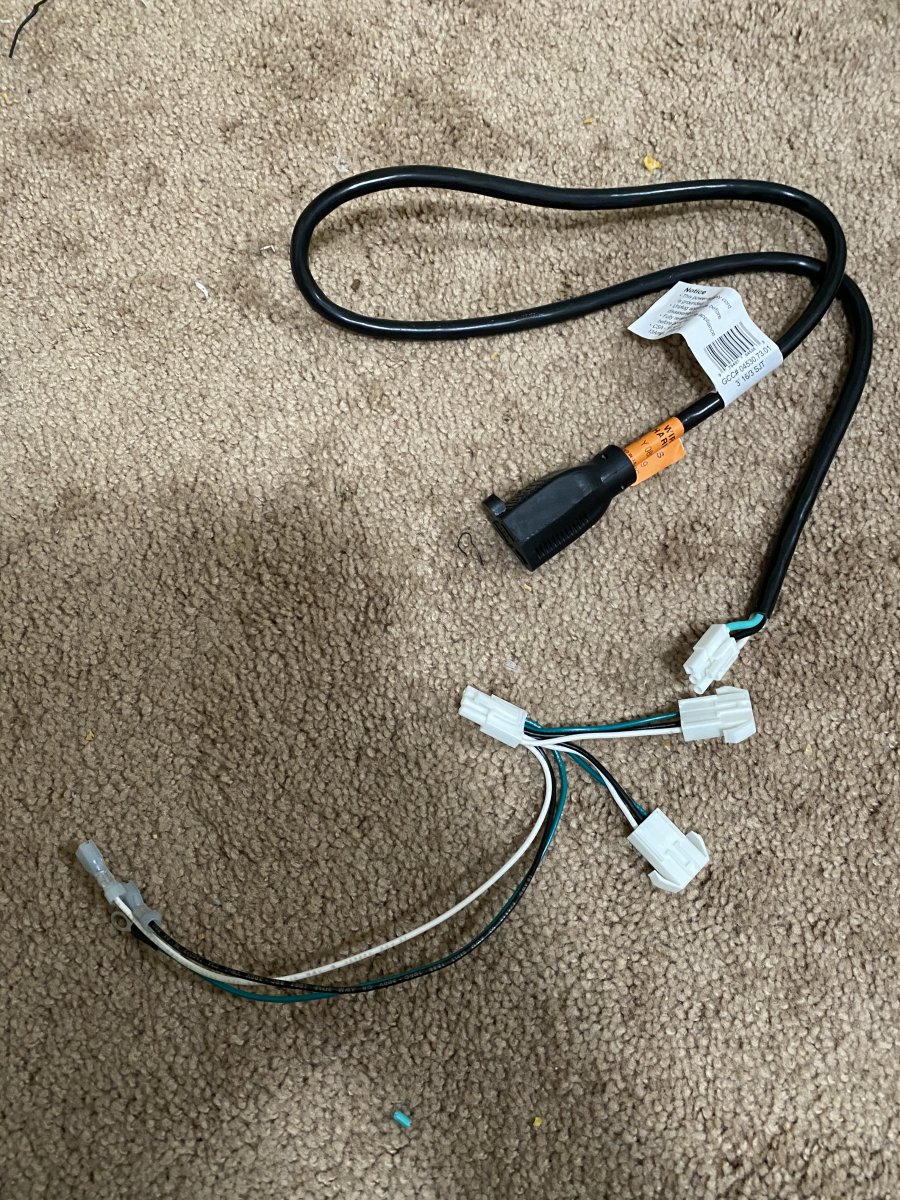

  • What are the connector types? Where can I get them? What pins, crimper, wire gauge, etc. would I need to build new harnesses to connect to them?
  • How do I wire up the coin counter? Does it matter where each wire goes?
  • I'm using a 19" LCD monitor. I didn't look at this yet, so, sorry if it is obvious, but will I be able to mount it to the frame/what's the best way to set it up? Is there any way I can get a spot within the cab itself to plug it in? (It looks like there's a 2 prong receptacle, but I need a grounded 3 prong for this)
  • I'm using the GBS-8200. This requires +5v 2amps for power. Is it a good idea to tap into the arcade power supply for this? Should I try to jam another wire into the 5v/ground slots of the power supply or is there another way I can tap into it?
  • Will I be able to use all 4 buttons on a NEO GEO 1 slot (MVS 1B) out of the box? If not, any ideas?
  • We need to bring our own coin mech, right? Is this one standard/will it fit? https://na.suzohapp.com/products/coin_doors/42-3079-100


pbjr

Beginner
Joined
Feb 14, 2021
Messages
19
Reaction score
22
Location
NY

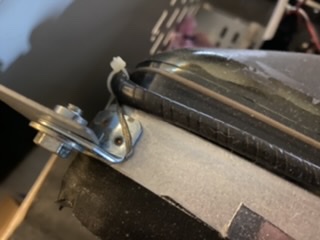

Hi all, Im going to need help as well. These are my first cabs. My first issue to figure out is how to mount the monitor as the holes do not align. I didn’t go with the WG and went with 19” VGA monitors instead.

Monitor bracket holes measure left to right is 16” and top to bottom is about 12.75”.
Cute holes are 17” and 13.25”.

Any suggestions on what to use? Thanks


Pixel Krisis

Student
Joined
Jan 25, 2020
Messages
85
Reaction score
35
Location
DFW, TX. USA
So that it is easier to whoever sees this thread, I'm quoting Hursit on the coinmechs needed.

"Asahi Seiko AD-81P2​

Asahi Seiko AD-81P"​


I can't find the message where speakers were mentioned. What set is a good fit?
Can somebody assist?

I found the link but if anyone has other suggestions, let us know?
https://www.parts-express.com/Visat...ustcol_ava_pickup=F&custcol_disableshopping=F

Another member had asked if these would work, but I don't think anyone has tried.

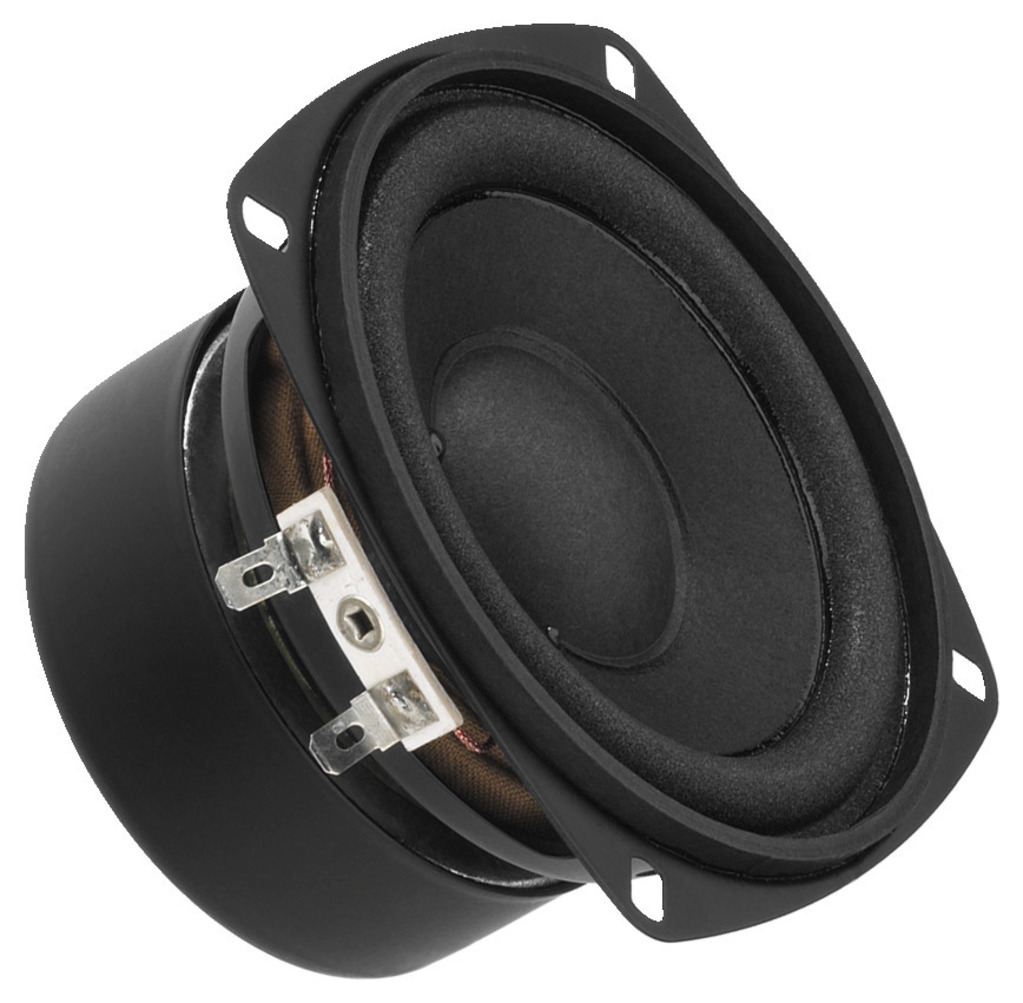

https://www.parts-express.com/Goldwood-GW-204-4S-4-Shielded-Poly-Woofer-4-Ohm-290-370

Last edited:

hursit

Enlightened
Joined
Mar 12, 2016
Messages
1,186
Reaction score
3,382
Location
Turkey
I'm just going through some things building out the cab and I have some questions. I'll probably have more later :)

  • What are the connector types? Where can I get them? What pins, crimper, wire gauge, etc. would I need to build new harnesses to connect to them?
  • How do I wire up the coin counter? Does it matter where each wire goes?
  • I'm using a 19" LCD monitor. I didn't look at this yet, so, sorry if it is obvious, but will I be able to mount it to the frame/what's the best way to set it up? Is there any way I can get a spot within the cab itself to plug it in? (It looks like there's a 2 prong receptacle, but I need a grounded 3 prong for this)
  • I'm using the GBS-8200. This requires +5v 2amps for power. Is it a good idea to tap into the arcade power supply for this? Should I try to jam another wire into the 5v/ground slots of the power supply or is there another way I can tap into it?
  • Will I be able to use all 4 buttons on a NEO GEO 1 slot (MVS 1B) out of the box? If not, any ideas?
  • We need to bring our own coin mech, right? Is this one standard/will it fit? https://na.suzohapp.com/products/coin_doors/42-3079-100
*There are LE Connectors. I have find a supplier from China but i dont know is there another source
* I have showed the wires of Coin mech in my " How To Build " Video
* Im working on a LCD solution too but please remember, this cabinet produced only for WG K7000 19" CRT
* I dont know what is GBS-8200 Sorry. I beleive another members will reply this
* @Derick2k and @Lemony Vengeance and @rewrite did you check it with MVS 1B ?
* Yes you need to get your coin mech. It supports only Asahi Seiko AD-81P and P2
Hi all, Im going to need help as well. These are my first cabs. My first issue to figure out is how to mount the monitor as the holes do not align. I didn’t go with the WG and went with 19” VGA monitors instead.

Monitor bracket holes measure left to right is 16” and top to bottom is about 12.75”.
Cute holes are 17” and 13.25”.

Any suggestions on what to use? Thanks

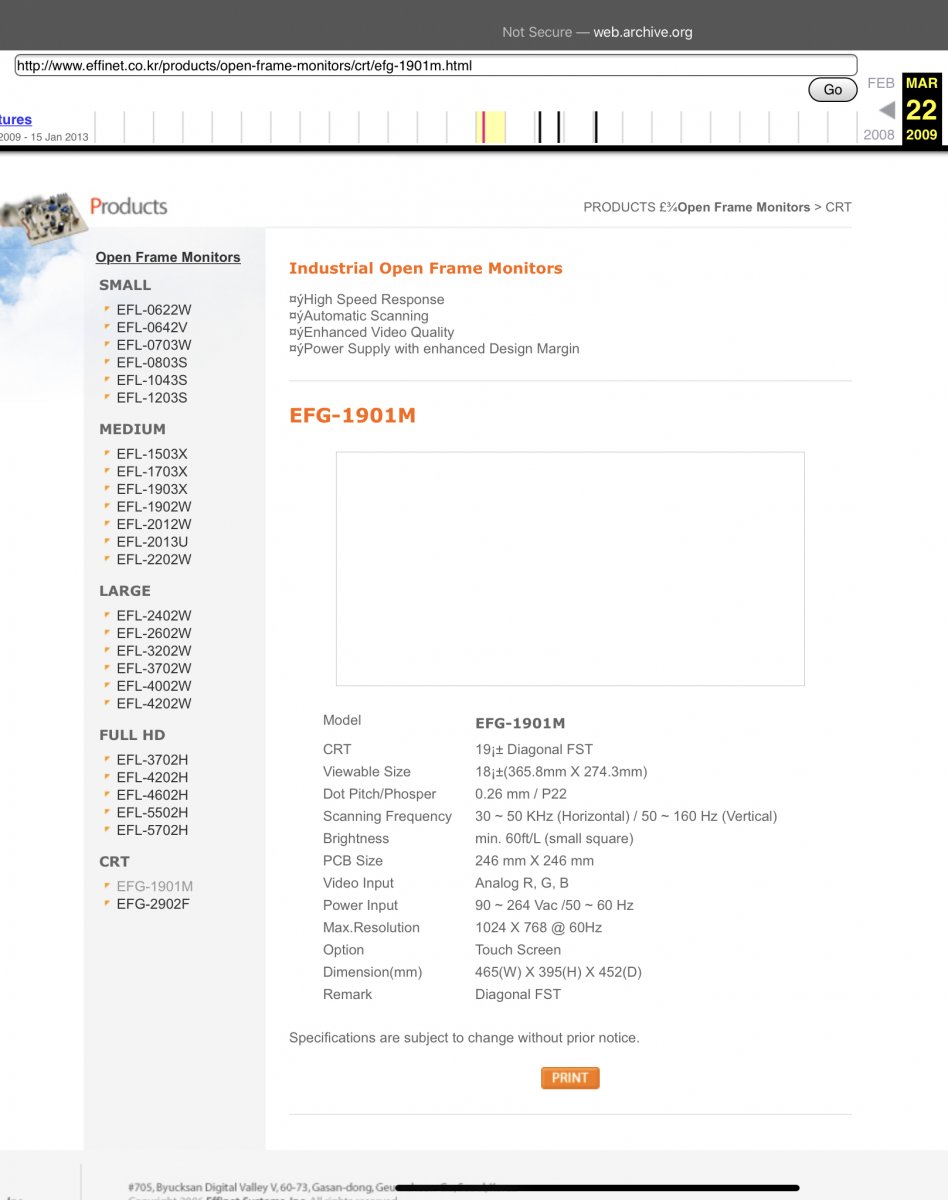

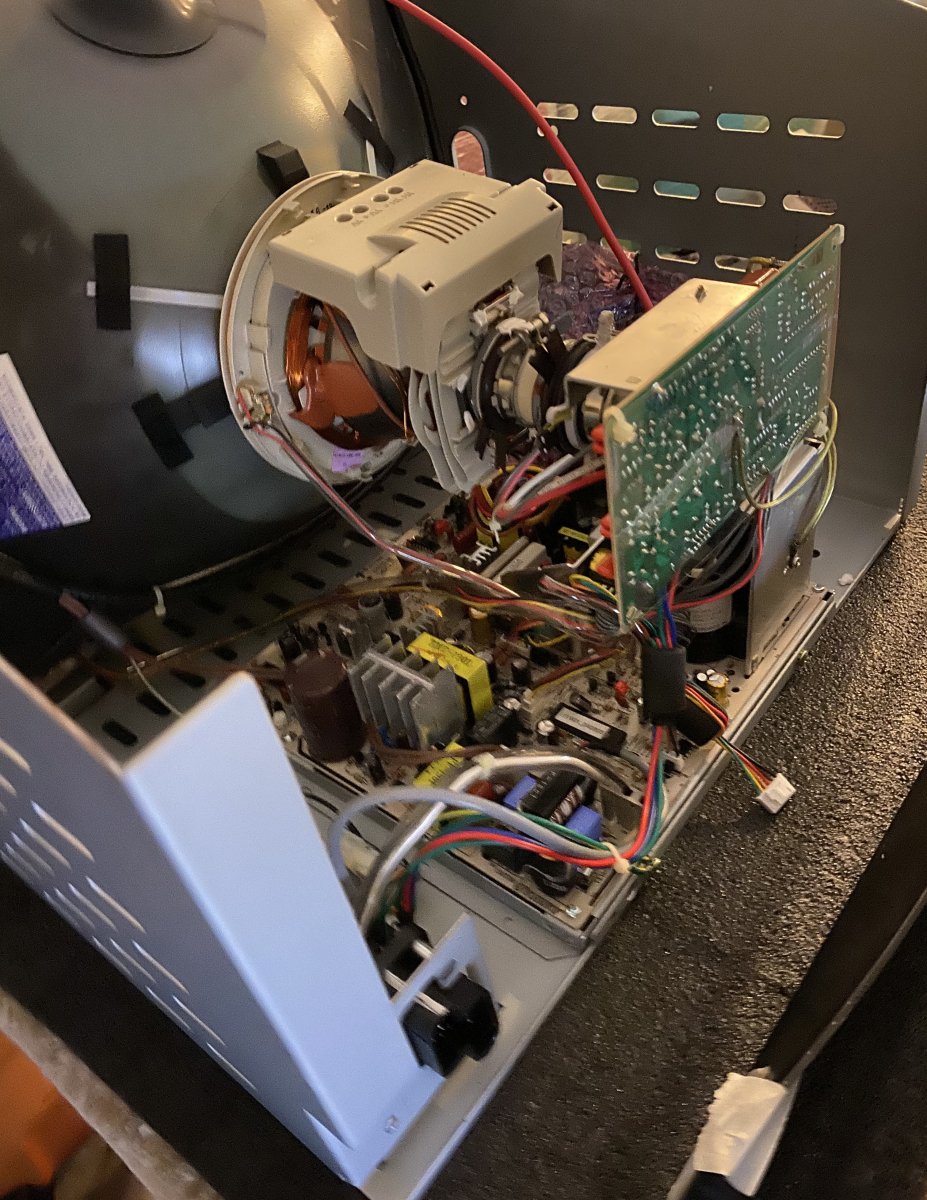

Which CRT you have, please share some info about it
So that it is easier to whoever sees this thread, I'm quoting Hursit on the coinmechs needed.

"Asahi Seiko AD-81P2​

Asahi Seiko AD-81P"​


I can't find the message where speakers were mentioned. What set is a good fit?
Can somebody assist?

I found the link but if anyone has other suggestions, let us know?
https://www.parts-express.com/Visat...ustcol_ava_pickup=F&custcol_disableshopping=F

Another member had asked if these would work, but I don't think anyone has tried.
https://www.parts-express.com/Goldwood-GW-204-4S-4-Shielded-Poly-Woofer-4-Ohm-290-370
@Lemony Vengeance and @Derick2k can you inform us about of the Speaker please


pbjr

Beginner
Joined
Feb 14, 2021
Messages
19
Reaction score
22
Location
NY

Attachments

  • 0DFBF363-3303-4CE0-845E-7F2F905AED2D.jpeg
    23.2 KB · Views: 42
  • CC8C4980-9A92-4861-8036-A43BCDEB4230.jpeg
    18.9 KB · Views: 37
  • B3EDF687-53A5-4E6D-AC66-BC46D03C9517.jpeg
    106.6 KB · Views: 38
  • 8D8DFD10-7972-4055-BAFE-9202F8A753FA.jpeg
    239.5 KB · Views: 36
  • EC612B9E-E674-462F-932F-2E0B8DE4D3CF.jpeg
    217.8 KB · Views: 36

nem

Legendary
Joined
May 29, 2016
Messages
5,087
Reaction score
4,773
Location
Finland
That's the wrong size tube. Yours is 46, the frame is made for a 48.
