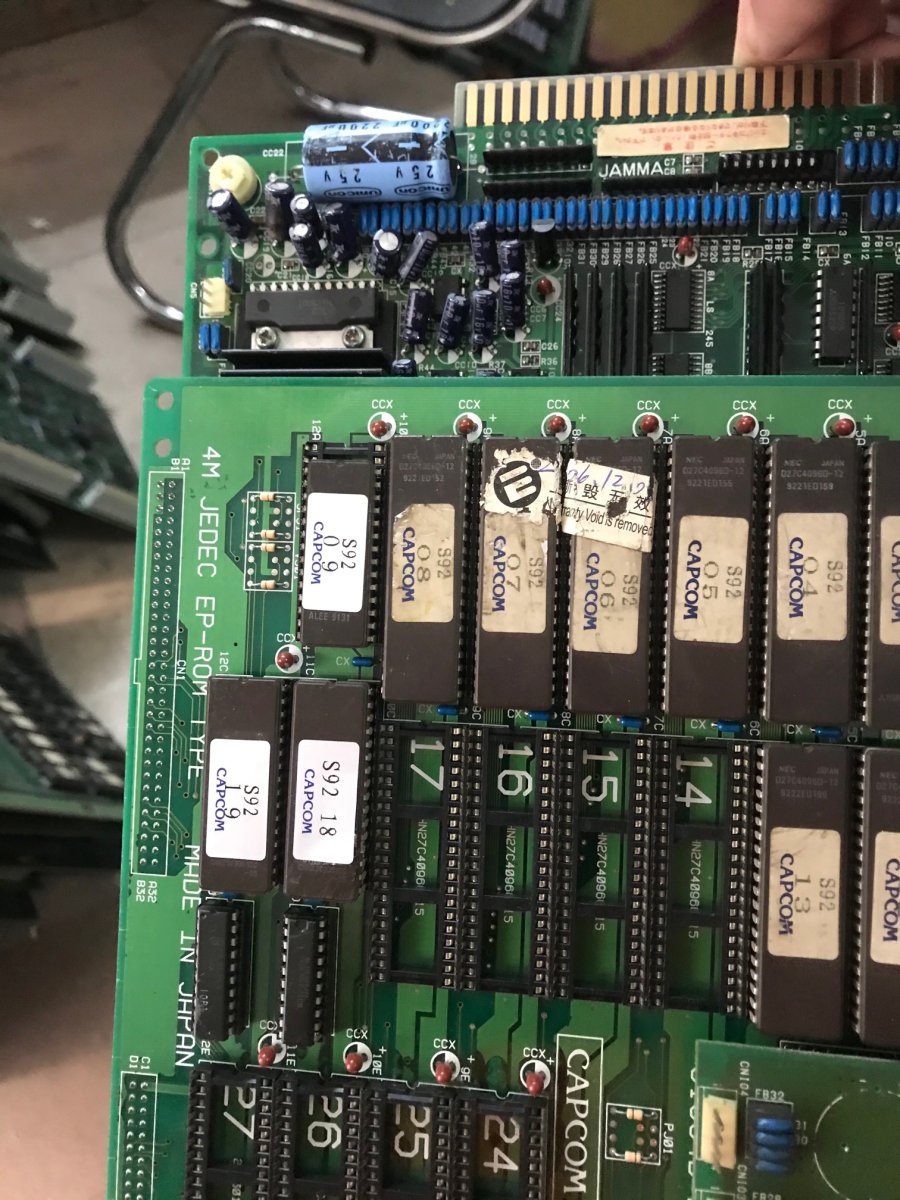

SF2 USD140.00(picture 7976-7980)
Gunbird 2 US200.00(if u can also take the other game),we'll give u some more discount^+^.


Attachments

  • IMG_7977.JPG
    248.2 KB · Views: 103
  • IMG_8031.JPG
    251.2 KB · Views: 117
  • IMG_8030.JPG
    237.5 KB · Views: 103
  • IMG_8029.JPG
    244.6 KB · Views: 93
  • IMG_8027.JPG
    247.4 KB · Views: 103
  • IMG_8026.JPG
    281.2 KB · Views: 105
  • IMG_7980.JPG
    234 KB · Views: 102
  • IMG_7979.JPG
    233.7 KB · Views: 83
  • IMG_7978.JPG
    236 KB · Views: 83
  • IMG_7976.JPG
    264.5 KB · Views: 116
Last edited:

aerobert

Enthusiast
Joined
Nov 9, 2019
Messages
156
Reaction score
94
Location
Sweden
That's a PS3-V1 pcb (weird, as Gunbird 2 used to be in PS5 pcb)

Is PS3-V1 board also elegible for Multi?
"PS5 has a different memory map than PS3-V1. Otherwise identical." According to mamedev. So its a conversion...and in poor condition.


Nebula

Professional
Joined
Sep 11, 2017
Messages
243
Reaction score
209
Location
Spain
"PS5 has a different memory map than PS3-V1. Otherwise identical." According to mamedev. So its a conversion...and in poor condition.

Maybe they are identical in terms of game capabilities, but they are physically different.

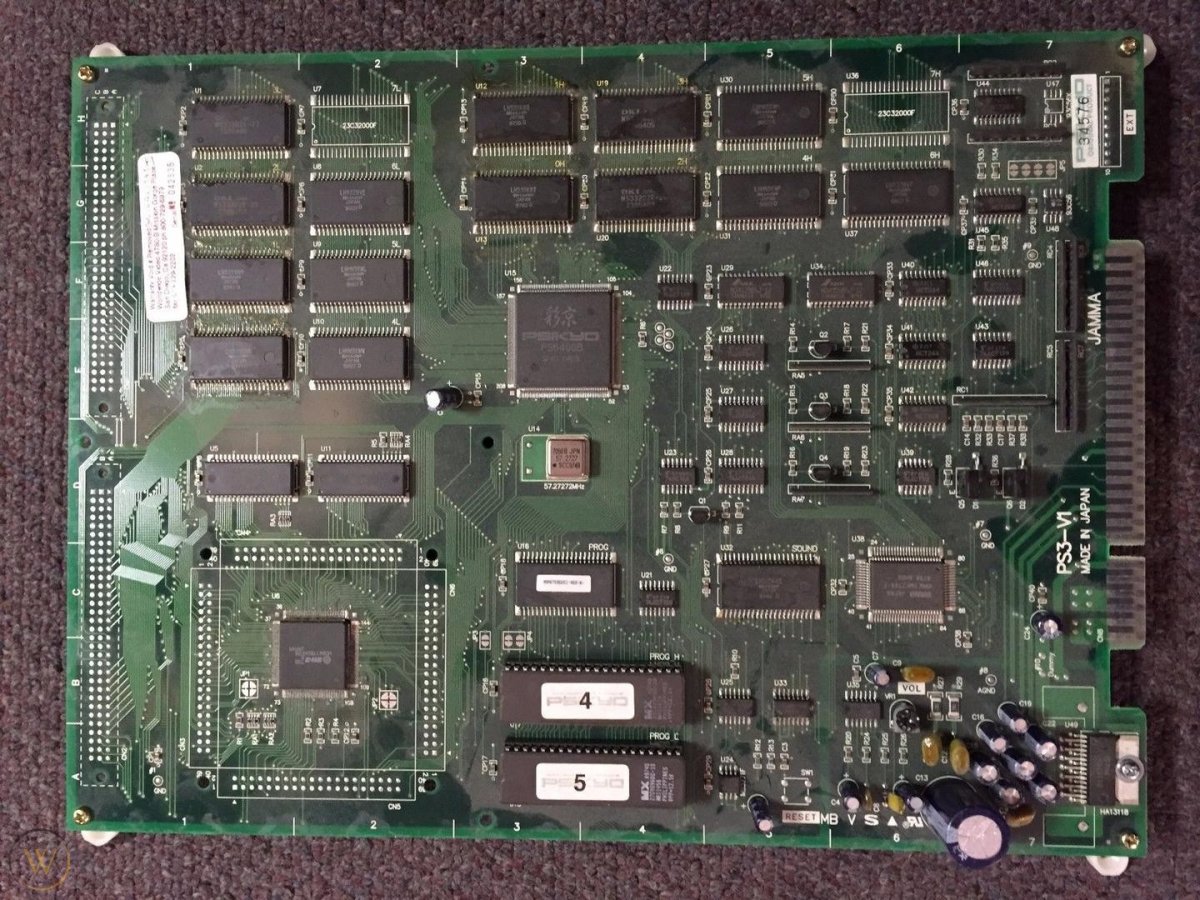

  • PS3-V1 (from Strikers 1945 II):

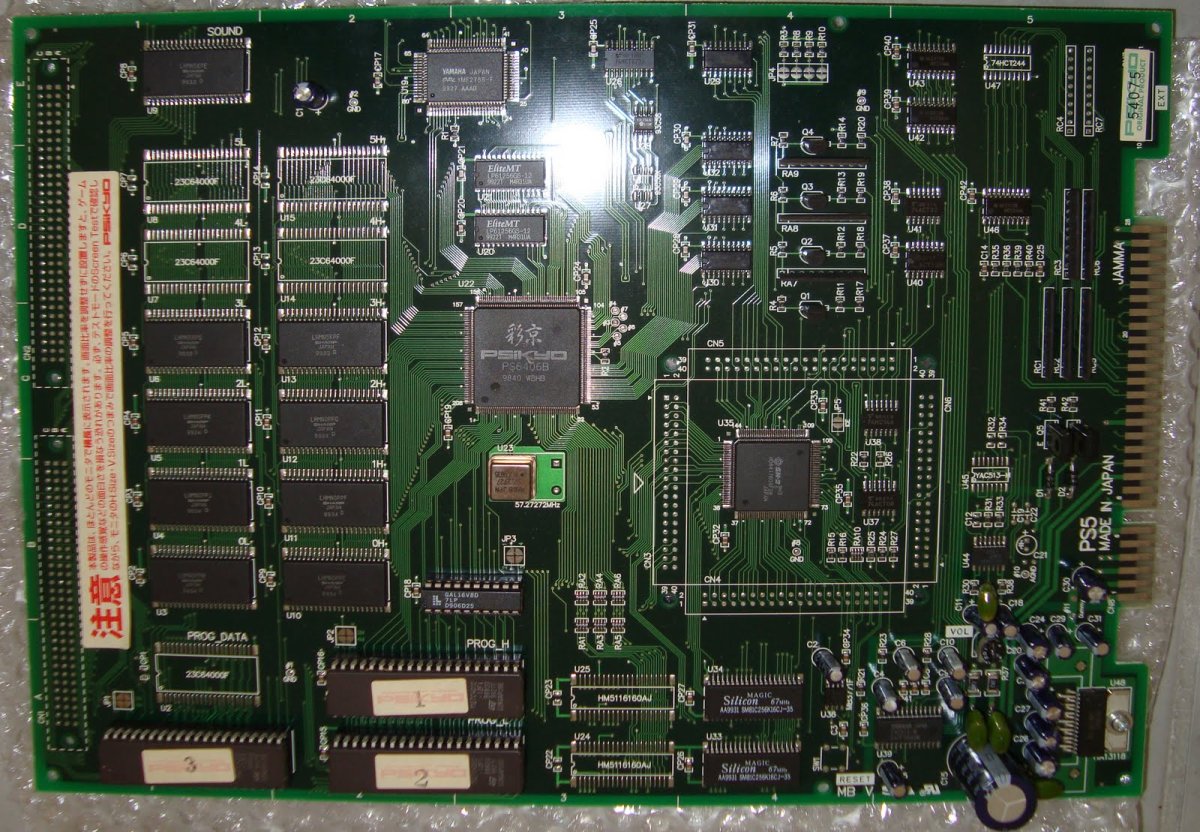

  • PS5 (from Strikers 1999):



Also, PS5 variant has an enhanced audio circuit. It's able to use YAC513 or YAC516 (more complex) DACs



And sorry to the OP, for hijacking the thread :S


bytestorm

Enthusiast
Joined
Nov 22, 2015
Messages
296
Reaction score
142
Location
Sweden
Gunbird 2 pcb looks legit to me, dont think its a convertion.

  • Like
Reactions: nem

kuze

Champion
Joined
Jul 22, 2015
Messages
2,064
Reaction score
1,620
Location
DFW
Gunbird 2 pcb looks legit to me, dont think its a convertion.
Seconded. Not the first time I have seen Gunbird 2 on this PCB type. My guess is that Psikyo used whatever PCB stock they had available.

Program ROMs on this one will match the PS5 version. The different memory map is handled elsewhere on the PCB.


twistedsymphony

Enlightened
Staff member
Immortal
Joined
Jul 21, 2015
Messages
10,909
Reaction score
11,366
Location
NH, USA
Whoever buys that GunBird Please dump the ROMs. Those look like original Psikyo ROMs which means that the memory map refactoring may be in Code as opposed to PCB logic.

it's also possible that the epoxy bubbles on the top and bottom of the PCB are where the logic was remapped (these are the exact areas you need to modify to perform a remap), and if that's the case then the multi may not work on this board as it will undoubtedly need to tap into the pads in the memory map areas in order to switch between PS3 and PS5 memory maps.


kuze

Champion
Joined
Jul 22, 2015
Messages
2,064
Reaction score
1,620
Location
DFW
Whoever buys that GunBird Please dump the ROMs. Those look like original Psikyo ROMs which means that the memory map refactoring may be in Code as opposed to PCB logic.

it's also possible that the epoxy bubbles on the top and bottom of the PCB are where the logic was remapped (these are the exact areas you need to modify to perform a remap), and if that's the case then the multi may not work on this board as it will undoubtedly need to tap into the pads in the memory map areas in order to switch between PS3 and PS5 memory maps.
I've checked the EPROMs on a Gunbird 2 running on PS3-v1 and they matched MAME.

You might be right about those epoxy bubbles.


twistedsymphony

Enlightened
Staff member
Immortal
Joined
Jul 21, 2015
Messages
10,909
Reaction score
11,366
Location
NH, USA
Yeah I've seen Gunbird 2 running on PS3-V1 as well (I actually own one), but never with original Psikyo Mask ROMs and original Program ROM stickers.

It stands to reason if it was a genuine Psikyo conversion they'd have the source code to recompile with the alternative map.


kuze

Champion
Joined
Jul 22, 2015
Messages
2,064
Reaction score
1,620
Location
DFW
Yeah I've seen Gunbird 2 running on PS3-V1 as well (I actually own one), but never with original Psikyo Mask ROMs and original Program ROM stickers.

It stands to reason if it was a genuine Psikyo conversion they'd have the source code to recompile with the alternative map.
On the other hand it's hard to imagine a bootlegger using genuine EPROMs and such a clean memory map fix.

Hard to know for sure, but signs point to legit.


MmSadda

Enthusiast
Joined
Jul 24, 2017
Messages
136
Reaction score
121
Location
Columbus, OH
Whoever buys that GunBird Please dump the ROMs. Those look like original Psikyo ROMs which means that the memory map refactoring may be in Code as opposed to PCB logic.

it's also possible that the epoxy bubbles on the top and bottom of the PCB are where the logic was remapped (these are the exact areas you need to modify to perform a remap), and if that's the case then the multi may not work on this board as it will undoubtedly need to tap into the pads in the memory map areas in order to switch between PS3 and PS5 memory maps.
I sent a PM on Gunbird 2 even before seeing this.

I want to play this game. Not confident in my ability to dump the ROMs, but would GLADLY send it to someone who can (and I have a buddy locally who may well be able to help as well.)


sheep_nova

Professional
Joined
Dec 9, 2018
Messages
200
Reaction score
331
Location
China
Guardians, USD145.00
Strikers 1945 I USD130.00

If u can take the 2 pcs game at the same time,we'll give u some more discount.

Thx


Attachments

  • IMG_9724.JPG
    221.8 KB · Views: 54
  • IMG_9727.JPG
    164.7 KB · Views: 58
  • IMG_9969.JPG
    242.8 KB · Views: 58
  • IMG_9970.JPG
    214 KB · Views: 57
  • IMG_9971.JPG
    138.4 KB · Views: 49
