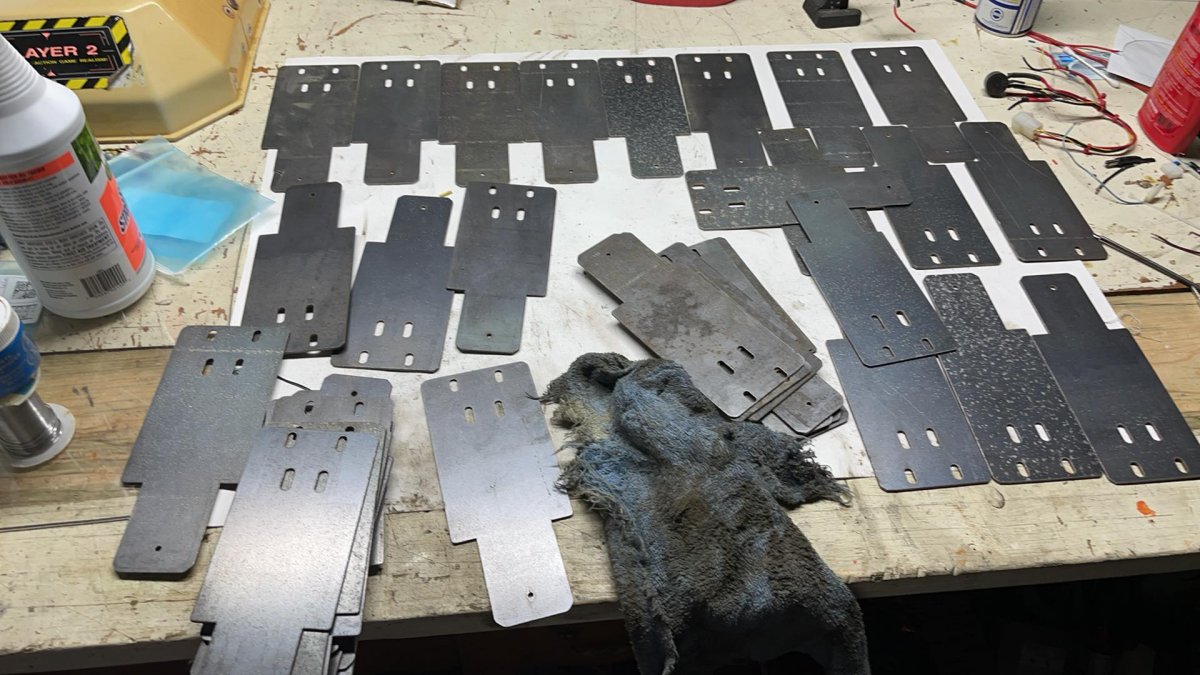

I needed some chewlix TATE bracket and after getting the measures from pictures, I wanted to make a set or two and thought, why not ask my friend to draw them in autocad so we can water jet cut a bunch?!

So we did:

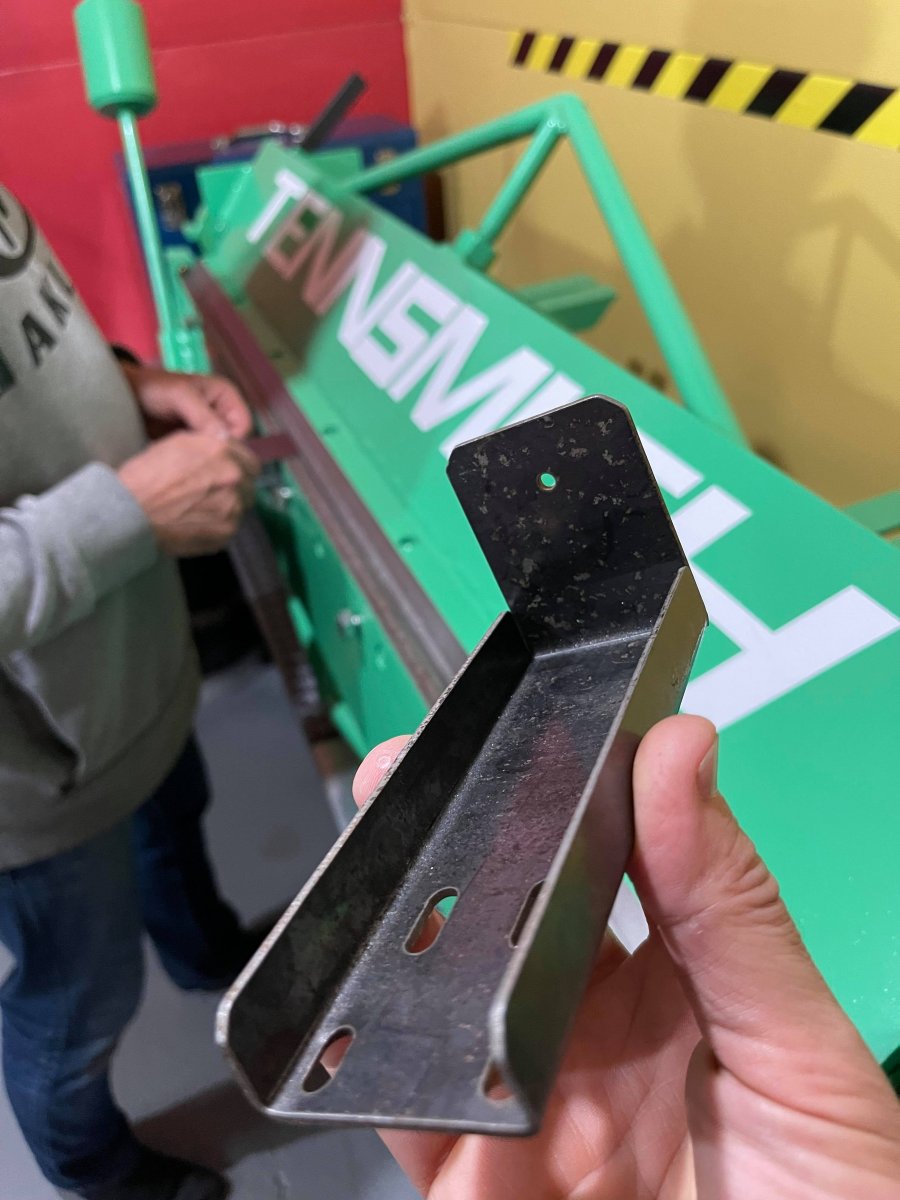

And then folded them

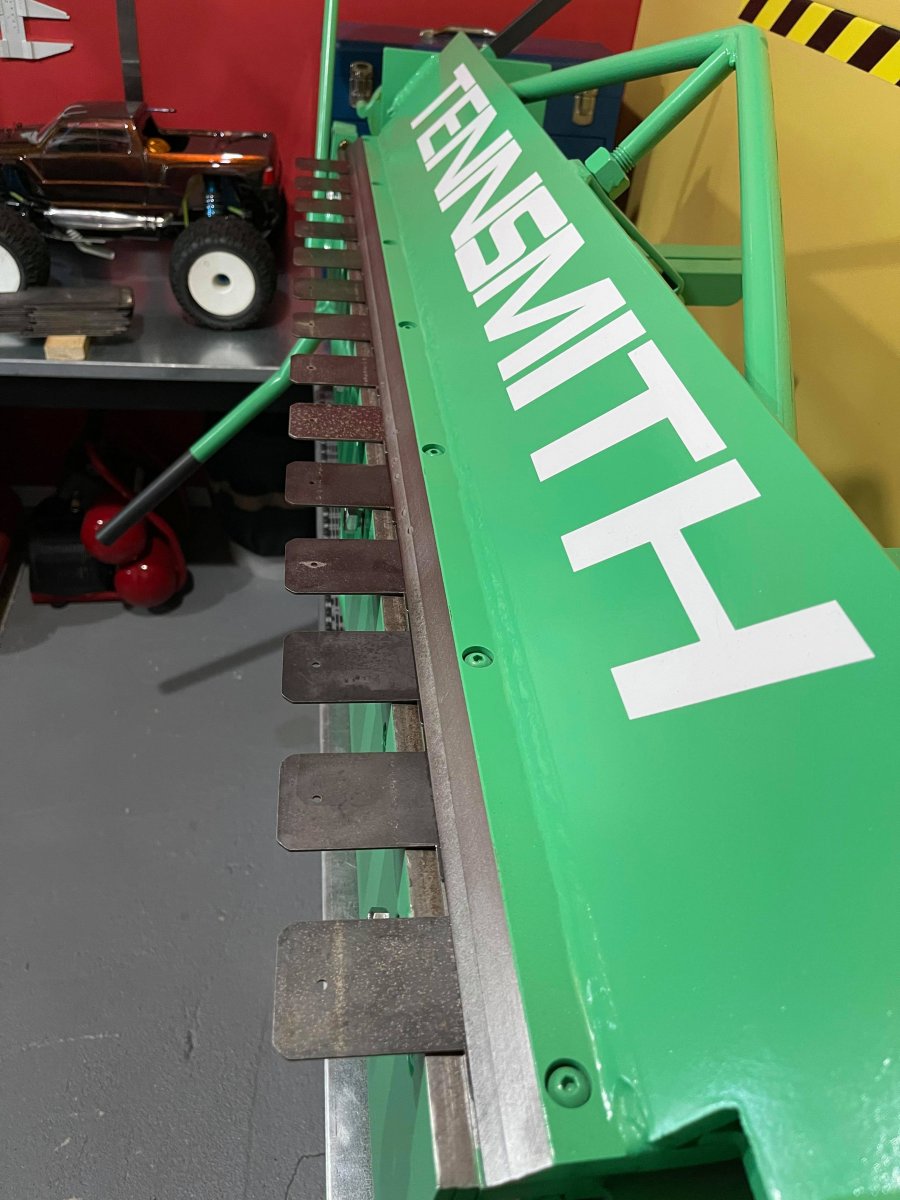

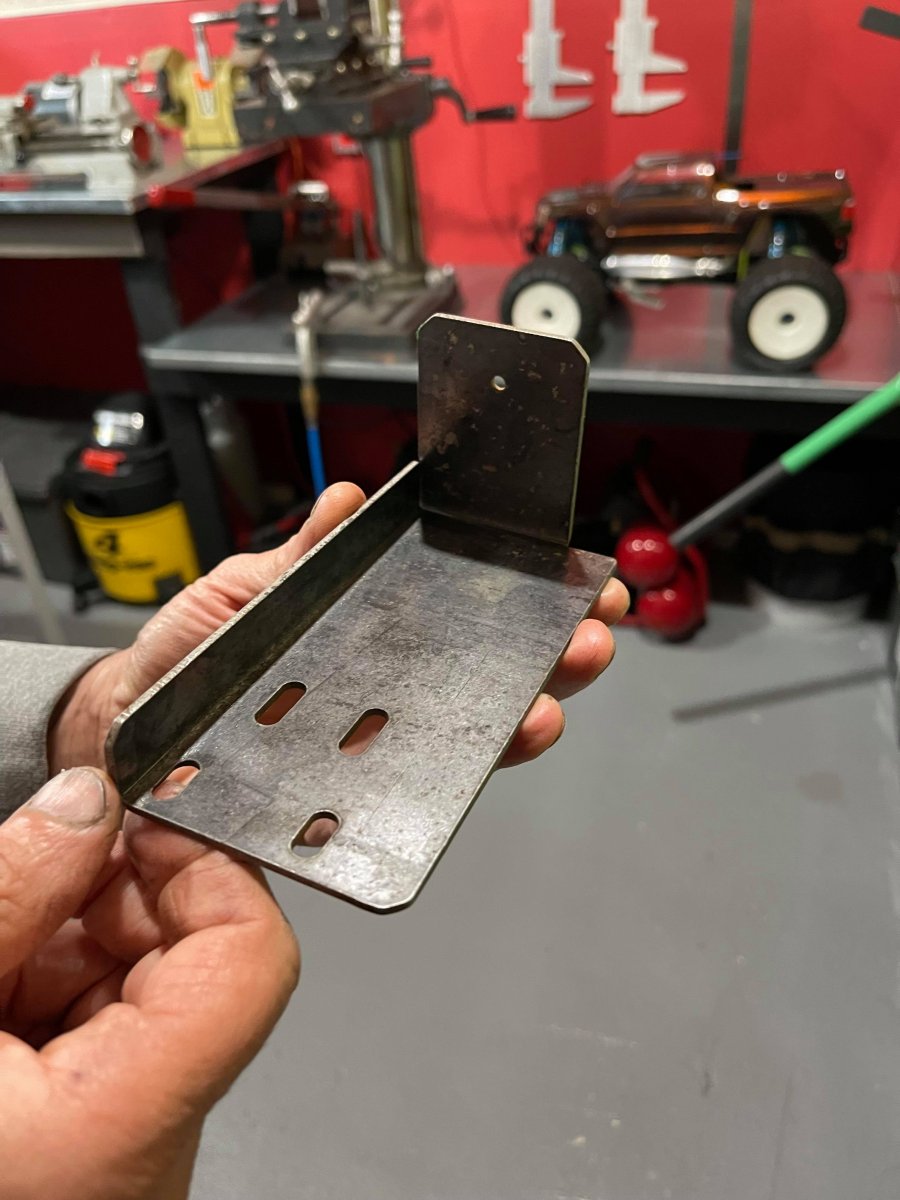

turned out pretty good

Anyway, I have 5 0 sets left that I would be willing to sell @ 40$ each + shipping. ( my metal and cutting cost was 20$. I had to fold them all so I hope that price is not perceived as trying to make me rich... cause it ain't!)
The single hole is NOT threaded so 4 screws and nuts will be required or you can thread it if you want.

Here are the steps to put 'em in:

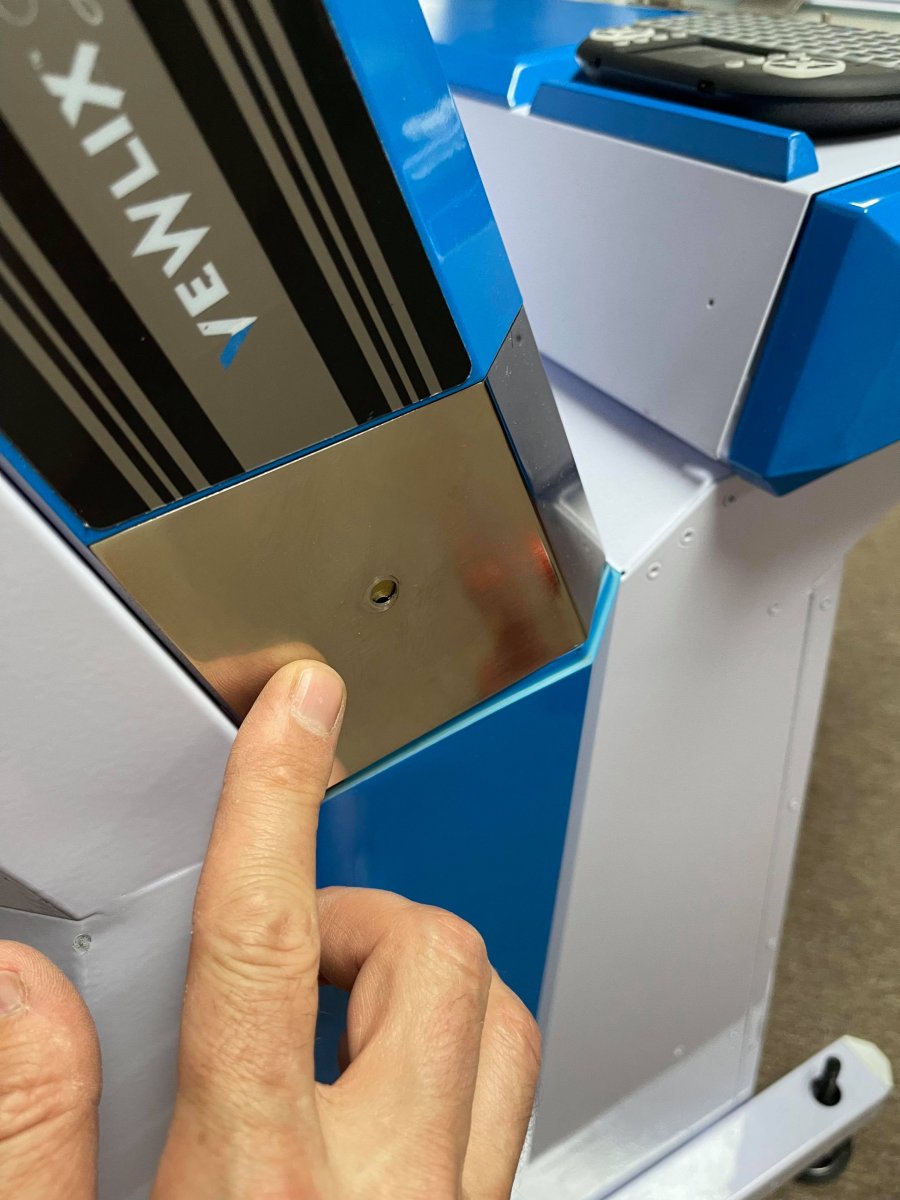

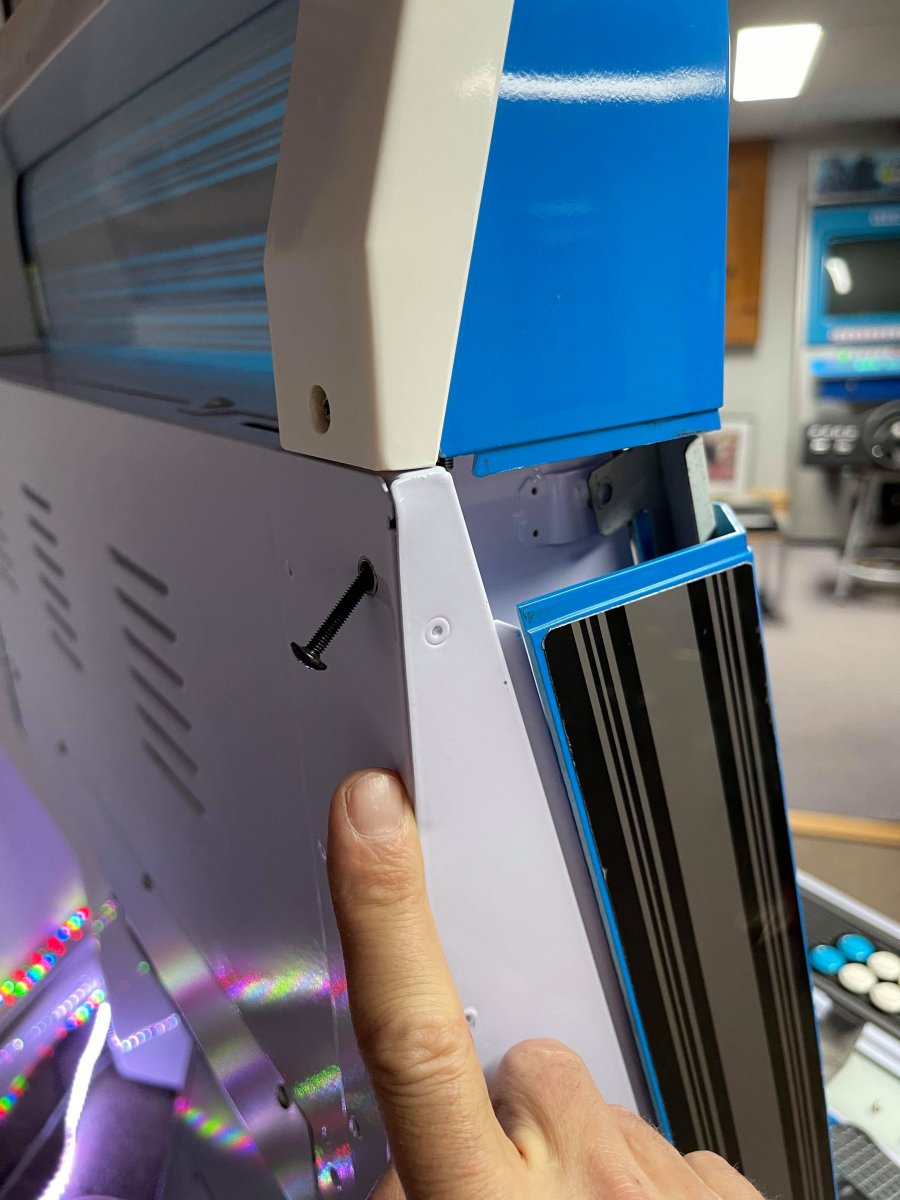

remove top back screw to remove front chrome plate

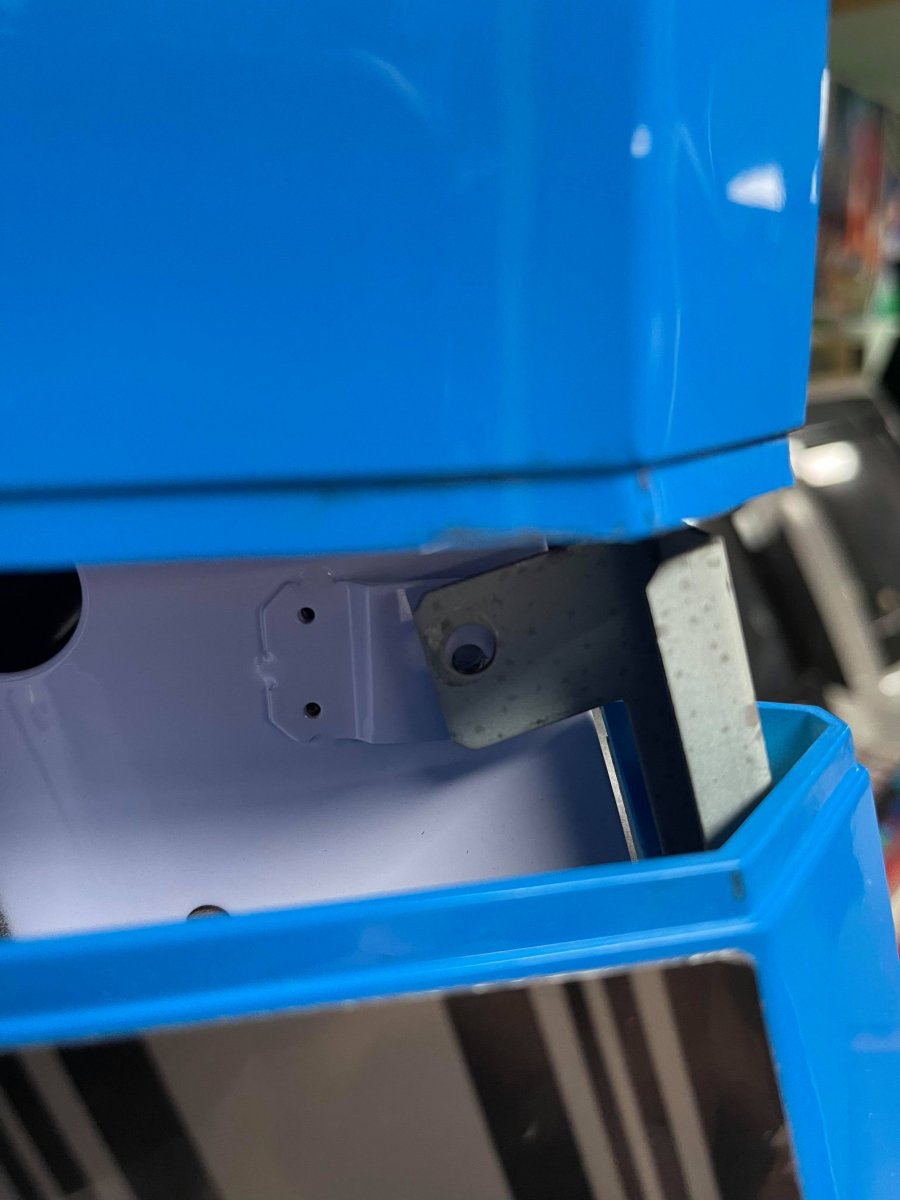

remove screw that's underneath top chrome plate

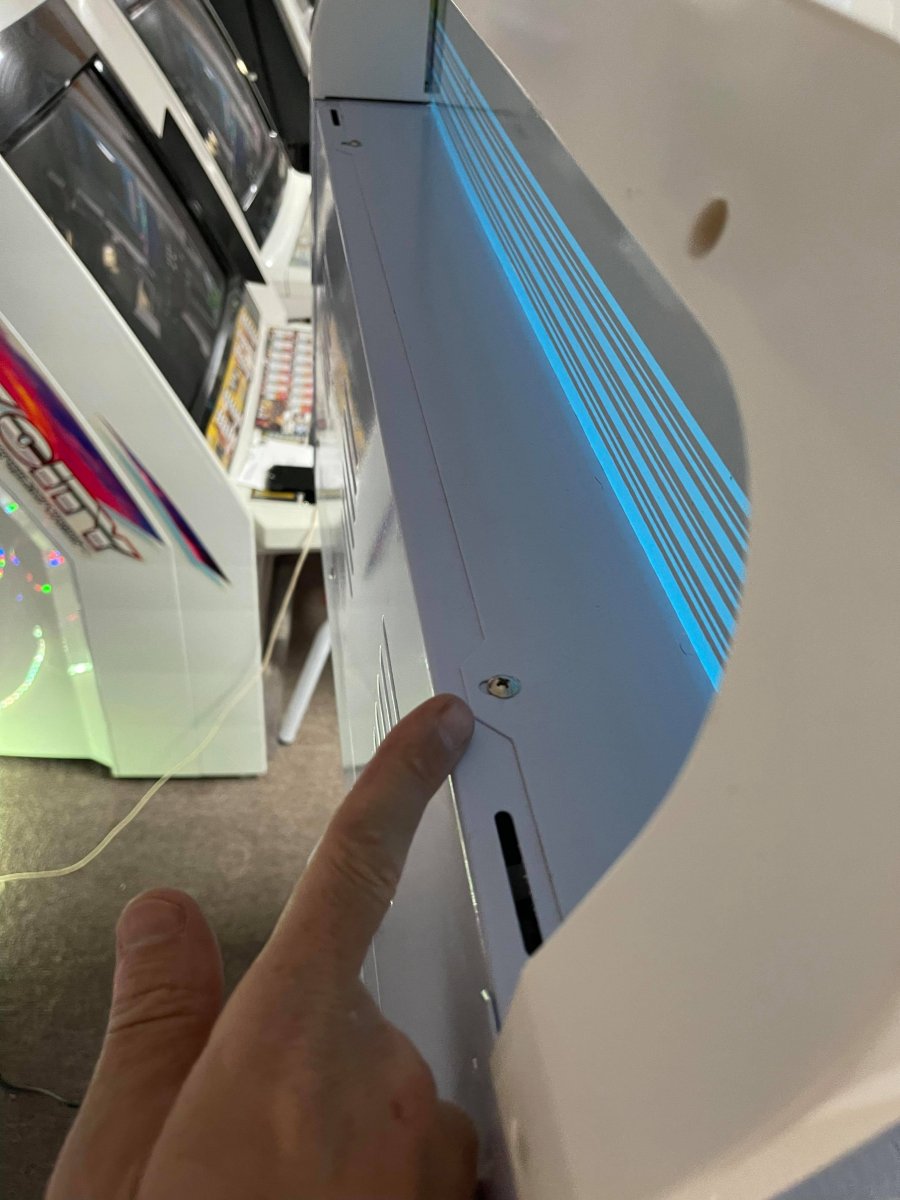

remove bottow chrome plate screw

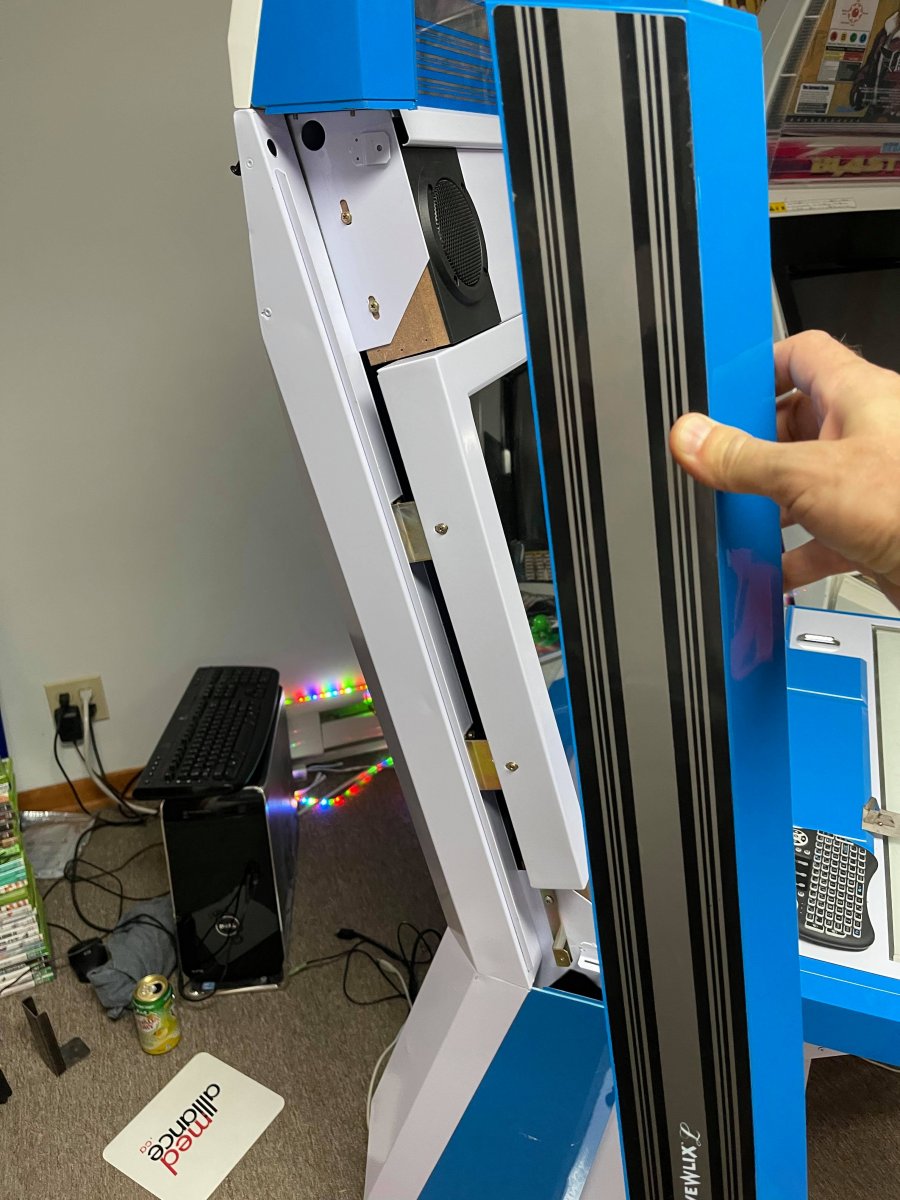

remove complete side

unscrew / adjust / untight / lift speakers to allow removal of screen



[Mrhide]

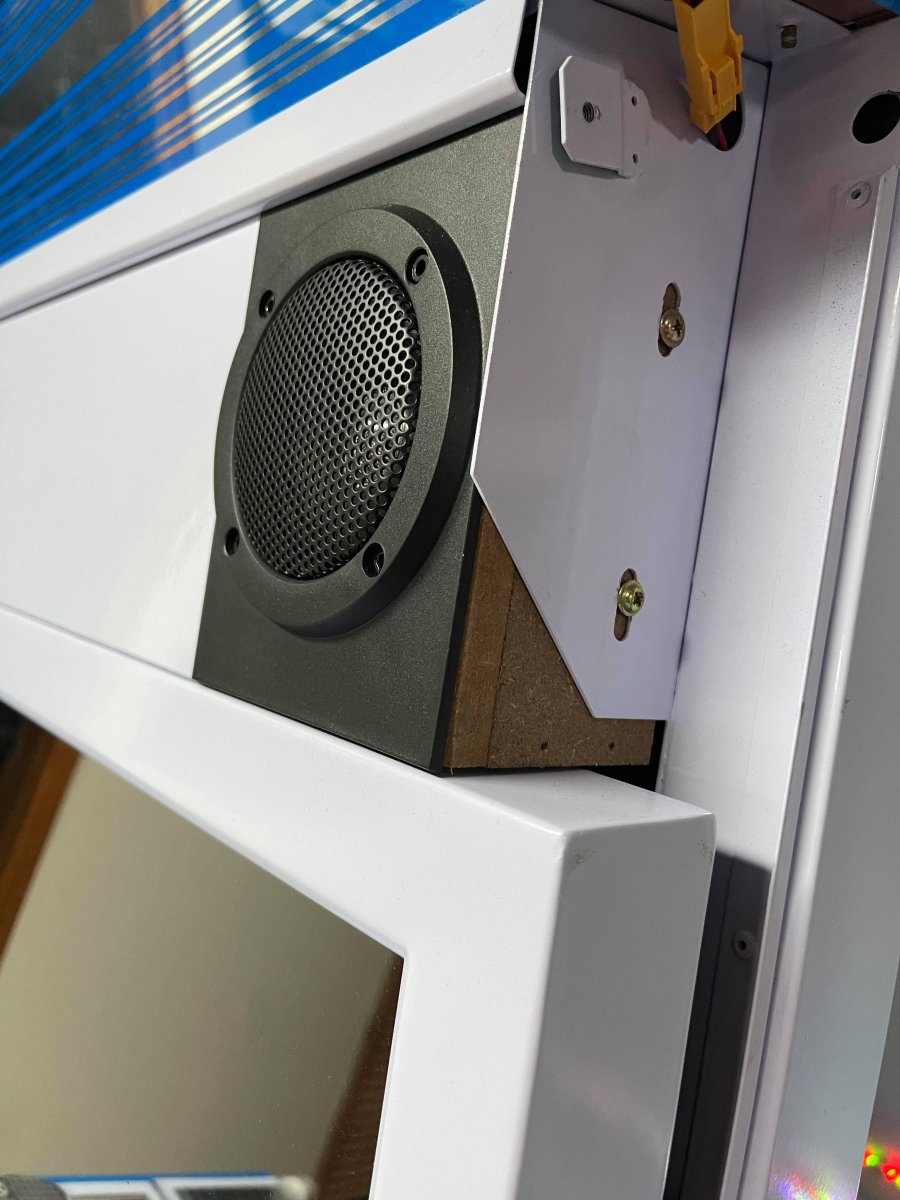

remove back top screws to remove front cover (on top of speakers)

unscrew the YOKO brackets from the screen and remove it

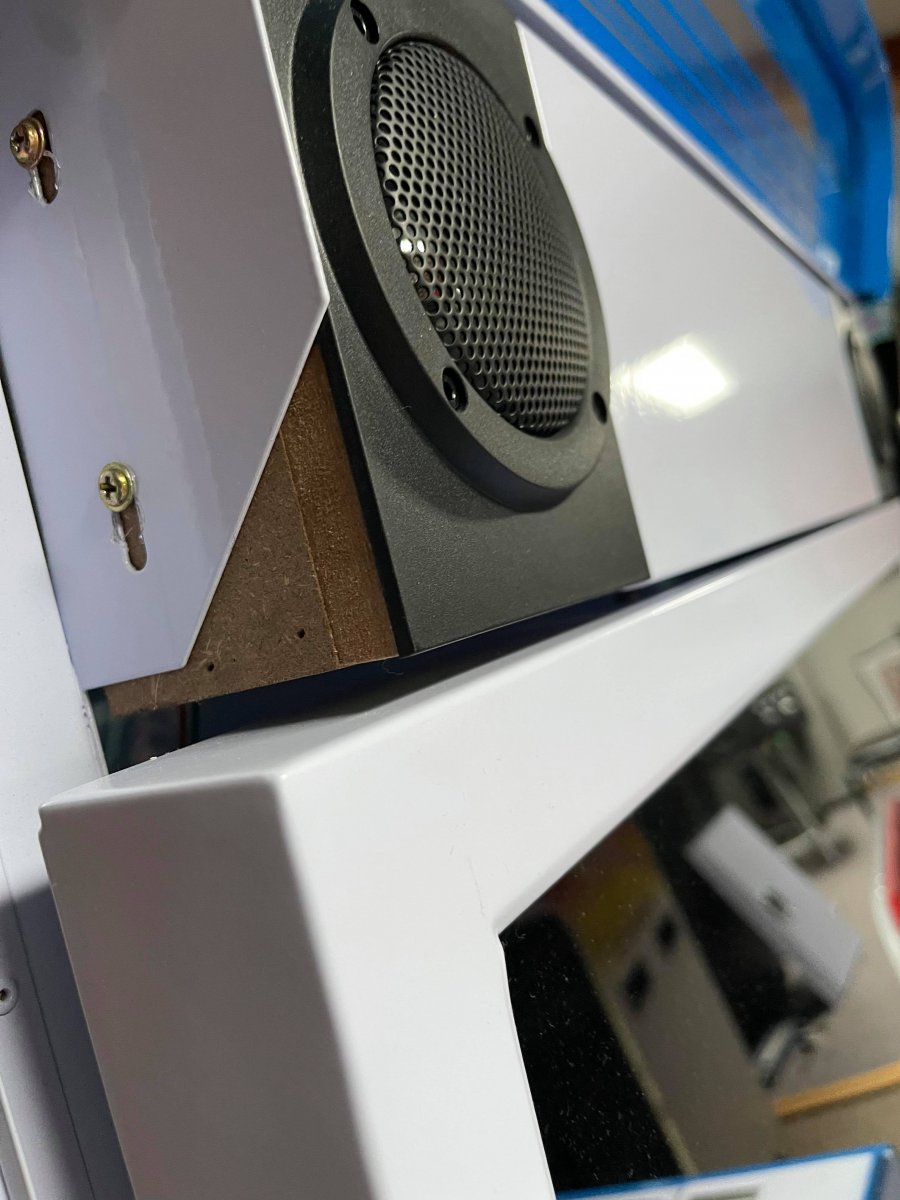

unscrew 2 screws from top and bottom speakers to remove the top and bottom "fillers"

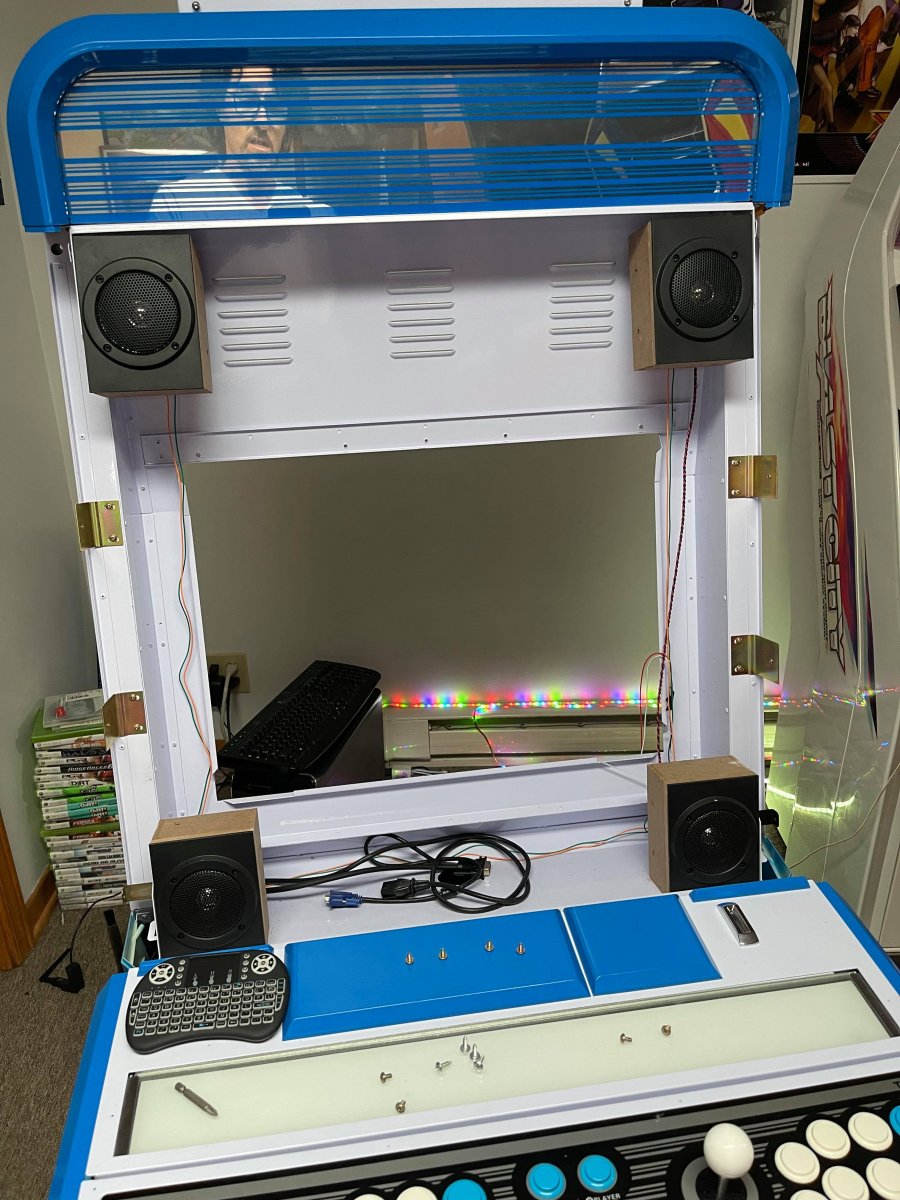

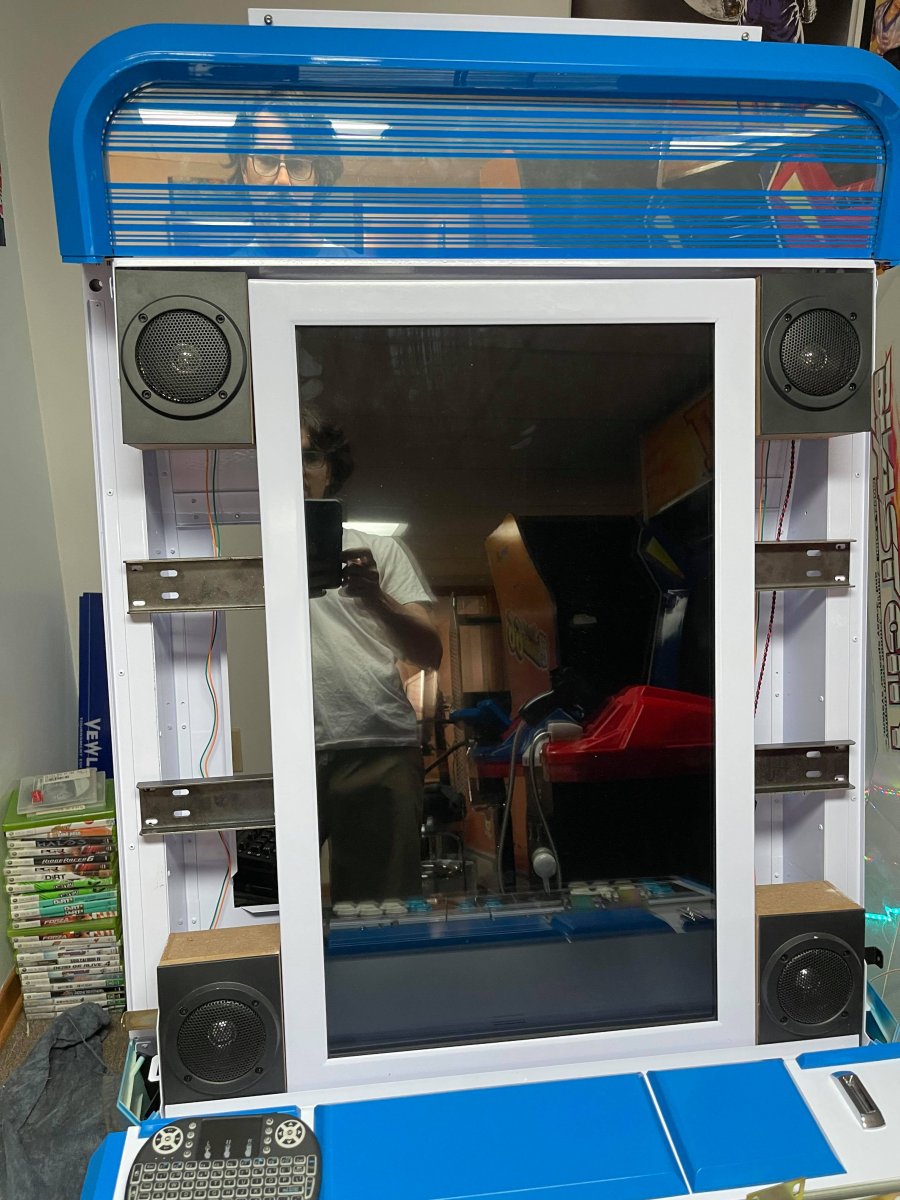

and you should be naked:

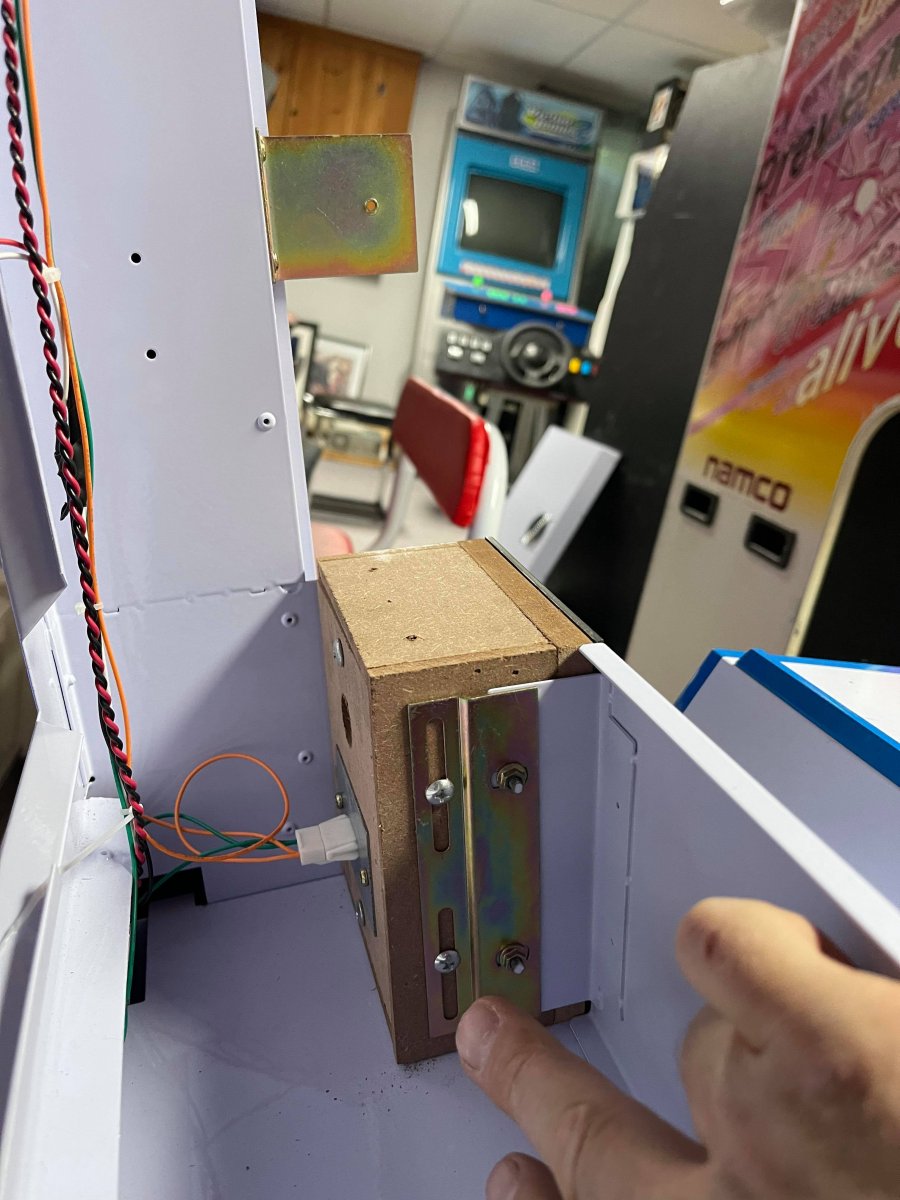

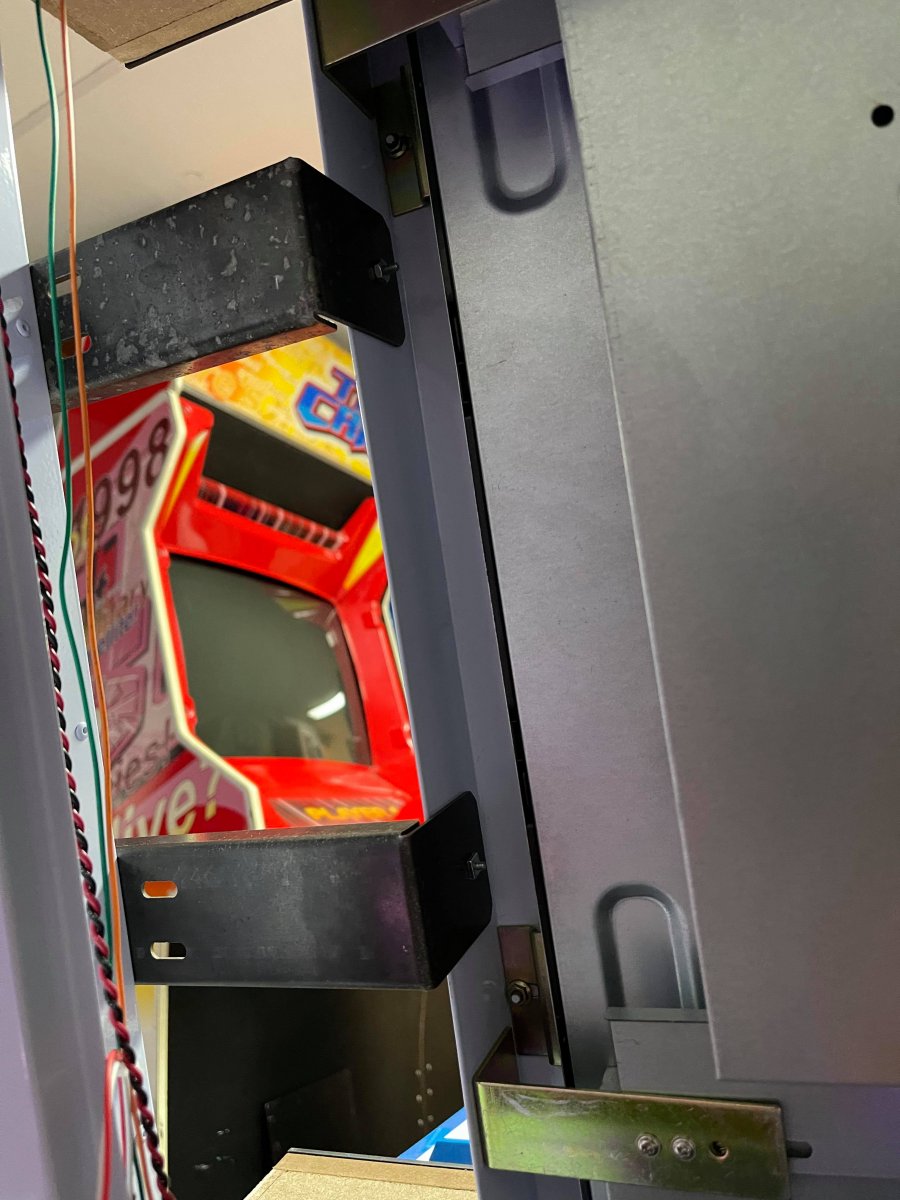

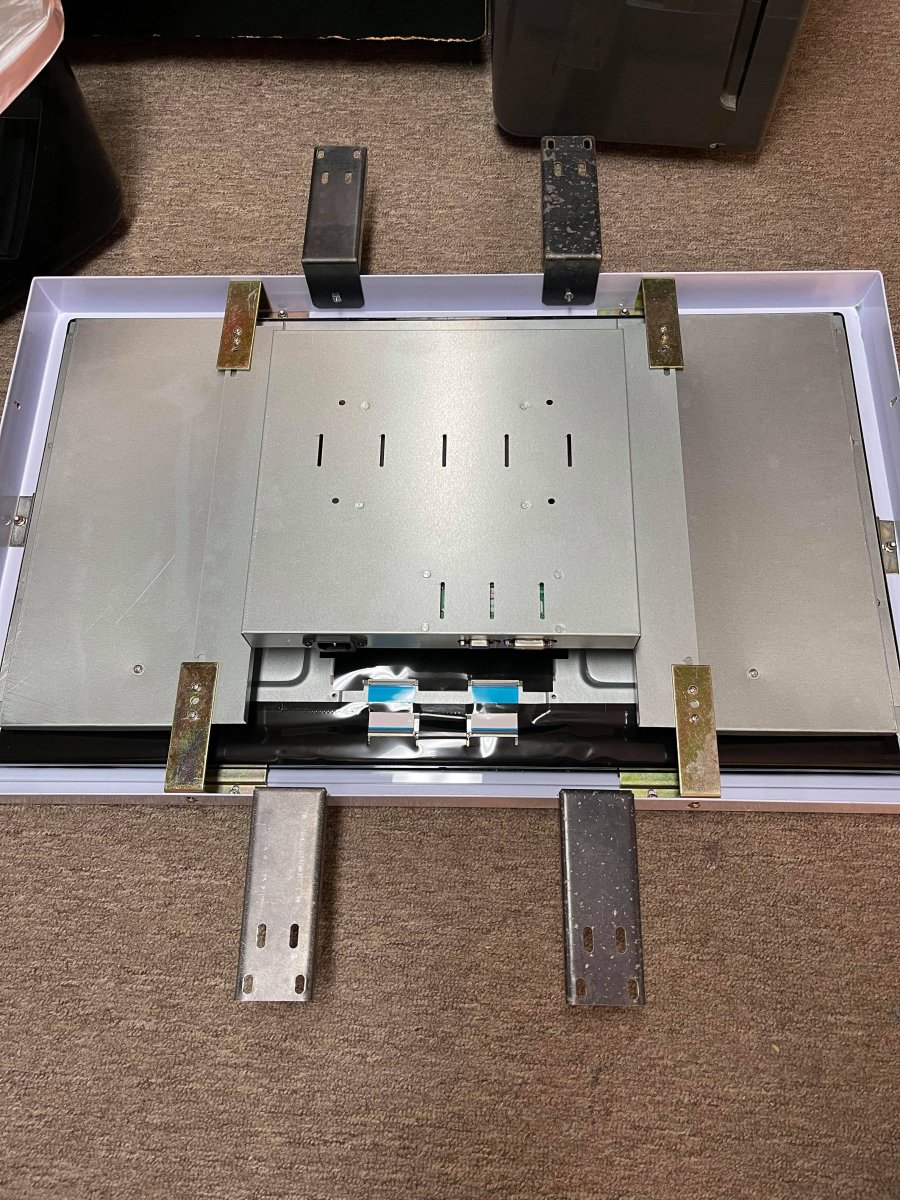

with the screen out on its face, put the new TATE brackets in :

Lift and put the screen back in

there is still access from the back to adjust if needed:

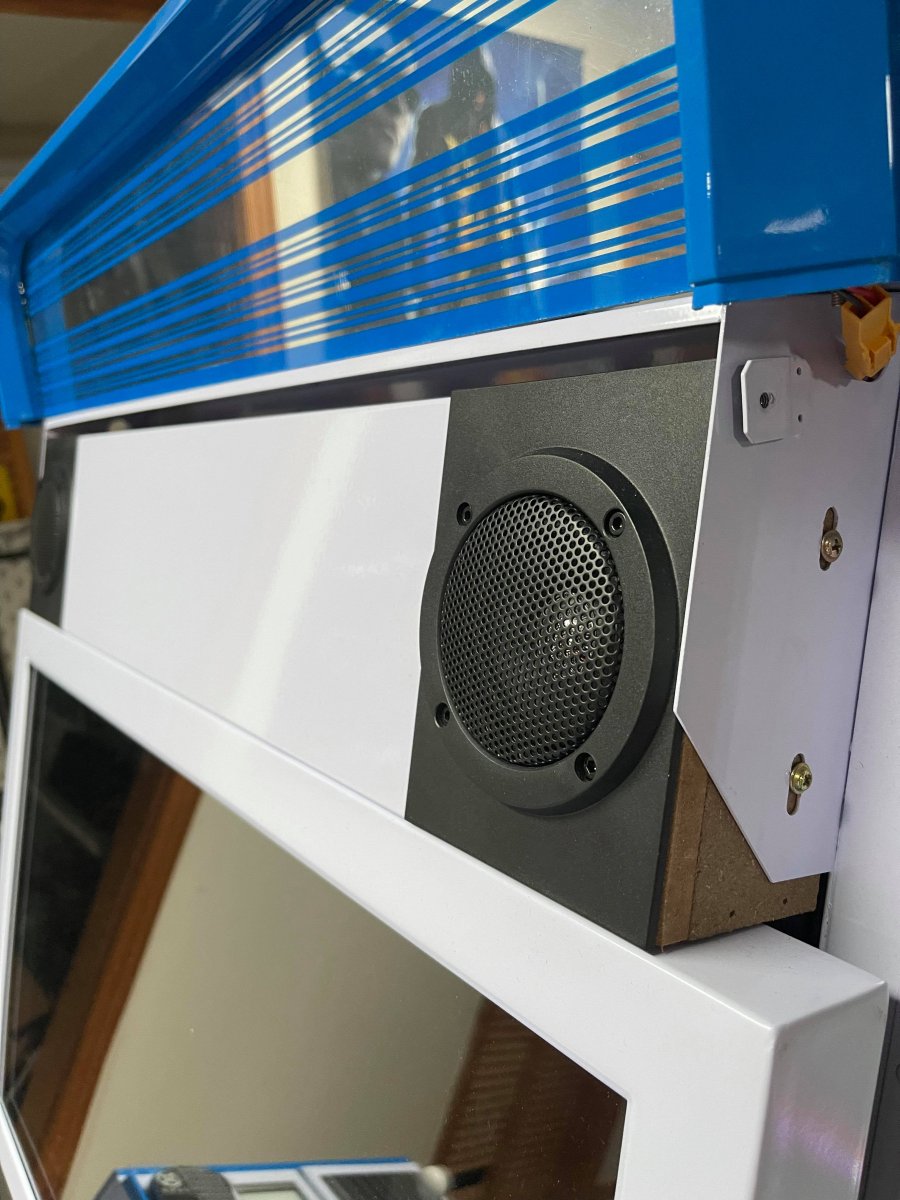

Adjust the screen so it's flat with the speakers. Screw top and bottow filler on right and left side.

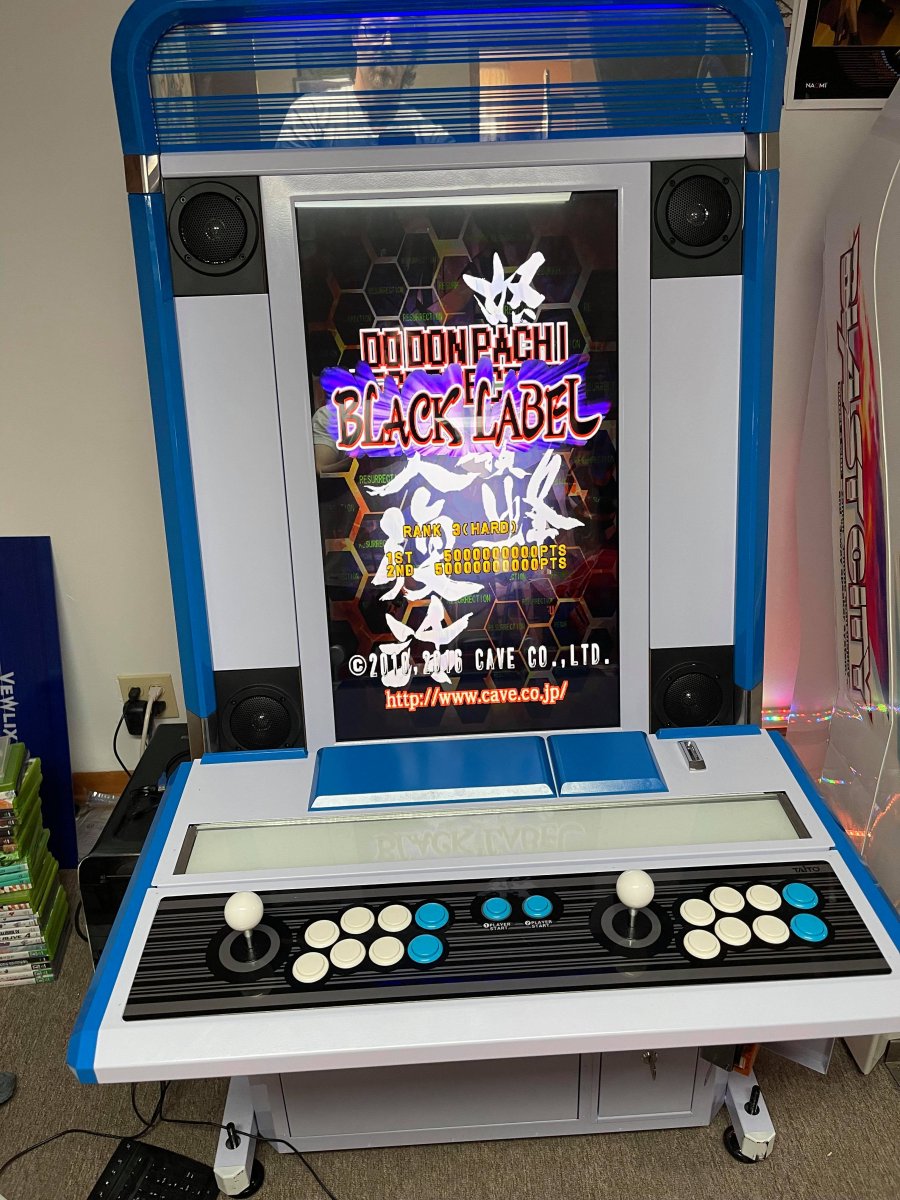

and Enjoy:
