Hello,

I very recently just got my first Arcade cab (sega new astro city) and I'm slowly learning the ins-and-outs of it.

The cab came wired up with Neo Geo MVS 1 slot board using JAMMA and it also came with a Pandora Box which I have swapped back and forth to test things out and all is working great.

I now purchased a CPS2 X-Men vs SF board and I feel like I didn't do my homework before the purchase since I have been reading that, even though MVS and CPS2 are both JAMMA, they are not the same and I might kill a board by plugging it into the MVS JAMMA. Is that really the case? are this not compatible and is there a risk of damage?

Thanks!


PascalP

Legendary
Joined
Jan 17, 2016
Messages
5,506
Reaction score
3,541
Location
The Netherlands
Nope, same Jamma, the MVS wiring standard is only for multi slot MVS boards.

Only thing you might need to wire in additionally is a kick harness for the CPS2, does your cab have 6 buttons per player?


thomas3184

Professional
Joined
Feb 1, 2019
Messages
386
Reaction score
161
Location
Northern California
Need details on that pandora you been using too, it has an adapter on it?


vholfx

Student
Joined
Sep 12, 2019
Messages
43
Reaction score
7
Location
Chile
Thanks for the quick replies!.

It has 6 buttons per player but I see no kick harness, they are all coming from the jamma connector. The Pandora Box has no adaptor, I double checked, and I tested all buttons in the service menu of the pandora and they all work, no kick harness there either.

Is that ok?


PascalP

Legendary
Joined
Jan 17, 2016
Messages
5,506
Reaction score
3,541
Location
The Netherlands
well 'officially' Jamma only support 3 buttons and some cabs 4, so what @thomas3184 is referring to is that usually you need a 'Chamma' (Chinese Jamma) adapter to get all 6 buttons on the Jamma connector.
Looks like in your cab someone hard wired all 6 buttons to the Jamma, which is not an issue for any Jamma game that uses 3 buttons and also works perfect on MVS that uses 4 buttons on the Jamma edge.

You will get into issues though connecting your CPS2, as that only does 3 buttons from the Jamma (well some games take up to 4), but the 4,5,6 button would be connected separate from the Jamma with a connector like this;



So to rephrase, you can safely connect your CPS2 to your cab, but you WILL NOT have the ability to use all 6 buttons without the additional harness, so you would have to think something up to either splice the wires from the Jamma edge, or disconnect them from the Jamma edge, and wire into a CPS2 kick harness :)


vholfx

Student
Joined
Sep 12, 2019
Messages
43
Reaction score
7
Location
Chile
You are correct, the the previous owner seems to have wired up all six buttons for both players to the jamma connector. It does work for the pandora box all 6 buttons, but I have not tested any 4-button neo geo game, I'm expecting the 4th button not to work.

And what you explain makes perfect sense about the kick harness, I'll work on that next. I feel better now that I can plug the CPS2 and at least give it a try while I work on the kick harness.

Thanks so much!


nem

Enlightened
Joined
May 29, 2016
Messages
3,688
Reaction score
2,731
Location
Finland
I have not tested any 4-button neo geo game, I'm expecting the 4th button not to work.
The 4th button will work, as will the 5th if you ever get an Atomiswave. Buttons 4 and 5 on the Jamma connecter are wired as standard on an Astro City.


vholfx

Student
Joined
Sep 12, 2019
Messages
43
Reaction score
7
Location
Chile

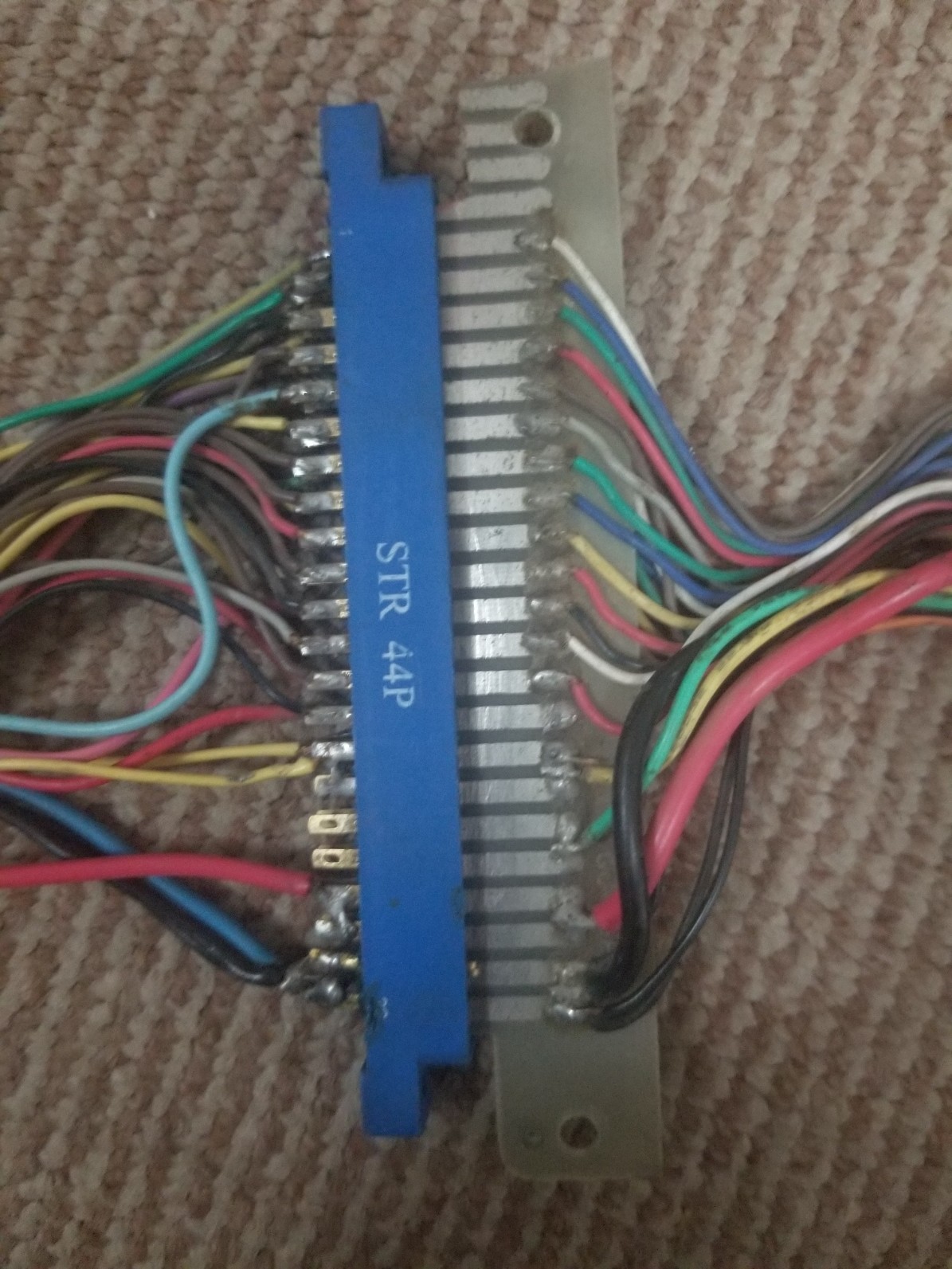

Hey guys, me again. So I talked to the the guy who sold me the CPS2 and he had the original harness laying around and he was kind enough to give it to me. I believe it comes with a kick harness I'm hoping I can reuse (once I figure out which end is which lol, looking to the pinout docs) but it also have what I believe is a JAMMA adaptor of sorts, could you help me identify it?

I'll google more about the kick harness and see if I can make use of this one.

Thanks!


Attachments

  • 20190912_203736.jpg
    351.5 KB · Views: 167
  • 20190912_204201.jpg
    461.3 KB · Views: 155

KaPH33n

Grand Master
Joined
Sep 30, 2018
Messages
685
Reaction score
664
Location
CA

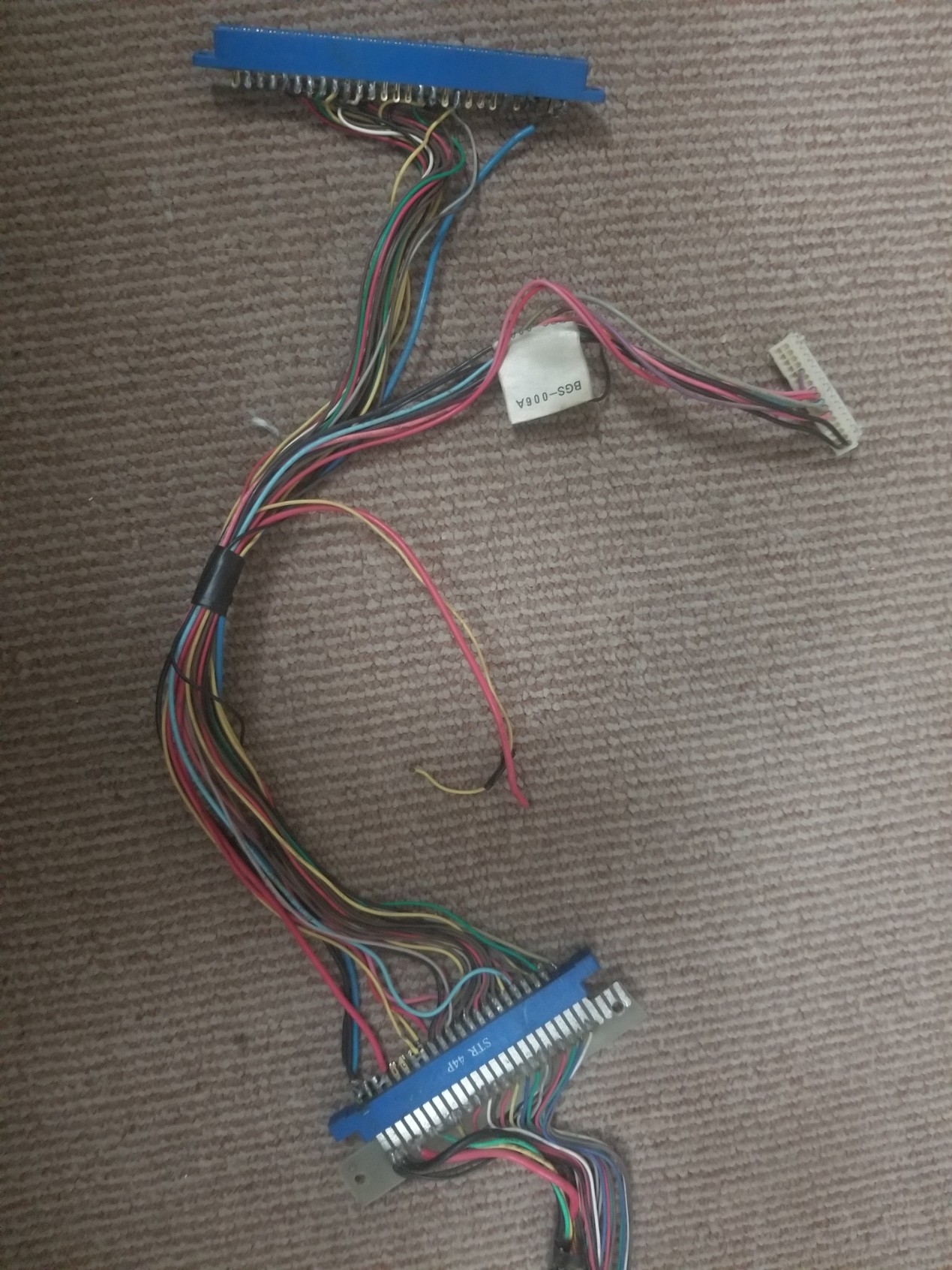

BGS-006A with the cloth flag is an original Capcom part, so that's cool. That's the CPS2 "kick harness." It looks like that will let you take your 6 buttons wired for pandora's box and split it off onto a regular jamma + kick harness? but I could be wrong. Also looks like some wiring is disconnected so it might need a small repair? Best to just get all the pinouts for everything in front of you on the monitor and trace all the lines with a multimeter to be super sure everything's right.
