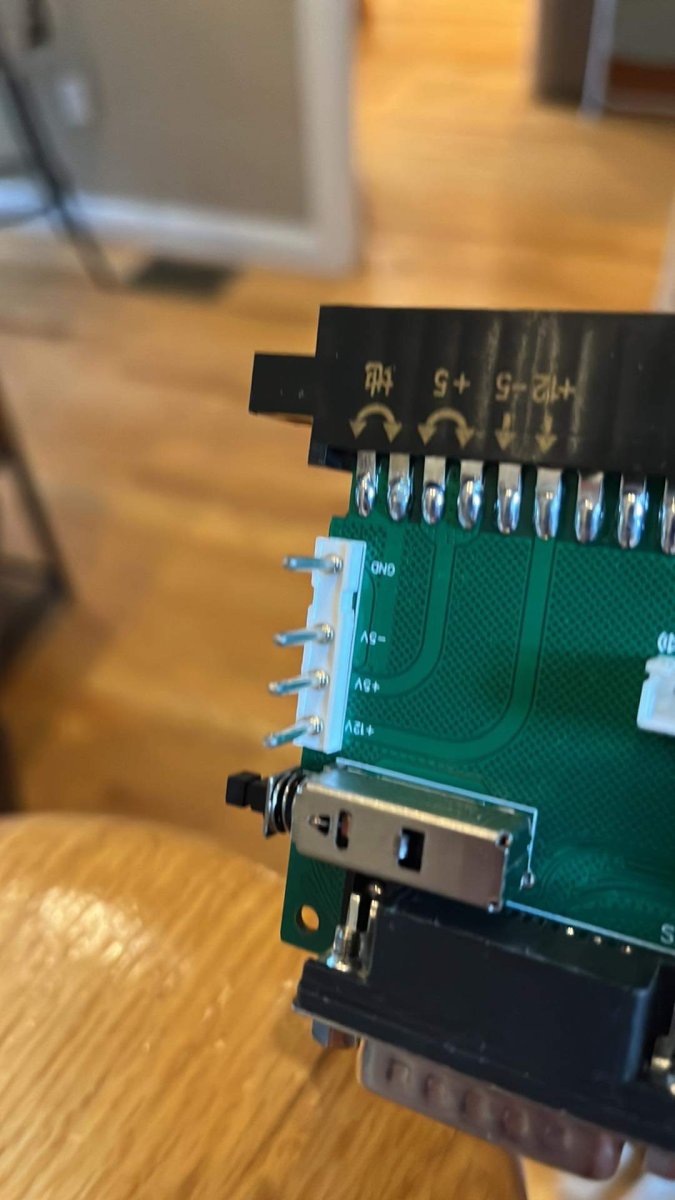

Looking for what type of connector this super gun I grabbed takes… looks like some kind of molex connector maybe?


Attachments

  • 1E7B5E3E-0E67-4B90-8D3B-5D188BD0247D.jpeg
    87.1 KB · Views: 50

hatmoose

Grand Master
Joined
Mar 25, 2021
Messages
593
Reaction score
1,228
Location
Auckland
+1 for JST V series. Neither mouser nor digikey stock v-series.
You can buy the housing in a pack of 50 from RS components here
But the pins are discontinued here


VenomXL

Student
Joined
Apr 9, 2021
Messages
91
Reaction score
33
Location
US
Nope. Not JST. It’s 4 prongs, not 5. Similar size after double checking though.


VenomXL

Student
Joined
Apr 9, 2021
Messages
91
Reaction score
33
Location
US
Yup, the idiot that sold it to me showed me a picture of a Jamma edge and told me it would help. Then he told me that I’d need a power supply to connect it. I’m guessing I’m not getting any help from him. Fml.


Neodogg

Enthusiast
Joined
Aug 17, 2015
Messages
238
Reaction score
227
Location
Cincinnati, OH
I’d just solder in your own power harness/molex adapter…


VenomXL

Student
Joined
Apr 9, 2021
Messages
91
Reaction score
33
Location
US
Probably what will end up happening. I saw some single pin molex adapters in a photo the guy provided that I’ll try first.


Derick2k

Immortal
Joined
Nov 14, 2015
Messages
9,849
Reaction score
10,618
Location
NYC, USA
Nope. Not JST. It’s 4 prongs, not 5. Similar size after double checking though.
RGB and Hatmoose pointed you to the correct connector.

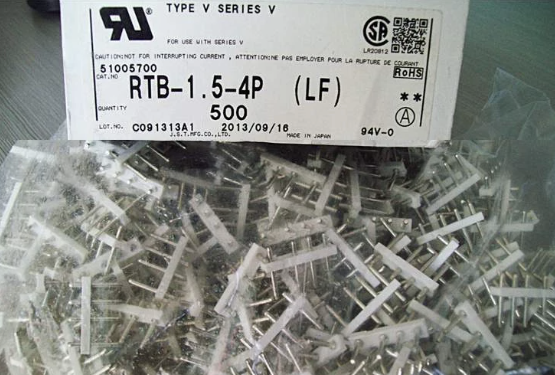

This is what it looks like to me that is on that PCB.

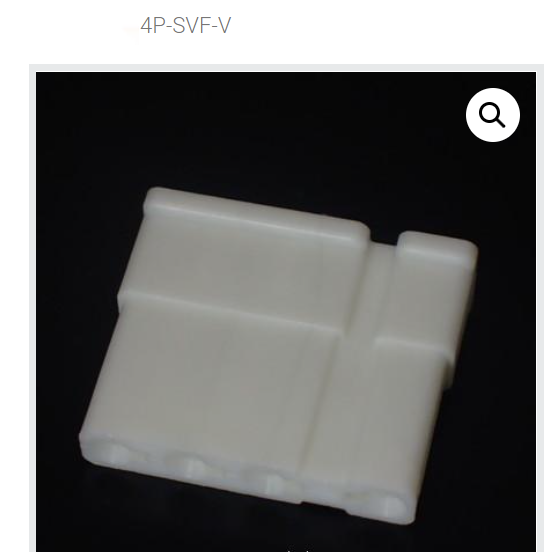

So you need the following:

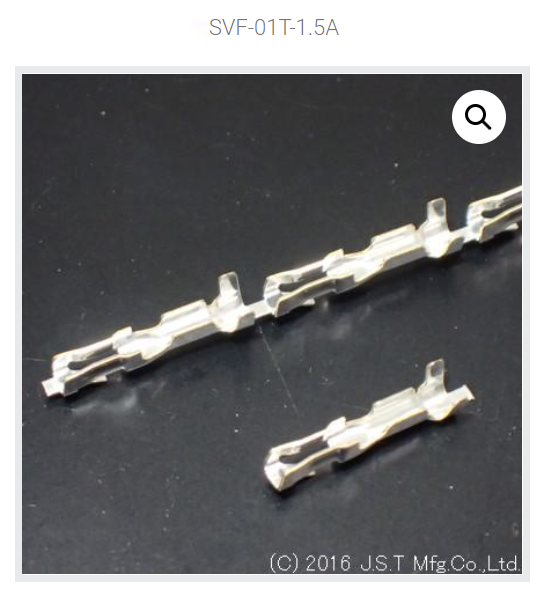

1 piece



4x pieces, but I would get some extras


I suggest using 20awg wire which is the maximum gauge that the connector can use.


VenomXL

Student
Joined
Apr 9, 2021
Messages
91
Reaction score
33
Location
US
Those are it. I’ll start digging for where to grab them! Thanks so much!
