CPS1 Multi (Darksoft) filter board kick harness sanity check.

Kujako

Kujako

Champion
Joined
Jun 3, 2020
Messages
1,409
Reaction score
852
Location
USA, California
So since I don't have a four player setup (only single player console on my Vewlix) I had built a cable with the intent of using the filter board kick harness as a pass through for player one.
Any reason this shouldn't work? Far as I know, the connectors on the filter board are passive. But thought I'd double check before powering on.

I'm not sure what you are trying to do. Player 1 controls are on the JAMMA card edge connector.

Kujako said:
So since I don't have a four player setup (only single player console on my Vewlix) I had built a cable with the intent of using the filter board kick harness as a pass through for player one.
Any reason this shouldn't work? Far as I know, the connectors on the filter board are passive. But thought I'd double check before powering on.
Click to expand...
Mine I connected the kick harness on bottom connector on multi board but I didn't connect to filter board.

the Goat said:
I'm not sure what you are trying to do. Player 1 controls are on the JAMMA card edge connector.
Click to expand...
Just trying to make cable management easier and planning on building an enclosure for the system. Was thinking of using the player 3 & 4 kick harness pass through connections for players 1 & 2. Can't think of any reason this shouldn't work, but looking for opinions.

Kujako said:
Just trying to make cable management easier and planning on building an enclosure for the system. Was thinking of using the player 3 & 4 kick harness pass through connections for players 1 & 2. Can't think of any reason this shouldn't work, but looking for opinions.
Click to expand...
Like I said above, the inputs for players 1 & 2 are on the JAMMA edge (where your minigun supergun is connected). How are you putting them through the kick harness pass through? And why is that desirable? ?(

Kujako said:
Can't think of any reason this shouldn't work
Click to expand...
Because it was not designed too...
Player 1 and Player 2 are on the JAMMA edge, unless you are talking about SF2 in which case buttons 4,5,6 for each player (1 & 2) are on that top most connector.
As you have a single player cab, your only concern should be wiring up player-1's kicks (buttons 4,5,6) using that connector (your supergun should have a connector for these extra buttons).

the Goat said:
Like I said above, the inputs for players 1 & 2 are on the JAMMA edge (where your minigun supergun is connected). How are you putting them through the kick harness pass through? And why is that desirable? ?(
Click to expand...

The JAMMA has buttons 1, 2 & 3... I'm just trying to relocate the kick connectors (buttons 4, 5 & 6) from the back of the "B" board to the front for easier access.

jassin000 said:
Because it was not designed too... Player 1 and Player 2 are on the JAMMA edge, unless you are talking about SF2 in which case buttons 4,5,6 for each player (1 & 2) are on that top most connector.
Click to expand...
Correct, but the two connectors on the front are pass through (unless I'm misunderstanding). So I'm running the 4, 5 & 6 buttons through the filter board. Just to relocate the kick connector from the top/rear of the "B" board to the front.

Kujako said:
The JAMMA has buttons 1, 2 & 3... I'm just trying to relocate the kick connectors (buttons 4, 5 & 6) from the back of the "B" board to the front for easier access.


Correct, but the two connectors on the front are pass through. So I'm running the 4, 5 & 6 buttons through the filter board. Just to relocate the kick connector from the top/rear of the "B" board to the front.
Click to expand...
In that case you are using the filter board pass through connectors for the exact thing they were designed to do.

Unfortunately, it's not working as I wanted it to. I thought the two sub connectors were for kick harnesses, but I'm now I'm thinking they are for player 2 & 4 only. If that's the case, is a SF2 style "C" board needed for buttons 4,5 & 6?

Kujako said:
Unfortunately, it's not working as I wanted it to. I thought the two sub connectors were for kick harnesses, but I'm now I'm thinking they are for player 2 & 4 only. If that's the case, is a SF2 style "C" board needed for buttons 4,5 & 6?
Click to expand...

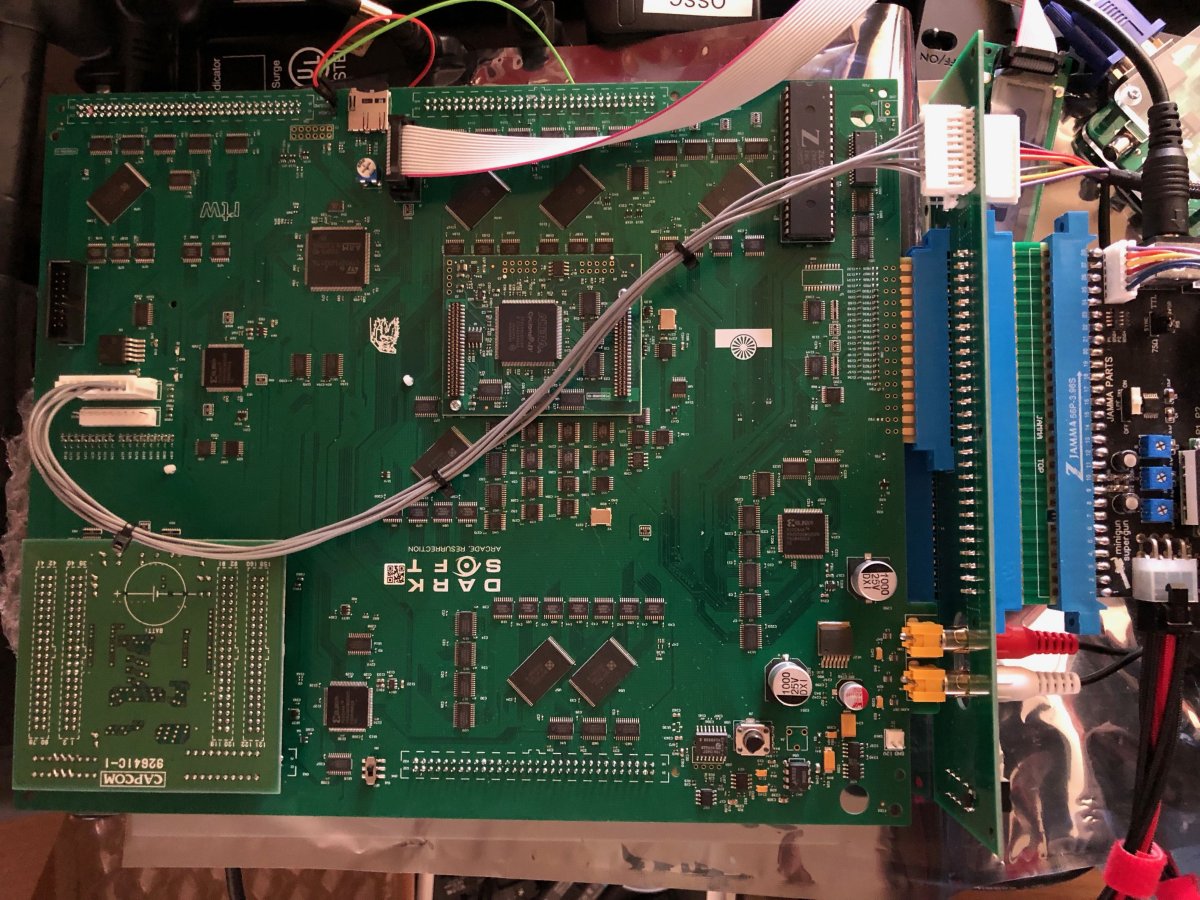

In your picture above you have the cable plugged into the wrong connector. Kicks are on CNI02

the Goat said:
In your picture above you have the cable plugged into the wrong connector. Kicks are on CNI02
Click to expand...
Huh... fair enough. I would think I would see them via player 2 input in the test screen though, but that might be due to not having a ground pin for player 2 since only player 1 is wired up.

Kujako said:
Huh... fair enough. I would think I would see them via player 2 input in the test screen though, but that might be due to not having a ground pin for player 2 since only player 1 is wired up.
Click to expand...
Kicks for both player 1 & player 2 are on the same connector.
