@twistedsymphony

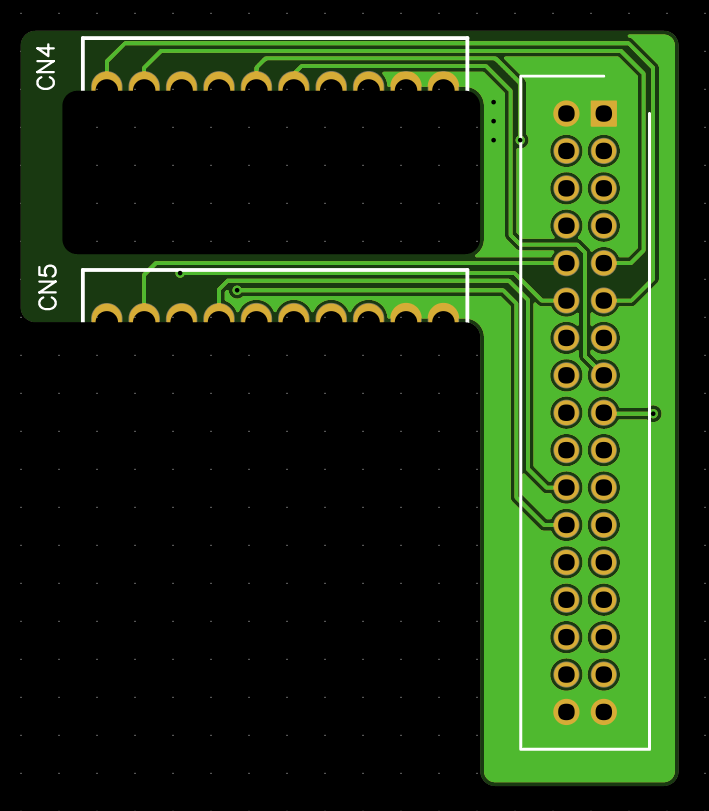

Pretty much done, I can add 2 holes that extend to the ones on the corners of the filter board.



Derick2k

Immortal
Joined
Nov 14, 2015
Messages
9,674
Reaction score
10,234
Location
NYC, USA
how are you going to incorporate P3/P4 button 3 from the JAMMA edge?
As Lemony suggests, the only way to do it, in this case, is to run 2 jumper wires.

Also, what 3P/4P games use button 3??

Ideally, I would like to remake the filter board and move some things around a bit, add a few things, but I would have to get info from Darksoft. Better yet his files for the filter board, or we can suggest changes and he or Mitsu sell these mod filter boards. :thumbsup:

Maybe we should do a suggestion thread as to what you want to see on the filter board? :D

Last edited:

the Goat

Professional
Joined
Dec 7, 2018
Messages
689
Reaction score
506
Location
Vermont, USA

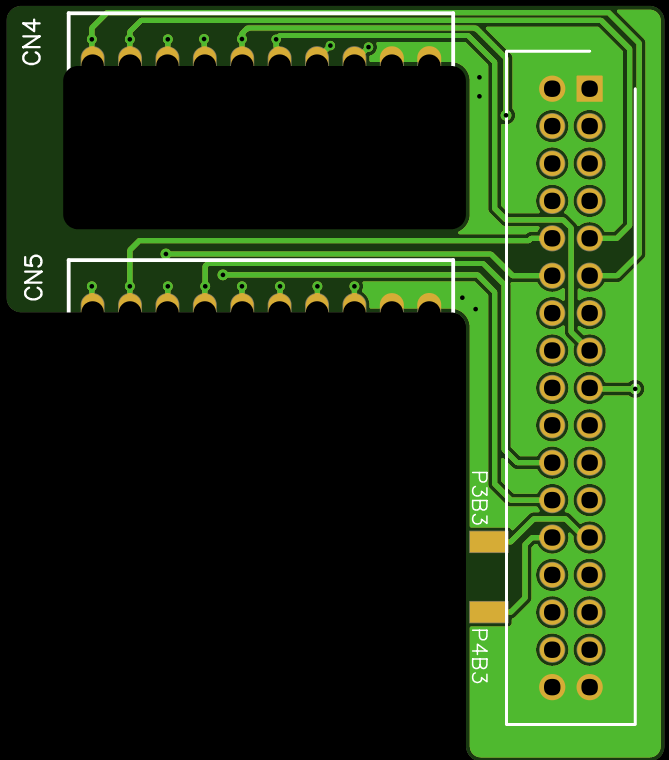

So it would look like this with the extra pads for B3s



Anyone care to give it a try? I can upload the gerbers :D
You might want to put a little space between the two solder pads.

I personally would have no problem with the current spacing. But some people are not a skilled with an iron as you an me. :P


Derick2k

Immortal
Joined
Nov 14, 2015
Messages
9,674
Reaction score
10,234
Location
NYC, USA
You might want to put a little space between the two solder pads.

I personally would have no problem with the current spacing. But some people are not a skilled with an iron as you an me. :P

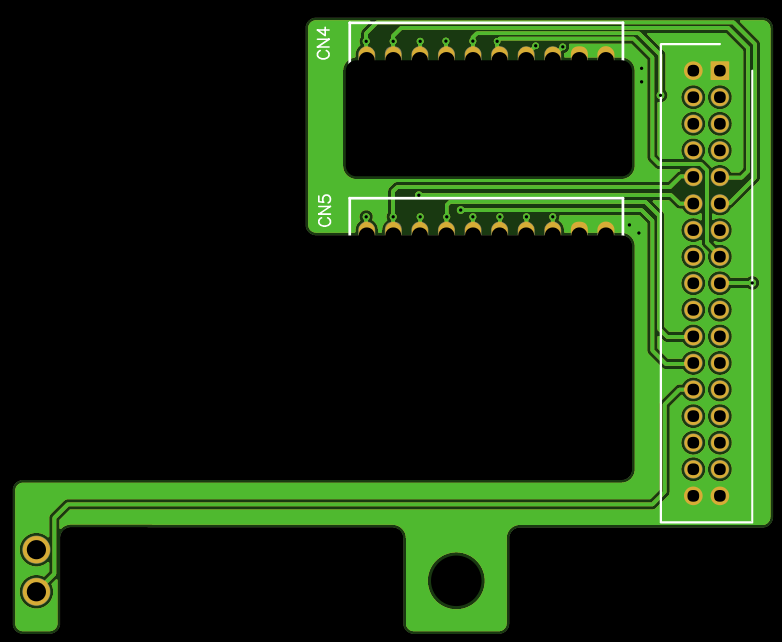

That should do it. Modified it a bia and added vias to the castellated/half holes, just in case.

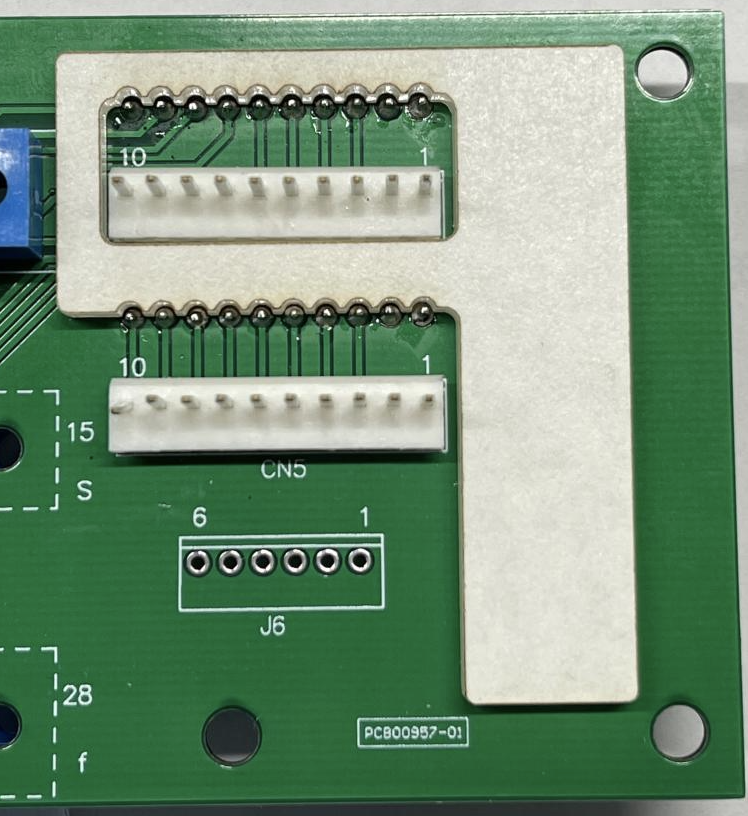

And checking the fitment, not bad for a first go at it :D



Gerber is attached in case anyone wants to try it


Attachments

  • Gerber_PCB_CPS1.5 Multi CPS2 Adapter_2022-05-14.zip
    35.5 KB · Views: 2
Last edited:

Darksoft

Staff member
Immortal
Joined
Jun 12, 2015
Messages
9,919
Reaction score
13,365
Location
Poland
Strictly speaking about the multi's themselves (not the games they play) F3 is my 3rd fave DS multi of all time.

  1. CPS1
  2. CPS2
  3. F3
Looks like we got @jassin000 certificate of compliance and it's even higher than cps2 on his list. This can only be good news and to me it means that Cps1 multi is going to be even more popular than cps2 multi :thumbup:


GeorgeSpinner

Professional
Joined
Oct 20, 2020
Messages
331
Reaction score
248
Location
Piscataway NJ USA
Looks like we got @jassin000 certificate of compliance and it's even higher than cps2 on his list. This can only be good news and to me it means that Cps1 multi is going to be even more popular than cps2 multi :thumbup:
IMO the CPS1/1.5 has the better games. Before everything in arcades was about 1v1 fighting games.

If fighting games are your thing, that's cool. But I always liked playing WITH my friends and not against them.

I suspect the DarkSoft CPS1 will become (if it's not already) THE multi that EVERYONE wants.

It was worth the wait.


Mitsurugi-w

Arcade Admini-Moderator
Staff member
Immortal
Joined
Jun 12, 2015
Messages
6,987
Reaction score
7,348
Location
New Bern, NC USA
As Lemony suggests, the only way to do it, in this case, is to run 2 jumper wires.

Also, what 3P/4P games use button 3??

Ideally, I would like to remake the filter board and move some things around a bit, add a few things, but I would have to get info from Darksoft. Better yet his files for the filter board, or we can suggest changes and he or Mitsu sell these mod filter boards. :thumbsup:

Yeah wih my adapter you would need to solder two wires for Button 3 on slammasters as well.

I originally was going to redesign the filterboard to sell but we decided that it would be very expensive for the end user to buy compared to what I decided to do instead. The only way I could see it being worth the extra cost is if you were able to incorporate the undamed decoders into it and allow plugging usb controllers directly into it.
