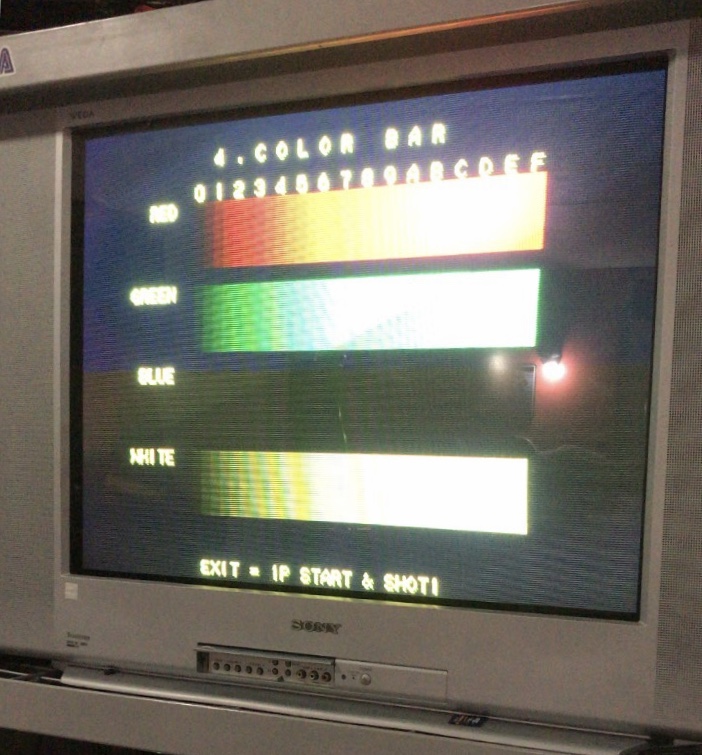

Cps3 no blue color
- Thread starter Vladi
- Start date
KOarcade
Enthusiast
How do you have the board connected to? PVM? Old CRT? SCART connector? Svideo? Component? Or an actual arcade monitor?
Either way, you may want to test continuity from the source to the JAMMA edge. Also make sure your arcade board doesnt have a broken trace for the BLUE contact pad.
Most of the time there will be a broken connection from jamma connector and wire, however, you will not notice due to the heat shrink tape gives the appearance that it is connected. But it is not connected. You have to reconnect it.
Hope this helps,
Either way, you may want to test continuity from the source to the JAMMA edge. Also make sure your arcade board doesnt have a broken trace for the BLUE contact pad.
Most of the time there will be a broken connection from jamma connector and wire, however, you will not notice due to the heat shrink tape gives the appearance that it is connected. But it is not connected. You have to reconnect it.
Hope this helps,
KOarcade
Enthusiast
Sorry just noticed you were using the SONY WEGA CRT.
So is that Component, Svideo, Composite? More than likely, it is your BLUE wire from JAMMA to the video converter is not connected. Just trace that wire from JAMMA Connector to the video converter device.
So is that Component, Svideo, Composite? More than likely, it is your BLUE wire from JAMMA to the video converter is not connected. Just trace that wire from JAMMA Connector to the video converter device.
Vladi
Student
Its connected with component cable and i have a another cps3 that i have tested with and all colors work.
KOarcade
Enthusiast
Could be a chip. However double check that the jamma edge contact pads traces are connected coming from the board. Slightest crack can cause a break.
KOarcade
Enthusiast
You also might try and reflow the board or just the video chip.
