D9200 pinout for Sega Blast City

Kidkaos

Champion
Joined
Feb 7, 2019
Messages
1,258
Reaction score
1,260
Location
Northern California
Hello, I need to mount my D9200 into my Blast City.

I am not able to get a picture at 15khz no matter what combination I have my wires on the connector

R
G
B
GND
V
H
_
GND
V
H
Does anyone know how it's supposed to hook up for sync??

I get a good picture with VGA.
I moved the little connector to cga/ega and I get no sync at 15khz


Attachments

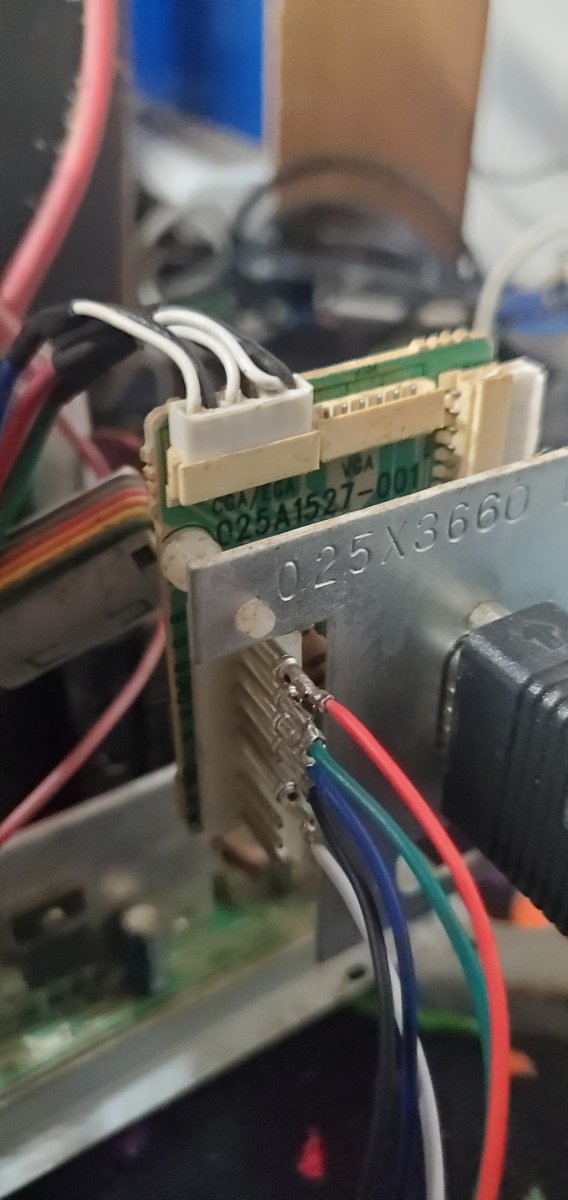

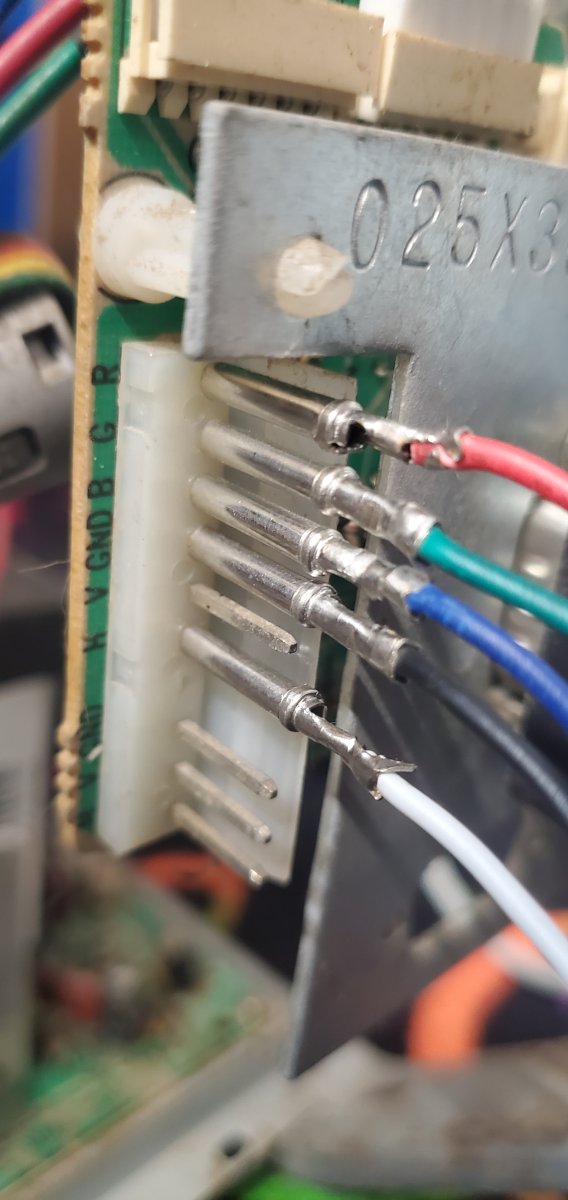

  • 20231025_223603.jpg
    85 KB · Views: 112
  • 20231025_223615.jpg
    87.4 KB · Views: 91
No need to switch the connector. It will sync 15k/24k/31k/37k from the Dsub connector.

If you are hitting 31k but not 15k I would guess there is something wrong with your 15k source?

After further testing I got the monitor to display 15khz on the Naomi with the Naomi dip switches set to 15k, BUT the chassis will shut down and turn back on like every 2 minutes? Not sure why, it doesn't do it at 31khz. I'm not sure why that is 😕 needless to say, I need the pin pin out for 15khz through the jamma edge.
