I think this post belongs here?

I had been working on an adapter to connect DB-15/supergun style fightsticks to the SEGA Naomi. After wiring the first DB-15 to the breadboard, I looked at the rats nest and decided to design a PCB instead. So, here it is:

https://github.com/UrQuan3/DB-15_to_JVS/blob/master/photos/20201129_161414.jpg
https://github.com/UrQuan3/DB-15_to_JVS/blob/master/photos/20201129_161351.jpg

I started with ‘charcole’s JVS code for arduino and adapted it to support two players with 6 buttons, a start, and a coin each. The DB-15 pinout is SNK standard, but with pin 2 and 10 used for button 6 and 5. The adapter pulls 5v from one USB cable and uses a second USB cable for JVS. At this point, everything seems to be working.

The adapter has tested good in 2-player mode with:

SEGA NAOMI:
- Dead or Alive 2
- Moero, Justice Gakuen
- Marvel vs Capcom 2
- Melty Blood: Actress Again
- Radrgy Noa
- Power Stone 2 (2-player mode)

Taito Type X
- Goketsuji Ichizoku Matsuri Senzo Kuyou (service button implemented, but no trace on PCB)

From the pictures, you can see my testing setup is no good for testing lag. There is real possibility that it may work with other JVS systems, but I have not been able to find any to test with.

I have a question though. Would anyone else find this useful? I could sell complete boards, or sell the bare PCB with a parts list. I should probably design a case. I’ve already posted the source code.

Last edited:

randomdoohickey

Student
Joined
Aug 28, 2018
Messages
70
Reaction score
32
Location
Valley of the Sun
I can see some demand for this, but not much given the relative lack of modern DB15 sticks.

What I do see getting a lot of demand, however, would be a direct USB-to-JVS dongle/board. Plug in your modern gamepad/fightstick into the dongle and the other end into JVS. I'd imagine @Raph_friend's USB2DB15 has most of the code you'd need on the input side.


Raph_friend

Professional
Joined
May 28, 2017
Messages
590
Reaction score
417
Location
Brazil
I can see some demand for this, but not much given the relative lack of modern DB15 sticks.

What I do see getting a lot of demand, however, would be a direct USB-to-JVS dongle/board. Plug in your modern gamepad/fightstick into the dongle and the other end into JVS. I'd imagine @Raph_friend's USB2DB15 has most of the code you'd need on the input side.
Honestly I don't know how JVS works.


Dreamstate

Enthusiast
Joined
Nov 1, 2016
Messages
190
Reaction score
63
Location
Knoxville, TN USA
Unless I am missing something, this should work with either the USB2DB15 from Raph_friend or the Undamned USBtoDB15. While an extra board, it should give us a way to use the same stuff we connect to a Jamma Supergun to instead connect directly to a JVS system. If nothing else, it is a great hopping off point to look at other variations. Depending on the price and if it does handle lag, seems very interesting.


UrQuan3

Beginner
Joined
Dec 16, 2020
Messages
19
Reaction score
14
Location
USA
Oh, thank you for the replies.

The DB15 was the result of my building my own arcade sticks (https://www.deviantart.com/urquan3/art/2020-08-27-Arcade-Sticks-003-853462741). It's a simple active-low per button design instead of something super complex like USB. I also designed a DB15toUSB adapter to use the same sticks on a PC. (That direction way, *WAY* easier than what @Raph_friend's project does.)

I do think the USB2DB15 adapter would just work. I like the idea. If there was a way to buy one to test I would. Maybe I should just get over it and build one, I'm just really not looking forward to hand wiring another set of DB15s. You should have seen the mess of wires on the breadboard for this project.

I am not sure I understand tonyt76's question. I don't have a MiSTer (yet), but wouldn't you just connect your USB controllers to the MiSTer? If you have a DB15 controller, I do have an adapter, or you can build your own by setting a teensy in joystick mode.

I did dig through the USB2DB15 Adapter code back in December. It's using C++ and class inheritance, which is nice to code, but carries quite a bit of overhead. I don't know if there is a microcontroller yet that could run 2-4 copies of USB2DB15 (2-4 player) and the JVS code all at the same time. I could be wrong. Still, the separate adapters would be expensive, but reliable.

I'm trying to get the price well under $100, but recent changes to the US tax code says that you cannot deduct parts, shipping, listing, or transaction fees as an individual, you must be an incorporated business. Walking the US business tax code is going to take some time.


jassin000

Legendary
Multi Boyz
Joined
Jul 21, 2015
Messages
7,769
Reaction score
6,352
Location
Afterlife
Sorry I meant JVS arcade controls to MiSTer
Hopefully this will be fully supported by a firmware update for the JVSPAC.

I don't have a Mister, so I can't explain what the current issues are... Only that it has them.


UrQuan3

Beginner
Joined
Dec 16, 2020
Messages
19
Reaction score
14
Location
USA
I have to admit, the existence of the JVSPAC confuses me. It would seem like removing the JVS I/O board entirely and replacing it with some form of i-PAC with City or Vewlix connectors would be the faster/lower latency route. This would not be that difficult to build. Hardest part would be finding the connectors.


jassin000

Legendary
Multi Boyz
Joined
Jul 21, 2015
Messages
7,769
Reaction score
6,352
Location
Afterlife
It would seem like removing the JVS I/O board entirely and replacing it with some form of i-PAC with City or Vewlix connectors would be the faster/lower latency route.
According to @invzim the polling of the JVS is happening so fast lag is not a factor.

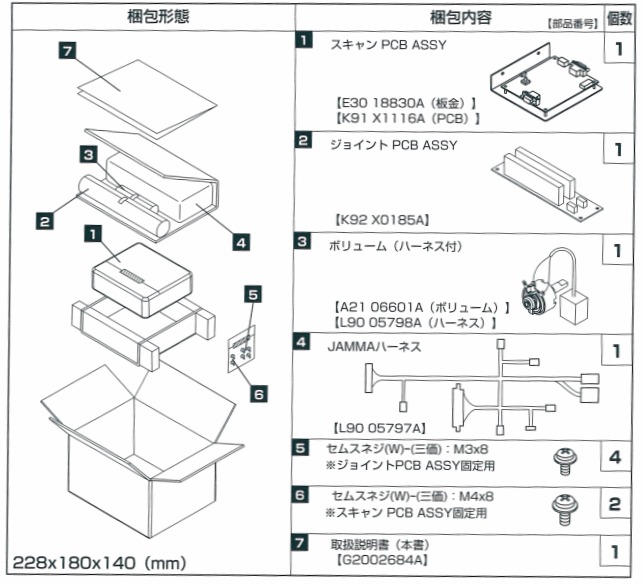

Infact what you are describing is exactly how Taito officially handles JAMMA inside a Vewlix (ie the kit contains a new direct wire bypass harness, part #4 below).
