Deco Multigame - Installation and Troubleshooting

SCUBA King said:
I cant even get the menu to come up, its not that the test tape doesnt work, I can't even get a menu to come up at all
Click to expand...
@jacklick figured it out. I needed to double the bios image to run it on 2732.
Here is working ROM and BIOS for widel version testing.
Proven working on -8 slim stack.


Attachments

  • 27c800_2732_slim-8_DECO_Widel.zip
    444.5 KB · Views: 119
SCUBA King said:
@jacklick figured it out. I needed to double the bios image to run it on 2732.
Here is working ROM and BIOS for widel version testing.
Proven working on -8 slim stack.
Click to expand...
Now, being able to get the Widel code working, I could test my hardware.
I am still getting failure on Sound Test channels 1/2. i only get sounds from 3 and 4.
I swapped in another audio board and got the exact same results.
I am more confident that it is a hardware problem now, but do think it is weird that I have 2 sound boards that have the exact same failure, which makes me wonder if the failure is on a different board that is carrying over to the sound board.

Does anyone know where the sound test tape originates on the PCBs? I will get back into the shcematics soon.

Thanks for @jacklick help and everyone else who chimed in.
Will update as I find / figure out more.

Good news. If you want to teoubleshoot the peoblem, change all the PCBs one by one. You know it's not the sound PCB so try now a different one from the same type -3 or -8 and see how the test works out now. That's what I would do.

Darksoft said:
Good news. If you want to teoubleshoot the peoblem, change all the PCBs one by one. You know it's not the sound PCB so try now a different one from the same type -3 or -8 and see how the test works out now. That's what I would do.
Click to expand...
The only problem is, I have extra boards for 2 of them and already tried the switcharoo.

I am looking for an -8 slim BIO8 and a Mobo+cage to make a second stack.

SCUBA King said:
The only problem is, I have extra boards for 2 of them and already tried the switcharoo.

I am looking for an -8 slim BIO8 and a Mobo+cage to make a second stack.
Click to expand...
So you know that the problem in your setup is the BIO8, right?

SCUBA King said:
I am 95.6% confident that is the case. I was going to look at BIO8 schematics and see WTF it could be for channel 1/2
Click to expand...
I just picked up an untested BIO8 PCB, will get it in, and see what happens. Will report back on success / failure once I can swap that last extra board into the mix and see if anything changes. (I am sure it will)

Any chance anyone has done a repro on the Mobo for this -8 slimstack already? If not, I will prob do one so I can I get both these slim stacks running. Could prob 3-D print a pseudo-frame/cage for it also, will see what I come up with once I get the extra bio-8 to test.

Picked up another bio8 slim.
Slapped it in with a couple shitty caps, got it to boot.

EXACTLY THE SAME PROBLEM. Missing 2 channels on test tape, audio test.

only things left imo are ribbon cable between boards or the mobo/interconnect board.

I shifted all boards up one slot (cage has 4, only need 3) to see if problem would travel, it did not.

I’ll tone out the ribbon and report back.

Any other ideas?

SCUBA King said:
I shifted all boards up one slot (cage has 4, only need 3) to see if problem would travel, it did not.
Click to expand...
So after shifting boards up you were able to get all 4 sounds? If the problem did not travel doesn't that mean the problem went away? :) confused

jacklick said:
So after shifting boards up you were able to get all 4 sounds? If the problem did not travel doesn't that mean the problem went away? :) confused
Click to expand...
Sorry. Problem did not move to different channels. Stayed the same.

SCUBA King said:
Sorry. Problem did not move to different channels. Stayed the same.
Click to expand...

Here is the latest update on the Audio channels fiasco.
I have a slim stack, plays audio on 4/3 in test tape, silent on 1/2
I tracked down a second set of boards, same exact results.
I moved boards back one slot in cage, same exact results.

I helped another member get his slim stack running, he ran test, SAME EXACT RESULTS.

So in this video when dude gets audio in all 4 channels, (around 10:30) I think the only reasonable explanations are:
1. I am an idiot and am missing something simple on 3 stacks now
2. Dude in video has a problem with his rig (channel 1/2 sounds like error beeps to me, not game sounds)
3. **** Dude in video is running Phat stack and it plays test tape info differently than slim stack

View: https://www.youtube.com/watch?v=x4FVJqwsqpY&t=4s



If anyone else has the DECO Multi running on a PHAT stack, if you can confirm all 4 channels are putting out audio it will help me stop buying up random, hard to find boards to do yet another test on what I now think, may be a fully operational deathstar.

I think I screwed up. My screen is just flashing. No classic blue screen.

i remove both p0 and p1. Put the new rom chip into the p1 slot with the notch in the same position as the old one.
It lights up but screen is flashing with some greena and blue symbols.

It satrted working. I guess I didn’t plug it in correctly!

Isn't the bios supposed to go in p0? Maybe it doesn't matter.

just started the machine again. New problem…

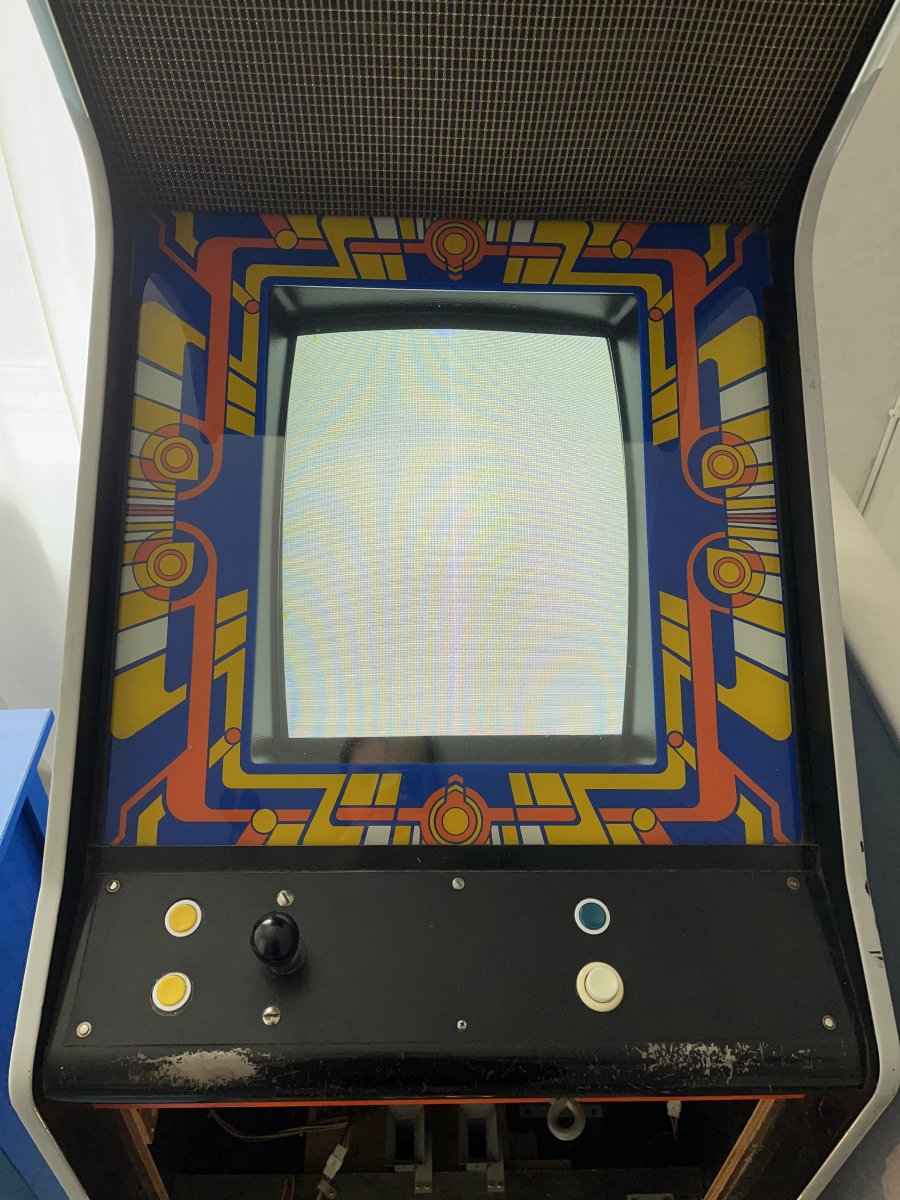

White screen with square on the top.
