I bought all three conversion from sheep_nova and they worked just fine in the beginning. But now my ddp has developed some kind of graphical glitch :(

I have cleaned all the contacts with IPA and I have the better version of IGS PGM which has contacts on both sides.

Tried to reflow some of the traces that were pressed by the plastic inlay inside the cartridge, but no luck. I even changed the EEPROM to some MAME ddp one, but since I don't know what version rest of the chips are, it did not even boot to the game.

Any clues what could be the reason?


Game works just fine, but graphics glitch


nassekova

Professional
Joined
Apr 23, 2019
Messages
370
Reaction score
565
Location
Oulu, Finland
Found the right MAME file and burnt new EPROM. Problem still remains :huh:

Any ideas? Could it be the bottom cart or do you guys think that the problem is on the same cart which has EPROM on it?


rewrite

Multi Boyz Litigator
Legendary
Multi Boyz
Joined
Nov 9, 2015
Messages
6,537
Reaction score
4,359
Location
SoCal
Visual inspection is probably your greatest tool at this point. Start looking for dodgy solder joints or wires. Try carefully pushing down on some of the chips while it's running to see if you can get the glitches to clear up.

Fortunately/unfortunately most people moved on to fluffy's carts for these, so there are fewer folks able to look at theirs to help you :/


nassekova

Professional
Joined
Apr 23, 2019
Messages
370
Reaction score
565
Location
Oulu, Finland
I asked if @sheep_nova had any clue what could be the issue. Super nice guy as he is, he contacted his guy who makes these and came with a possible culprit: bottom boards 3,3v cable (or that's what I assume it is) that goes to all 4 chips there.

And behold! Old cable was pretty thin and it was peeled with just melting the plastic shell with soldering iron and thus had lot of plastic mixed with the tin.


So I took the old cable off and cleaned the board


Added some more beefy cable there


And now it works as it should :thumbsup:


bagheera369

Grand Master
Joined
Oct 8, 2016
Messages
1,068
Reaction score
907
Location
DFW - TX - USA
Nice...probably what's happened with my ketsui cart. Will crack it open, and check that out.


XtraSmiley

Champion
Joined
Sep 18, 2016
Messages
2,734
Reaction score
1,562
Location
St Louis, IL
Thanks for the tip. I bought all three from a member here who got them from SheepNova and the DDP had similar graphical problems on one of the two PGM mother boards. I have no idea why it does this on one motherboard but not the other, but I'll crack open when I have time and see if it's the same issue.


caius

Grand Master
Joined
Nov 21, 2016
Messages
550
Reaction score
767
Location
Italy
Sadly this conversion will last few time because it's poorly engineered.There is no voltage regulator to supply 3-3.3V to the Flash ROMs but only a couple of diodes which create a simple voltage drop.Plus and most important thing, all the busses/control lines of the FLASH ROMs are still receiving +5V TTL signals hence sooner or later they will go bad.


XtraSmiley

Champion
Joined
Sep 18, 2016
Messages
2,734
Reaction score
1,562
Location
St Louis, IL
Sadly this conversion will last few time because it's poorly engineered.There is no voltage regulator to supply 3-3.3V to the Flash ROMs but only a couple of diodes which create a simple voltage drop.Plus and most important thing, all the busses/control lines of the FLASH ROMs are still receiving +5V TTL signals hence sooner or later they will go bad.
Is there an easy fix?


caius

Grand Master
Joined
Nov 21, 2016
Messages
550
Reaction score
767
Location
Italy
For supply 3-3.3V to the Flash ROMs you can simply use a LDO voltage regulator in place of the diodes.But for proper logic level conversion of bus signals you need level shifting, this means re-engineering the whole board so not easy doable.


RandomRetro

Professional
Joined
Jan 19, 2020
Messages
489
Reaction score
294
Location
United States

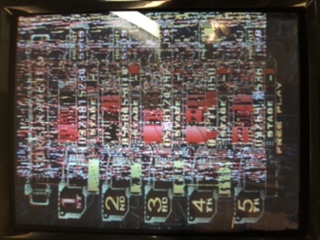

Thanks for the post @nassekova. Have a graphics issue on my DDP DOJ cart from Sheep too. Looks like it might be caused by the same wiring. Will swap it out and test.


Attachments

  • 73B7F1A7-C79B-43FB-AB1D-22502D24EA7A.jpeg
    35.3 KB · Views: 110

XtraSmiley

Champion
Joined
Sep 18, 2016
Messages
2,734
Reaction score
1,562
Location
St Louis, IL
For supply 3-3.3V to the Flash ROMs you can simply use a LDO voltage regulator in place of the diodes.But for proper logic level conversion of bus signals you need level shifting, this means re-engineering the whole board so not easy doable.
Thank you for the info.

Hmm, I wish I knew about this before. Anyone else that has these Sheep carts worried about this?

Should be let him know so he can stop doing them this way?

Does the thread about cart conversion address this?


twistedsymphony

Enlightened
Staff member
Immortal
Joined
Jul 21, 2015
Messages
9,838
Reaction score
9,082
Location
NH, USA
Does the thread about cart conversion address this?
yes, probably 1/3rd of the discussion is related to this exact topic, including guides for installing regulators. it has been discussed to death.

This is a big reason that the Fluffy PCBs exist, since they don't use the low voltage ROMs they don't need level shifters and there's no risk of early failure.

Interestingly some of the original PGM carts are setup for low-voltage ROMs already, my DDP DOJ conversion cart has 3.3V converters and level shifters as they were part of the original cart design.


XtraSmiley

Champion
Joined
Sep 18, 2016
Messages
2,734
Reaction score
1,562
Location
St Louis, IL
Does the thread about cart conversion address this?
yes, probably 1/3rd of the discussion is related to this exact topic, including guides for installing regulators. it has been discussed to death.
This is a big reason that the Fluffy PCBs exist, since they don't use the low voltage ROMs they don't need level shifters and there's no risk of early failure.

Interestingly some of the original PGM carts are setup for low-voltage ROMs already, my DDP DOJ conversion cart has 3.3V converters and level shifters as they were part of the original cart design.
Thanks, makes sense, I just wasn't following that thread, it's so long! :P

So is there a way to fix these and what's the real risk? Like years later poof, or months? Weeks?


twistedsymphony

Enlightened
Staff member
Immortal
Joined
Jul 21, 2015
Messages
9,838
Reaction score
9,082
Location
NH, USA
So is there a way to fix these and what's the real risk? Like years later poof, or months? Weeks?
I personally believe the risk is overblown. While levelshifters for the address and data lines is the "right way" to do it, leaving them connected to 5V sources is still within the tolerance range of most of the ROM chips used here. As for the power pins the use of diodes or resistors to do the voltage drop is a bit more risky, swapping to a regulator costs less than $1 and is about 5 minutes worth of work so it's worth doing IMO, but there's a good chance that you'd never see any negative effects from just leaving the diode or resistor hack in place.


XtraSmiley

Champion
Joined
Sep 18, 2016
Messages
2,734
Reaction score
1,562
Location
St Louis, IL
So is there a way to fix these and what's the real risk? Like years later poof, or months? Weeks?
I personally believe the risk is overblown. While levelshifters for the address and data lines is the "right way" to do it, leaving them connected to 5V sources is still within the tolerance range of most of the ROM chips used here. As for the power pins the use of diodes or resistors to do the voltage drop is a bit more risky, swapping to a regulator costs less than $1 and is about 5 minutes worth of work so it's worth doing IMO, but there's a good chance that you'd never see any negative effects from just leaving the diode or resistor hack in place.
Sounds good, I'll look into this when I get some time (when oh when will that be!).

In the meantime, @sheep_nova please look at this post and update your conversion method! For under a $1, you would be selling a better product it sounds like and I LOVE referring people to you for items from China, so please keep up the good work and don't swerve into territory of some worse sellers!


twistedsymphony

Enlightened
Staff member
Immortal
Joined
Jul 21, 2015
Messages
9,838
Reaction score
9,082
Location
NH, USA
If you're interested here is the conversion cart I made myself with the proper voltage regulator and capacitor setup:


And here is the KoV2 original cart setup for 3.3V with built in regulator and level shifters:
Any PGM Conversion info out there?


and HERE is my review the SheepNova and Lydz conversion carts where I recommended adding 3.3V regulators a year an a half ago :P
Any PGM Conversion info out there?


Flinnster

Enthusiast
Joined
Mar 15, 2018
Messages
205
Reaction score
138
Location
Surrey, UK
Damn.
My DDP-DOJ-BL cart has given me horizontal dark lines through level backgrounds and the logo and title screens for as long as I can remember.

And now I read about the kynar wire links to the chips on the base board.... my cart definitely has the very same, with the dual diode chain at one end.

I'm quite shocked at the thickness of the wire you've been replacing it with, what guage is that?! =O
Hmm... could I run another set of kynar alongside the existing I wonder..

Also, if there are vias next to all those pin legs, why not just solder to the vias?


nassekova

Professional
Joined
Apr 23, 2019
Messages
370
Reaction score
565
Location
Oulu, Finland
I'm quite shocked at the thickness of the wire you've been replacing it with, what guage is that?!
Hmm... could I run another set of kynar alongside the existing I wonder..

Also, if there are vias next to all those pin legs, why not just solder to the vias?
I just took the "thinnest normal wire" I had and used it instead of kynar. Probably works with kynar too if you just solder it better and make sure there is no melted plastic mixed in the solder etc.

I think not all those vias were connected.
