I'm helping a buddy setup his X2. He has a sega i/o a 838-13683-93 and -02. We can't seem to get the kicks working properly. He doesn't have a game for the naomi but in the jvs input test the register. On my end I only have a capcom io and that work. Is his sega io not compatible? He confirmed jp1 is set to A


XeD

Grand Master
Joined
Jul 6, 2016
Messages
730
Reaction score
397
Location
Vancouver BC Canada
He tried that. Even with jp 1 set to A he only has 1 kick button per player on cn3. The other 2 are on the jamma. I even got him to switch position on jp1. I guess he has a faulty i/o


twistedsymphony

Enlightened
Staff member
Immortal
Joined
Jul 21, 2015
Messages
10,004
Reaction score
9,329
Location
NH, USA
He tried that. Even with jp 1 set to A he only has 1 kick button per player on cn3. The other 2 are on the jamma. I even got him to switch position on jp1. I guess he has a faulty i/o
That's exactly how it works. the AO wiki pinout is wrong.

that IO has buttons 4 and 5 mapped to the JAMMA edge ONLY and button 6 is on CN3... the jumper must bet set to Poisition A for button 6 to work.

I think the confusion comes from a couple of specific NAOMI games that when using that IO moves buttons 4, 5, and 6 to buttons 6, 7, and 8 so that they all appear on that connector... it certainly doesn't do that on any of the X2 games.

  • Like
Reactions: XeD

XeD

Grand Master
Joined
Jul 6, 2016
Messages
730
Reaction score
397
Location
Vancouver BC Canada
Looking at it again (with fresh eyes) they do label it button 6-9. Does it not work like a normal kick harness with kicks only? If not I guess I have to send him another adapter to route button 4/5 from jamma to cps2/3 style connector


twistedsymphony

Enlightened
Staff member
Immortal
Joined
Jul 21, 2015
Messages
10,004
Reaction score
9,329
Location
NH, USA
Looking at it again (with fresh eyes) they do label it button 6-9
that specific link yes, but there's other pinouts on the wiki that are wrong. Due to the labeling on these incorrect pinouts you'll see a lot of people clamoring specifically for the "Rev B" version of that JVS adapter because they think that's the one that maps 4-6 on CN3... but they're ultimately left disappointed.

Does it not work like a normal kick harness with kicks only?
If by normal you mean "Capcom" then, no it does not conform to the Capcom spec. Official JAMMA spec actually has provisions for buttons 4 and 5 on the JAMMA edge, which is likely why Sega did it that way.

If not I guess I have to send him another adapter to route button 4/5 from jamma to cps2/3 style connector

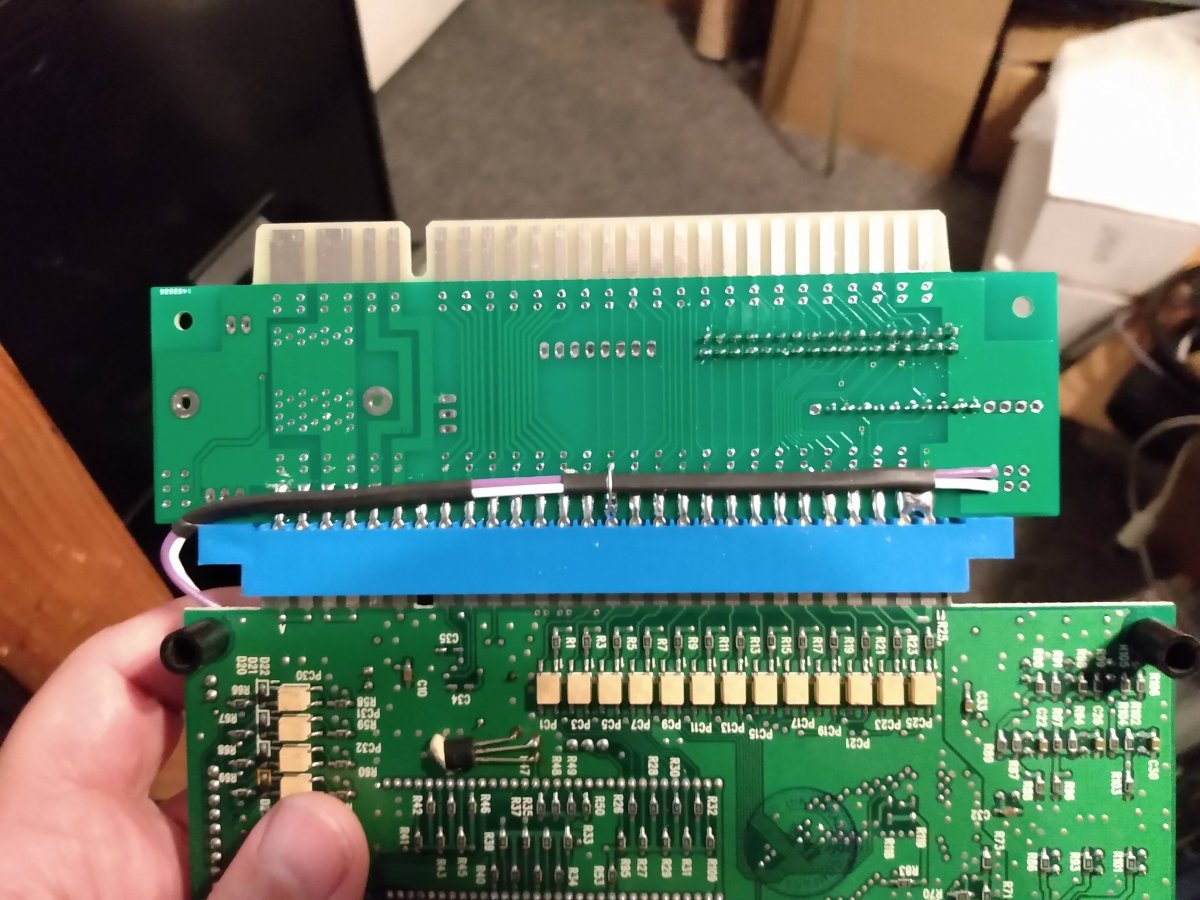

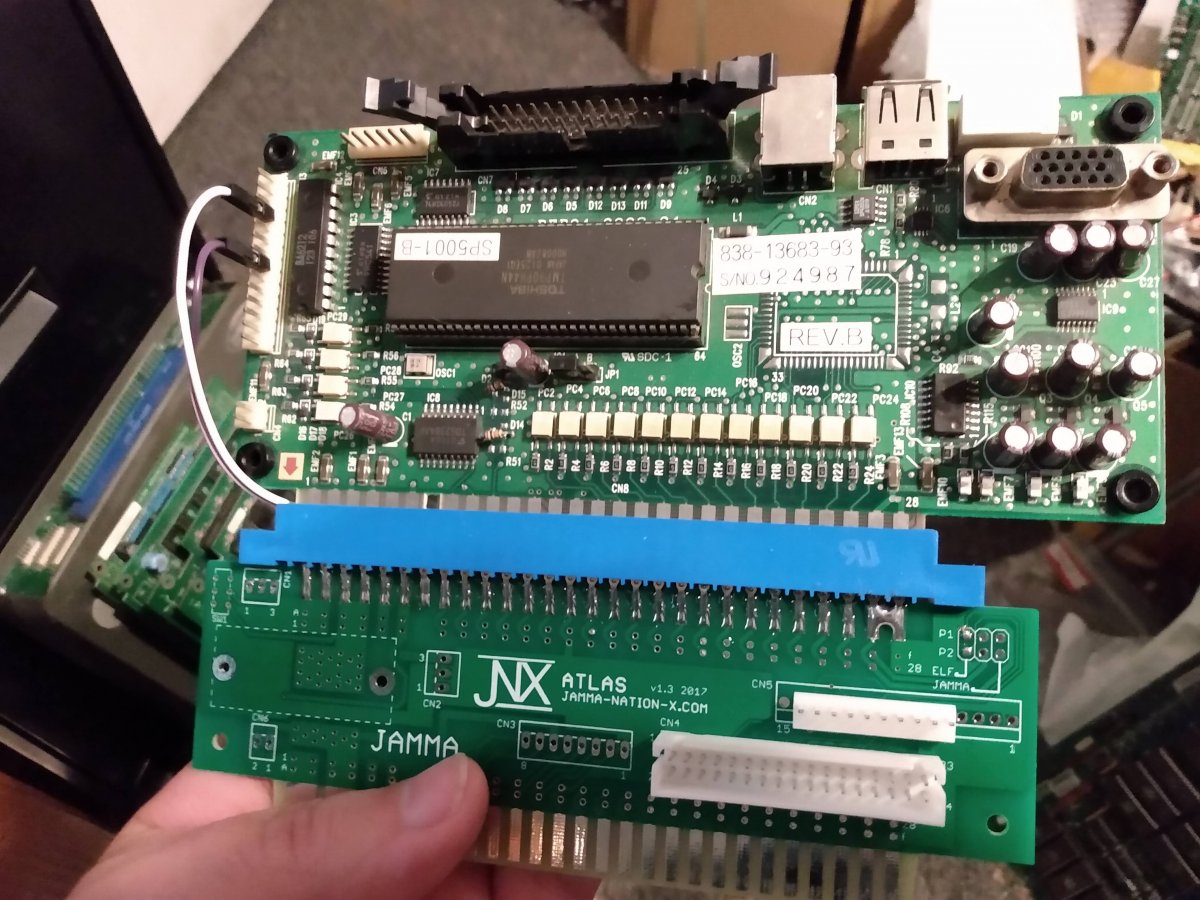

I had JNX make me a Street Fighter the Movie adapter because it has similar wiring with buttons 4 and 5 on the JAMMA edge and 6 on it's own connector. I can't find it but I do I have a post somewhere with a pic of me using it on this Sega IO to remap everything to a CPS2 style connector.


JoeAwesome

Professional
Joined
Feb 28, 2019
Messages
487
Reaction score
262
Location
BCS/Houston, Texas


These, ts?


Attachments

  • 1D46E71A-17B0-45A7-A9CE-98450EF05E34.jpeg
    186.4 KB · Views: 34

JoeAwesome

Professional
Joined
Feb 28, 2019
Messages
487
Reaction score
262
Location
BCS/Houston, Texas
If/when I get a Rev. B, it was going to help with my needs!
