I know others have gotten this to work, but not been able to find a concise guide as to what needs to be done and what hardware is needed. Anyone have any pointers?


Trol

Enthusiast
Joined
Jul 11, 2016
Messages
211
Reaction score
116
Location
Netherlands
I know others have gotten this to work, but not been able to find a concise guide as to what needs to be done and what hardware is needed. Anyone have any pointers?
You'll need an Atomiswave gunboard and loom between gunboard and mobo.
The happ guns plug into the gunboard, just like the original Sammy guns...same pinout.


Trol

Enthusiast
Joined
Jul 11, 2016
Messages
211
Reaction score
116
Location
Netherlands

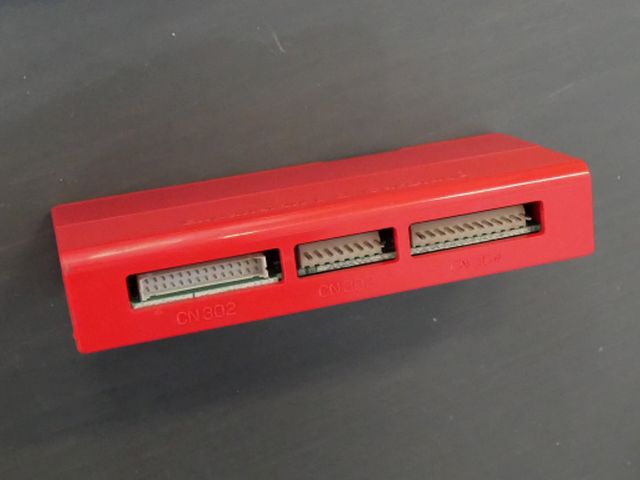

And your motherboard needs the expansion i/o cartridge


Kujako

Professional
Joined
Jun 3, 2020
Messages
633
Reaction score
303
Location
USA, California
And your motherboard needs the expansion i/o cartridge
Yeah I have the I/O cartridge and can get the gunboard. What I'm wondering about is the wiring from HAPP gun to gunboard to i/o.


Trol

Enthusiast
Joined
Jul 11, 2016
Messages
211
Reaction score
116
Location
Netherlands
I'll dig out my system in a few days and let you know. The only thing you need to make is the loom between mobo an gunboard.
4 or 5 wires, very easy


Myn

Beginner
Joined
Oct 31, 2020
Messages
3
Reaction score
1
Location
California
I just got a Sports Shooting USA cabinet in yesterday. I have 0 knowledge of the wiring configuration but this is what the connections for the Happ guns look like in my control panel. If you need better pictures please let me know.


Attachments

  • IMG_0833.jpg
    242.7 KB · Views: 71

Trol

Enthusiast
Joined
Jul 11, 2016
Messages
211
Reaction score
116
Location
Netherlands

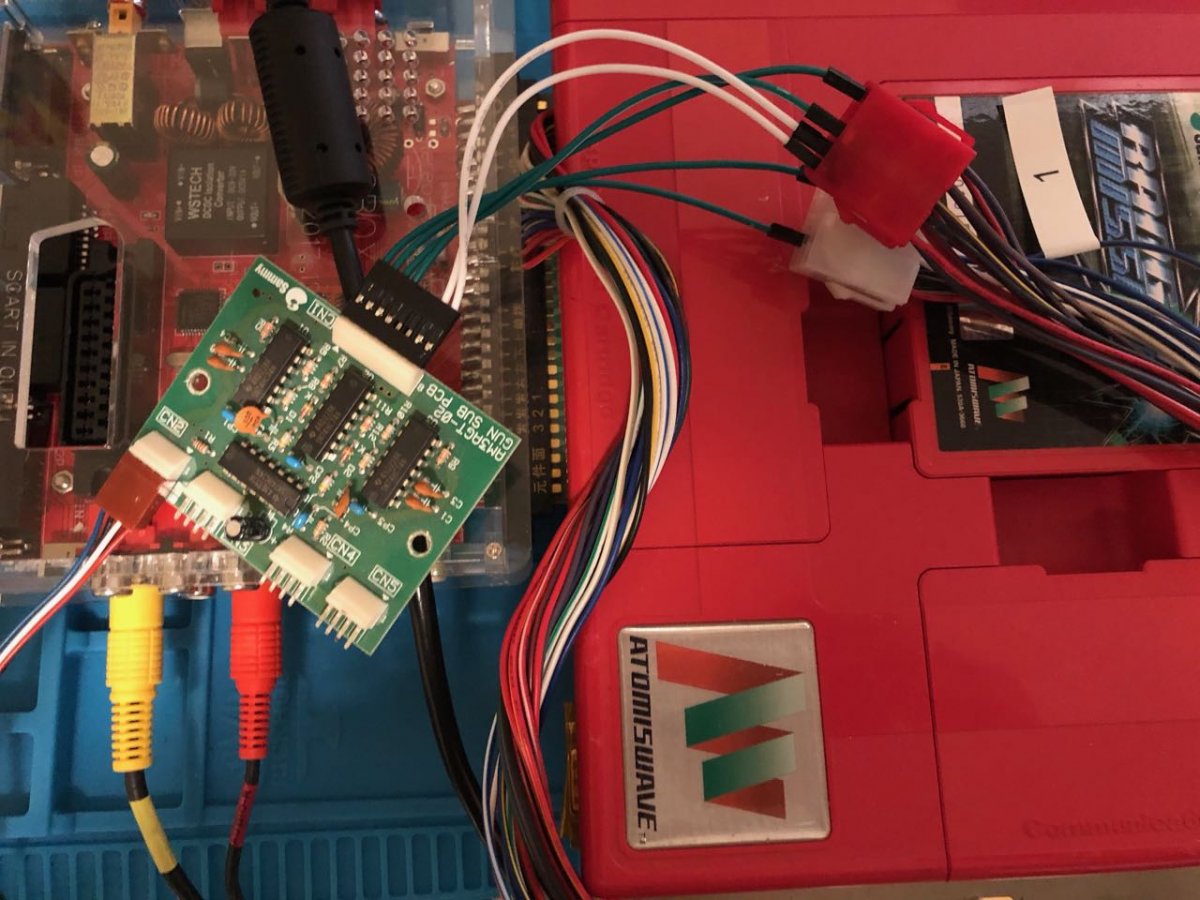

Here some pics of my setup.
Pinout of the loom is in the last pic. I drew the connector just lik you see it in the first pic.
The numbers are the pin numbers of the connector on the gun board.
The hap gun connects to cn2 for player on and cn4 for player two. The red wire shoud go to pin 1.


Attachments

  • 20210124_163425.jpg
    93.5 KB · Views: 77
  • 20210124_163448.jpg
    145.8 KB · Views: 75
  • 20210124_163518.jpg
    178.5 KB · Views: 82

Kujako

Professional
Joined
Jun 3, 2020
Messages
633
Reaction score
303
Location
USA, California
That you both, will take me a bit to work on getting this setup.


Kujako

Professional
Joined
Jun 3, 2020
Messages
633
Reaction score
303
Location
USA, California
Still working on this... got distracted trying to re-shell on of my guns.


Kujako

Professional
Joined
Jun 3, 2020
Messages
633
Reaction score
303
Location
USA, California
OK, so think I have things wired up. But am not getting any evidence of it working. Only have Ranger Mission to work with, and it is possible that my gun IO board isn't working. Tried to go into the settings and see if there's a calibration/test mode, but I don't have a "service" button... any ideas?


Trol

Enthusiast
Joined
Jul 11, 2016
Messages
211
Reaction score
116
Location
Netherlands
Double checked the wiring loom?
My drawing of the connector is orientated like you look at the jamma connector on the mobo.


Trol

Enthusiast
Joined
Jul 11, 2016
Messages
211
Reaction score
116
Location
Netherlands
Amp-mini-U says the sports shooting manual

*edit* jst phd says nem👍😁

Last edited:

Kujako

Professional
Joined
Jun 3, 2020
Messages
633
Reaction score
303
Location
USA, California
Double checked the wiring loom?
My drawing of the connector is orientated like you look at the jamma connector on the mobo.

Wiring seems to be correct. Not sure how I can diagnose it... could be an issue with the wiring, IO board, gun board or gun.


Kujako

Professional
Joined
Jun 3, 2020
Messages
633
Reaction score
303
Location
USA, California
Try flipping the gun connector when all else fails.
Tried both orientations, no luck. I did manage to get into the setup for Ranger Mission, and not even seeing the trigger being detected. Any idea what the pinout for the CN2/CN4 is? I should be able to short two pins and see it picked up as a trigger click. That'll help me determine if its the board or gun.
