HB-45A chip hybrid Seibu

[pacman70]

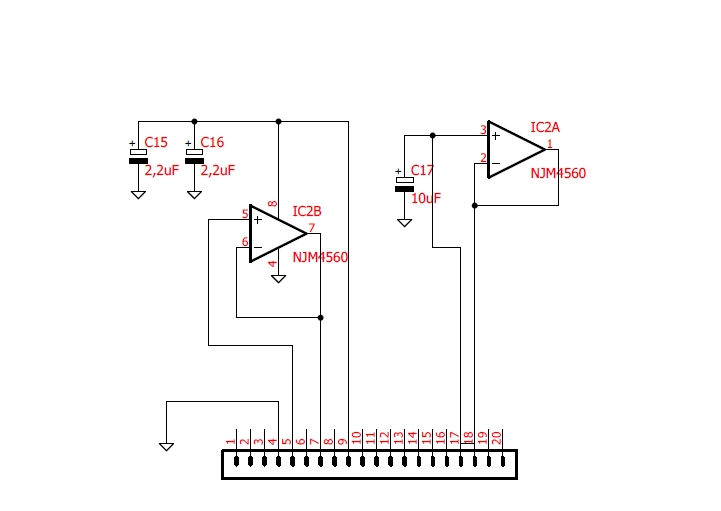

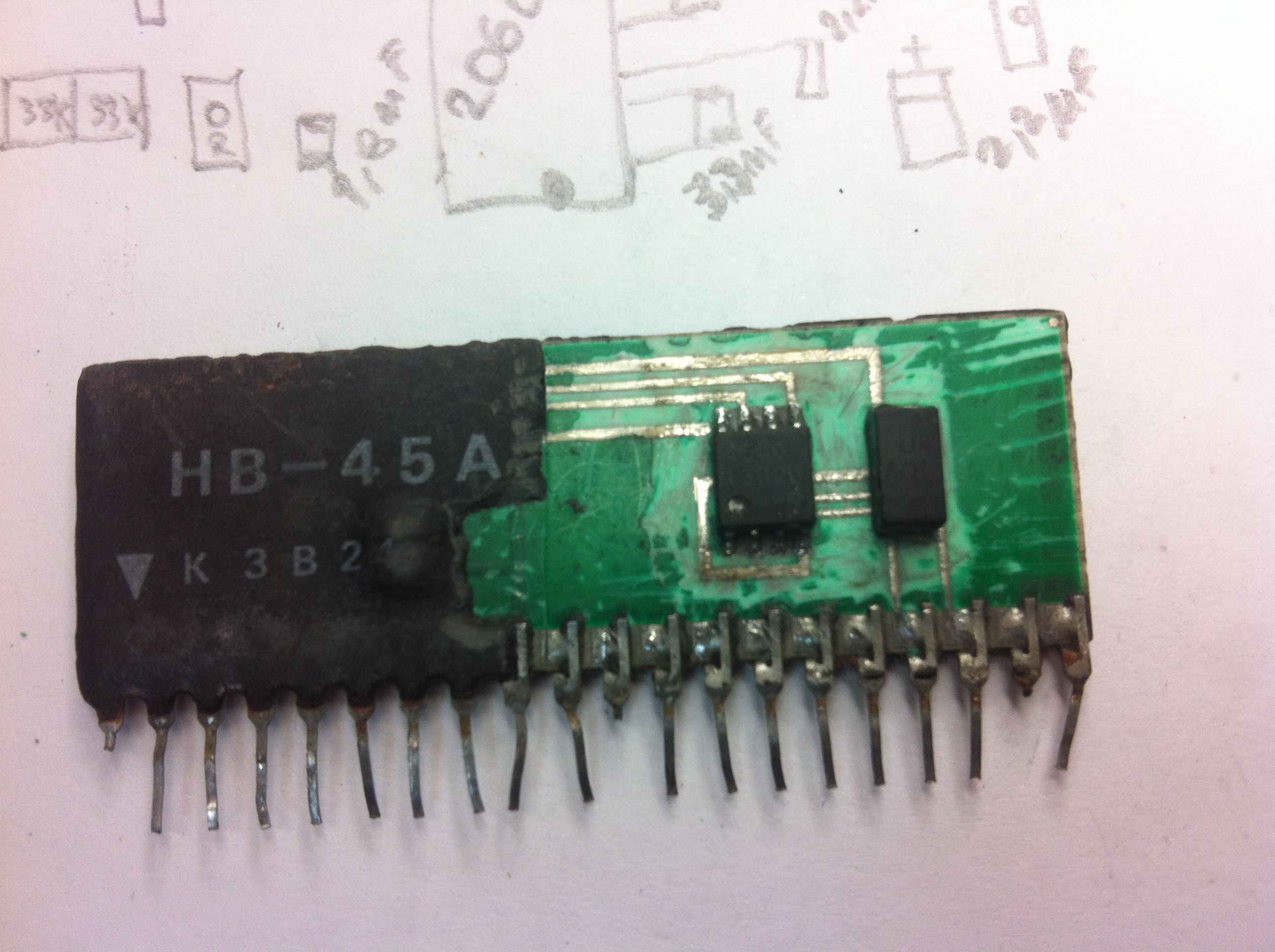

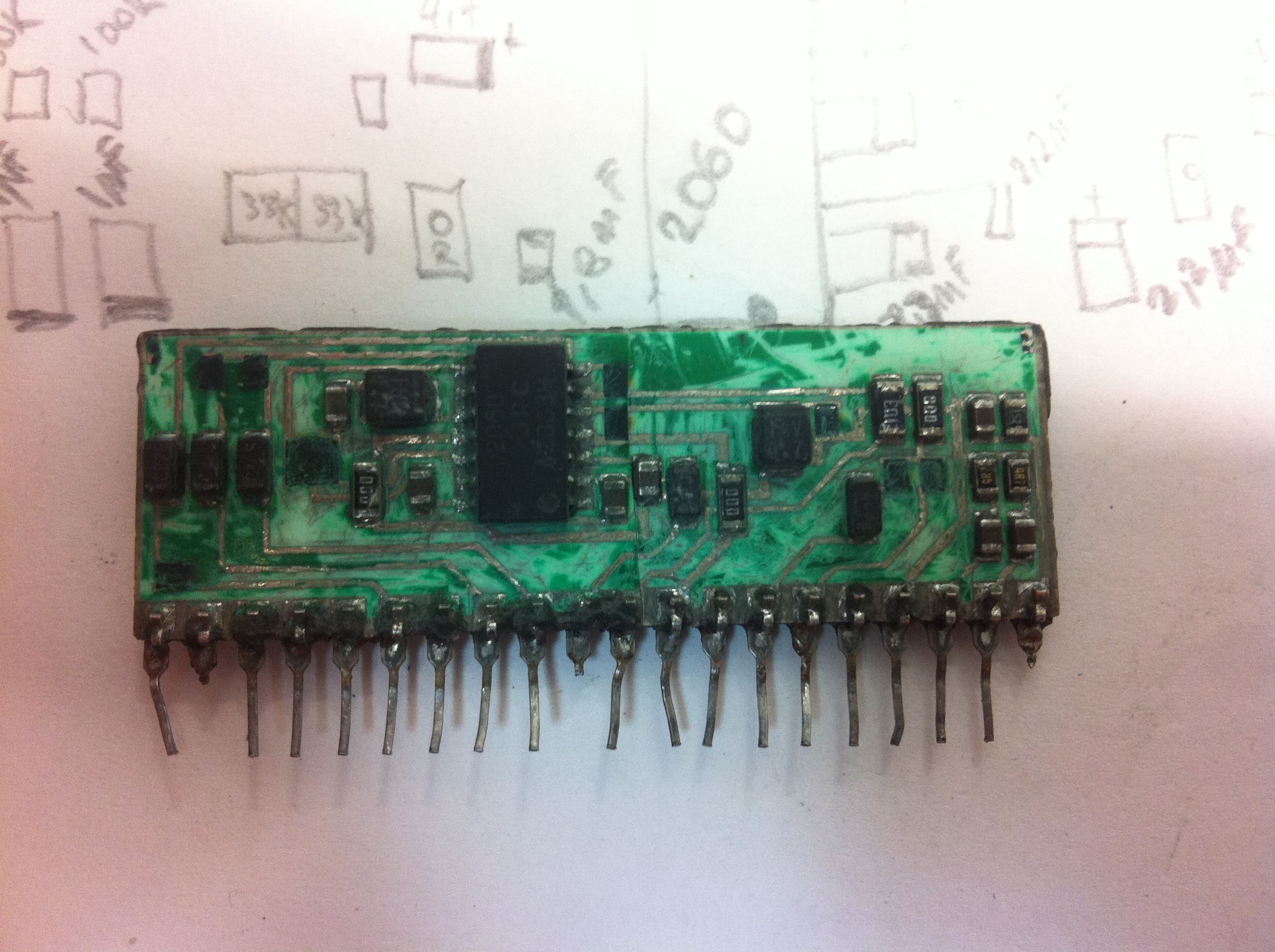

I put here the scheme of the HB-45 seibu chip that I rebuilt for a repair of a pcb Raiden 2.

maybe you can need it.



[caius]

Already decapped and reproduced by me a whle ago.Sorry, you are too late
Anyway, your schematics are wrong and not acccurate.First of all, pin 9 is tied to +12V on PCB and not +5V.Then, there are hidden film printed resistors and you didin't include them in your schematics.Then, how do you think to power the NJM4560 OP-AMP if there is no positive voltage applied to pin 8 but only two capacitors with their negative terminals connected to GROUND?



[pacman70]

good job



[james_s]

Was the correct schematic ever posted anywhere? That's what I'd be interested in, I've dealt with a few of these modules and I always like to know what's inside them, reverse engineering is fun but I don't want to carve into one that I'm not positive is bad.



[edwin128]

Already decapped and reproduced by me a whle ago.Sorry, you are too late
Anyway, your schematics are wrong and not acccurate.First of all, pin 9 is tied to +12V on PCB and not +5V.Then, there are hidden film printed resistors and you didin't include them in your schematics.Then, how do you think to power the NJM4560 OP-AMP if there is no positive voltage applied to pin 8 but only two capacitors with their negative terminals connected to GROUND?

@caius is one century ahead of everybody on the design and reproduction of custom arcade chips.



[opt2not]

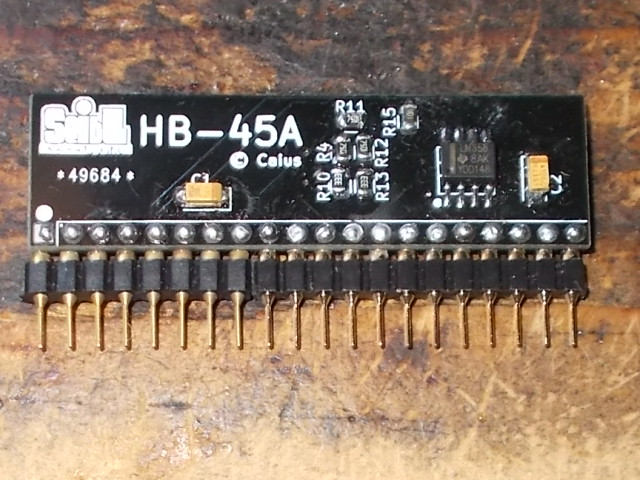

Already decapped and reproduced by me a whle ago.Sorry, you are too late

tested and verified by me!

http://www.jammarcade.net/seibu-hb-45a-reproduction/

It’s still running excellent!
