Got one that has us stumped. Going to just give up and take this to PNL when I can find the time, but in the meantime if anyone has any advice for things I could try first I’m all ears.

Monitor was working fine and then something happened and it developed this sync problem. If anyone has seen this before or even has suggestions for things we might not have looked at lemme know! 😊

View: https://youtu.be/mzRDa45EVas


Mukuro_W

Student
Joined
Nov 15, 2018
Messages
131
Reaction score
64
Location
ITALY

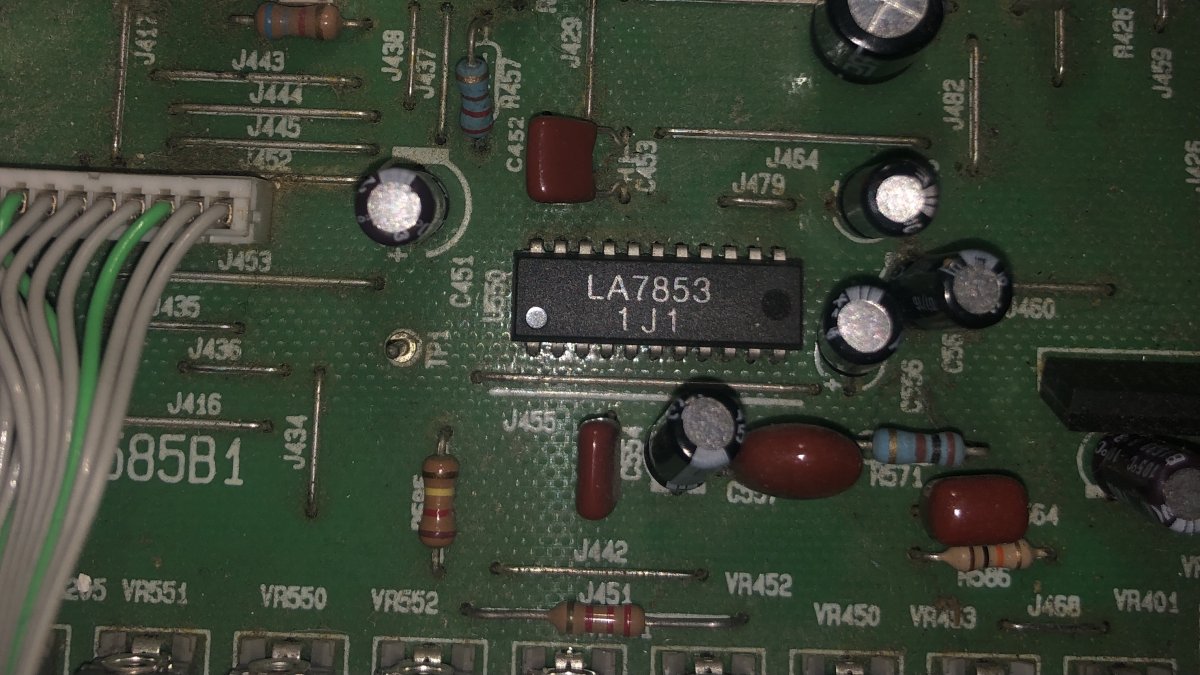

What you are getting here is a H sync pulse issue, if the wiring to the monitor is good , most likely you have to replace the ic U550 (LA7853) and check or directly replace the caps in that area.


Aurich

Enlightened
Joined
Jan 28, 2016
Messages
1,744
Reaction score
3,338
Location
SoCal
Already recapped the whole chassis and replaced LA7853. I don’t know how to verify that the new IC is any good though.

H sync pulse seems like a helpful search term, I’ll try researching that.



Aurich

Enlightened
Joined
Jan 28, 2016
Messages
1,744
Reaction score
3,338
Location
SoCal
I guess the other question really is why did the LA7853 go bad in the first place, and did the replacement just fall victim to the same issue. Gives me something to poke at at least, so thanks!


Hatsune Mike

Champion
Joined
Dec 8, 2017
Messages
672
Reaction score
1,884
Location
San Francisco Bay Area
Trace the signal for H phase adjust, it might be floating if the knob doesn't do its thing properly.

Second-to-rightmost pin on remote board --> J436 --> R556 --> Q220 --> Q551? (sorry, hard to read what I have here) --> Pin 2 of the LA7853. There are some other passives related too.

Last edited:

Aurich

Enlightened
Joined
Jan 28, 2016
Messages
1,744
Reaction score
3,338
Location
SoCal
Trace the signal for H phase adjust, it might be floating if the knob doesn't do its thing properly.
Thanks Mike, will add it to the list of things to check. grantspain over at OA asked "if you remove video and up the brightness does the raster remain stable?" and I'm going to check that too for more data.

His other suggestion was "i have the an5551 at U450 cause very odd sync faults in the past".

I scanned the schematic for the 29SU some weeks ago.
Awesome. Not the clearest document, but compared to what we had in the past this is like the meme with Peter Parker taking off his glasses lol. With a little effort you can actually read this one!


Hatsune Mike

Champion
Joined
Dec 8, 2017
Messages
672
Reaction score
1,884
Location
San Francisco Bay Area

Aurich

Enlightened
Joined
Jan 28, 2016
Messages
1,744
Reaction score
3,338
Location
SoCal
(Posted this update at AO, duplicating here to keep a record)

Alright, got an update, and it's getting interesting.

Fired up the monitor with no video, and went to turn up the screen to see the raster lines. Turned it a little too far and kicked in the protection circuit, heard a click and lost neck glow, managed to freak myself out. Turned everything off, lowered screen, turned back on, everything fine. I did curse for a minute there though. :D

Okay, so I have raster lines, and they're definitely rolling. But then I remembered I had tried playing with the H.H.15 pot earlier, and it might just be normal horizontal hold being off. Tried to adjust it, but with just white screen and raster lines it was too hard to see.

So I went ahead and powered on the other cab this one was slaved to to get a video signal so I could see. And yeah, it was definitely horizontal hold garbled, so I adjusted the pot. And ... suddenly got a stable picture. I could see the game clearly, no waviness.

Geometry was a mess from trying things earlier, went into test menu to get mostly sorted, and this is where I ended up:



That's progress! After getting a mostly tuned up geometry so I could see properly I went back into the game attract mode. At this point it's like 90% working, but I do see some occasional little sync flickers in from the edges. It's not magically 100% fixed. But now I'm wondering if that pot was the source of the issue all along? I can't think accidentally going too high on the screen did anything.

I haven't messed with it further yet, calling it a break for lunch now, and I admit I'm slightly afraid to touch that pot again now that it's kinda working lol. But not feeling at all confident about this 'fix'. Maybe this is enough data to draw some conclusions though?

It's not that easy to spot the little flickers, but there are still present it you watch carefully:

View: https://www.youtube.com/watch?v=IroN-4mk5cY


Hydreigon

Enthusiast
Joined
Sep 15, 2019
Messages
220
Reaction score
82
Location
U.S.
Glad to see progress. I myself decided to look at the better quality schematics for my broken MS9. Unfortunately, mine is irrepairable unless I get a parts MS9 (looking for T901). The winding between pins 2 and 4 is shorted rendering this transformer useless.

How this winding ended up shorted? Let's say never unplug a chassis powered on from a U.S. Namco arcade cabinet.


Aurich

Enlightened
Joined
Jan 28, 2016
Messages
1,744
Reaction score
3,338
Location
SoCal

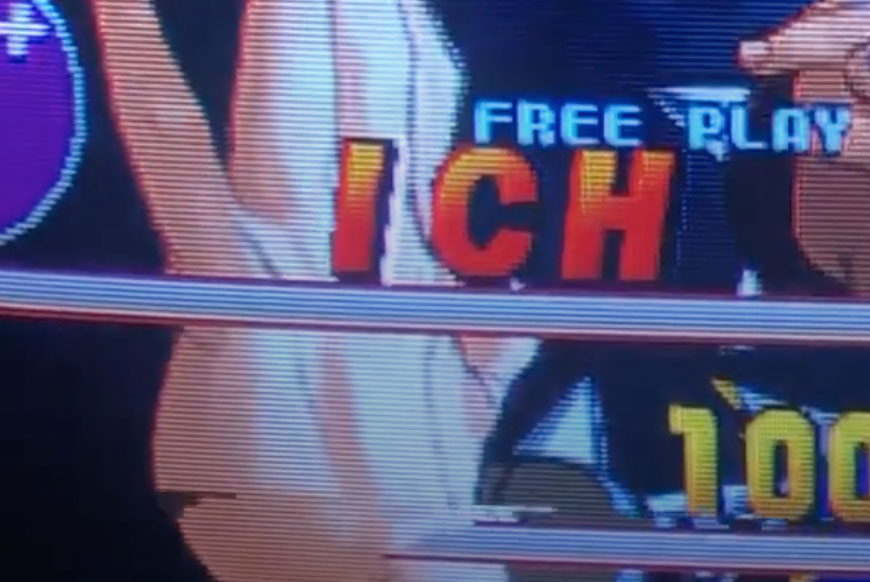

It's a bit hard to spot the problems in that video, they're honestly infrequent and minor, but the transition screen with Chun has the clearest ones I think:



Aurich

Enlightened
Joined
Jan 28, 2016
Messages
1,744
Reaction score
3,338
Location
SoCal
Just as a little update, I messed with the HH15 pot. I was able to get the usual horizontal sync stuff to happen, but I couldn't get the major problem to return. So it's not some magic sweet spot on the pot that's working that you can't touch ever again.


Mukuro_W

Student
Joined
Nov 15, 2018
Messages
131
Reaction score
64
Location
ITALY
Have you already tried to replace this pot/trimner? Sometimes those get corrosion intenally and fail, no matter how well you clean if those are done.

Is this a nanao chassis paired with hitachi tube?


Aurich

Enlightened
Joined
Jan 28, 2016
Messages
1,744
Reaction score
3,338
Location
SoCal
I have not replaced the pot, I assume you mean the HH15. Given the current behavior I kind of doubt that will do anything helpful, but certainly possible I guess. If the pot was failing though it seems unlikely I'd be getting the standard behavior out of it like I am now. I could be wrong!

It's a Nanao MS9-SU, not sure who made the tube on these, it's not branded.


Mukuro_W

Student
Joined
Nov 15, 2018
Messages
131
Reaction score
64
Location
ITALY
can you post a photo of the rear of the monitor, just to take a look at the yoke?


Aurich

Enlightened
Joined
Jan 28, 2016
Messages
1,744
Reaction score
3,338
Location
SoCal

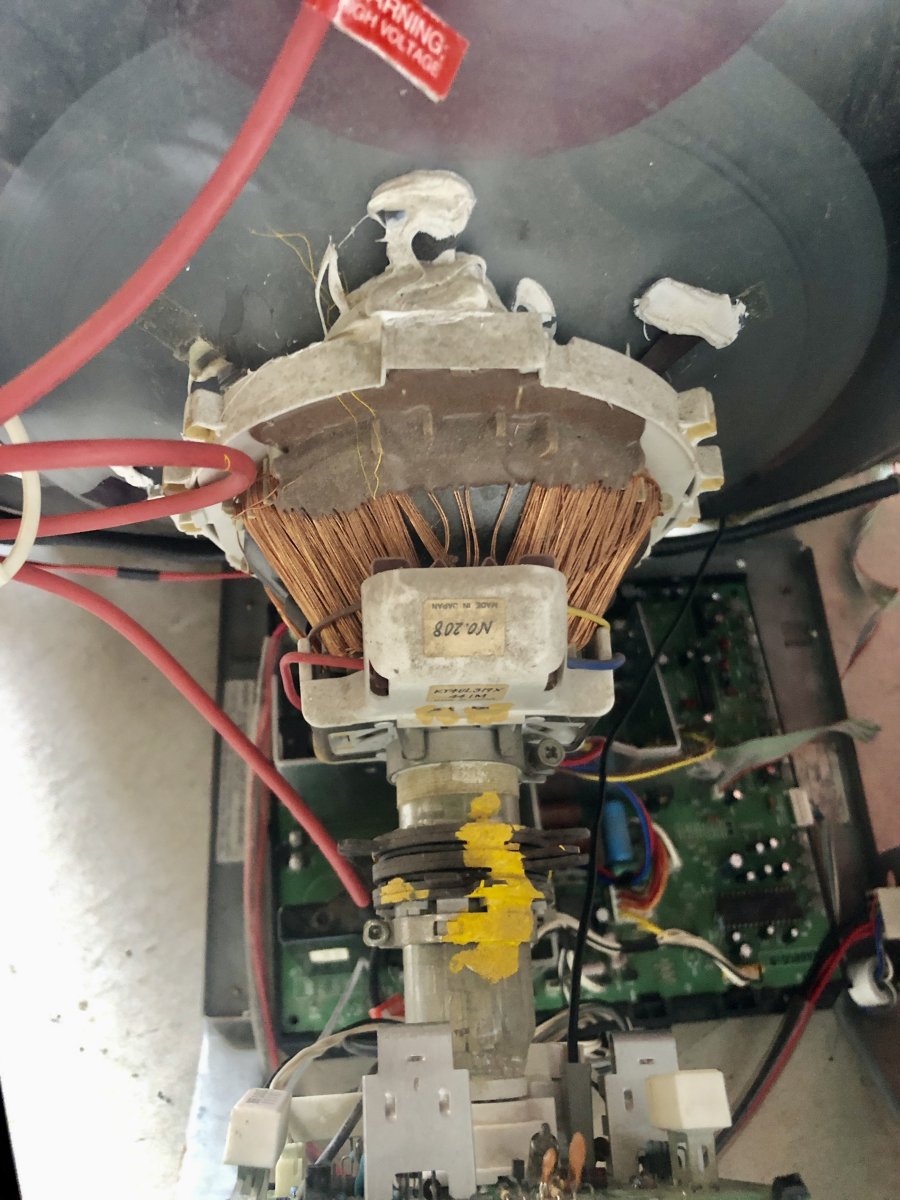

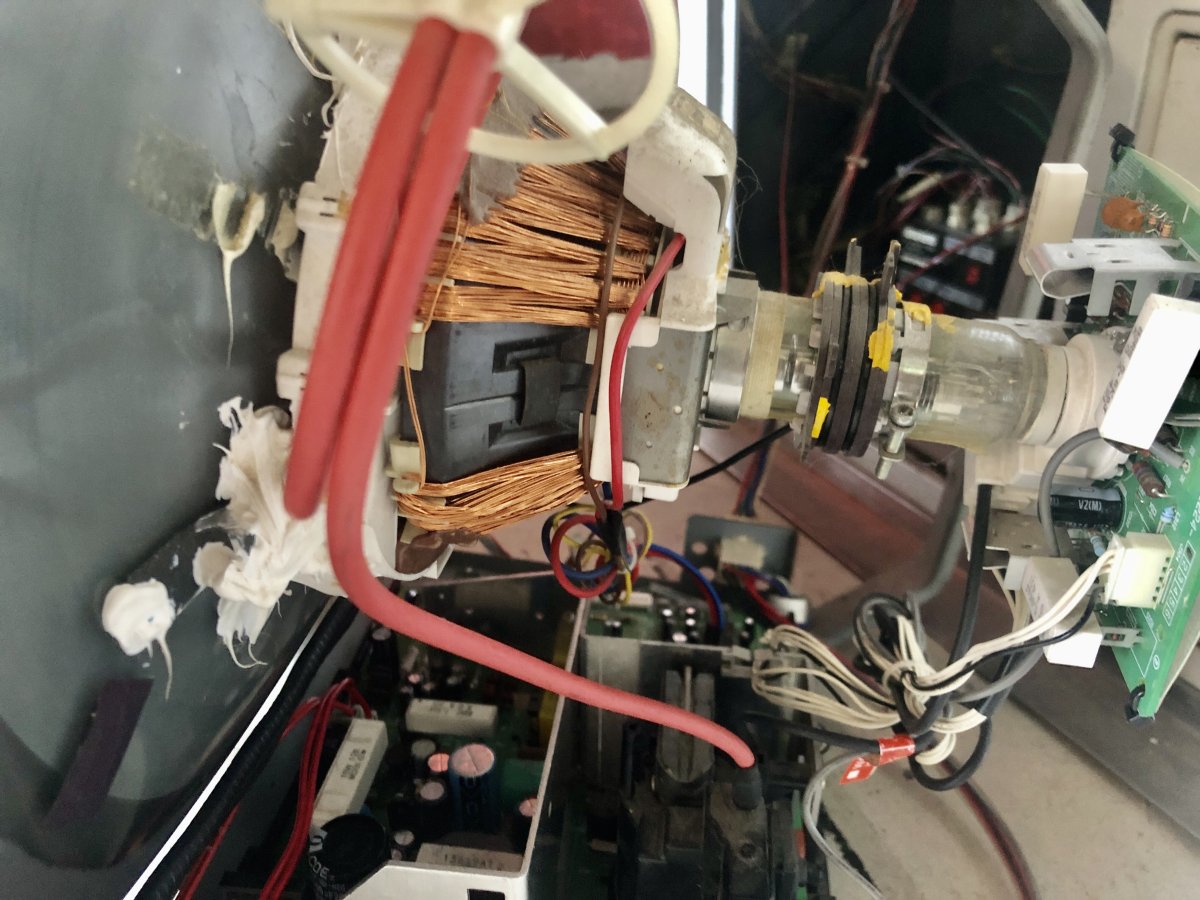

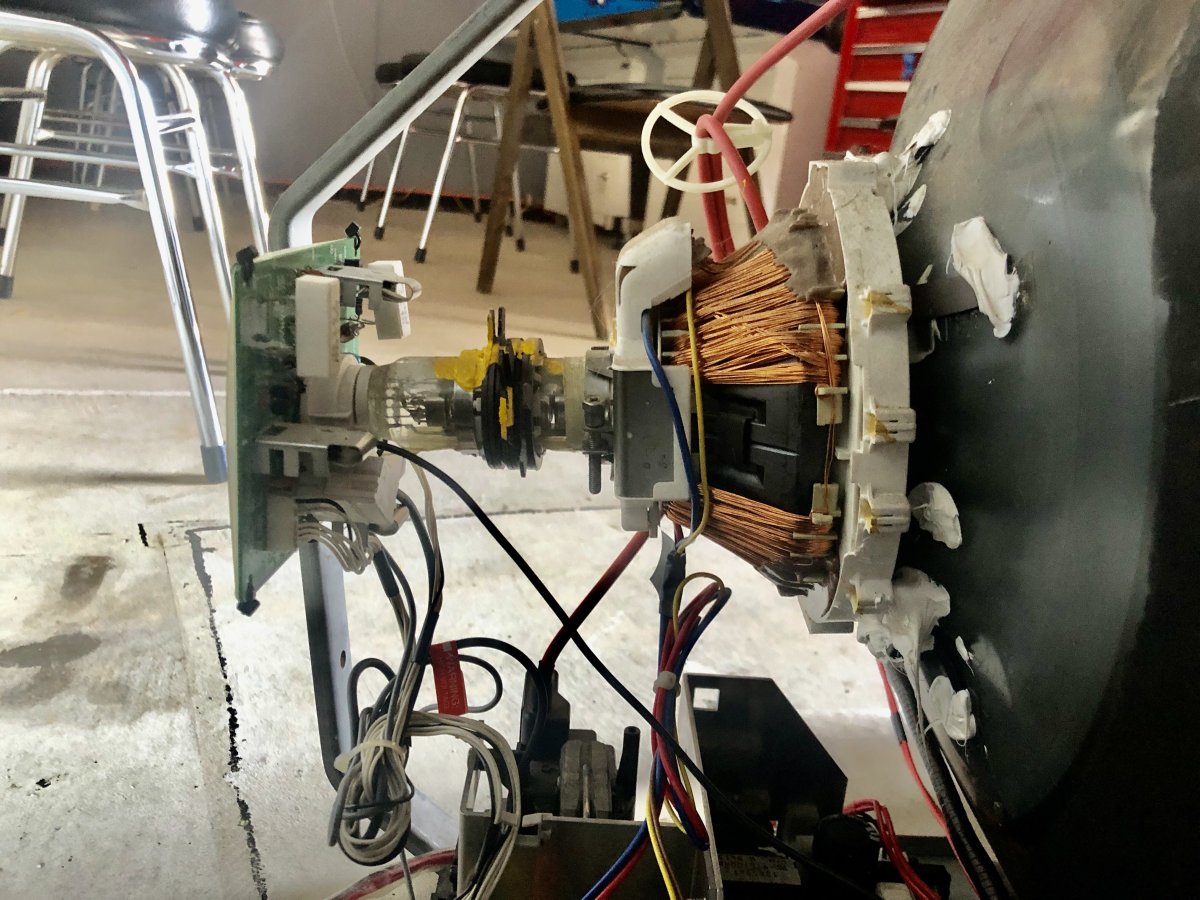

Sure thing. But what are you looking for? This strikes me as a chassis problem, is there something on the tube that would cause this in your mind?



Mukuro_W

Student
Joined
Nov 15, 2018
Messages
131
Reaction score
64
Location
ITALY
I was just curious , the yoke is the one for the nanao SU +hitachi tube but not sure about the brand of the tube itself it appear the yoke was swapped, bytheway apart the vertical linearity wich is easily addressed by V. linearity pot, this monitor looking good and yes , the latest issue wich you have now is chassis only related , obviously.
