***NOW AVAILABLE***

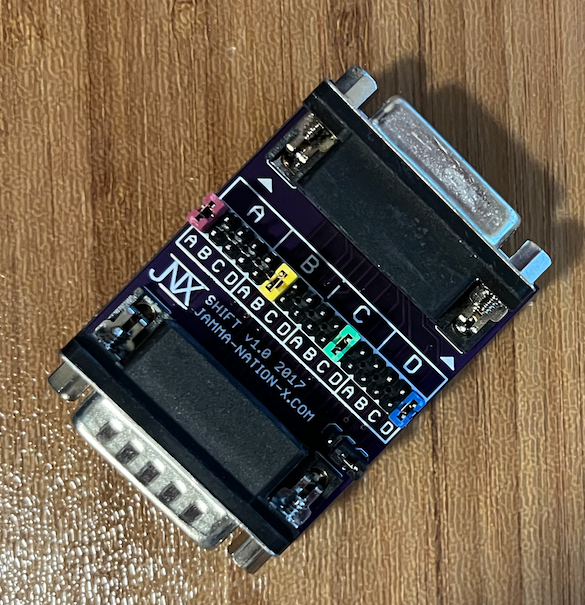

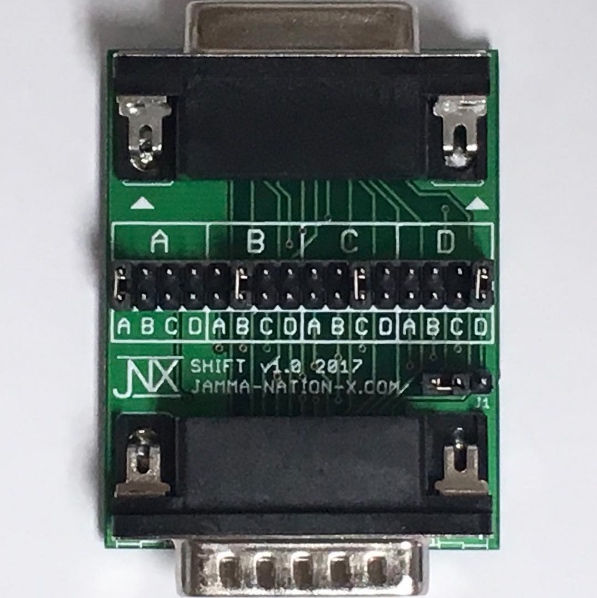

This is the JNX Shift, an inline button remap for the Neo Geo CD joypad. We all have used one before and majority of us hate the button layout.

With the Shift, you simply just move the jumpers to how you want them to be. Each button has a set of 4 jumpers.

For the shift to work 100%, there is a small modification that needs to be made to the Neo Geo CD joypad. SNK internally connected pins 4 and 9, on some superguns/CMVS units that may cause some issues since pin 9 is used or cause button D to never be mapped correctly.

I'll post pics of the slight mod needed, just requires clipping one wire that is never used by the controller or any Neo system.

The JNX Shift will go on sale in roughly two weeks. Price will be $17.99 plus shipping.
:thumbsup:

Download files for JNX Shift: https://oshpark.com/shared_projects...uHGsk87aQMNwhXEgIEFg-5sHcYZhBClQHjdLljHz2d6mQ


Attachments

  • jnx-shift.jpg
    125.7 KB · Views: 709
Last edited:

nismopunch

Professional
Joined
Jan 21, 2016
Messages
465
Reaction score
173
Location
Bay Area, CA
Sucks to hear that someone was ripping off your work man. Glad I got some lazy fingers before, and looking forward to seeing the details on your new product. :thumbsup:


XianXi

Professional
Joined
Jul 21, 2015
Messages
426
Reaction score
366
Location
Honolulu, HI
Sucks to hear that someone was ripping off your work man. Glad I got some lazy fingers before, and looking forward to seeing the details on your new product. :thumbsup:
Ya it always sucks but luckily it wasn't from the beginning and more towards the end of the products life. I know a bunch of people will like the JNX Shift as it's something I wish existed when I had the use for it.

Thanks for buying the Lazy Finger!!


XianXi

Professional
Joined
Jul 21, 2015
Messages
426
Reaction score
366
Location
Honolulu, HI
Now on clearance in the JNX store for only $5.99.

Get it before it's gone for good.


XianXi

Professional
Joined
Jul 21, 2015
Messages
426
Reaction score
366
Location
Honolulu, HI

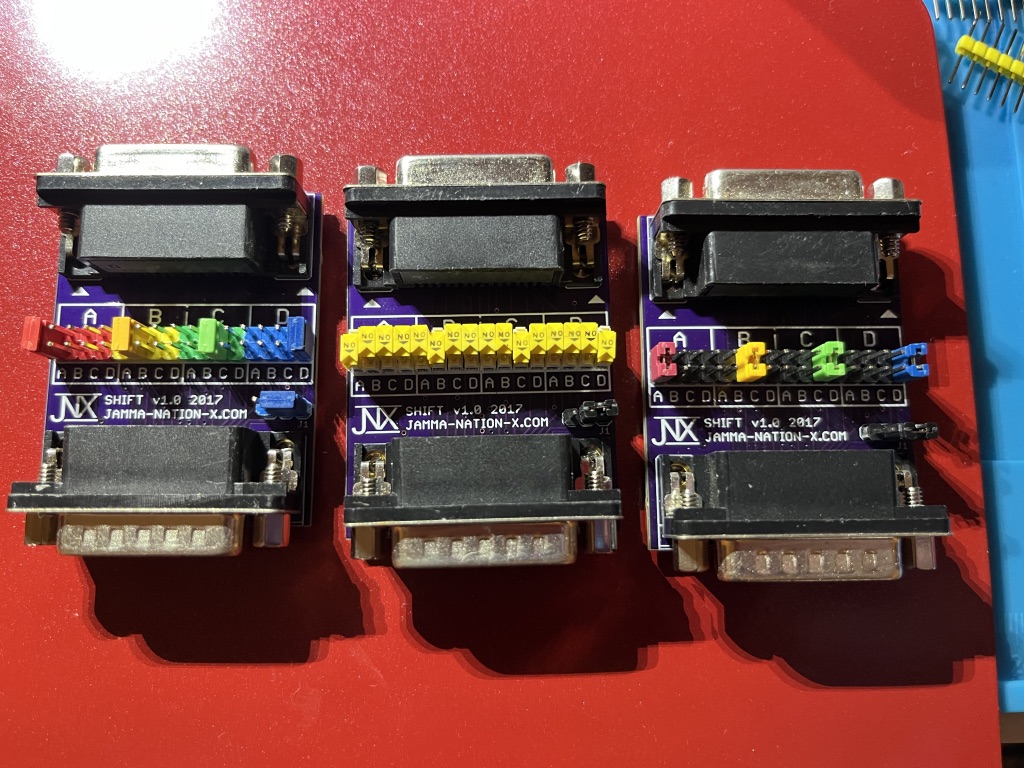

Anybody need any of these, I still have a few PCBs left over.


Kujako

Grand Master
Joined
Jun 3, 2020
Messages
950
Reaction score
532
Location
USA, California
Thinking of making one of these, but I have a question. What's J1 do?


Kujako

Grand Master
Joined
Jun 3, 2020
Messages
950
Reaction score
532
Location
USA, California
It's for the D button. In the NGCD pad it goes to both 4 and pin 9.

So what do the two positions of the jumper do? I wouldn't be using this with a NGCD controller I don't think.


XianXi

Professional
Joined
Jul 21, 2015
Messages
426
Reaction score
366
Location
Honolulu, HI
Sorry didn't see this, it's basically to keep it stock or remove the connection. Stockwise the D button goes to both 4 and 9 but the system only uses pin 4 for D, moving the jumper to set it to no connection is just for people who have a supergun and have another signal on pin 9.
