WTB Looking for an IC Pin Straightener RS Pro 424658

[Derick2k]

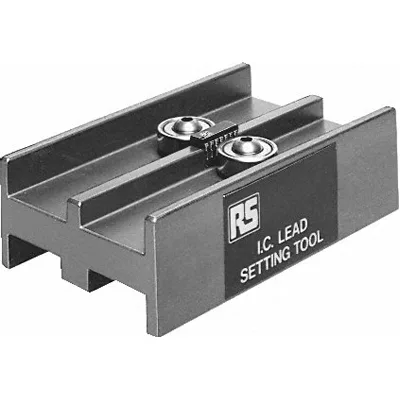

Looking for this guy

https://us.rs-online.com/product/rs-pro/424658/70412164/

Theys stopped making these, but Im still looking to get one.



[ItsBobDudes]

Looks 3d printable...4 ball bearings and a simple design.



[Derick2k]

Looks 3d printable...4 ball bearings and a simple design.

Yup, there is a 3d printed version Im looking into also. Hakko makes one, but they sell a unit for each chip size, so you can end up with 4-5 of devices.



[ItsBobDudes]

Do you have the lead spacing for the devices you are looking to straighten ?



[FrancoB]

It shouldn't be too hard to make something adjustable to suit a range of ICs.



[Derick2k]

I think the most common spacings are 7.5mm and 15mm, but you also have 10mm and 19mm.



[Derick2k]

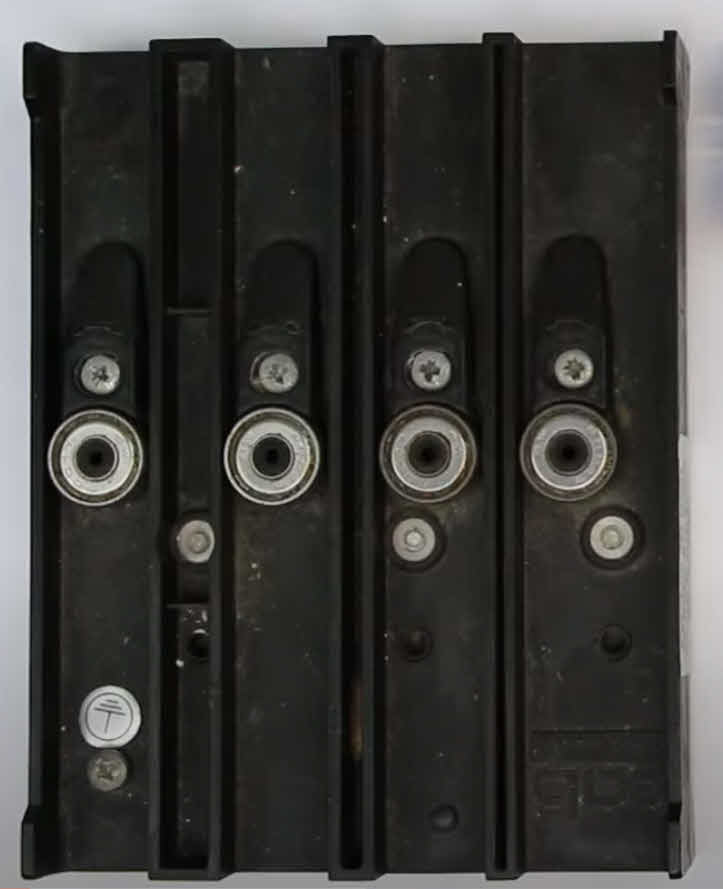

I was trying to find this one

But its seems like there is no info on it



[ItsBobDudes]

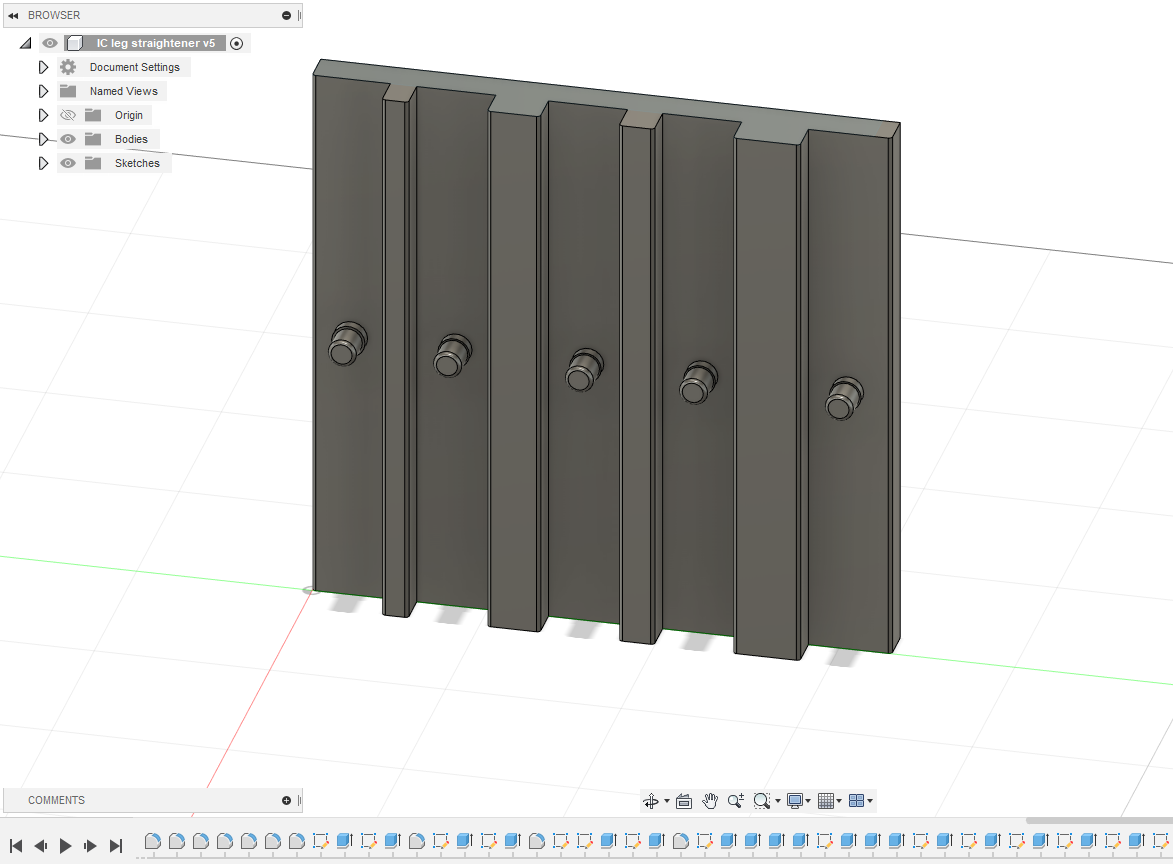

Here's my first crack at it. I'll give it a test print and see if any adjustments need to be made.



[Derick2k]

DUDE!!!!!!!!!!! That looks awesome!

Not sure if it helps, but I found this

https://www.thingiverse.com/thing:3399888

This seems more complicated/trouble than its worth, I where yours is headed



[Derick2k]

I asked @hursit about possibly making these out of metal if its not too costly.



[ItsBobDudes]

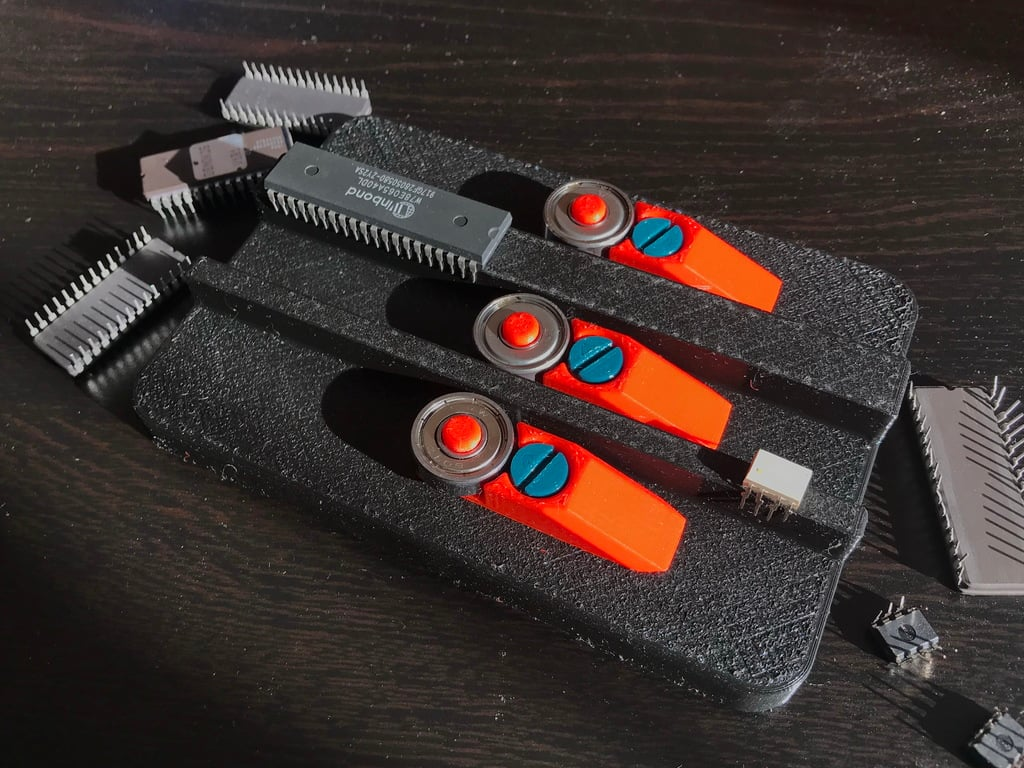

Well here is my attempt at it. It all seems to fit correctly but I am not sure if PLA has the rigidity to straighten IC legs.
