hello i want to convert two of my mega tech cartridges what like 40 dip eprom do i need?


olum64

Student
Joined
Sep 28, 2019
Messages
41
Reaction score
10
Location
Germany Augsburg

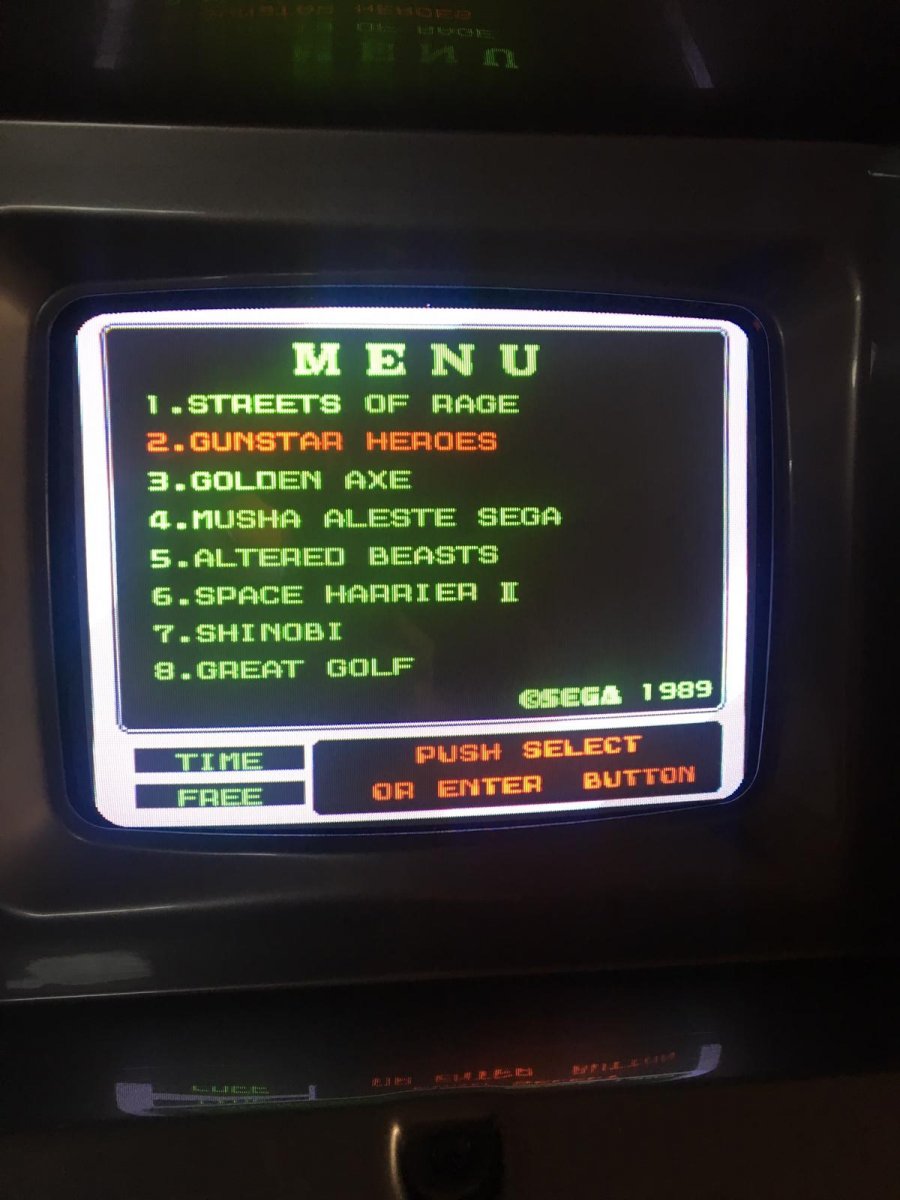

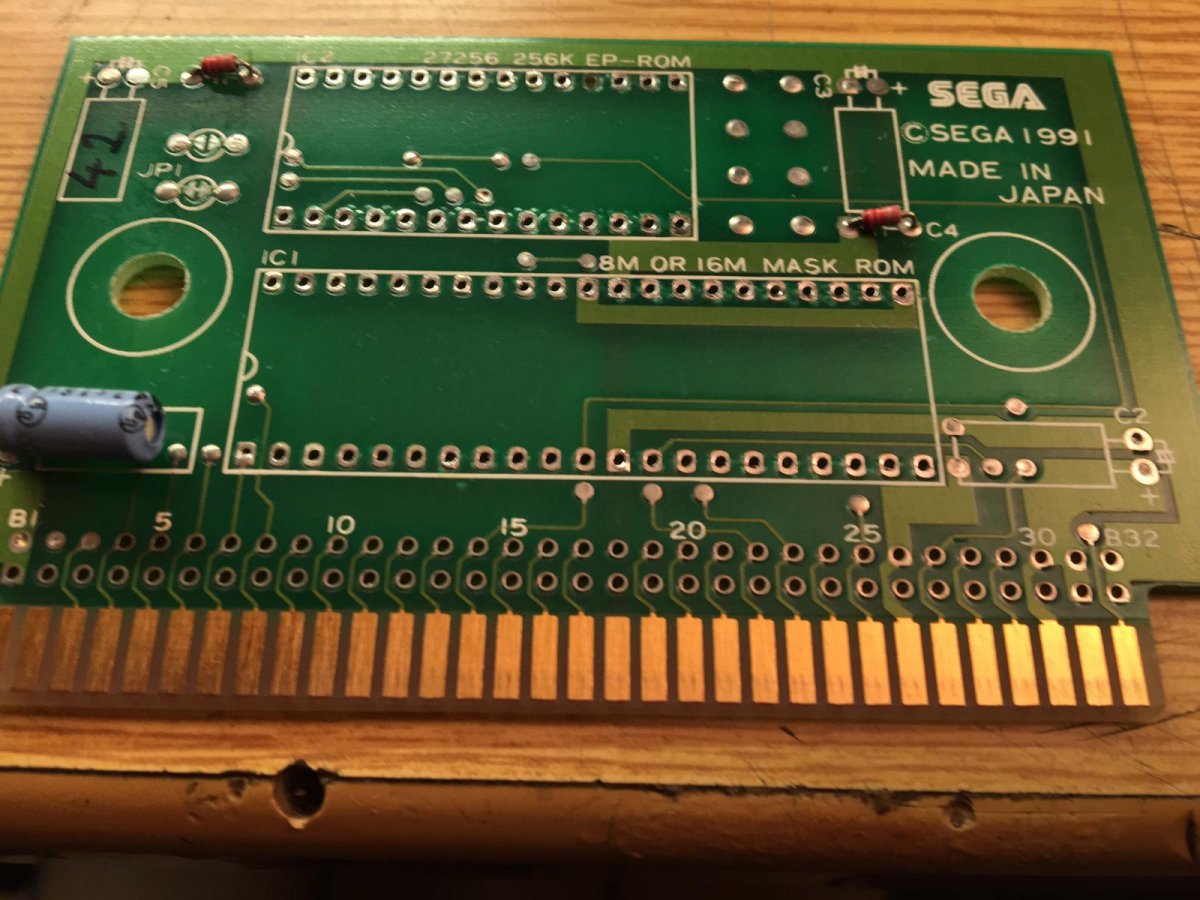

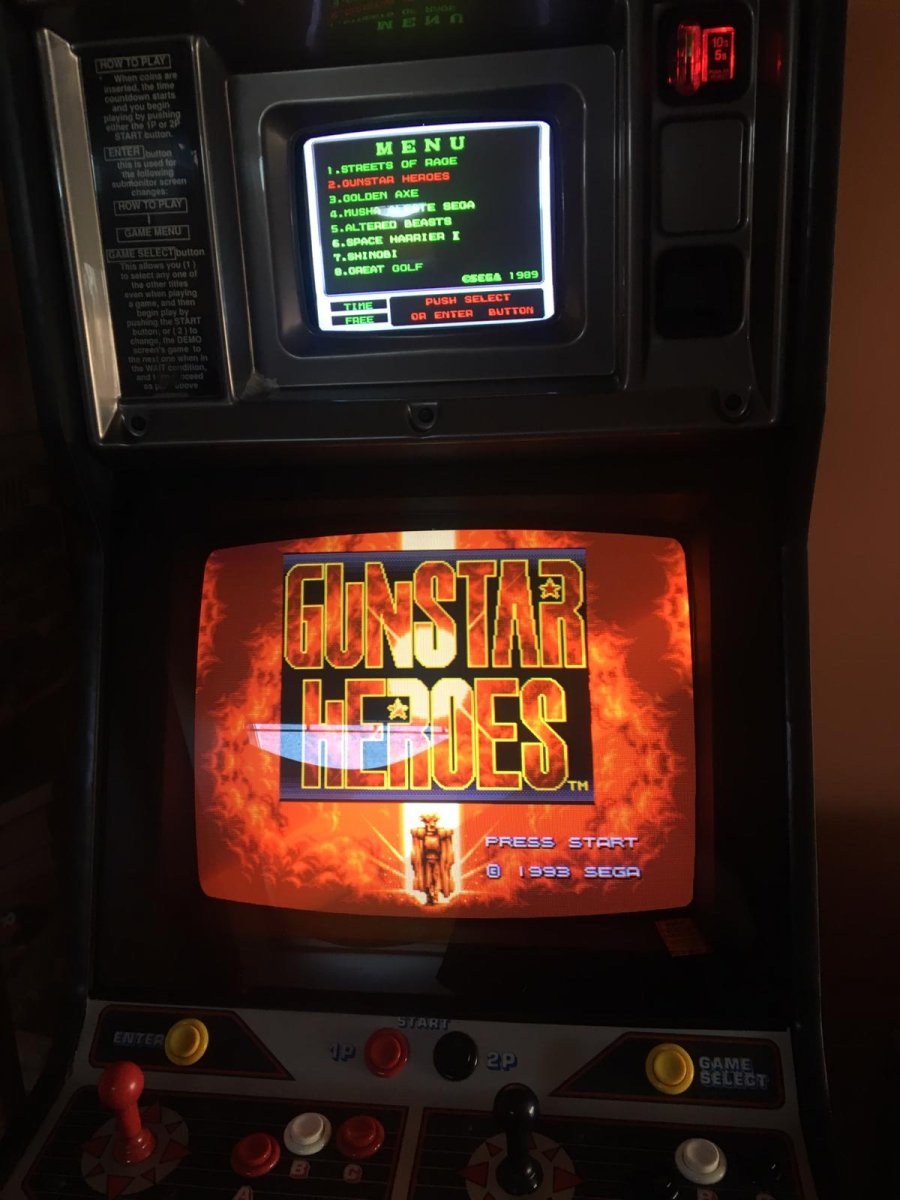

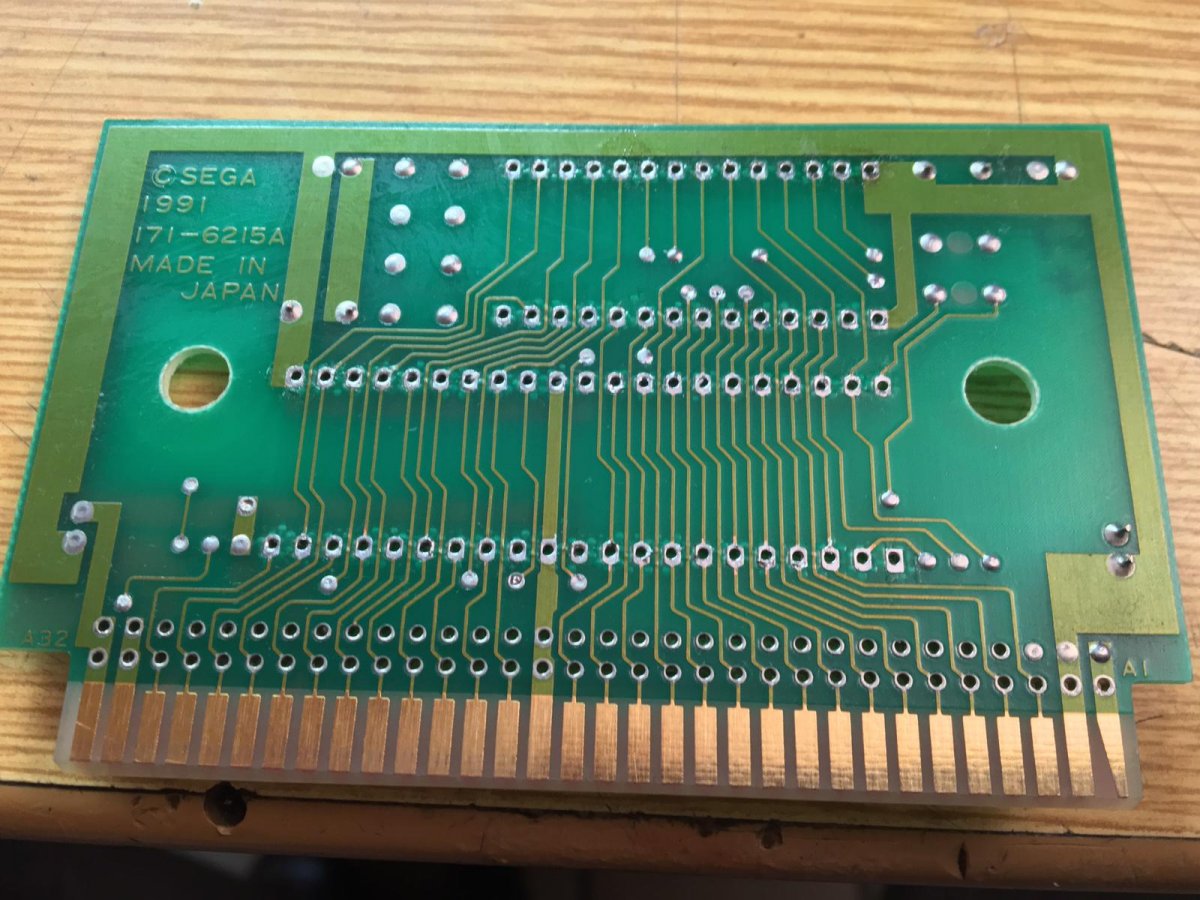

Hello guys I made it runs perfectly also custom Rome now I'm looking for help with the pcb is there a graber file somewhere?

or can I buy pcb's somewhere?

WhatsApp Image 2021-02-04 at 08.52.51.jpegWhatsApp Image 2021-02-04 at 08.52.52.jpegWhatsApp Image 2021-02-04 at 09.00.23.jpegWhatsApp Image 2021-02-04 at 09.00.24.jpeg

greetings from bavaria germany


Hammy

Champion
Joined
Feb 3, 2018
Messages
1,039
Reaction score
1,904
Location
U.K

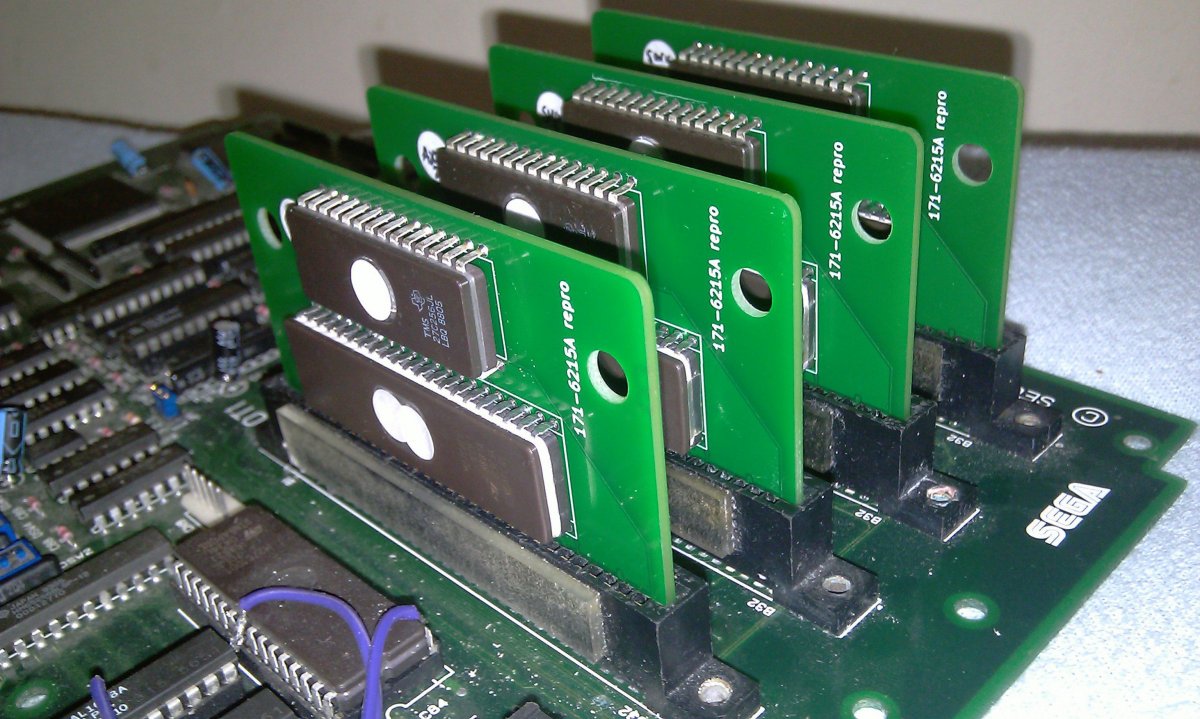

Converting is not needed, i have lots of blanks for megaplay and megatech, PM if interested :)


Attachments

  • MEGA-TECH_MEGA-PLAY_repro_cart.jpg
    177.9 KB · Views: 41

caius

Grand Master
Joined
Nov 21, 2016
Messages
554
Reaction score
793
Location
Italy
An other MegaPlay motherboard, missing IC33 (PAL16L8, ref. 315-5654) | Arcade-Projects Forums (arcade-projects.com)

I'd like to know at least what the motherboard does when IC33 is pulled.
Since it's a L PAL you should even be able to dump it easily using the 256KB EPROM method.

Thanks.

Sadly it's not easy as you may think.This PLD, altough it's a PAL16L8, uses internal latches (also combinatorial devices can have this configuration) hence every attempt of dumping it as a 27020 will EPROM fail (like it happened to other people me including).A deep analysis/observation of the device is needed in order to figure out the internal logics.I hope it's clear now.


Apocalypse

Staff member
Legendary
Joined
Dec 6, 2017
Messages
3,660
Reaction score
6,260
Location
New-Zealand
Sadly it's not easy as you may think.This PLD, altough it's a PAL16L8, uses internal latches (also combinatorial devices can have this configuration) hence every attempt of dumping it as a 27020 will EPROM fail (like it happened to other people me including).A deep analysis/observation of the device is needed in order to figure out the internal logics.I hope it's clear now.
You know it makes no difference for me. I can dump it no issue.
All those Sega PALs I've dumped, many had failed before too ;)
I told you the "secret" why don't you apply it?

P.S.: I don't think the L devices have real latches (need to check documentation), it's more self-feedback if you see what I mean. Generating a kind of latch of course but not dependent of a rising or falling edge of a clock pulse.


caius

Grand Master
Joined
Nov 21, 2016
Messages
554
Reaction score
793
Location
Italy
I know you have the solution but you were referring to Hammy and the 27020 dumping so I gave a pertinent answer.Again, he can't dump it with this method :)


Hammy

Champion
Joined
Feb 3, 2018
Messages
1,039
Reaction score
1,904
Location
U.K
It's true my kit is only setup for unlocked chips, 020 dumps never seem to work out.
The chip is there, if you want to borrow it for copying that's fine!

Hope it's not too far away. Spring cleaning is coming

Accept throwing all boards into the vault is a good thing , as times like this will always happen :)


stj

Professional
Joined
May 4, 2017
Messages
940
Reaction score
299
Location
England
i got the 020 method working last month.
the problem is compatabilty, it only works on some programmers.
it DOES work on an ELAN 5000
it does NOT work on a MicroMaster1000 or a TL866IIplus.
