@sergiopolog and I started this discussion in the Interest Check thread, and I wanted to move it to it's own dedicated thread so that it doesn't get lost.

Why is this important? Because the upcoming CPS1 Multi will need a battery backed C-Board to be installed without some serious soldering. allowing us to use the quite common 92631C-6 C-Board will more than double the amount of compatible C-Boards out there.

The Two boards are nearly identical.
MVS Scans has some high resolution photos of these boards:
https://www.mvs-scans.com/index.php/CPS1_-_C_Board_90631C-5
https://www.mvs-scans.com/index.php/CPS1_-_C_Board_92631C-6

Note that the 90631C-5 in those photos has been modified for a desuicide (battery removed, and traces cut/wire added around the pin 41-46 area of the B-21)

A similar mod will need to be done to modify the 92631C-6 to act like a 90631C-5

@rtw has tested and confirmed the procedure:
I have successfully converted a 92631C-6 (Batteryless C Board) to work with the upcoming CPS1 Multi.

Procedure

DL-0921 pin 42: cut track, and run a patch wire to CNA 19 (SEC-STROBE)
DL-0921 pin 44: cut track, and run a patch wire to CNA 20 (SEC-E2)
DL-0921 pins 45 and 46: lift both up and connect to GND (solder blob across pin 47)

R1 and R2 need to be populated with 1K SMD resistors. These are pulldowns for the SEC lines.


Original Notes:
about the second point, I need to check some notes I made when I was investigating all those C boards when I tried to get all the “universal keys” to be programmed in B-21 to act as any other B-XX (same thing that Undamned InfinikeyCps1 will do).
looking at pictures of the 906315C-5 and the 926315C-6 they look identical aside from-the silk-screened number-Resistors R1-R5 are not populated on the -6
-Diodes D1-D2 are not populated on the -6
-PAL1 is not populated on the -5


it'd be fantastic if the mod to make these compatible was as simple as installing these resistors and maybe a PAL.


EDIT
it looks like pins 42-46 are where most of the differences are. so some wire mods and trace cutting would be in order.
Okay,
I have this in my notes from a while ago:




Differences between 90631C-5 and 92631C-6


  • "C-6" lacks of D1, D2, R1, R2, R3, R4, R5, CX7 (rectifier circuit?)
  • Pin 45 y 46 are tied to GND in "C-5". They are tied to +5 in "C-6"
  • Pin 40 is tied to battery+ in "C-5"



So, a possible upgrade could be:



92631C-6 - Modification for running with battery:
  • Install D1 and D2 wth diodes (1N4148)
  • Install R1 and R2 with 102 resistors (1kOhm)
  • Install R3, R4 and R5 with 105 resistors (1MOhm)
  • Install CX7 capacitor (0.1 uF ??)
  • Tie Pin 40 to D1 catode (to supply battery power when game is switched off)
  • Pin 42: lift up and connect to CN19 (pin to program keys)
  • Pin 44: lift up and connect to CN20 (pin to program keys)
  • Pins 45 and 46: lift up and connect to GND (solder blob along Pin 47 for example, in order to set B-21 works in "battery mode")
Five first steps should not be necessary as battery wil be no longer needed in DS multicps1



Disclaimer: I didn't try it by myself, becuase I only have two 92631C-6 boards and I want them remain untoched but I'm happy to try it if I get another spare one.
To continue this discussion I don't think the above mentioned pins need to be "lifted" it looks like you could just as easily cut the traces.

with that said...

What we need now is someone to test this. Without a CPS1 Multi and without a battery I would think the only viable test method would be a C-Board infinity-key set running a modified 92631C-6 on a game that normally uses any battery backed B-21 C-Board

Last edited:
I realized there is a typo on the second point in the "Differences between 90631C-5 and 92631C-6" paragraph on my quote from the other thread.

When I said:
  • Pin 44 y 45 are tied to GND in "C-5". They are tied to +5 in "C-6"
It should be:
  • Pin 45 y 46 are tied to GND in "C-5". They are tied to +5 in "C-6"

And then now it matches with the instructions below.

I'm gonna change my other post to let them clear and avoid confusions. Please, do it also here ;)


Regarding this:

To continue this discussion I don't think the above mentioned pins need to be "lifted" it looks like you could just as easily cut the traces.
IIRC, those traces go down the B-21 itself, so it's not possible to cut them directly without removing B-21, so that's why I chose the verb "lift" for those steps :rolleyes:


EDIT:
I found this picture:











If you zoom-in in the 41-46 pin area, you can check that 45 and 46 pin traces sadly go down the custom chip, so lifting those pins I'm afraid that is inevitable

Last edited:
Thanks for putting this together, asked on the CPS1 thread since my set up has the right chip but no battery, if the below is just solder work and not the hot air work that was mentioned to be extremely difficult.

  • Pin 42: lift up and connect to CN19 (pin to program keys)
  • Pin 44: lift up and connect to CN20 (pin to program keys)
  • Pins 45 and 46: lift up and connect to GND (solder blob along Pin 47 for example, in order to set B-21 works in "battery mode")

if the below is just solder work and not the hot air work that was mentioned to be extremely difficult.
you should be able to accomplish these modifications with a simple soldering iron, Still not the easiest task since you're still dealing with very fine pins, but it's far less difficult than trying to transplant the whole B21 chip.

if through hole soldering is a 1/10 difficulty and transplanting the B21 is a 9/10 difficulty then this would maybe be a 4/10

Heck yeah, that's wonderful news. My guy a few hours away or I'm sure more people locally could handle for sure. TY

if the below is just solder work and not the hot air work that was mentioned to be extremely difficult.
you should be able to accomplish these modifications with a simple soldering iron, Still not the easiest task since you're still dealing with very fine pins, but it's far less difficult than trying to transplant the whole B21 chip.
if through hole soldering is a 1/10 difficulty and transplanting the B21 is a 9/10 difficulty then this would maybe be a 4/10
Agree. And you can easily revert these modifications at any time to put back it its original state

Last edited:
Apologies for the bump, but I wanted to ask if this 92631C-6 mod had been confirmed to work with the CPS1 Multi?

Also, would it be possible to get a screenshot of what the final mod looks like?

Thanks in advance!

you should never feel bad about bumping a technical thread with new questions.

I don't have access to the multi (I'm waiting for it to arrive, just like everybody else).
Once I do have it though, I wont be doing this modification as I've only got one of these C-boards and it's not going to be used on my multi.

As stated in the first post, we should be able to theoretically confirm the modification is successful (and theoretically work with the multi) if it were used in conjunction with an infinity key, but I suspect no one has tried yet. I would hope they would have posted their results back here if they had.

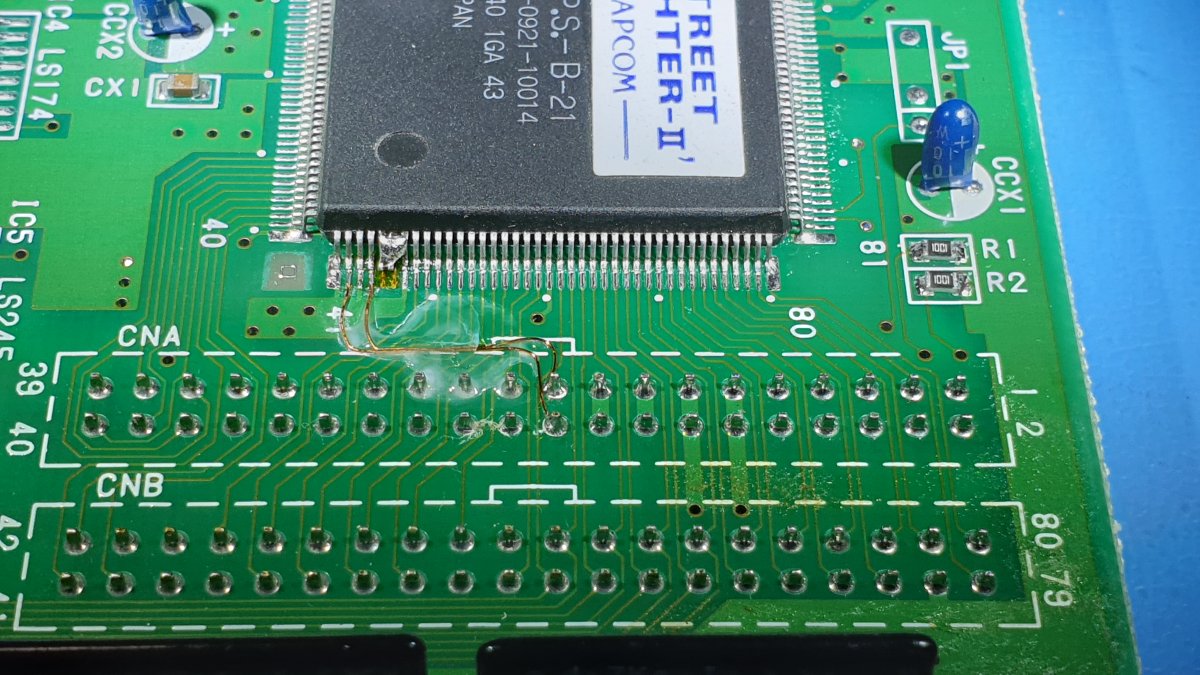

I have successfully converted a 92631C-6 (Batteryless C Board) to work with the upcoming CPS1 Multi.

Procedure

DL-0921 pin 42: cut track, and run a patch wire to CNA 19 (SEC-STROBE)
DL-0921 pin 44: cut track, and run a patch wire to CNA 20 (SEC-E2)
DL-0921 pins 45 and 46: lift both up and connect to GND (solder blob across pin 47)

R1 and R2 need to be populated with 1K SMD resistors. These are pulldowns for the SEC lines.




Note:
This conversion is only guaranteed to work on the CPS1 Multi.

I have successfully converted a 92631C-6 (Batteryless C Board) to work with the upcoming CPS1 Multi.

Thanks! top post has been updated.

it'd be great if someone with an infinity key could test if this works for use as a normal battery backed board. I suspect it would but it'd be nice to have confirmation.

Is anyone still selling C-boards ready for the multi?

I got my battery-free modded C board from sheepnova and moved the wire they installed from 5v to ground so the two lifted pins were grounded the way they originally were.

ready for the multi!

Last edited:
Wondering if someone could help me out. I just picked up a Street Fighter II CE board set. On my 92631C-6 board, CCX1 and CCX2 capacitors are damaged and worn. Therefore I am unable to read the values. These are the two capacitors that stick through the foam pad. Could anyone tell me what the type and value of those capacitors are? Any information would be greatly appreciated.
