Monitor displaying Vertical

[Raoul Juke]

Well this is a new one.

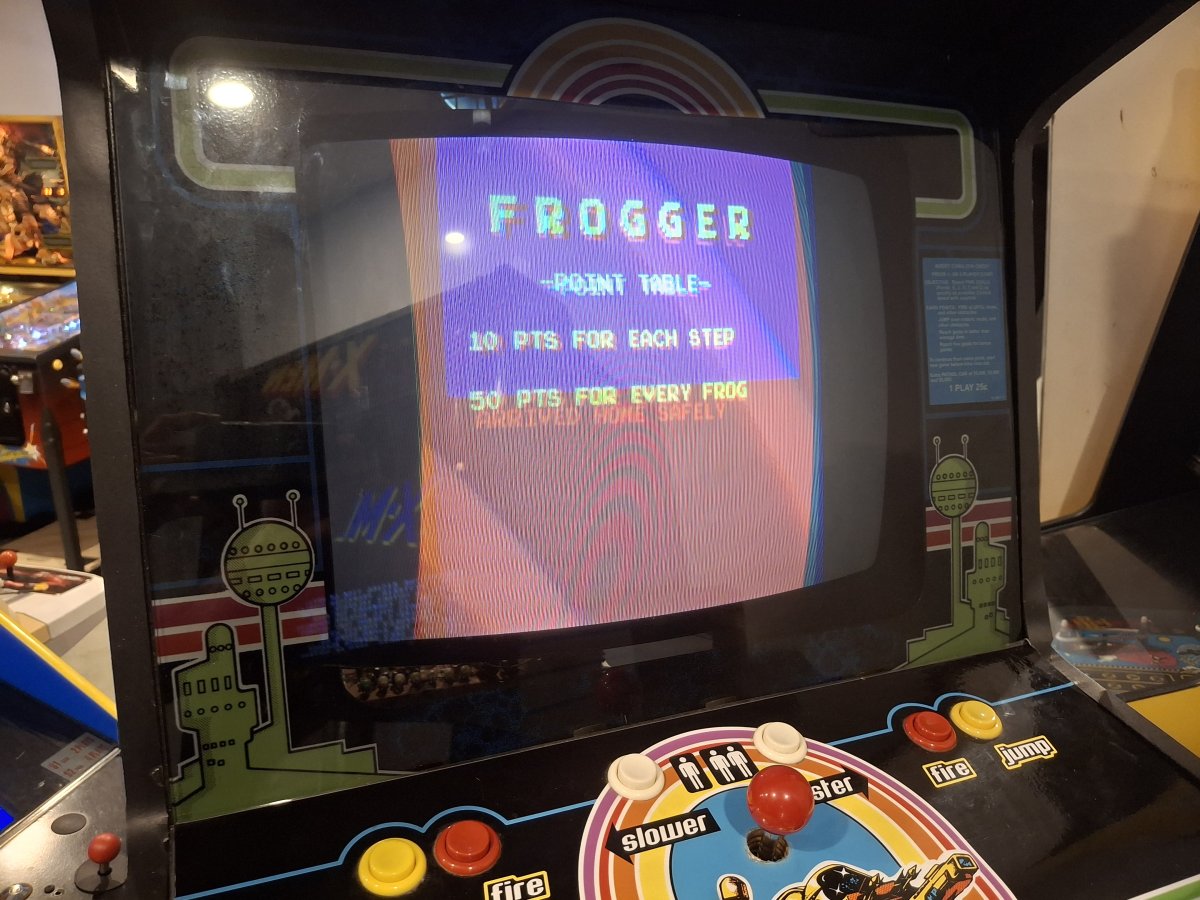

Image is displaying vertically when set horizontal L when I put in a horizontal pcb, the same issue .

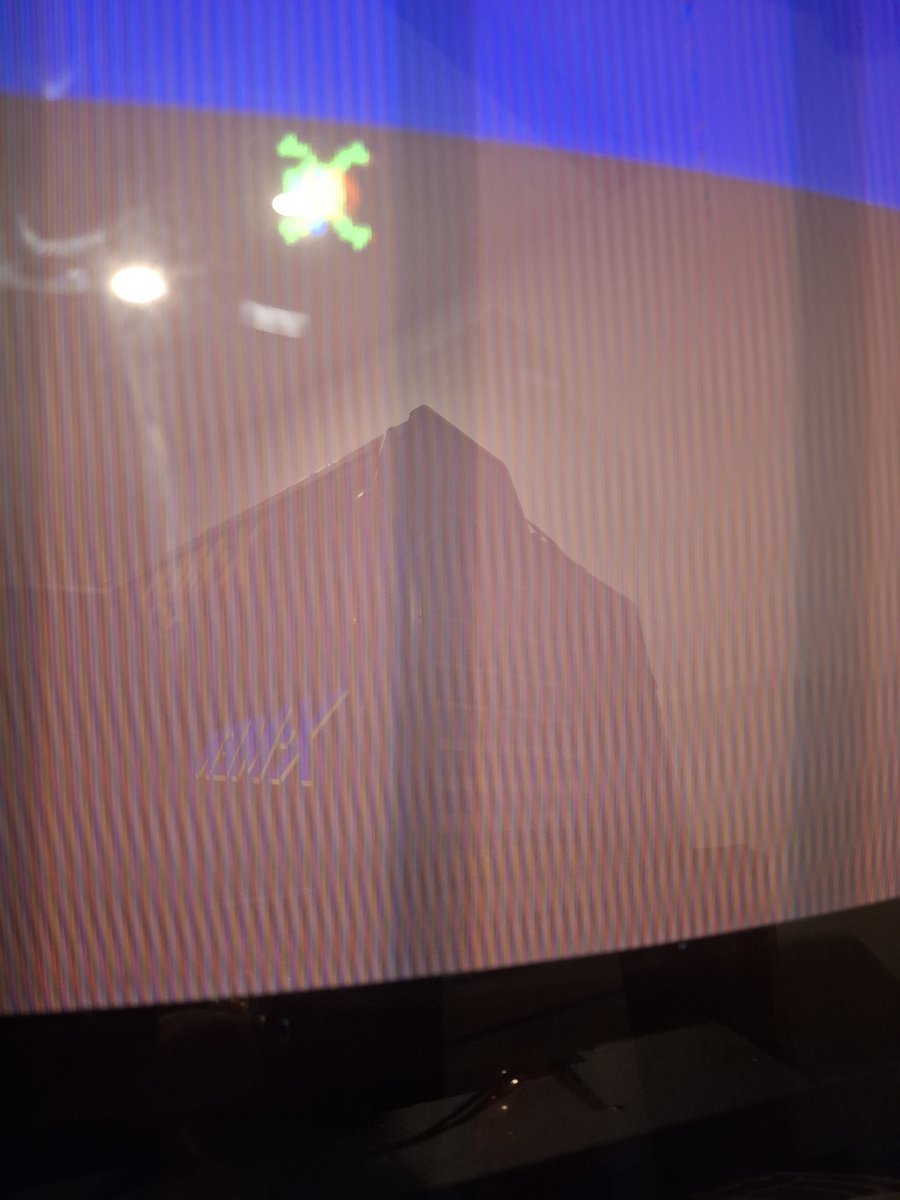

Kortek chassis into a Samsung 51 tube. Chassis & tube was purchased untested in a cab with a damaged neckboard & had been sent off to be repaired & serviced , but on reinstallation I got m met with this. The image also have oversized lines. What is going on here???



[trashedcabs]

This is an insane guess but judging from the really bad convergence, I have a feeling someone rotated the yoke 90 degrees. This technically works but will have really bad convergence as shown here.



[Raoul Juke]

This is an insane guess but judging from the really bad convergence, I have a feeling someone rotated the yoke 90 degrees. This technically works but will have really bad convergence as shown here.

It's as good as guess as any. No idea why u would do that, but very possible



[trashedcabs]

It's as good as guess as any. No idea why u would do that, but very possible

It's possible someone wanted to run a vertical game but couldn't/didn't want to rotate the monitor. If someone knew enough to rotate the yoke to do this, then they should know enough to know that this is a stupid idea lol. It might have also just come loose.

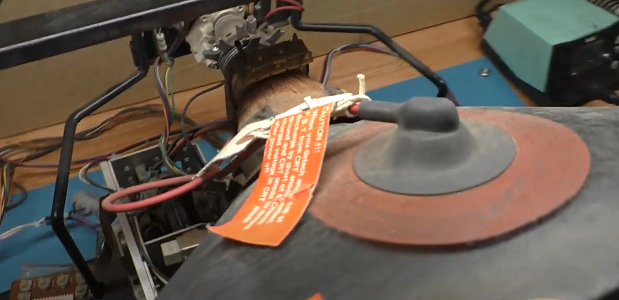

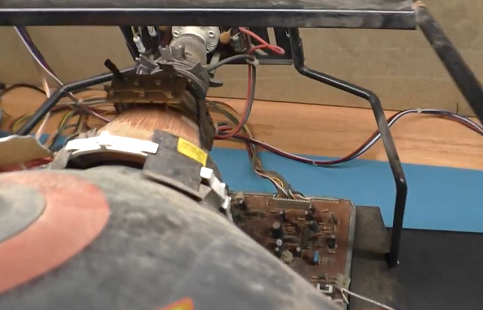

Take a picture of the yoke, it should be obvious if it's 90 degrees off.



[nem]

It's possible someone wanted to run a vertical game but couldn't/didn't want to rotate the monitor.

Based on the bezel you probably can't rotate the monitor in that cab.

Definitely a novel approach to fixing that issue.



[DelsArcade]

The top of the Yoke should match where the anode cap is.
