Naomi Monkeyball CP pinout

Sp33dFr34k

Sp33dFr34k

Champion
Joined
Nov 8, 2015
Messages
1,804
Reaction score
1,554
Location
The Netherlands
What would I need to wire a Monkeyball CP to a Sega JVS IO v1 and what is the pinout?

I'd need a 10 pin female AMP UP and a JST RA 26 pin connector, would I also need a 12 pin female AMP UP?

I don't have the CP yet, but thought I'd already order the connectors and pins :)

Thank you.

So the answer I was hunting for... was: sega analogue splitter [noa-60061]

This is its pinout...


AGS used to sell em... not any more though:
http://triplemoonstar.brinkster.net/theshed/default.asp?stockid=1733

I only needed a subset of this cable anyway as Monkeyball only needed 4 wires, so I wired my own up with some spare AMP-UP connectors.

Basically the 10 Pin harness that hangs off the panel by default will need to be converted IF you want to put it on a New Net City, like I did. You can get away with Using one connector, since it doesn't make much sense to waste a connector for just ground.

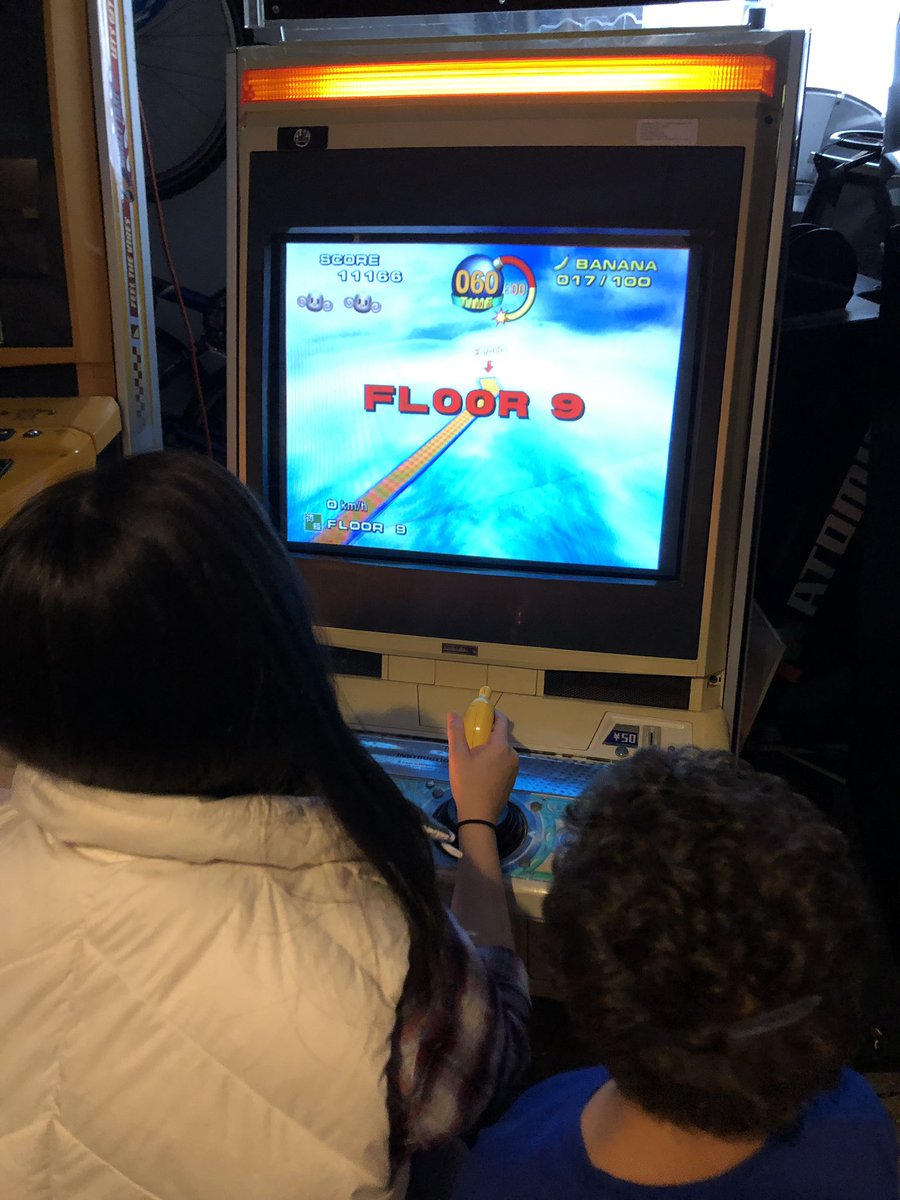

It worked well enough that my wife stole it right after I configured and saved the joystick config!

Analog splitter works fine (if you find one) else as you saw you can wire to one Amp Up for VCC, GND, and AD0 / AD1.

If you have a zombie revenge panel you can invert VCC and GND to flip the directions and play Monkey Ball with it. It works OKish.

skate323k137 said:
Analog splitter works fine (if you find one) else as you saw you can wire to one Amp Up for VCC, GND, and AD0 / AD1.

If you have a zombie revenge panel you can invert VCC and GND to flip the directions and play Monkey Ball with it. It works OKish.
Click to expand...
aye I hear the stick resolution is slightly different so the control is a bit wonky, but usable.
