Hi yo, I hope you guys are doing well, I have a question about the Naomi VGA cable, all the cables I have that came with the units have one pin missing. Is this normal ? is it OK to use a regular PC VGA cable on Naomi to say a Nano arcade monitor? The blue VGA is for PC


Attachments

  • 20210517_150429.jpg
    98.8 KB · Views: 35
  • 20210517_150338.jpg
    90.5 KB · Views: 32

GeeDee

Professional
Joined
Jun 2, 2019
Messages
372
Reaction score
393
Location
Kodak, TN
I mean, whenever I set up my naomi, I just use whatever VGA cable I've got lying around lol. Never had any issues.


twistedsymphony

Enlightened
Staff member
Immortal
Joined
Jul 21, 2015
Messages
10,341
Reaction score
10,075
Location
NH, USA
This is normal and it's actually preferred over a fully pinned VGA cable due to the way the NAOMI monitors use this pin differently than normal VGA monitors.

the NAOMI provides 5V on this pin but it's grounded on a lot of monitor chassis... which is bad news if the pin is connected.


war3zlod3r

Enthusiast
Joined
Feb 8, 2017
Messages
214
Reaction score
69
Location
Louisiana
Is this the same on both Naomi and Naomi 2 units? I cut it short with wire clips on the cable I use for now, it’s to hard to cut it out completely


war3zlod3r

Enthusiast
Joined
Feb 8, 2017
Messages
214
Reaction score
69
Location
Louisiana
yes

search ebay for an original NAOMI VGA cable, or make your own by using a pair of needle nose pliers to rip the pin out.
Ripping the pin out wasn’t working for me, I just couldn’t get it free. Did some looking and it’s not hard to find them on Amazon or other cable distributors by searching “14 pin VGA”


GeekMan1222

Enthusiast
Joined
Jul 31, 2018
Messages
244
Reaction score
202
Location
Spartanburg, South Carolina
This is bonkers, and likely why my old naomi setup ended up having a blow trace on my filter board I had to repair lmao.
Wtf Sega.

Since that repair I just been using the standard Sega vga cables with the missing pin but this was news to me.


Mrhide

Grand Master
Joined
Aug 17, 2016
Messages
884
Reaction score
1,160
Location
Montréal, Canada
Well shit.

… and could it screw up the sound as well ?


Mrhide

Grand Master
Joined
Aug 17, 2016
Messages
884
Reaction score
1,160
Location
Montréal, Canada
Oof yeah your probably gonna want to patch those some how haha.

This is how I repaired mine.
https://twitter.com/_GeekMan_/status/1427781086621339648

NICE!! thank you !

I looked in my Virtua Golf cab and it's indeed missing a pin.

I probably plugged that Naomi in a tv with a full cable :( ... and was wondering why it died. I bought another board only, used that filter board and had "issues" and when I looked at it following this thread I went /facepalm.... good thing I had another working filterboard.

New rule: since there is not enough cable in a Naomi setup, I am adding another one (https://www.amazon.com/-/fr/StarTech-com-Câble-dextension-femelle-MXT101/dp/B0002AFAR6/ref=sr_1_10) at ALL TIME:




...and "short" of the filterboard, anyone know what else this can fry and explain why the board is dead now?

Last edited:

Mrhide

Grand Master
Joined
Aug 17, 2016
Messages
884
Reaction score
1,160
Location
Montréal, Canada
Last edited:

GeekMan1222

Enthusiast
Joined
Jul 31, 2018
Messages
244
Reaction score
202
Location
Spartanburg, South Carolina

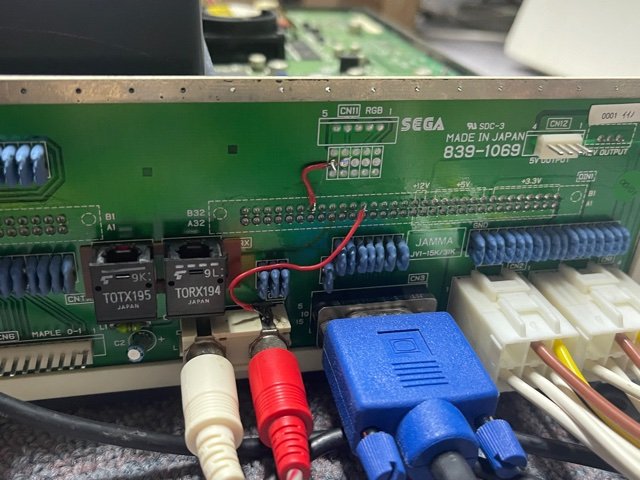

Thanks again @GeekMan1222 !!

followed your lead and beeped the broken sound and screen pins, stitched'em


and voilà, all fixed and working!




ps: It unfortunatly didn't make me better @Ikaruga
Nice work!
Yeah originally when I was doing the repair I instantly thought how am I supposed to get a wire around this filter board lol.

Luckily those unused component via's can accomodate a thin mod wire to pass through or you can solder to them so long as they are not used by anything :)
