Need a new JAMMA harness - Any suggestions?

[BuddyC]

"I am fixing an old cocktail cabinet and want it to be JAMMA ready.
Does anyone know where to find a good-quality JAMMA harness for sale?



[Mrhide]

I heard these are nice but of course shipping is killing it
https://www.hollandcomputers.com/store/pc/Wire-Harness-c2516.htm


edit: heard meaning from this: https://www.arcaderepairtips.com/2019/06/21/buying-a-new-jamma-harness-this-one-is-the-best/



[rtw]

This is quite good, use the JAMMA connector, adapt the wiring.

https://www.tops-game.jp/products/detail.php?product_id=2820



[BuddyC]

Thanks guys



[FrancoB]

If they're of use I've got a few of these left over from when I was making JAMMA>JVS looms. They're partially wired up until this point. I ended up moving to Hirose edge connectors part way through a batch.

LH GND pins have 3x 24/0.2 wires and 2x 16/0.2 wires
5v have 3x 24/0.2 wires
-5v have one 24/0.2 wire
12v have 3x 24/0.2 wires and one 16/0.2 wires
RH GND has 2x 24/0.2 wires

24/0.2 wires are 80cm long
16/0.2 wires are 230cm long



[AlxUnderBase]

@BuddyC ... @FrancoB rocks on any product he did so far !



[notsonic]

I heard these are nice but of course shipping is killing it
https://www.hollandcomputers.com/store/pc/Wire-Harness-c2516.htm

I don't think this harness or Holland Computers in general are very good. This is just the usual cheap Chinese harness. All the things they sell are just cheap Chinese products with an American flag on them.

This is my go to if I need a new harness from the US:
https://twistedquarter.com/index.php?main_page=product_info&cPath=177_178&products_id=500



[BuddyC]

Great to have options!
This jamma harness will be used in a 2- player cocktail table (maybe Sega or Taito - 1980-1981-ish - No ID on or inside the table) with a Hantarex MTC900/E chassis.
Keep em coming if anyone has any other suggestions!



[BuddyC]

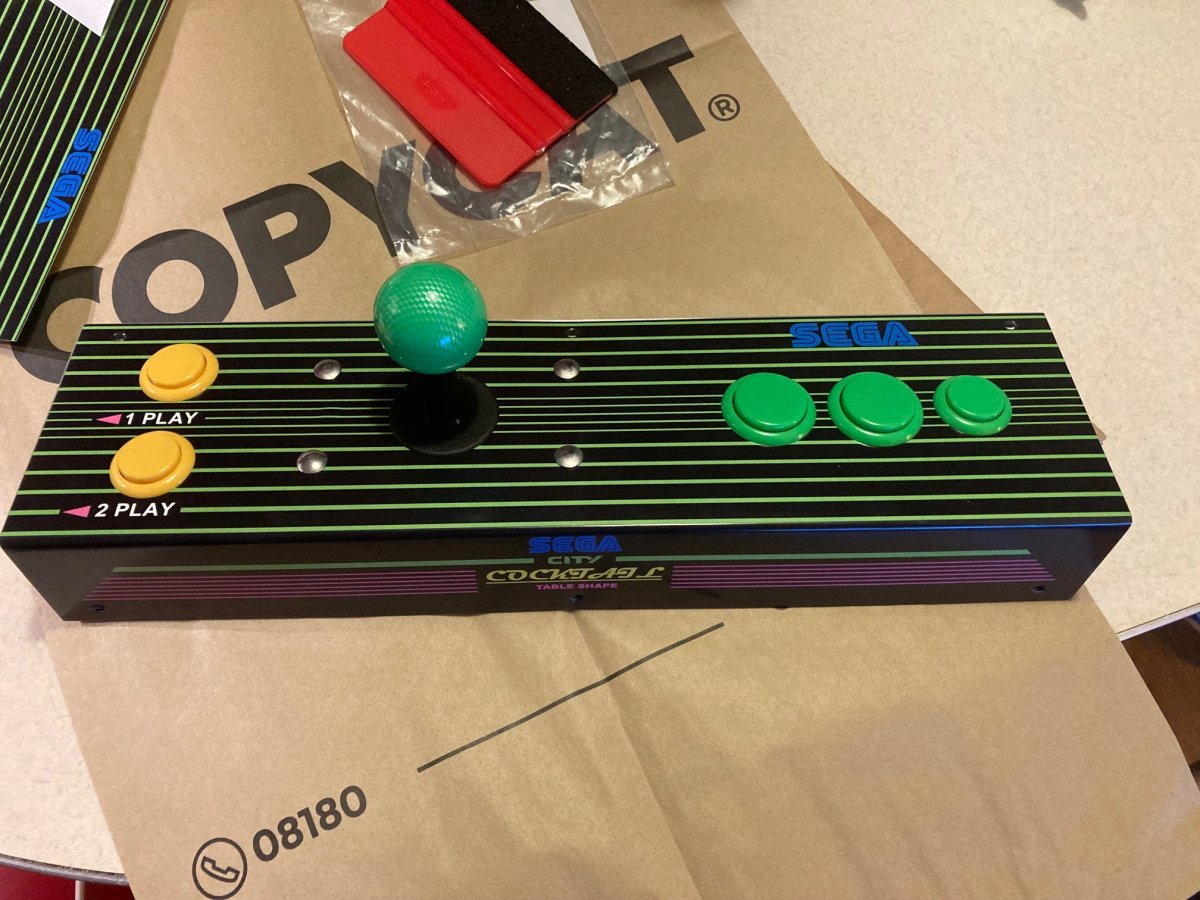

I making a new CP, so it it needs a name.
I thought it was pretty funny...



[LittleLarrySellers]

+1 on Twisted Quarters - I use their JAMMA extensions with my switchers and no issues.



[BuddyC]

@BuddyC found a barebone harness I could give away for free if you can spot the shipping cost

It's just wires hooked up to a fingerboard atm but you can source any 56p bus connector of your preference (Hirose, ZJAMMA, Taiwan Future, etc.)

Really appreciate it, but a good buddy gave me his spare harness yesterday. Thanks again!



[BuddyC]

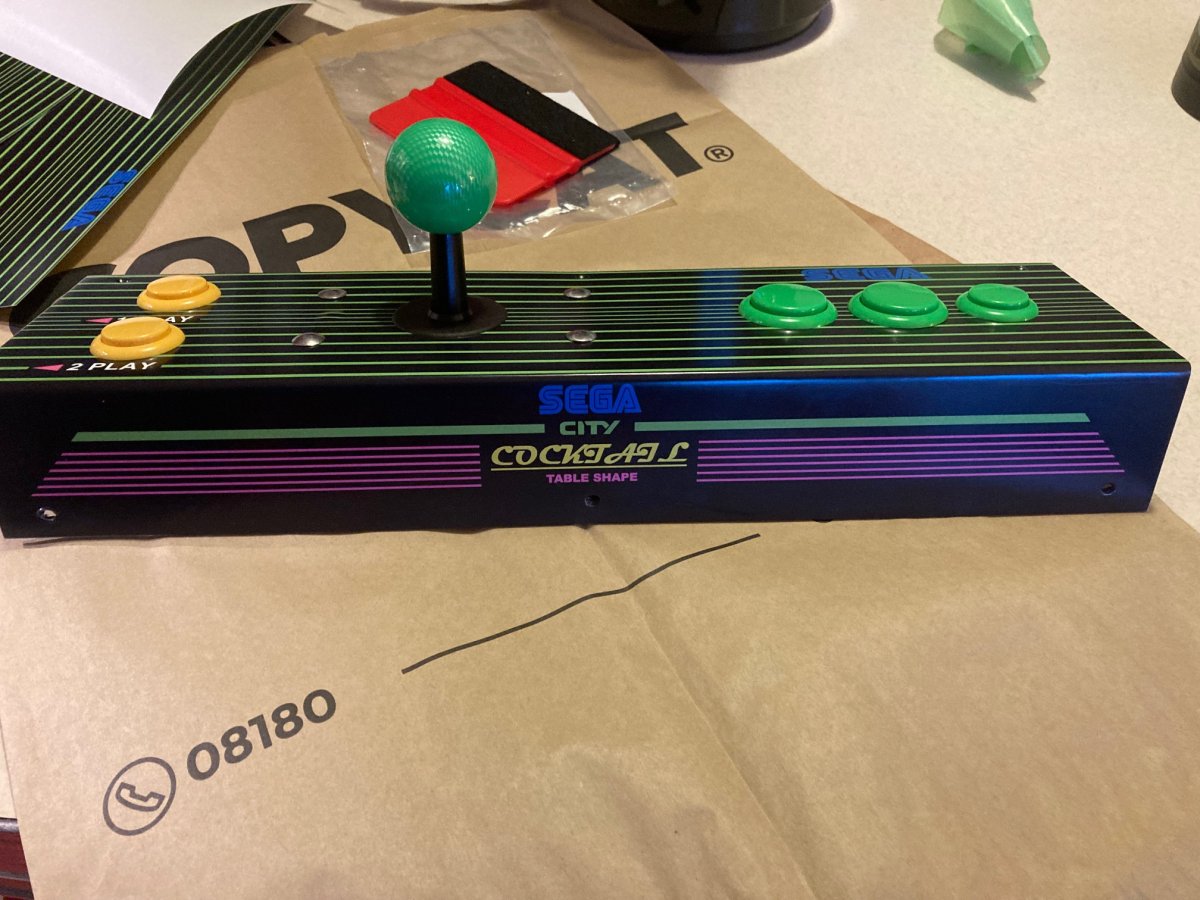

The “Cocktail City“ is starting to come together….
