So, I have a MV-1FZ and thought about stereo modding it. I came across this website which posted a SMD version of the PCB as designed by MKL. Ordered a few including parts and soldered it up.

Clean PCB versus fully soldered up and ready to go.



Because it's SMD it's very low-profile and easy to tuck away inside the already pretty compact 1FZ motherboard.



As per above website there are more alternatives regarding the points you can connect your PCB to on the motherboard but I decided to go for the bottom.

In the end it looks like this, plug & play so the 4-pin header goes straight into the audio amp of my NAC (NVS4000).



There was a minimum order quantity so I have a couple left, will probably be offering them later in the for sale section should somebody be interested :)

Special thanks to my buddy @PascalP for lending me his equipment :thumbsup:


skate323k137

Grand Master
Joined
Jul 23, 2015
Messages
1,328
Reaction score
891
Location
Michigan
It's a lot of dedication, but after I converted my 2-slot cab from Mono to stereo I'll never look back and I can see why you did this. The neo really deserves it. Good job and enjoy!


PascalP

Legendary
Joined
Jan 17, 2016
Messages
5,512
Reaction score
3,561
Location
The Netherlands
I have a 1FT myself which has stereo originally, and when switching from mono to stereo it is like a whole new dimension!

Highly recommand this mod for any 1 slot mono board! :D


Sp33dFr34k

Grand Master
Joined
Nov 8, 2015
Messages
1,304
Reaction score
950
Location
The Netherlands
It's a lot of dedication, but after I converted my 2-slot cab from Mono to stereo I'll never look back and I can see why you did this. The neo really deserves it. Good job and enjoy!
Thanks, I did find some sites going over the schematic which involved making your own breadbord, but I didn't like that solution too much, so decided to go for this one. A lot cleaner looking and more compact. Don't have a hot air station (yet) though, so that's where Pascal's gear came in handy :thumbup:

All in all it's a pretty simple and straightforward mod which I'd recommend to everyone as well. I was planning on keeping my 1F, but now my 1FZ has been fully recapped, stereo modded, battery modded ánd being half the size... it might be the one staying rather than the 1F... :rolleyes:


SmokeMonster

Champion
Joined
Aug 23, 2015
Messages
1,516
Reaction score
2,176
Location
USA
Nice work! I've done the regular stereo mod to my MV-1C (disabling the mono circuit and drawing stereo from the IC). Would this be a big improvement over that method?


Wombat

Beginner
Joined
Apr 7, 2016
Messages
11
Reaction score
5
Location
Netherlands
Really cool and neat solution!
Will this solution perhaps also work with a MV-1A?


Sp33dFr34k

Grand Master
Joined
Nov 8, 2015
Messages
1,304
Reaction score
950
Location
The Netherlands
Nice work! I've done the regular stereo mod to my MV-1C (disabling the mono circuit and drawing stereo from the IC). Would this be a big improvement over that method?
It should be basically the same, I believe all stereo mods out there are based on MKL's schematic, this one's just a way of having it sitting neatly on a PCB :)
Really cool and neat solution!
Will this solution perhaps also work with a MV-1A?
Yes, the website I linked to mentions these MVS revisions: MV-1A, MV-1AX, MV-1C, MV-1FZ, MV-1FZS, MV-1T. Basically all boards which don't output stereo by default actually have a stereo circuit onboard, it's just joined together to create dual mono, which this mod undoes basically :)


wigsplitta

Professional
Joined
Jul 23, 2015
Messages
208
Reaction score
247
Location
UK
This prompted me to finally get round to doing the stereo mod. I missed out on getting one of the PCBs above, so I dug out the breadboard and bits that I got a while back.

I'd definitely recommend it - the stereo output really does make a difference on all the games I've played thus far 8)


ShootTheCore

Champion
Joined
Jan 20, 2016
Messages
1,743
Reaction score
2,586
Location
Logan UT

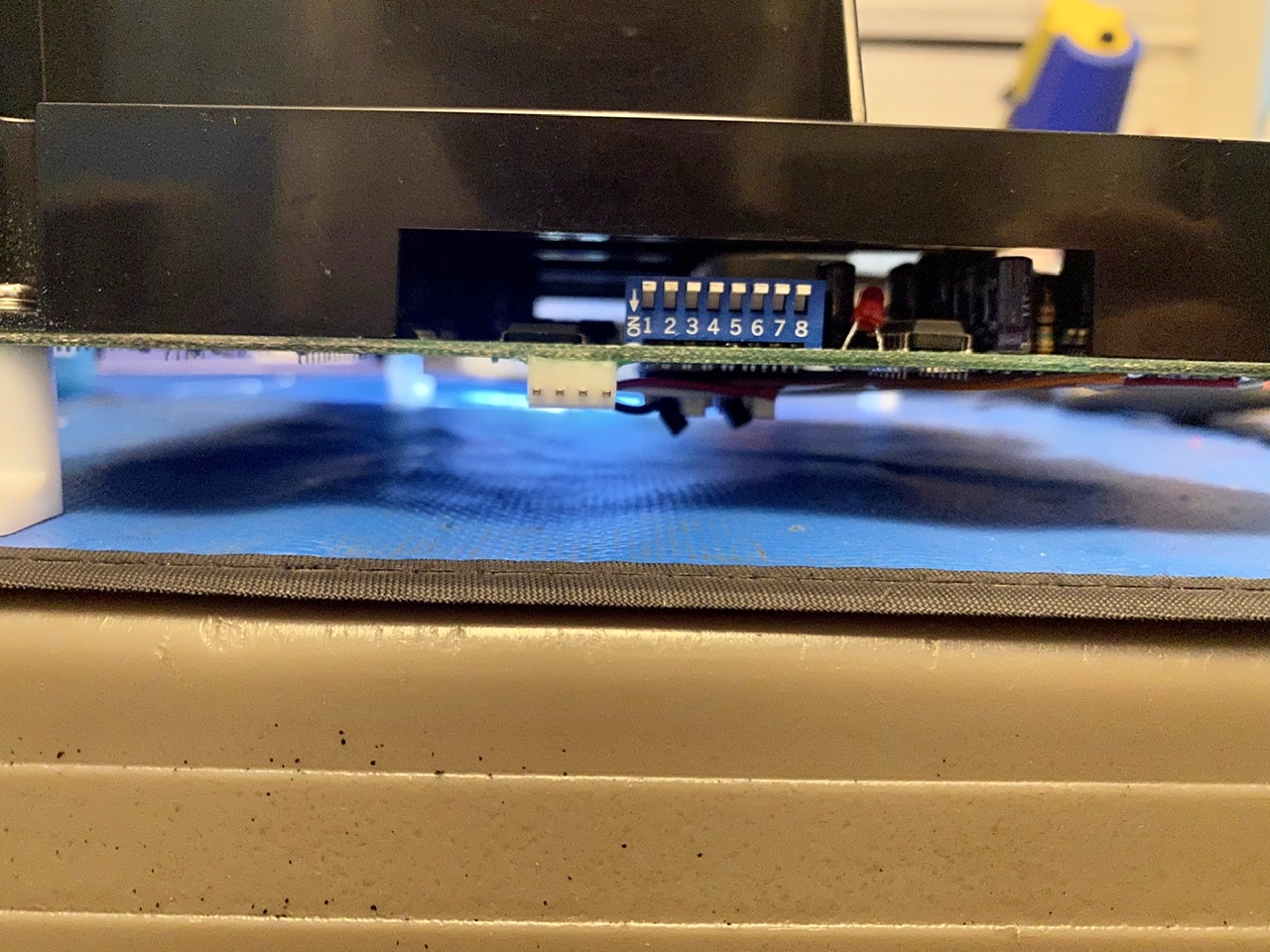

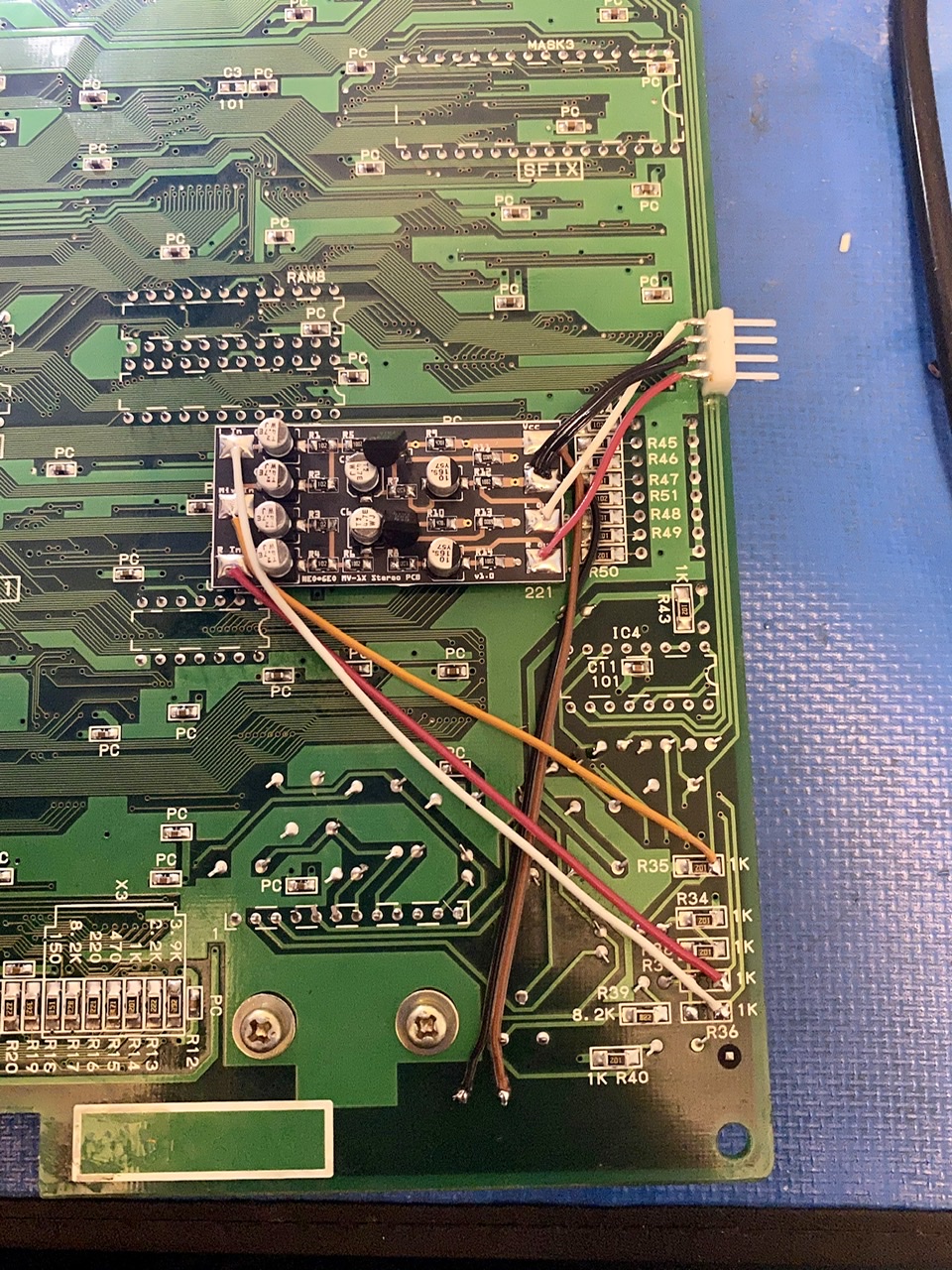

I just assembled and installed one of these stereo amps in my MV-1FZ. Very satisfied at how compact it is.



XianXi

Professional
Joined
Jul 21, 2015
Messages
394
Reaction score
320
Location
Honolulu, HI
Nice and compact, for wiring purposes, I’d move VCC and GND to the input side. You can grab VCC and GND from the ICs right next to the inputs and the analog channel from the 4.7uf cap for the mix. That way all the wiring stays under the PCB and only the two outputs are the only wires coming out.


Sp33dFr34k

Grand Master
Joined
Nov 8, 2015
Messages
1,304
Reaction score
950
Location
The Netherlands
Nice and compact, for wiring purposes, I’d move VCC and GND to the input side. You can grab VCC and GND from the ICs right next to the inputs and the analog channel from the 4.7uf cap for the mix. That way all the wiring stays under the PCB and only the two outputs are the only wires coming out.
True, I still need to rewire mine to RCA jacks and was planning to use the VCC and GND points on the bottom :)


AlBekas

Beginner
Joined
Aug 29, 2019
Messages
13
Reaction score
1
Location
Montreal QC
Hi
On the advice of XianXI, I would like to install this stereo mod in my MV-1b board.

There is not a lot of infos for this specific MVS.
I think I can grab +5v and ground on the bottom left of the board, but I don't know if I need to cut any traces or remove any resistors. Any ideas ? Also, does it remove the jamma mono output ?

Thanks


SVM

Student
Joined
Aug 30, 2016
Messages
132
Reaction score
99
The MV-1B has the same ICs as the MV-1FZ(S) - "C844G" as OP AMP and the "YM2610" as sound synthesis and playback chip.

Therefore I would assume that the work steps for the amplified stereo mod would be the same, too.
  • YM2610 pin #27 (analog out) as "Mix"
  • trace pins #8 and #14 of the C844G --> find the related resistors and remove them --> take the pins as left (#8) and right (#14)


Koston

Student
Joined
Aug 20, 2017
Messages
51
Reaction score
39
Location
Helsinki, Finland
Nice work! I've done the regular stereo mod to my MV-1C (disabling the mono circuit and drawing stereo from the IC). Would this be a big improvement over that method?
Sorry for gravedigging an old thread, but I've been recently doing some work on MV-1Cs and came across this.

So, here is the schematic for this "1X stereo mod":



The MV-1C Ch1/Ch2 pins are sourced from the D/A chip which already includes the "Ch3" (mix) channel, so the left side of the circuit (channel mixing) is not applicable to it.

The D/A chip however does not include any kind of amplification, which means it can't drive anything without losing amplitude - audio transformers, headphones, long cables etc.

I have not yet built the above circuit since I only just found it, but I did build an equivalent buffer using NE5532 opamp and it works fine.

So to answer your question: Unless you're experiencing problems with low volume from MV-1C, there isn't any immediate benefit from the added amp circuit. You'd only be pre-emptively solving any such potential problems in the future. Same applies to all other MVS boards with stereo mod already done.


rcboosted

Student
Joined
Jan 17, 2021
Messages
122
Reaction score
47
Location
Los Angeles
I'm digging this up again too! I suspect my C844G or YM3016-D died after recapping as I lost audio. Can someone recommend a quad op amp to replace the C844G? I don't know of a way to verify what died, so I'll just have to replace and see. I tried shorting channel 1 and channel 2 on the TM3016-D to an bluetooth speaker but I got nothing.


XianXi

Professional
Joined
Jul 21, 2015
Messages
394
Reaction score
320
Location
Honolulu, HI
Use a logic probe w/audio and you can literally track it down to where it stops. If a game is playing while testing, when you probe, you can hear the audio with it.


rcboosted

Student
Joined
Jan 17, 2021
Messages
122
Reaction score
47
Location
Los Angeles
Yup, looks like it

The probe arrived. I tested the op amp's output on pin 8 and 14, I got a steady high if I set the probe to TTL mode. On board connector A50 for tapping C, I got a steady low. To test if I can actually hear the music from this probe, I tested it out on a known good sound source (Dreamcast at the scart cable output) and I got a steady low on both L and R audio pins... Not sure what this means. I also probed the YM3016-D pin 10 and 11, also steady high. I think I'm supposed to see pulses?

One other thing I saw was, the stereo mod direction on your JNX picture says to tap A from pin 8 and 9, which are indeed shorted in the trace, but for pin 13 and 14, they are not shorted. I only tapped A from pin 14 since that's actual op amp's output. Most posts I see mention pin 13 and 14 are shorted on the trace, but not so on mine.

I realize this is straying far off topic of the original post, I can post somewhere else if this is not appropriate.


rcboosted

Student
Joined
Jan 17, 2021
Messages
122
Reaction score
47
Location
Los Angeles
Going further upstream, pin 4 of the YM3016-D gave a steady pulsing beeps. If I run the sound test without a cart, with sound off or on any channel, it makes no difference in the pulse. So that's supposed to mean the YM2610 is bad based on a video from Arcadecomponents.com youtube channel. That's weird because I didn't touch that chip when I recapped.

Testing the serial data output on the YM2610 pin 31, I hear the same steady pulse beep as pin 4 of YM3016-D regardless of the sound on or off from the sound test. I also tested the clock pins on both YM chips, and there's pulses. Also pushed on the YM2610 while the sound is turned on to see if it's a bad joint, no change. Can someone interpret these results for me? Is it a bad YM2610?

Something to add, right after I did the JNX stereo mod, before recapping, I was getting lower left channel volume compared to the right. Not sure if it's a sign the 2610 was going bad. The sound test is also from Unibios 4.0, so none of these test might be relevant?
