I have replaced the missing coin door hardware on my New Astro City. I have the coin funnel at the top that aims into the mech adjusted as high as it can go which just barely clears the coin door opening. Even at this maximum adjustment there's still a pretty large gap between the cabinet coin chute and the funnel.

Can anyone provide a picture of how the coin chute and coin door funnel should look? I'm wondering if I'm still missing something.



[dos]

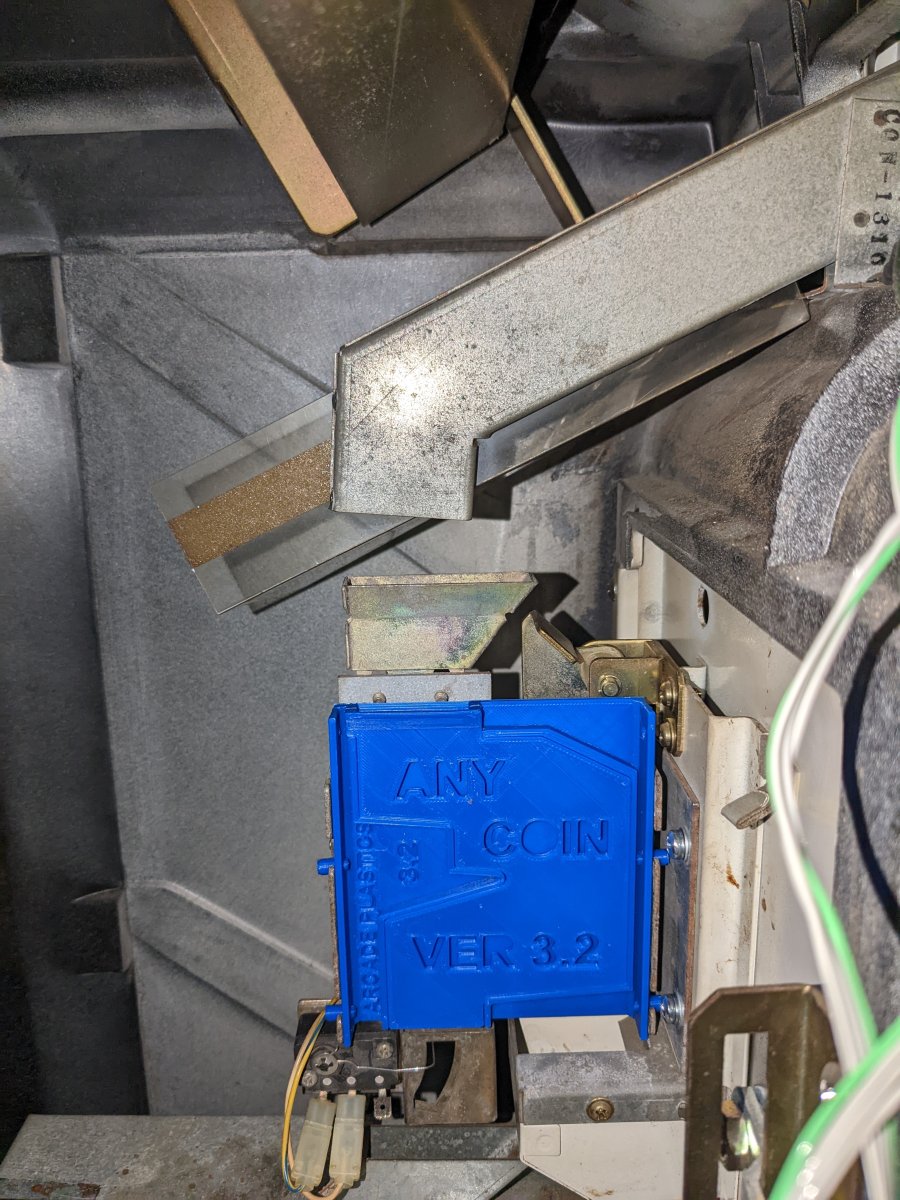

Here's how my coin mech looks:

Coin chute is invisible when door is open



[dos]

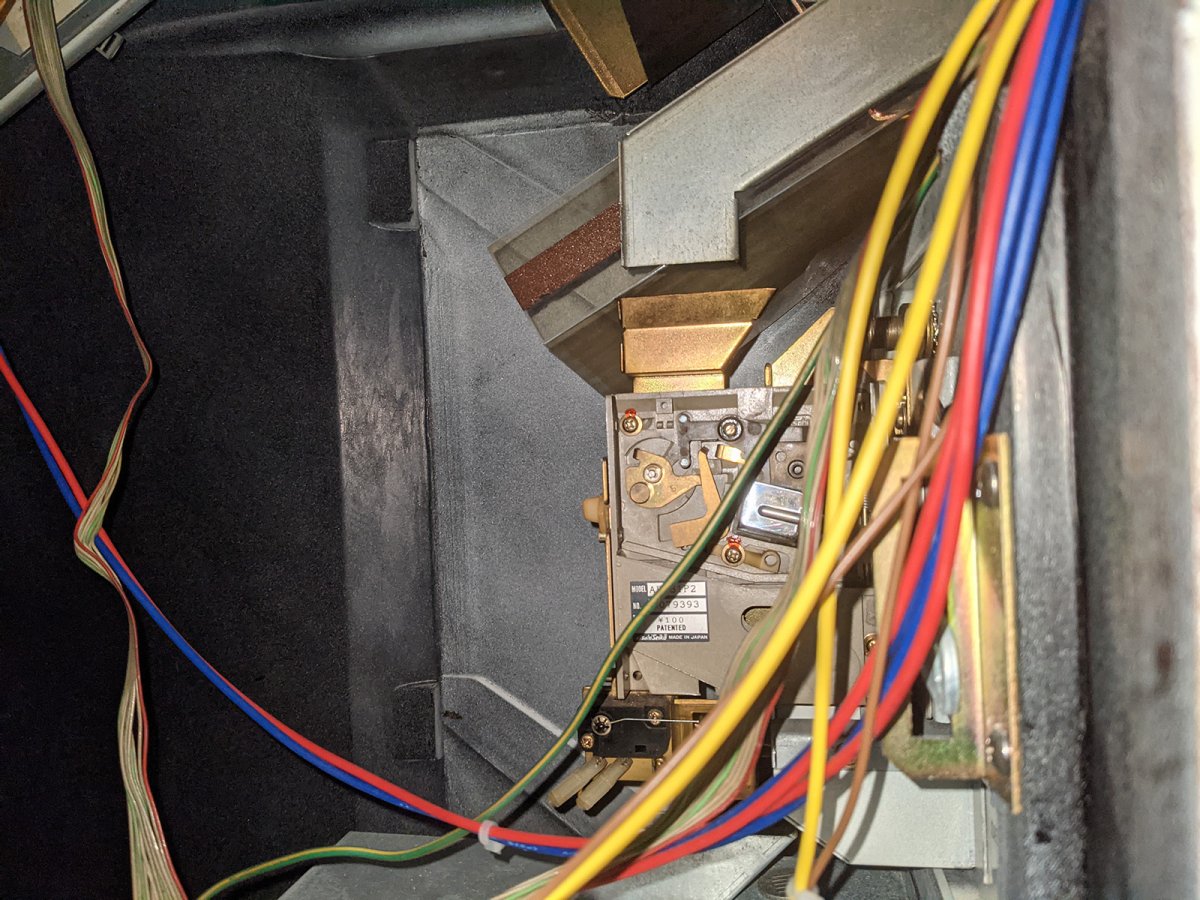

Other side of mech:



[notsonic]

Thanks, I actually need a pic of it closed if you could. Mine looks like this, so the coin has to jump a huge gap.



[dos]

Sure (e: seems like your angle is off):



[notsonic]

I bent it into place, problem solved. Thanks.
