Only thing is the credit/service/volume & the monitor remote board is all in one (with separate inputs) so unless you have a spare remote board for that monitor brand it could be useless.

Question for those who have swapped the LG monitors. Do you think the twin 80mm fans are needed? I can see in an arcade environment and with older monitor technology they were absolutely needed, but do you guys think passive cooling enough for these newer monitors? I have 5 cabinets in the same room, and I'm thinking of ways to cut down on fan noise if its not really needed. Would love to hear your guys thoughts.

Passive cooling is fine. The Noir is pretty well vented.

If you look under the 2 fans there is a power board with 2 big heatsinks hence why there are needed.

If you look under the 2 fans there is a power board with 2 big heatsinks hence why there are needed.
Ahhh that makes sense. I haven't opened it up yet, but if that's the case, I'm def switching to passive cooling after the swap. Thanks for the info.

The Noir has a fan on the monitor tower anyway mine was knackered so had to be replaced.

I installed the LG UG earlier & it went fairly easier in the way any new product goes the first time you use it, I put some electrical tape over the bottom screws to protect the monitor plastic.

Glad I can still just about use the menu joystick only if a little tight although I'm a set & forget kinder person, I had a little play before installation.


Attachments

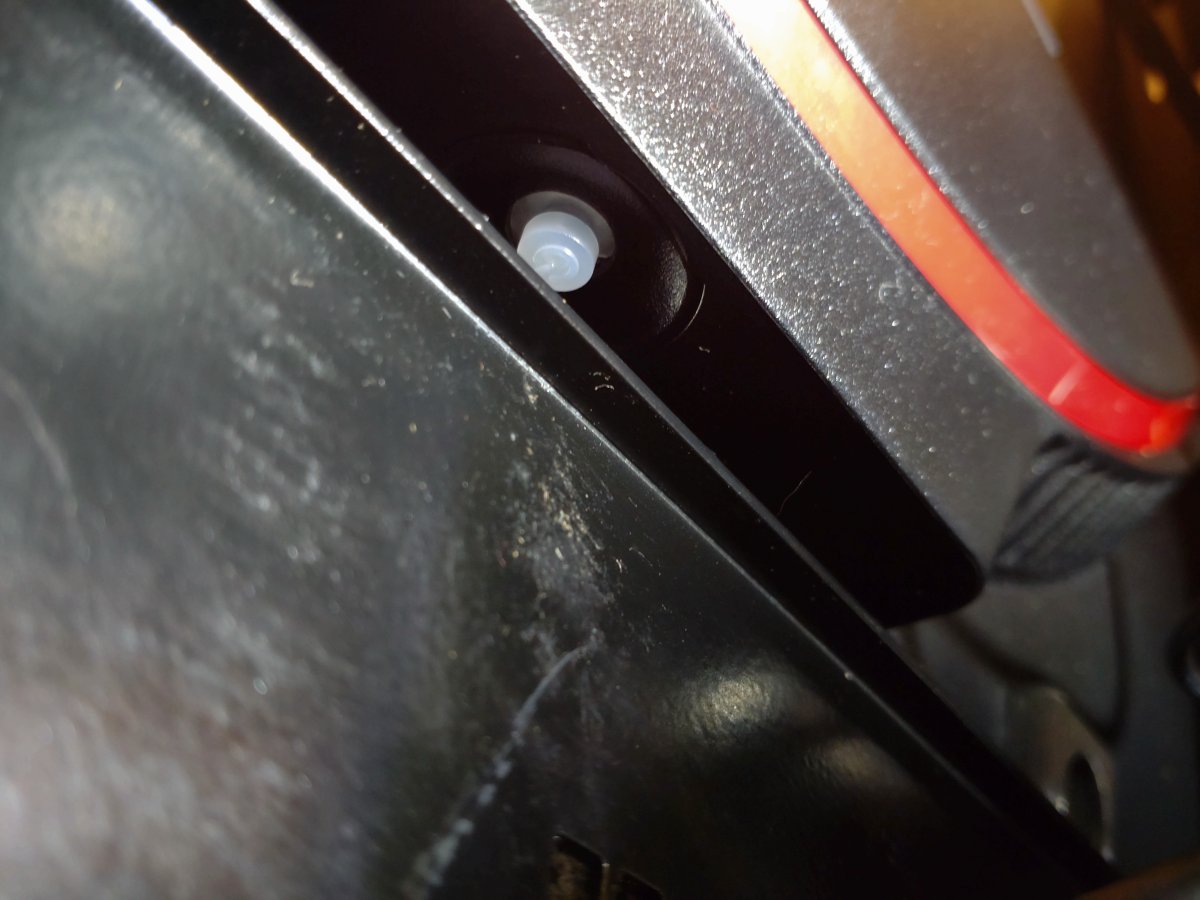

  • DSC_1616.JPG
    113.8 KB · Views: 73

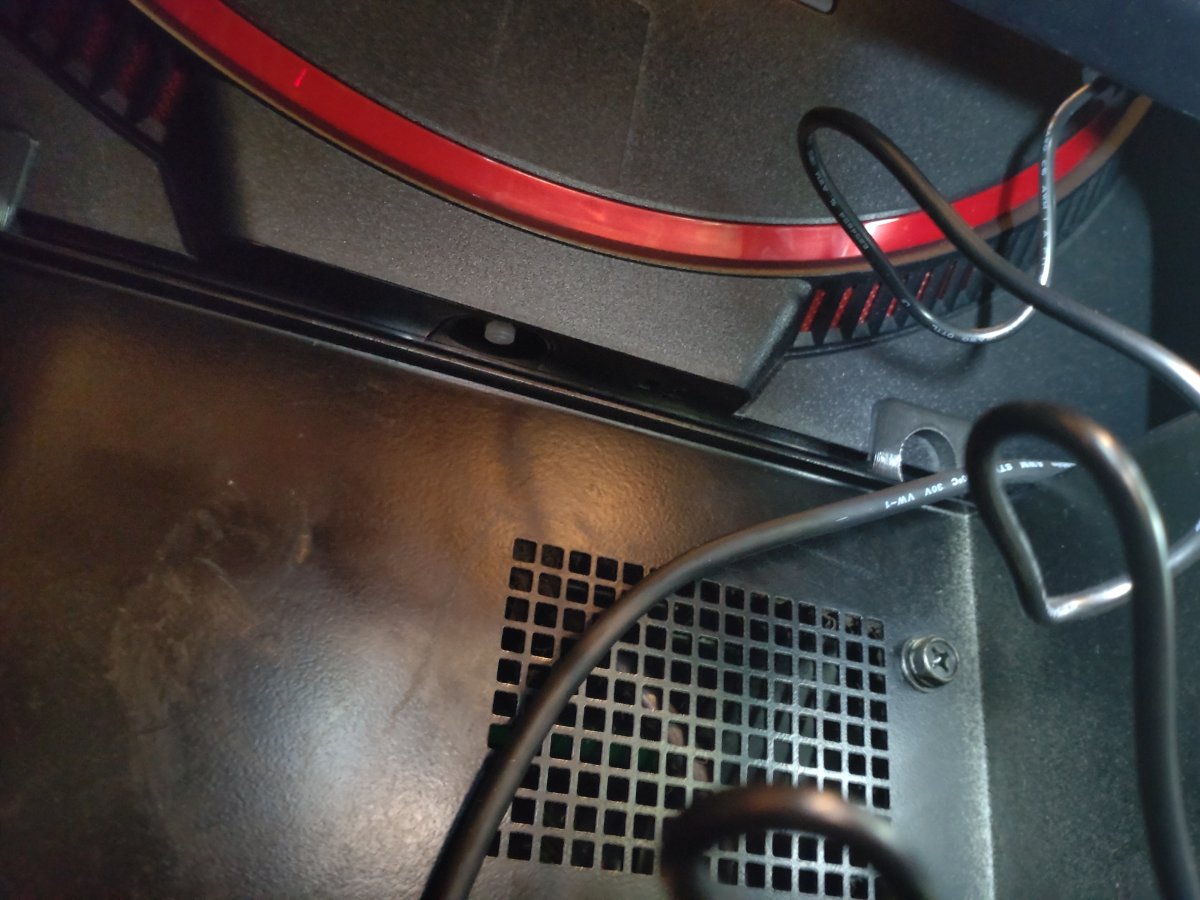

  • DSC_1617.JPG
    151.1 KB · Views: 77
First off all, the idea is really good. I would have never thought of the idea of installing the monitor on the front panel. Before @jermz1 shared the design with me, I modeled and printed a mounting solution that installs on the monitor rest / frame. Three separate parts (overall print time 30h) that needed to be bolted together. It wasn't even good, it felt rickety.

These brackets on the other hand are small and clever. However, I had some issues with the center pieces.

1) There's a gap between the panel and the mount.

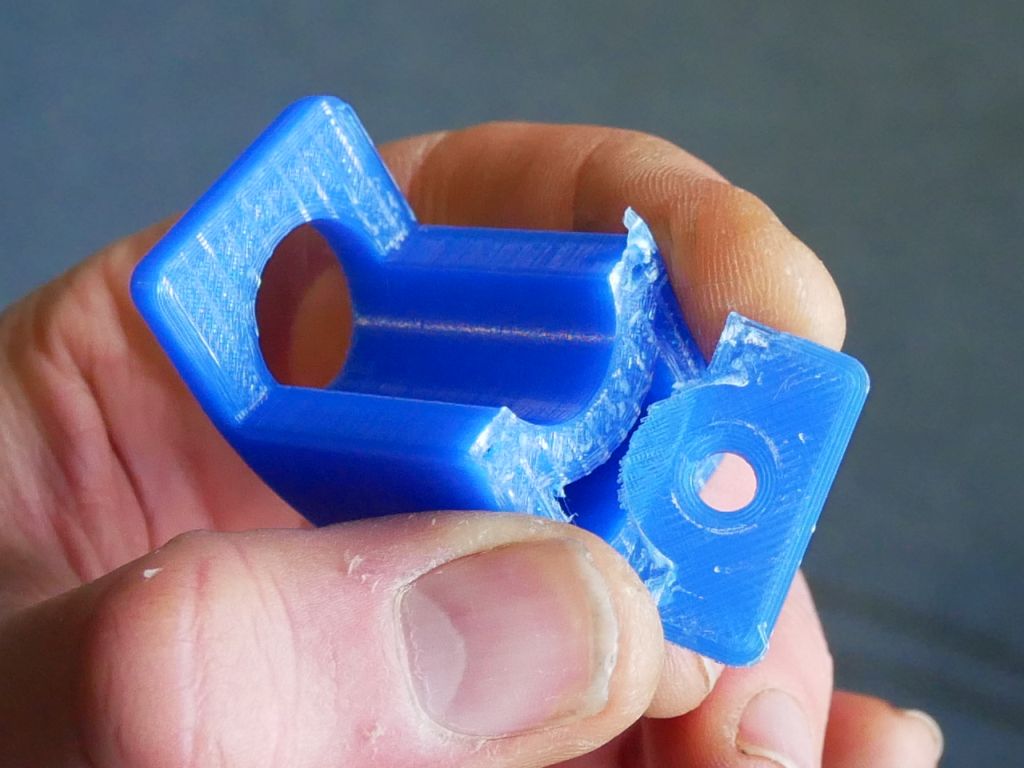

2) Printed in PLA, it's not very sturdy. I broke mine when I pulled on the monitor. Maybe PETG or ABS makes it strong enough, but I only have PLA here.


and 3) The screw heads scratch the monitor.

So I took the idea and iterated on it:

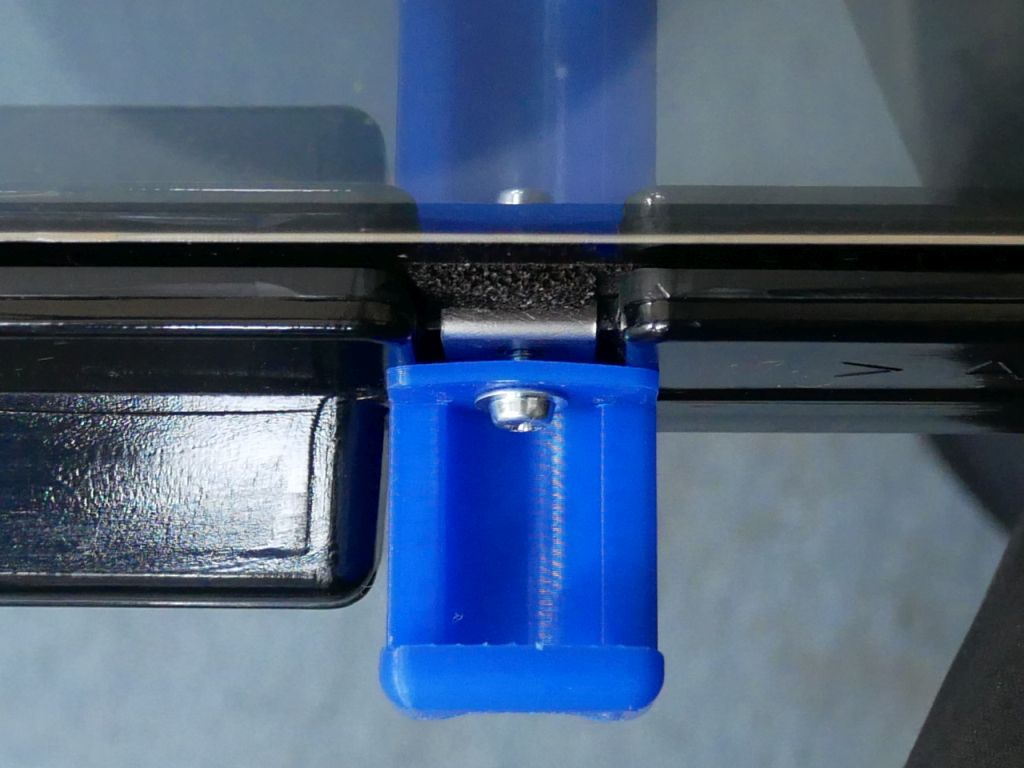

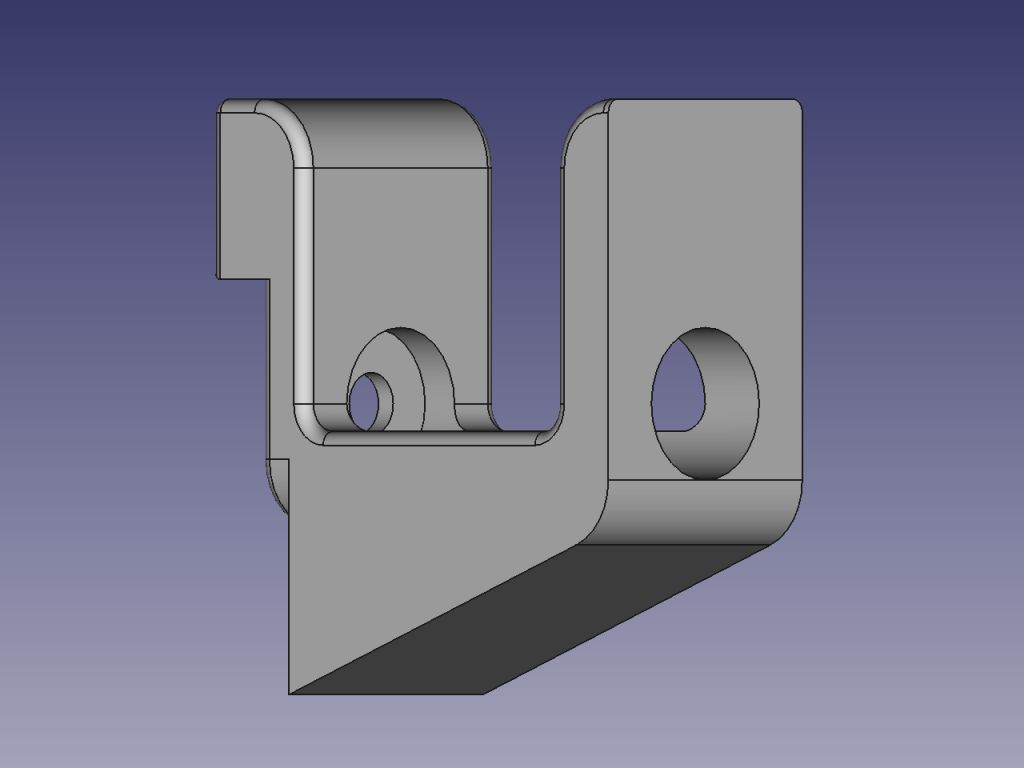

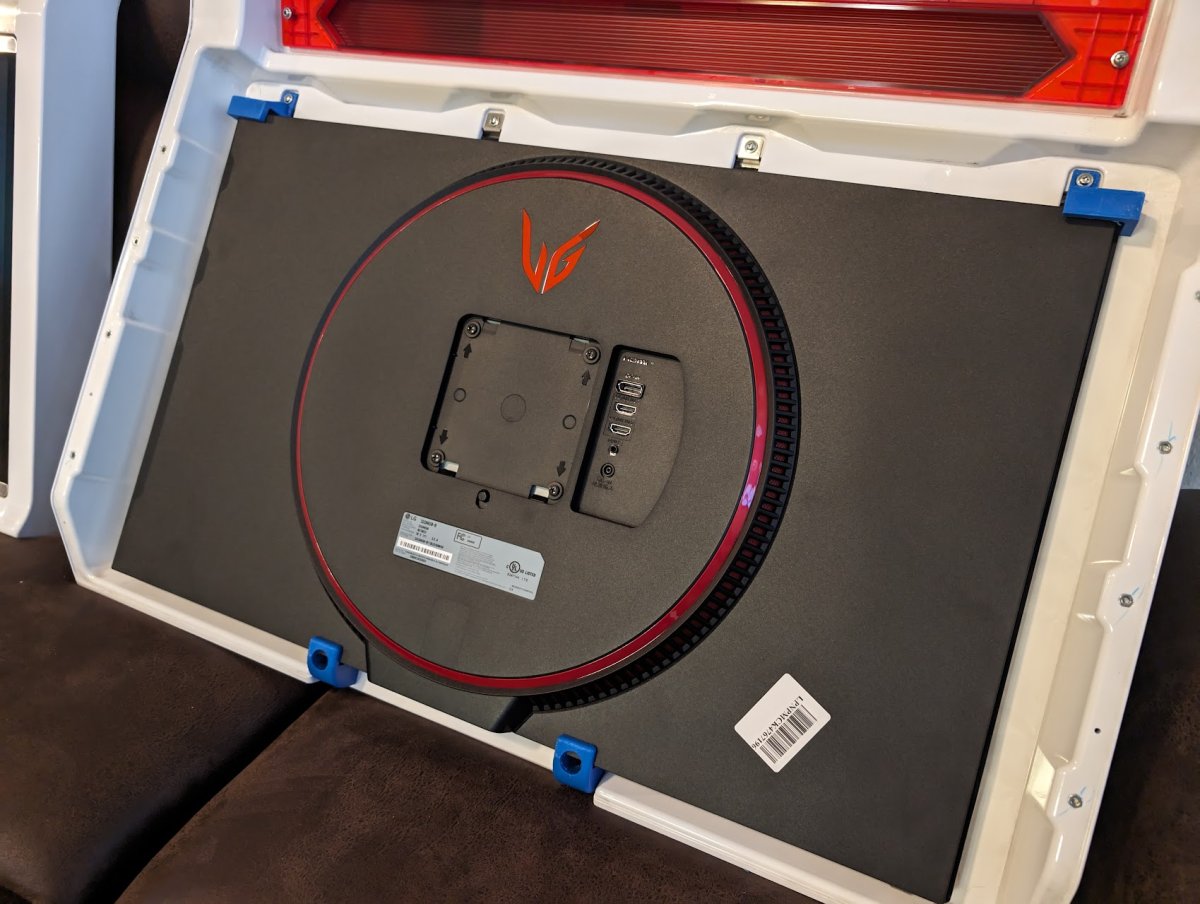

It's narrower, so it fits inside the pocket leaving no gap. I found it strong enough even printed in PLA with a infill of 20%. The screw sits inside a hole, so the head is covered. It also hugs the monitor more, there's zero play. This does mean that if your monitor doesn't have the same as depth as mine (32GP850, 25.6mm), it possibly won't fit. YMMV.


Attachments

  • namco_noir_bottom_mount.zip
    28.9 KB · Views: 81
Yea I meant to go back and revise that gap issue eventually. I just used a piece of foam to fill it in. It was good for my needs and don't have a printer readily available.
I used jlpcb SLA resin for my prints.
Overall they feel pretty solid.

I just wound up adding a small washer on mine to fill the gap. Been okay so far!

Yea I meant to go back and revise that gap issue eventually. I just used a piece of foam to fill it in. It was good for my needs and don't have a printer readily available.
I used jlpcb SLA resin for my prints.
Overall they feel pretty solid.
Great work, I sent you a pm

Ok so UPDATE!

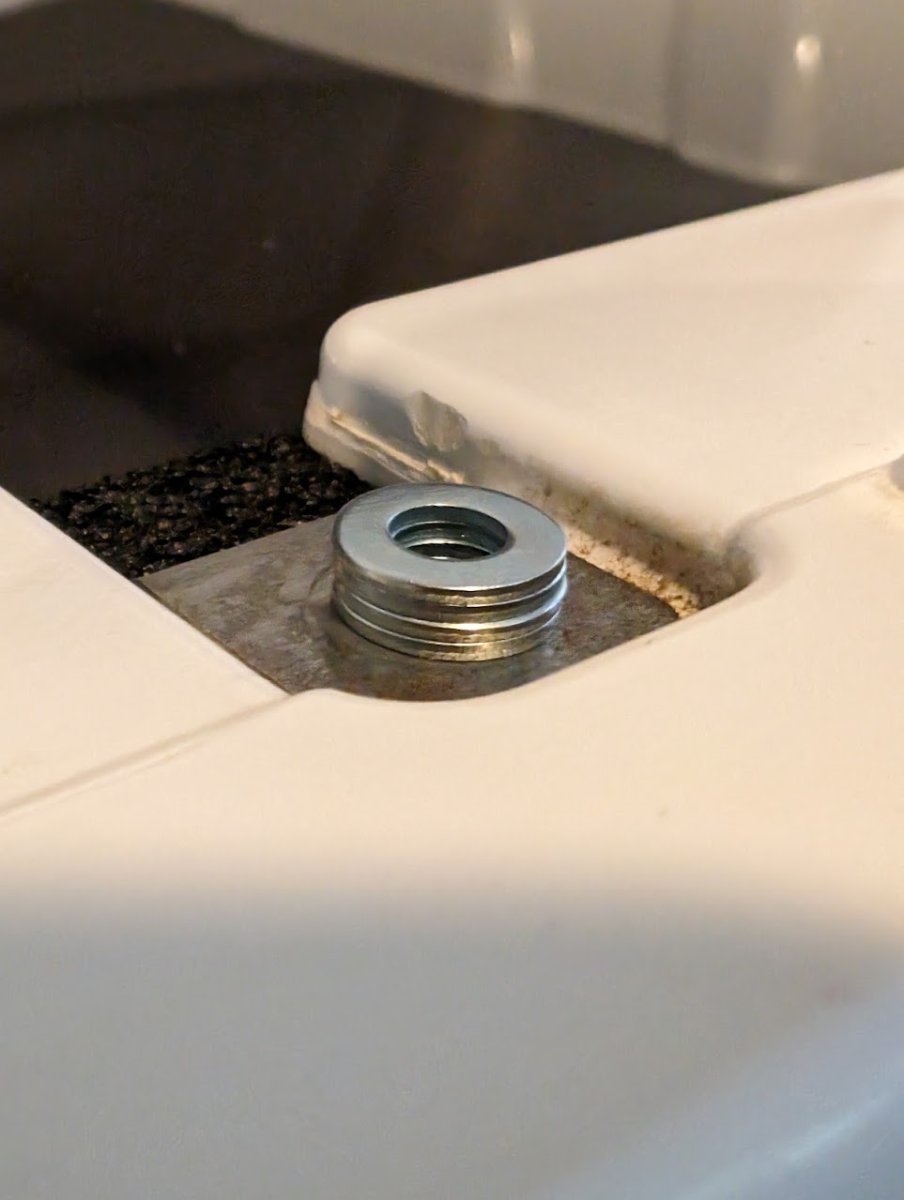

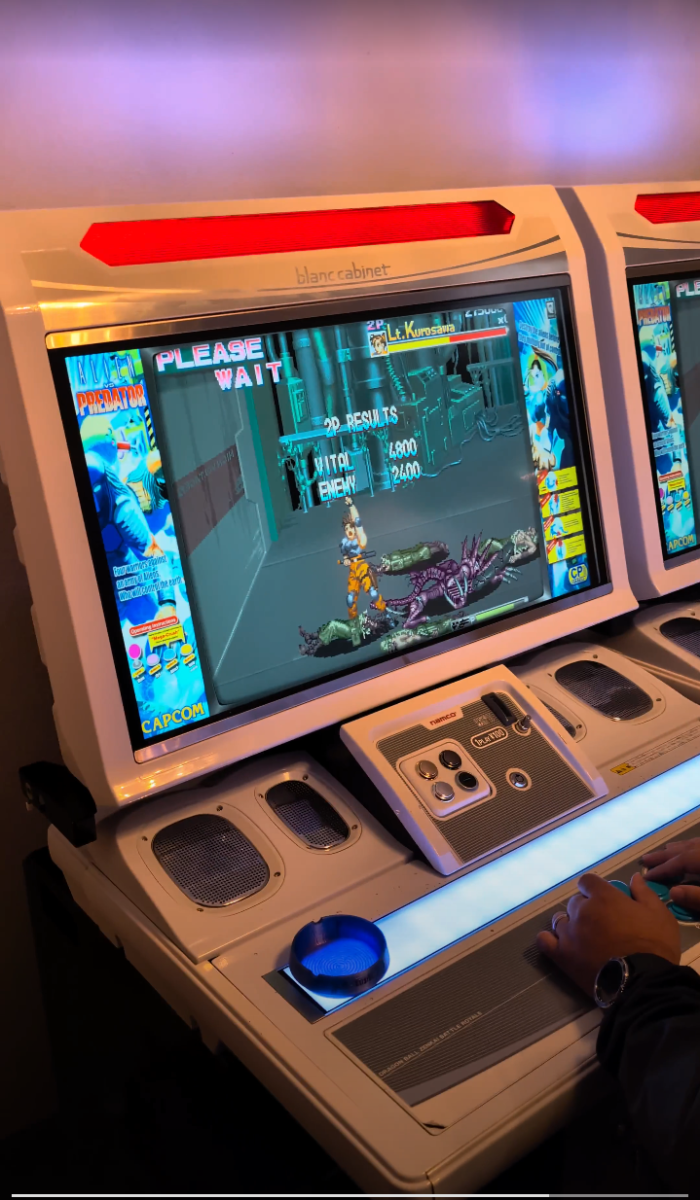

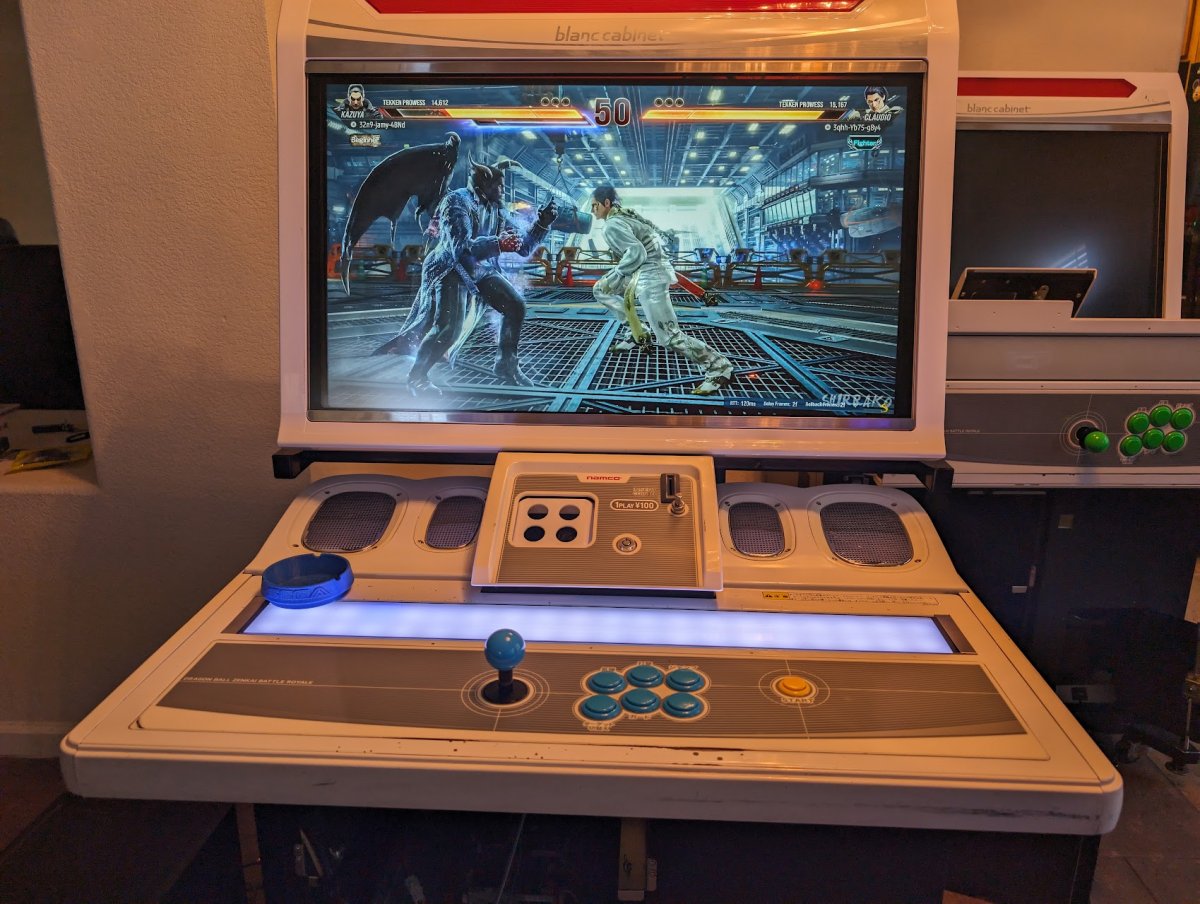

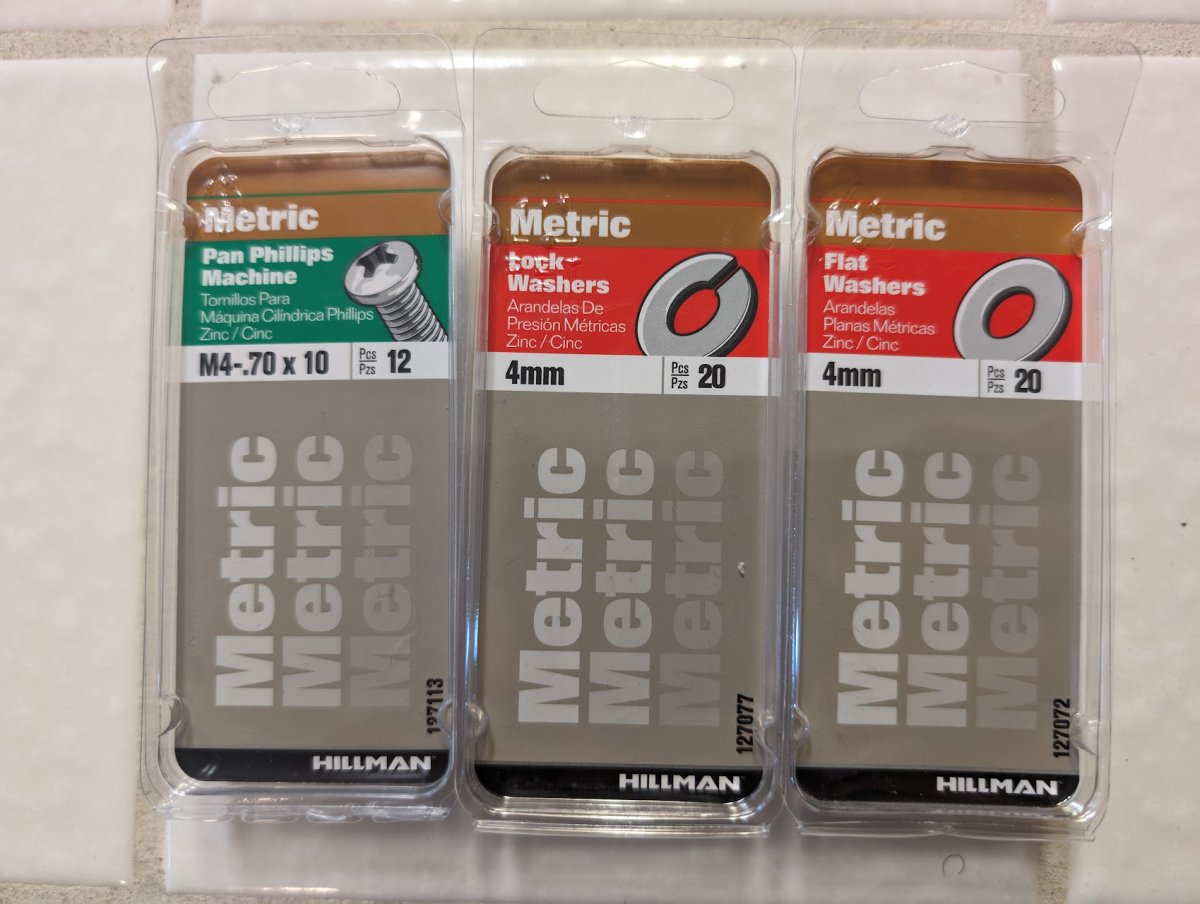

Got the 3-D mounts printed out, thanks again @jermz1! I used a stack of 4 washers as a spacers, it more or less covered the gap perfectly. Both monitors in and working great! I'm not in the process of setting up Launch Box and all the fun that comes with it. Messing around with the Brooks board and controls has been fun and at times frustrating. I used spare old parts, i9 8th gen, decent RAM, and a EVGA 3070. Also listed is the hardware I picked up at Lowes, Although I didn't end up using the lock washers. Now I need to run cables from P2 Cab (I/O, Audio, and Video) to the P1 cab, and figure out the inevitable issues that will arise in using 2 brooks boards on the same PC. But all in all I'm loving the project so far.


Attachments

  • PXL_20240401_190659201.RAW-01.COVER.jpg
    136.3 KB · Views: 93
  • PXL_20240403_234452247.RAW-01.COVER.jpg
    202.4 KB · Views: 93
  • PXL_20240402_233549192.RAW-01.COVER.jpg
    204.4 KB · Views: 96
  • PXL_20240401_190103673.RAW-01.COVER.jpg
    73.3 KB · Views: 97
  • PXL_20240401_194656062.RAW-01.COVER.jpg
    148.8 KB · Views: 92
Thanks man, I had your youtube video pulled up while I was at home depot looking for hardware, and I've referred to it countless times before that. Thanks for recording it.
Happy to help where I can :) Jermz the real MVP

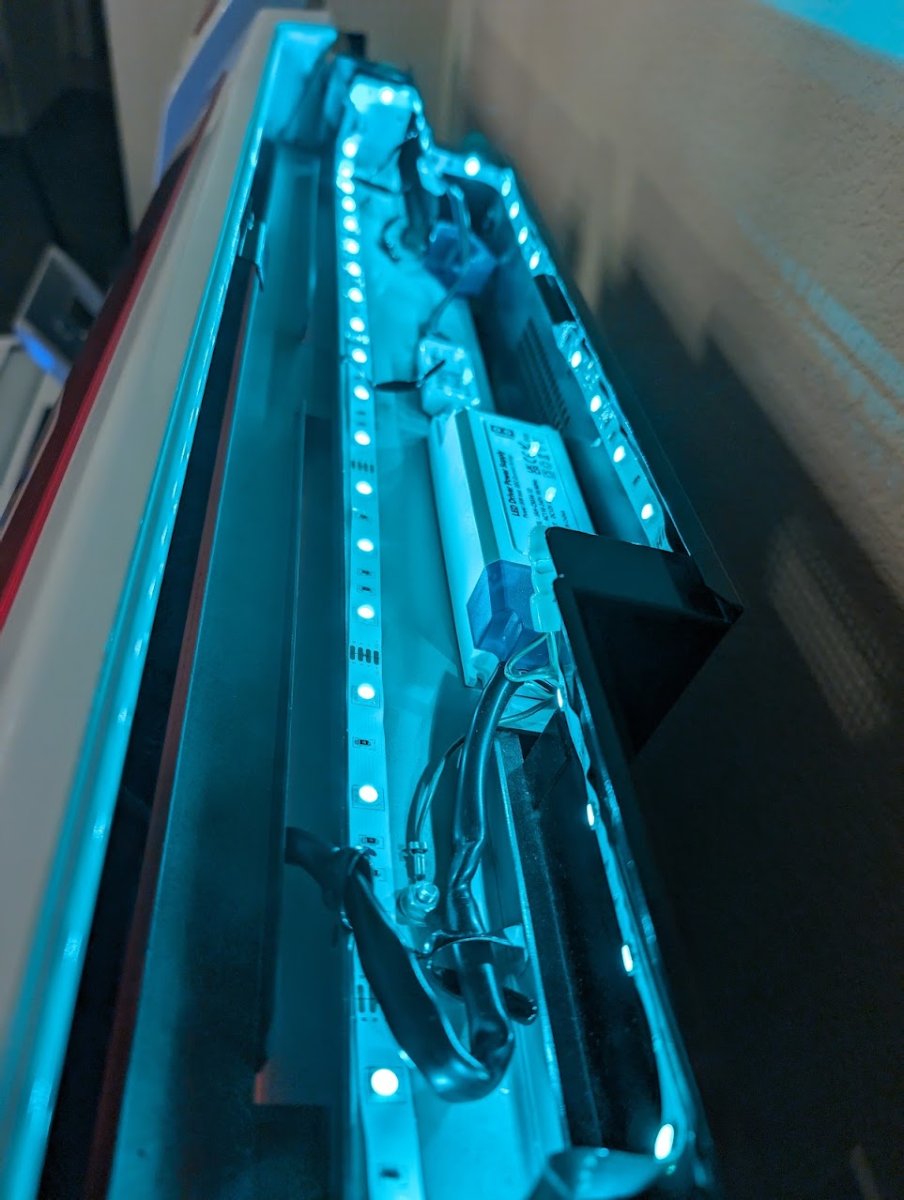

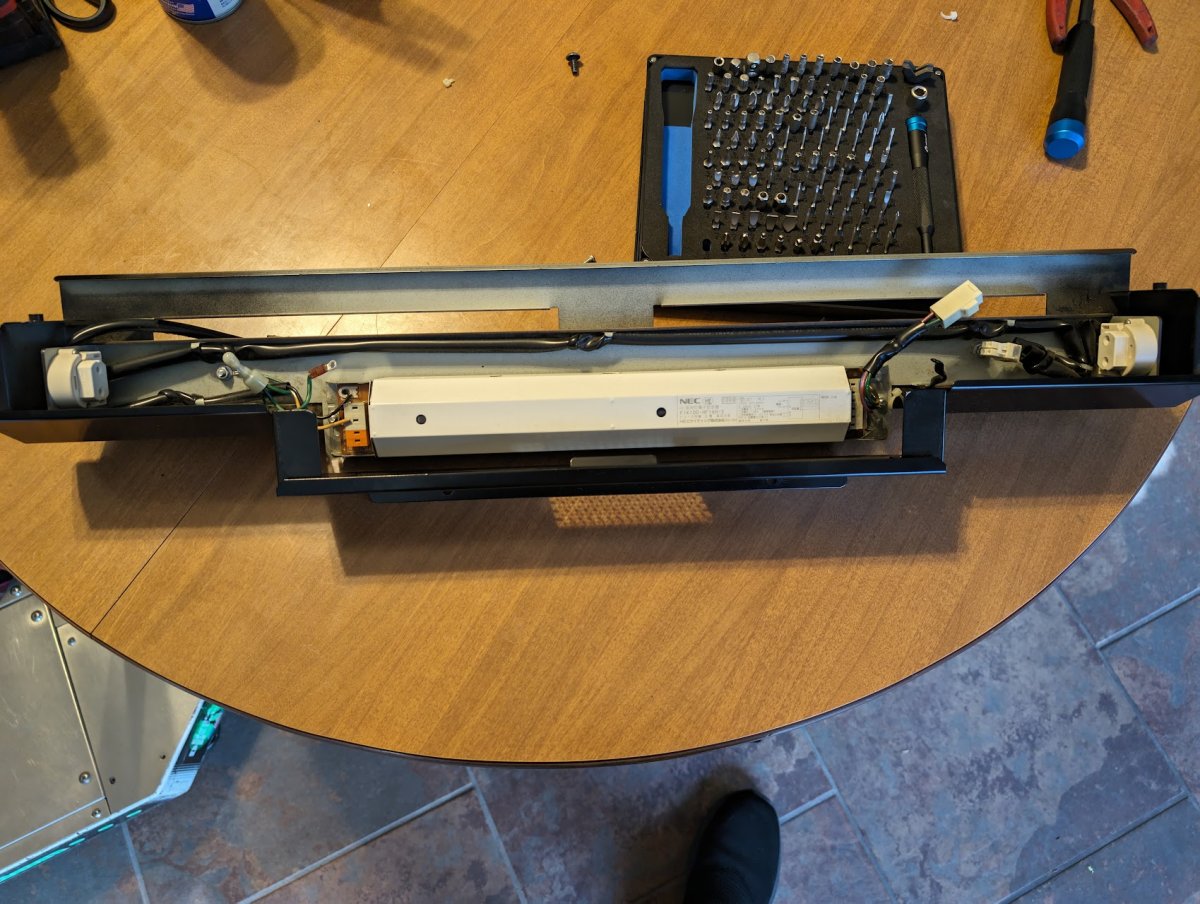

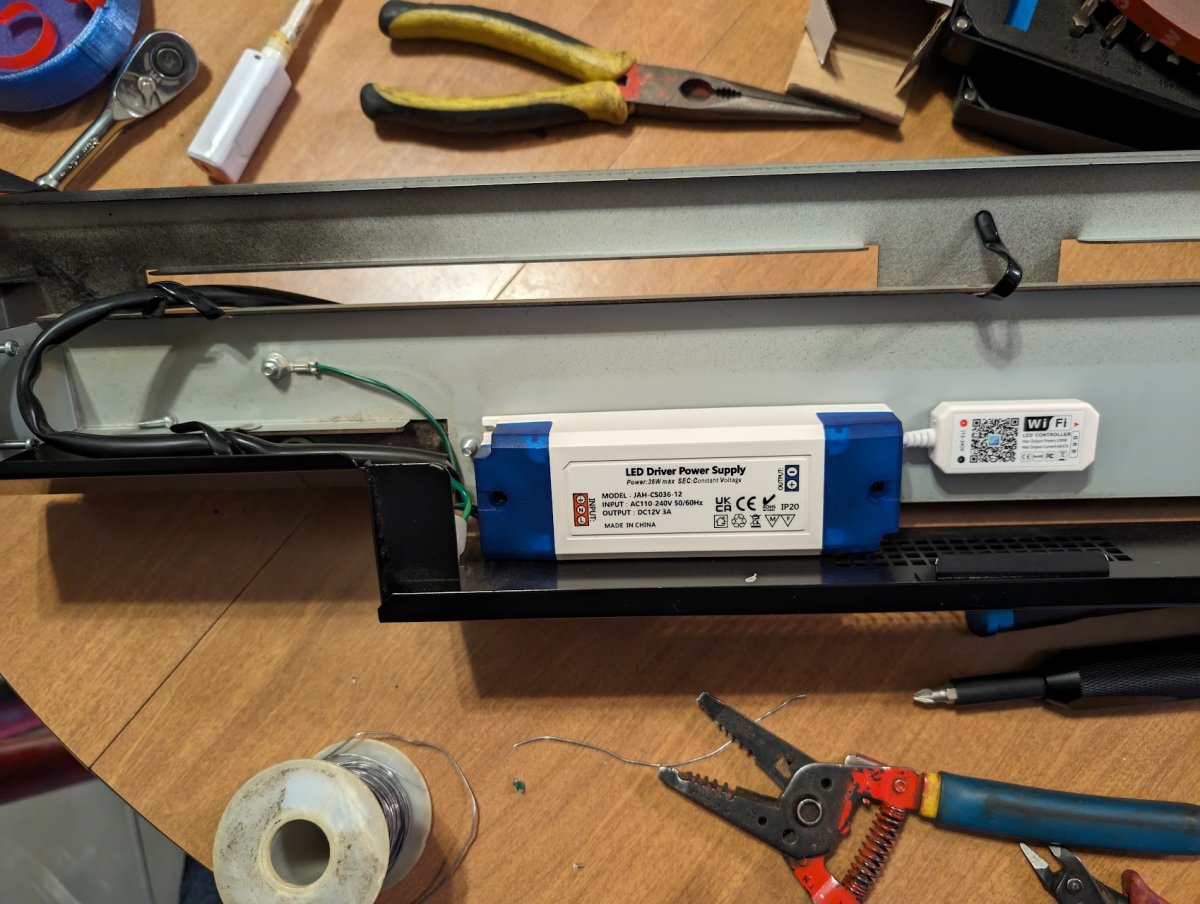

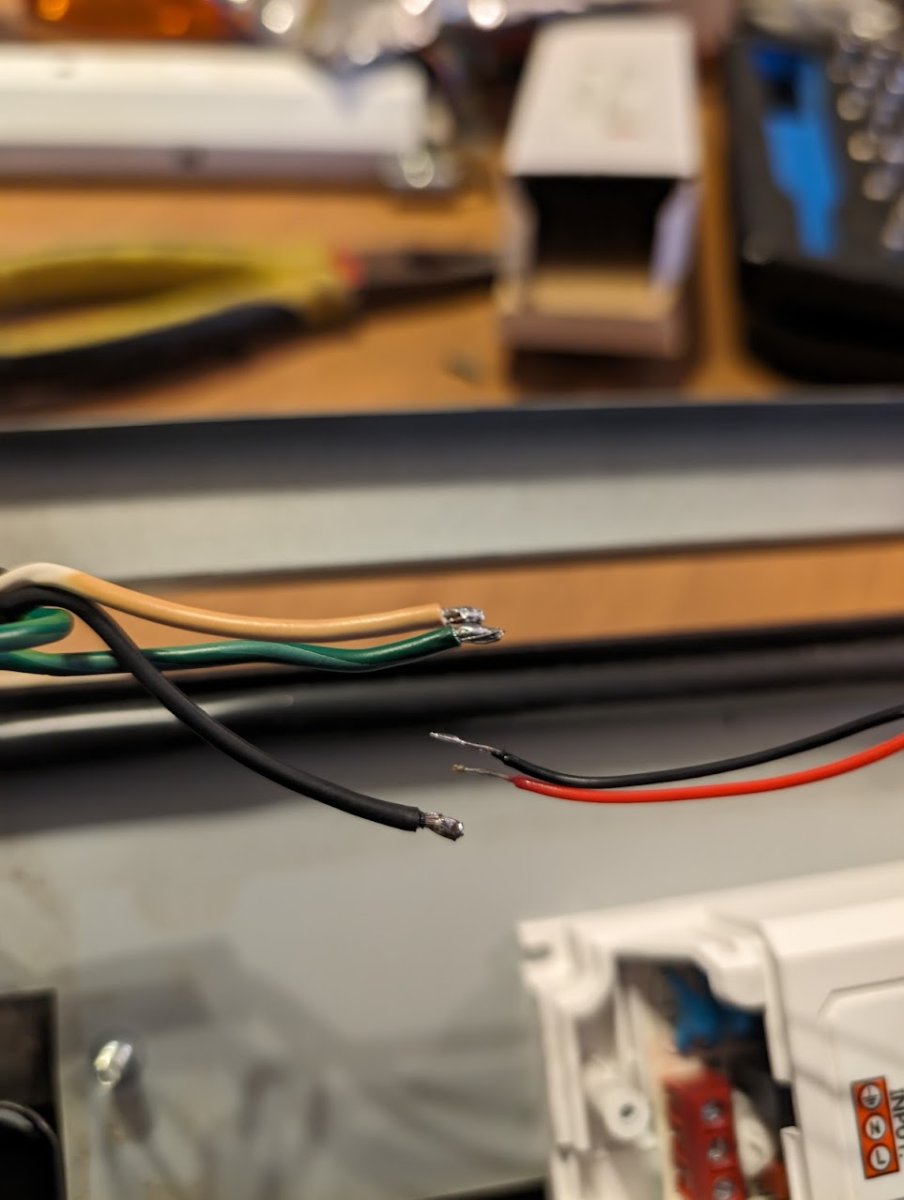

Minor update in case anyone in the middle of a monitor swap also wants to take the time to swap the 120v fluorescents to 12v LEDs. my P2 marquee ballast was broken when I bought these cabs. Rather than sticking with fluorescent lighting I decided to switch to more power efficient LEDs. Using a 120v/12v power supply I hooked up an Wi-Fi enabled RGB controller. After that I lined the lighting shell as seen in my picture and eventually switched the color to white. The amount of lighting is perfect to light the red diffuser up without being distractingly bright, as well as shines a decent amount of light on the wall behind the cab.
