hi guys have a question for you i have a astro city with its original power supply i was just checking voltages with my multimeter on the jamma edge under load and im getting perfect 12v and +5v but when i measure the -5 i get -0.008 is this normal i also verified this at the psu connector with and without load still reads the same could any of you check your voltage to see if your getting anything for -5 or is this normal thanks for the help!!


mazinkaiser

Student
Joined
Sep 18, 2016
Messages
28
Reaction score
0
Also to add to the question what does -5 power is it used on cps2 boards? Or whats it used mainly for?


jassin000

Multi Boyz Sheriff
Legendary
Multi Boyz
Joined
Jul 21, 2015
Messages
7,539
Reaction score
6,029
Location
Nashua, NH
Only a handful of PCBs actually use -5v, so the majority of JPN power supplies don't provide it PERIOD.
Take for example CPS2 (as you mentioned above) it don't need/want/use -5V whatsoever.


Frank_fjs

Multi Boyz 4 Lyfe
Legendary
Multi Boyz
Joined
Mar 3, 2018
Messages
3,431
Reaction score
5,796
Location
Australia - Adelaide
Stock Astro power supply has -5V.

Your readings aren't normal.


mazinkaiser

Student
Joined
Sep 18, 2016
Messages
28
Reaction score
0
fantastic thanks for clearing that up jassin just wanted to make sure. I always check the psu on a new cab before i plug anything in thank you


djsheep

Multi Boyz Overlord
Legendary
Multi Boyz
Joined
May 20, 2016
Messages
4,603
Reaction score
5,586
Location
Brisbane, Australia
One of my Astro’s has a fluctuating -5v. I think it’s dependent on the model of the PSU perhaps?


jassin000

Multi Boyz Sheriff
Legendary
Multi Boyz
Joined
Jul 21, 2015
Messages
7,539
Reaction score
6,029
Location
Nashua, NH
I don't have a Astro (never owned one) so I checked just to make sure...
Yup Frank is 100% correct, this is taken right from the manual.


So it should be providing -5volts @ 0.1amp (I incorrectly made the above JPG with 1amp) but if your +5 and +12 lines are stable, it should work fine for CPS2 (because again CPS2 don't use it).
One of my Astro’s has a fluctuating -5v. I think it’s dependent on the model of the PSU perhaps?
Is it like the Wei Ya, and only provides stable power values if used with a 100v step-down?

Last edited:

mazinkaiser

Student
Joined
Sep 18, 2016
Messages
28
Reaction score
0

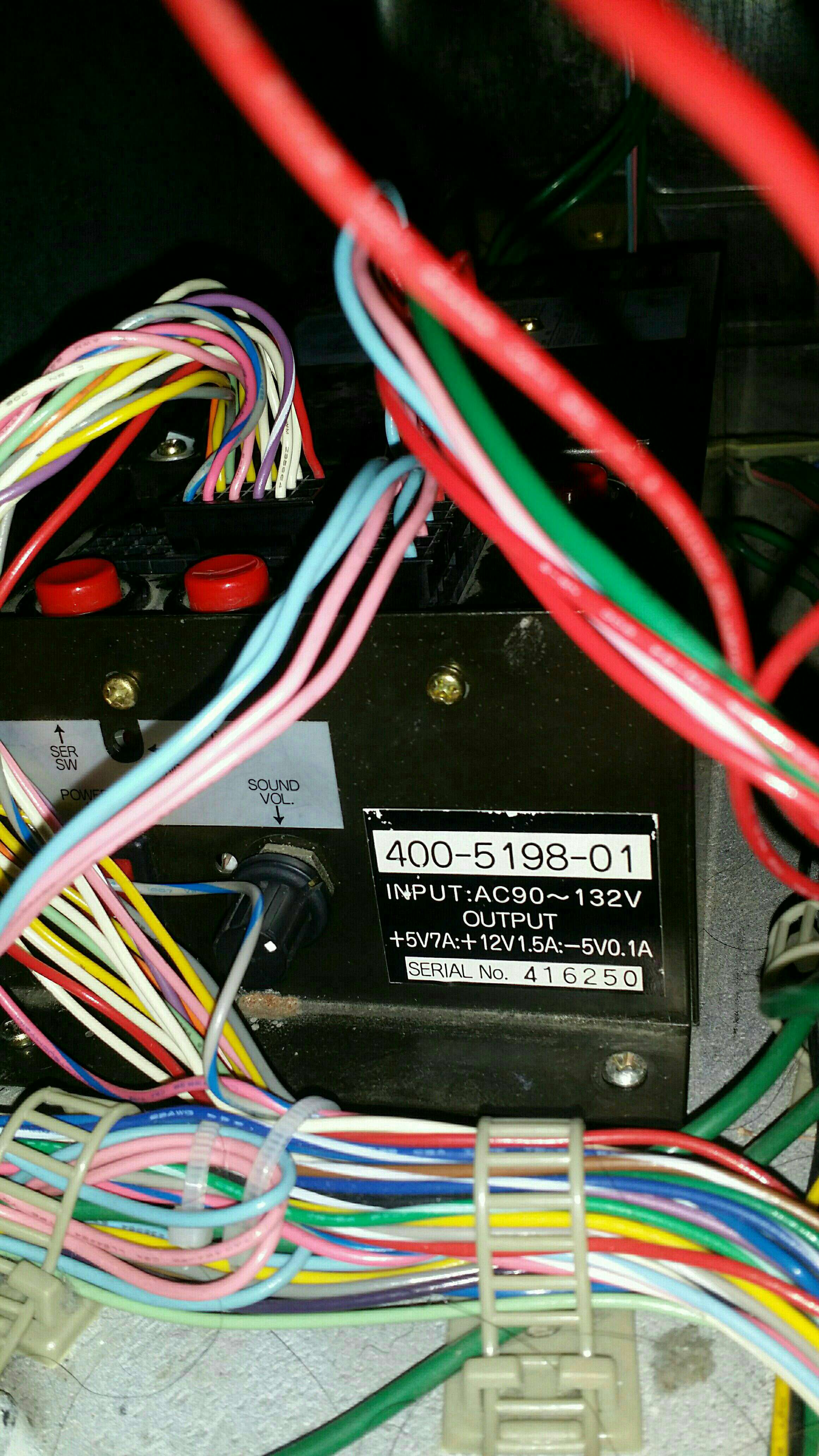

mine has one of the older psus but still says on the tag -5v




You might have hit the nail on the head with the step down let me hook it up to my 100v line and check again


mazinkaiser

Student
Joined
Sep 18, 2016
Messages
28
Reaction score
0
after hooking up to my 100v line still reads the same very strange what could be the issue psu has been recapped recently wonder if theres a rectifier out. So is there any chance of me damaging any boards playing like this? Also you mentioned only a handful use -5 which ones would that be?


jassin000

Multi Boyz Sheriff
Legendary
Multi Boyz
Joined
Jul 21, 2015
Messages
7,539
Reaction score
6,029
Location
Nashua, NH
Someone had a handy list of all the boards that required -5v, I think it was @twistedsymphony who posted the link?
What I remember is older PCBs like Bubble Bobble (1986) needed it, and some wacky American PCBs like Mortal Kombat needed it.
But the majority of Japan PCBs made in the 90s onward (CPS1, CPS2, CPS3, MVS) did not.

Also, at least in MK's case... The game still boots without -5v, you just won't get any sound.


djsheep

Multi Boyz Overlord
Legendary
Multi Boyz
Joined
May 20, 2016
Messages
4,603
Reaction score
5,586
Location
Brisbane, Australia
Is it like the Wei Ya, and only provides stable power values if used with a 100v step-down?
Am actually unsure, I will most likely send it off for a recap to Jomac as I'm assuming that's what the issue most likely is...

Was talking to @xodaraP a while back who hinted that perhaps if there wasn't a load on it / the PCB that it might show a fluctuating value on the multimeter on the Jamma pins?


Frank_fjs

Multi Boyz 4 Lyfe
Legendary
Multi Boyz
Joined
Mar 3, 2018
Messages
3,431
Reaction score
5,796
Location
Australia - Adelaide
Quite possible that it does need a load on it.

-5V is derived from the +5 or +12V line so if those work generally -5V should be working.


xodaraP

Enlightened
Joined
Sep 21, 2016
Messages
4,399
Reaction score
3,013
Location
Gold Coast, Australia
Is it like the Wei Ya, and only provides stable power values if used with a 100v step-down?
Am actually unsure, I will most likely send it off for a recap to Jomac as I'm assuming that's what the issue most likely is...
Was talking to @xodaraP a while back who hinted that perhaps if there wasn't a load on it / the PCB that it might show a fluctuating value on the multimeter on the Jamma pins?
The Astro has a 100V step down (at least in 240v regions) - I have noticed that the -5 isn't stable without a load connected. Unsure why but both @djsheep and I have the same thing happen


-Ace-

Professional
Joined
Mar 1, 2018
Messages
416
Reaction score
244
Location
WISCONSIN
after hooking up to my 100v line still reads the same very strange what could be the issue psu has been recapped recently wonder if theres a rectifier out. So is there any chance of me damaging any boards playing like this? Also you mentioned only a handful use -5 which ones would that be?
Older Technos pcb's like Double Dragon, WWF Superstars, etc need -5. I believe it's for the audio. . .


Psyko-M1

Champion
Joined
Jun 10, 2018
Messages
1,113
Reaction score
1,649
Location
Chicago
after hooking up to my 100v line still reads the same very strange what could be the issue psu has been recapped recently wonder if theres a rectifier out. So is there any chance of me damaging any boards playing like this? Also you mentioned only a handful use -5 which ones would that be?
Older Technos pcb's like Double Dragon, WWF Superstars, etc need -5. I believe it's for the audio. . .
This is correct. I have a WWF Superstars that doesn't play without -5 and I am sad because my 2 cabs are not compatible.
Anybody know if Wrestlefest needs -5?


Frank_fjs

Multi Boyz 4 Lyfe
Legendary
Multi Boyz
Joined
Mar 3, 2018
Messages
3,431
Reaction score
5,796
Location
Australia - Adelaide
Can always use an external device to generate the negative 5 volts.


xodaraP

Enlightened
Joined
Sep 21, 2016
Messages
4,399
Reaction score
3,013
Location
Gold Coast, Australia
If that's the Wolf Unit board then yes it does, all Midway boards need -5

If it's the Technos game, I believe this needs -5 as well. As @Frank_fjs said you can use a Negatron to generate the -5


mazinkaiser

Student
Joined
Sep 18, 2016
Messages
28
Reaction score
0
found the wiki about what games use -5 volts i believe this is a partial list but helps alot funny it mentions astro city psu right of the bat must be a common issue

https://wiki.arcadeotaku.com/w/List_of_JAMMA_PCB's_that_require_-5_volts

Also here is another useful thread i found on another forum

http://www.neo-geo.com/forums/showthread.php?167536-Games-that-dont-work-without-5v

Thanks for all the help guys i will try to get ahold of another version of the astro city psu and test will report my findings!!


tiff_lee

Professional
Joined
May 21, 2017
Messages
584
Reaction score
306
Location
Western Australia
My new astro city has the same problem, -5V line is dead. I'll see if I can find the thread I read a while back but there is a particular component on the -5V line which fails, can;t remember if it was a voltage regulator/transistor but it was definitely in a TO-220 package.
