I've been sitting around with a poor Rambo 3 pcb that has been used as a donor few times, finally, after a very long time, i was able to give him back the guts.
When i was trying to check what was already on it, the confusion begins in the main CPU eeprom code.
I compared the 2 27c010 (B-11 and B-14) with no problem, figuring mine was a Eu version of the game.
Then i went to check B93-06 and B93-07 and the confusion begins.

As many of this boards they came with original proms, 28dip, at first i usually thought was a classic 27512 64kbx8, more like the same eeprom located for the sound cpu (B93-10 @ic36), but, i couldn't find them in the rom set.

B93-07 is located at mark ROM1E
B93-06 is located at mark ROM1O

So, if these were 27512 i must soppose to find them in the 64kb rom compartment. And they are not there!

64kb files in the (main rambo3p) rom set are: r3.00, r3.0e and r3.0o (last is ramb-10, the 27512 sound code, wich match as mine)

I tryed to compared all of them (why 3??) and none have a match.
Then i saw there were actually some files called 1E and 1O (and ramb3-06/ramb3-07), exaclty was i just trying to search... but they are 128kb files! so these are for 27c010 eeproms.

So then i though to just see if in those files there was a match for them, and they actually do in most parts. Obviously, as i was comparing a 64kb file to a 128kb file, there was a huge empty gap between them, since the dump was half the file.

So what the hell i'm missing here?
I look at all of the picture i was able to find on google, seems that my board is the same as all of the others (the CE wire patch underneath too).
I don't have any idea if these proms (considering they are taito) are good or not, and why i cannot find the 64kb code in these location. I hardly believe that these 28pin proms are 128kb (i have never seen that)
I'm soo confused on this... ?(


caius

Grand Master
Joined
Nov 21, 2016
Messages
553
Reaction score
802
Location
Italy

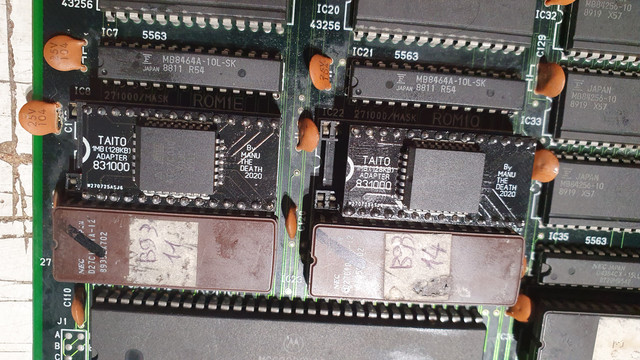

They are 28 pin 1Mbit MASK ROMs with non-JEDEC pinout.You can replace them with adapted 27C1000/27C301 (or also 27C010 but more modifications are needed to swap pin 2 and pin 24).Otherwise you can buy adapters I made with TSSOP flash ROMs.


Attachments

  • 1Mbit_MASK_ROM_replacement_.JPG
    160.4 KB · Views: 96

TheDeath

Professional
Joined
Jul 2, 2017
Messages
355
Reaction score
336
Location
Italy
They are 28 pin 1Mbit MASK ROMs with non-JEDEC pinout.You can replace them with adapted 27C1000/27C301 (or also 27C010 but more modifications are needed to swap pin 2 and pin 24).Otherwise you can buy adapters I made with TSSOP flash ROMs.
Ha.. i didn't even payed attention to the silkscreen. I've never seen these or came across until now.
Never thought about a reply from you neither, anyway, thank you for the explanation.
How's your sea view? Still good?
