Replacement fingerboard for VEGA 9000DX supergun

Nimmers

Nimmers

Grand Master
Joined
Oct 25, 2016
Messages
624
Reaction score
587
Location
NSW, Australia
Hey guys,

I've never been happy with the hand made hacked up fingerboard and I'm sick of having a bunch of random kick harnesses, brightness pots and test buttons hanging off my harness.

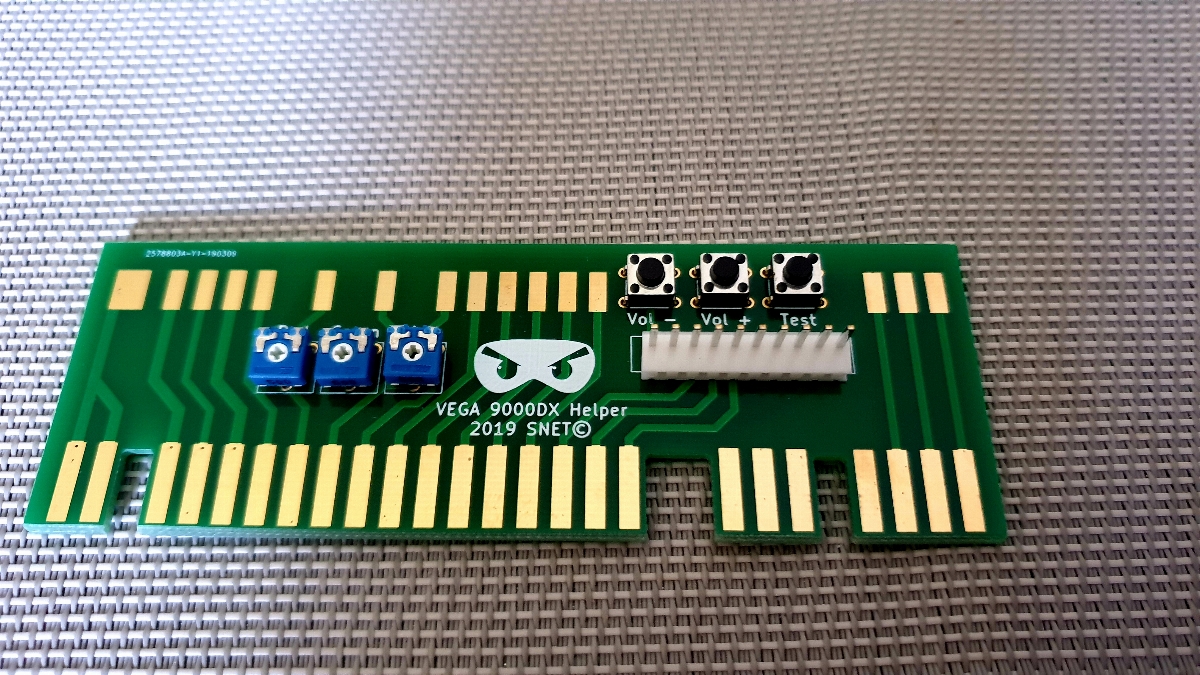

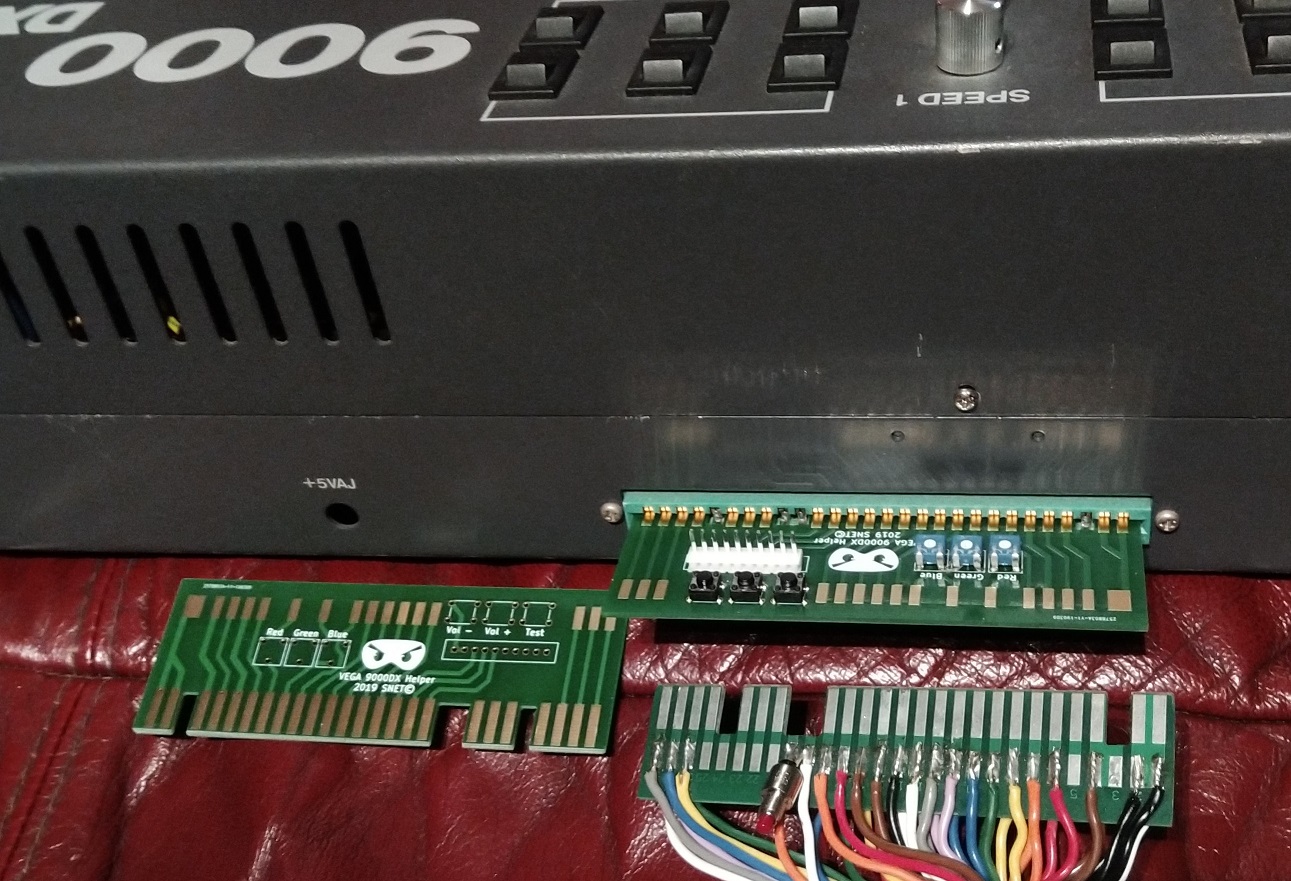

I got a few of these made if anyone would like one. They are just a fingerboard with:
-500ohm pots on the RGB lines
-CPS1 like JST header for kick buttons so you can make different harnesses
-Test button and volume buttons that you can wire up with your CPS2 kick harness
-45 degree chamfered edges to protect the JAMMA connector



I will probably do the same with the Boardmaster next.

That's really nice. I need something like that for my Sigma Raijin to control the RGB lines on it. It looks so washed out with the stock loom/fingerboard.

Will the same adapter work for the Vega Jr? if so I could do with 3 (I have a pair of DX 9000 and a Jr).

I also have a pair of Boardmasters and a pair of Rajin's and the video is terrible on both compared to the Pana Custom/MP92 (that has RGB+Sync pots).

Any idea on prices?

penrhos said:
Will the same adapter work for the Vega Jr? if so I could do with 3 (I have a pair of DX 9000 and a Jr).

I also have a pair of Boardmasters and a pair of Rajin's and the video is terrible on both compared to the Pana Custom/MP92 (that has RGB+Sync pots).

Any idea on prices?
Click to expand...
Do you have a picture of the Vega Jr finger board? I can certainly compare and let you know. I wouldn't want much for these maybe 8 bucks?

Boardmaster pcb.

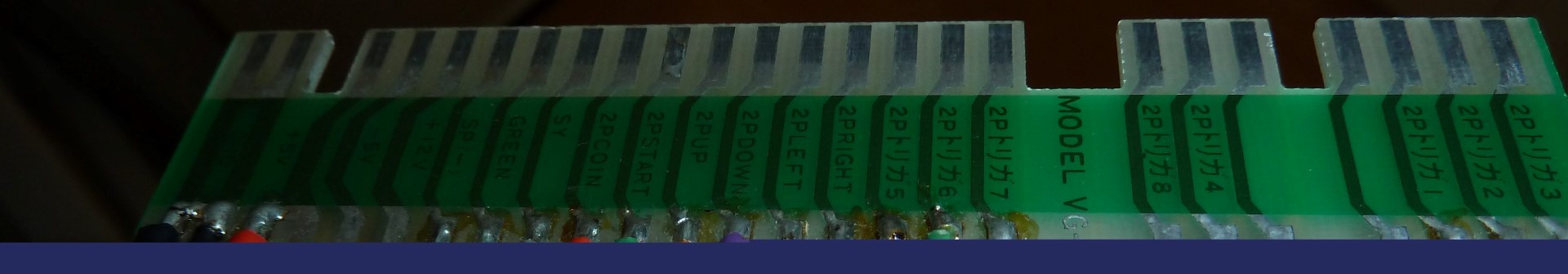

Vega Jr. PCB



I have the Rajin & pana ones but the pictures haven't come out well - I'll take some others with a different camera.

The Vega one does look right, I also have a boardmaster that I am planning to give similar treatment.

I've had pretty bad bronchitis and its kept me from soldering. When I solder up the Vega one and confirm it works ok I can send you one to test out if you like.

Thanks guys. The reason I'm holding off on making more of these is that I am working on a board that just has the video circuit of the minigun so we can do buffered RGB bypass on all Japanese superguns with no/poor video encoders.

Nimmers said:
Thanks guys. The reason I'm holding off on making more of these is that I am working on a board that just has the video circuit of the minigun so we can do buffered RGB bypass on all Japanese superguns with no/poor video encoders.
Click to expand...
Bumping this as very interested.

Hey guys,

Sorry I am super busy with work these days. I'll try and find my old gerbers and release them but I have a feeling they might have been lost :(

Cheers,

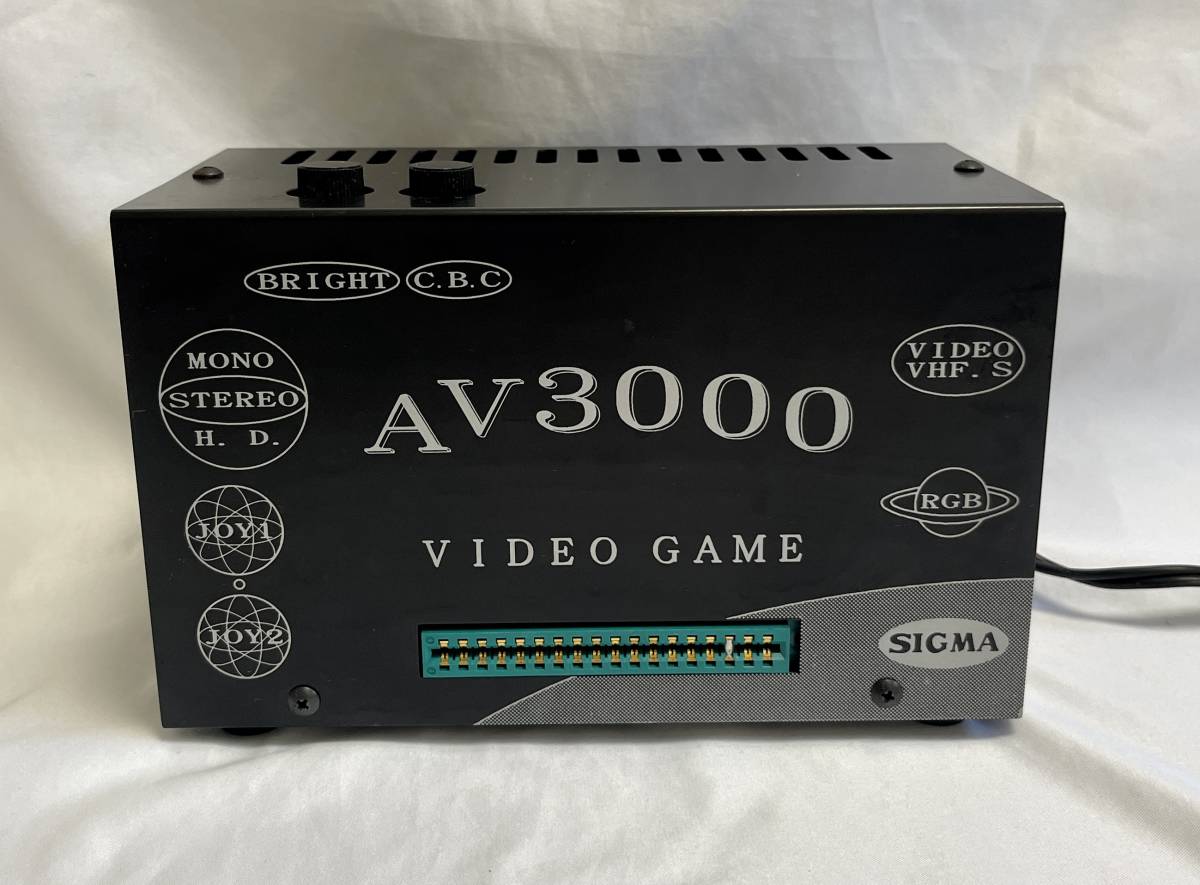

Has there been any efforts in making new fingerboards for the Sigma AV-series, like AV3000?
