Repro Sega 834-6523 4P pcb

[Derick2k]

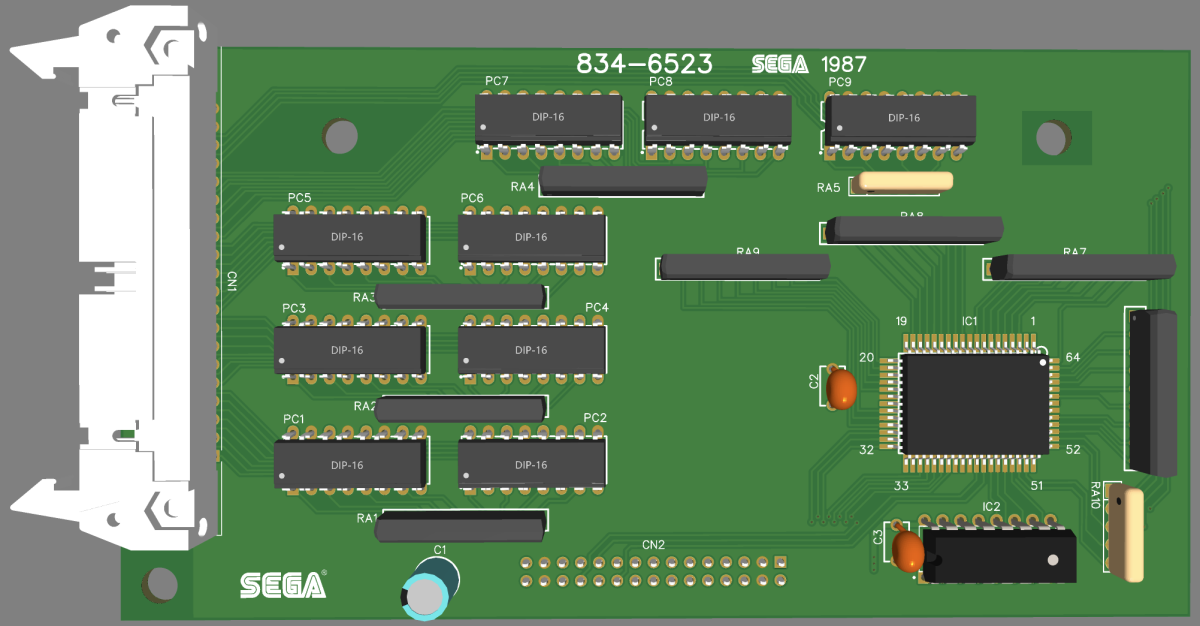

Did a repro of the Sega 834-6523, 4P addon board for Sega Sys 16 pcbs?! Not sure if it works with any other boards.

Its close enough. I will order 5 of these to test out. Thanks go out to @glstar for loaning his board out.

Just wondering if the 40pin connector should be replaced with a simpler more readily available connector(s).



[Darksoft]

Just wondering if the 40pin connector should be replaced with a simpler more readily available connector(s).

Probably a good idea. Thanks for making these.



[biggestsonicfan]

Do you do repo board commissions? I'd love a new Sega Versus City Billboard PCB

I'm just kidding

Spoiler

... or am I?



[Derick2k]

Do you do repo board commissions? I'd love a new Sega Versus City Billboard PCB

I'm just kidding

Spoiler

... or am I?

I probably can if you can get me a board.



[biggestsonicfan]

I probably can if you can get me a board.

That could be arranged. I have already depopulated and scanned a board and am (slowly) documenting every component on it. I also have another board that hasn't been touched that I use as a base reference. I have 3 total: Depopulated, refurbished, and untouched.



[glstar]

Did a repro of the Sega 834-6523, 4P addon board for Sega Sys 16 pcbs?! Not sure if it works with any other boards.

Its close enough. I will order 5 of these to test out. Thanks go out to @glstar for loaning his board out.

Just wondering if the 40pin connector should be replaced with a simpler more readily available connector(s).

This is for Passing Shot only.
Don't think Sega use this in other games



[Derick2k]

Well, these are turning out pretty good, just waiting on a few more parts
