Hey guys,

I have an all in one Road of the Sword PCB and I noticed that the "Japan" all in one PCB version of the game has different music from the "China, Japan, Taiwan, Hong Kong, Korea, Spain" PGM Cart version.

You can hear it in MAME if you compare "theglad.zip" and "thegladpcb.zip" right from the attract screen.

Probably a long shot but has anyone ever converted their single PCB version to the multi region version with the cooler music?

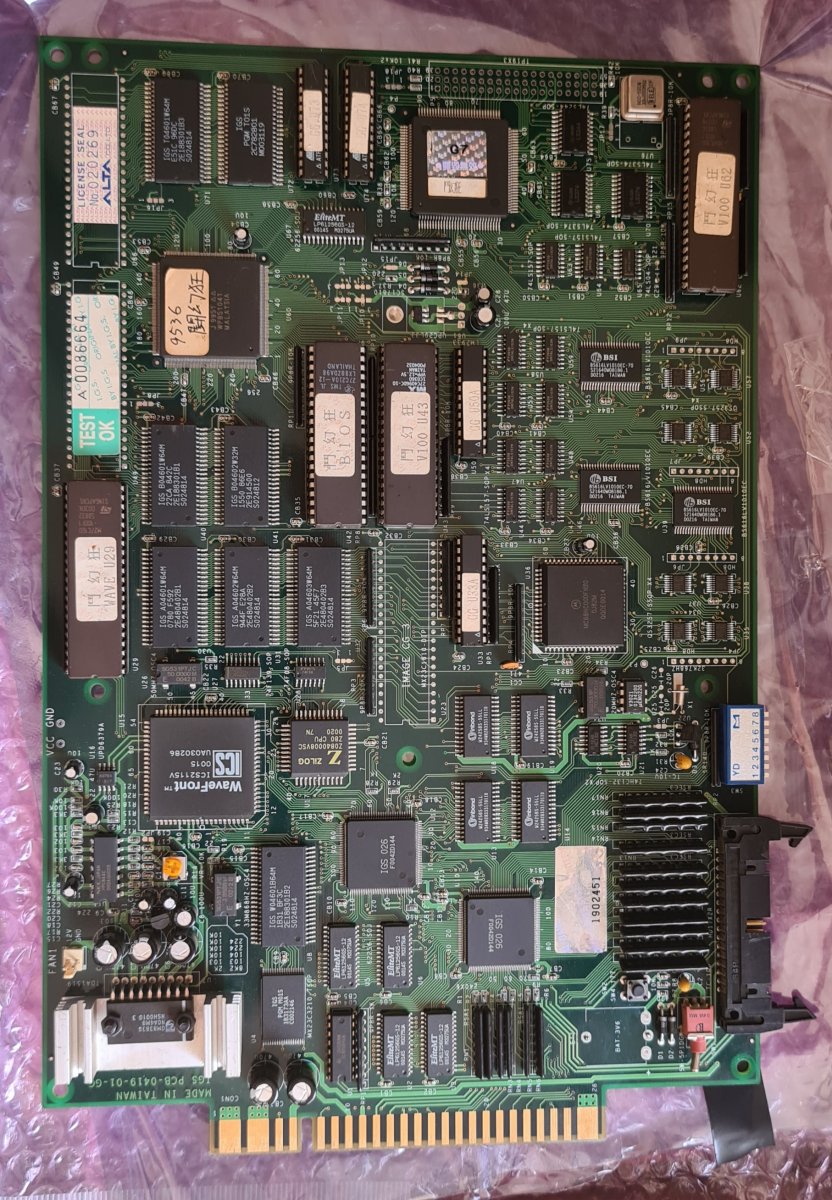

Here is the PCB in question:



Nimmers

Professional
Joined
Oct 25, 2016
Messages
531
Reaction score
382
Location
NSW, Australia
Bump, anyone with ROM hacking skills out there who know if this would be a possible conversion?


ekorz

Multi Boyz 4 Pi
Legendary
Multi Boyz
Joined
Aug 21, 2016
Messages
4,126
Reaction score
4,745
Location
Boston, MA
You want your pcb to play the music from theglad.zip?

that pcb actually seems to have a whole extra chip on it just for the Japan music, so the other way pcb->cart looks harder. But cart->pcb may work. I think the z80 code is tucked inside the program rom so it may be portable, but I’m worried if the program code will try to hit that extra chip somewhere. It might also need the program code / version moved over.

I’ll check it out over the next couple days if I can find the time.


Nimmers

Professional
Joined
Oct 25, 2016
Messages
531
Reaction score
382
Location
NSW, Australia
You want your pcb to play the music from theglad.zip?

Thanks man! Yeah basically the music in "thegladpcb" sucks compared to "theglad" - I wonder why they changed it?


Fluffy

Grand Master
Joined
Dec 15, 2018
Messages
639
Reaction score
1,159
Location
UK
Thanks man! Yeah basically the music in "thegladpcb" sucks compared to "theglad" - I wonder why they changed it?
That can be anything from licensing issues to the foreign distributor requesting it.

As Ekorz says, the z80 code and music data is part of the program rom and uploaded at runtime. It depends on if the wavetable in the music rom matches, and if the encryption is compatible with the ASIC version.


ekorz

Multi Boyz 4 Pi
Legendary
Multi Boyz
Joined
Aug 21, 2016
Messages
4,126
Reaction score
4,745
Location
Boston, MA
So, just a first pass in mame... it seems like if you swap ONLY the ASIC 'internal rom' bin it will change regions and play the "cart" music.

i.e unpack thegladpcb.zip,
delete thegladpcb_igs027a_v100_japan.bin,
unpack theglad.zip
take theglad_igs027a_v100_overseas.bin and rename it to thegladpcb_igs027a_v100_japan.bin
move new thegladpcb_igs027a_v100_japan.bin into the original in .\thegladpcb\ directory
run mame from command line "mame thegladpcb"

(make sure you delete any .zip file or it will run that. or you can repack the file into a zip)

The thing is... I can't see that as a separate 'chip' to replace on the pcb at all! I'm guessing it's a file section programmed inside the ASIC? Anyway @Nimmers can you look around and see where 027a might be, snap some higher res photos? Otherwise I'll have to see if there's another way to have it switch regions, but it seems like maybe all the code is already there and we just need to force the region.


Nimmers

Professional
Joined
Oct 25, 2016
Messages
531
Reaction score
382
Location
NSW, Australia
Sounds promising!

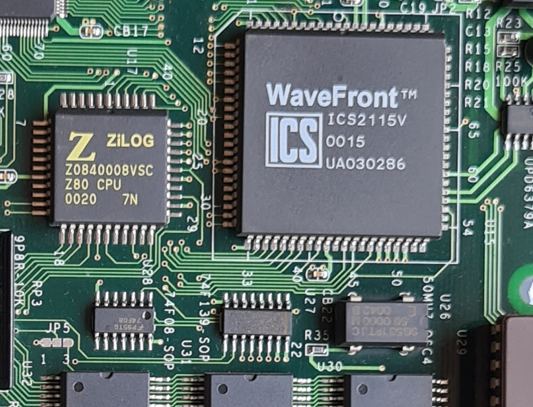

I'll take some more later today. See how you go with that, you can zoom in pretty close.


Attachments

  • 20201130_174809.jpg
    302.8 KB · Views: 11

ekorz

Multi Boyz 4 Pi
Legendary
Multi Boyz
Joined
Aug 21, 2016
Messages
4,126
Reaction score
4,745
Location
Boston, MA
I’m going to say “27a” is not a physical chip but some other designation, and this is internal code to the ASIC, per mame notes. So the goal is to patch that out of the program code and change the region there somehow. unfortunately the notes also say the ASICS aren’t emulated well so I can only hope that, because it’s dumped, at least the region portion is.


ekorz

Multi Boyz 4 Pi
Legendary
Multi Boyz
Joined
Aug 21, 2016
Messages
4,126
Reaction score
4,745
Location
Boston, MA
Region seems to be set by a byte at 318E in the "27a" file, 3316(ish?) in MAME in the 'prot' memory space after an offset and wordswap.

01 Taiwan
02 Japan
03 Korea
04 Hong Kong
05 Spanish Territory
06 'world' aka all except above
07 no region screen at all, crashes soonafter

I'll keep poking at it but I can't exactly figure out how the ASIC and the main program talk to each other, such that I could force the program to think the ASIC told it "region 06". If anyone else has any ideas lemme know!


kuze

Champion
Joined
Jul 22, 2015
Messages
1,959
Reaction score
1,421
Location
DFW
Region seems to be set by a byte at 318E in the "27a" file, 3316(ish?) in MAME in the 'prot' memory space after an offset and wordswap.

01 Taiwan
02 Japan
03 Korea
04 Hong Kong
05 Spanish Territory
06 'world' aka all except above
07 no region screen at all, crashes soonafter

I'll keep poking at it but I can't exactly figure out how the ASIC and the main program talk to each other, such that I could force the program to think the ASIC told it "region 06". If anyone else has any ideas lemme know!
These later “Type 3” games run almost entirely from the ASIC and only use the 68k for I/O so there is no way to patch region unless you were to reproduce the ASIC or maybe write something like a Unibios / custom BIOS


ekorz

Multi Boyz 4 Pi
Legendary
Multi Boyz
Joined
Aug 21, 2016
Messages
4,126
Reaction score
4,745
Location
Boston, MA
Well, that’s not happening anytime soon :P


kuze

Champion
Joined
Jul 22, 2015
Messages
1,959
Reaction score
1,421
Location
DFW
Well, that’s not happening anytime soon :P
I saw a thread here where someone is trying to make a custom PGM bios which would be awesome, hope it pans out.

I’d love to play my The Gladiator cart in English, but right now the only way is MAME as the English cart is unobtainable. This would also be a sweet Mister core.


Nimmers

Professional
Joined
Oct 25, 2016
Messages
531
Reaction score
382
Location
NSW, Australia
So you guys think the multibios would be portable to these all in one PCBs when it's done?


Fluffy

Grand Master
Joined
Dec 15, 2018
Messages
639
Reaction score
1,159
Location
UK
These later “Type 3” games run almost entirely from the ASIC and only use the 68k for I/O so there is no way to patch region unless you were to reproduce the ASIC or maybe write something like a Unibios / custom BIOS
IIRC the ASIC only contains a handful of kB of memory, enough for some simple protections. Games that run fully on the ASIC have a separate EPROM for the majority of the game code.


kuze

Champion
Joined
Jul 22, 2015
Messages
1,959
Reaction score
1,421
Location
DFW
