So one of SEGA Lindbergh monitors, I have in the arcade, recently died.
Problem was in the backlight driver, that would go off 10-20 seconds after beeing powered on.
This seemed beoynd reasonable repair effort (and origianl monitor is crap anyway with heavily worn screen).

So I have took the cabinet home for renovations.

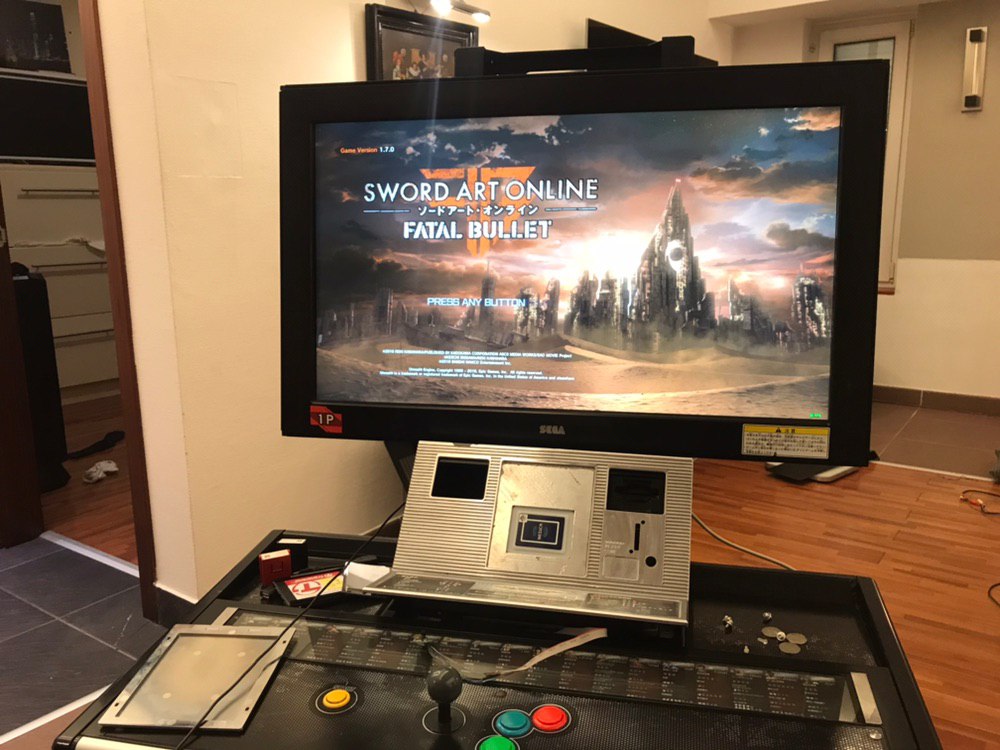

I have just scrolled thru the subforum and realized Hadouken Arcade used exactly same monitor (LG 32MP58HQ) for his Taito Vewlix upgrade.
I swear, I did not read that before. Monitor was chosen after scrolling thru hundreds of alike, available locally (and for a reasonable price).

The best thing about it - you dont have to drill/cut/bend anything. You even don't need any tools besides your screewdriver.

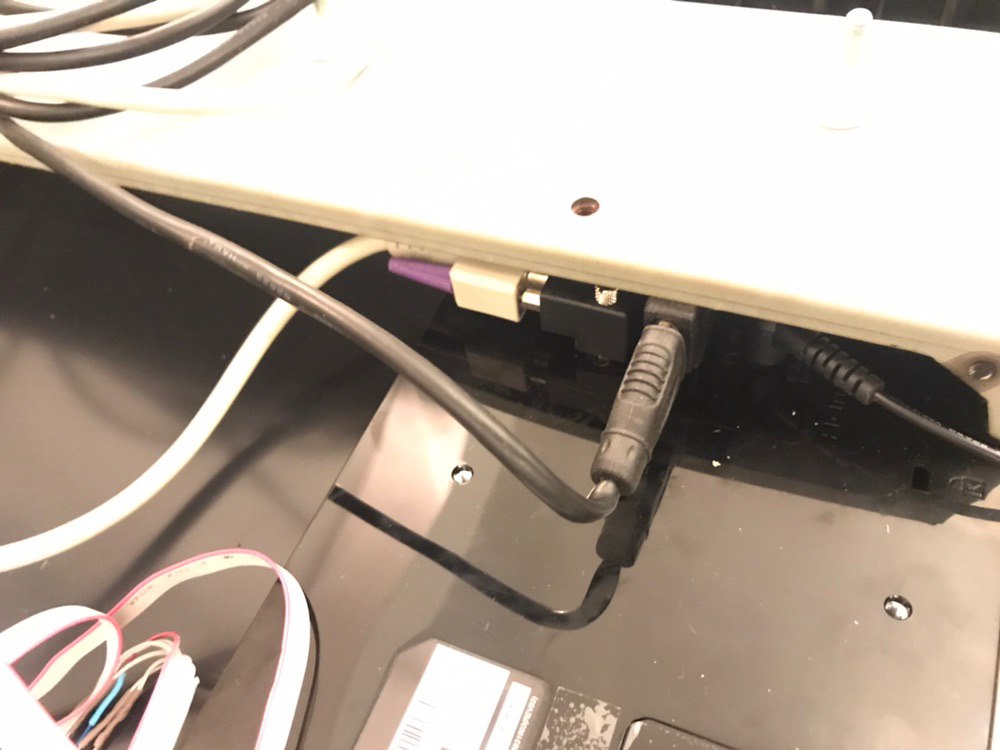

It fits just perfectly into existing frame. No extra parts required, only angle-changing adapters for the ports.

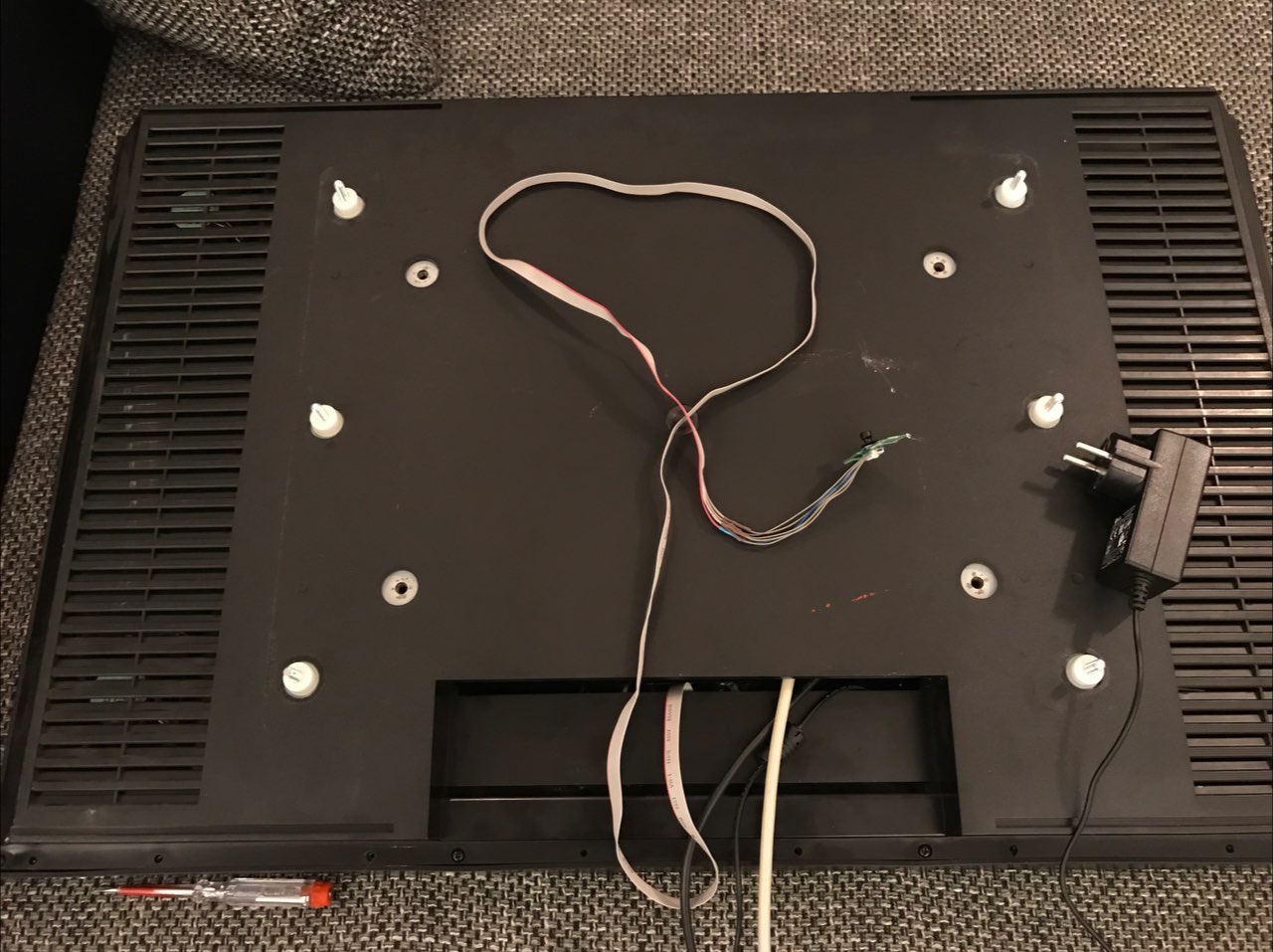

If you don't want access to OSD menu - you can just drag&drop the monitor. If you want OSD joystick into your cab's service area - you would have to extend the cable.
Joystick PCB itself is easy to remove.

Here are some pics. Feel free to ask questions, if any.


Attachments

  • 2019-09-11 22.45.01.jpg
    2019-09-11 22.45.01.jpg
    139.8 KB · Views: 1,198
  • 2019-09-11 22.44.51.jpg
    2019-09-11 22.44.51.jpg
    129.2 KB · Views: 582
  • 2019-09-11 22.45.40.jpg
    2019-09-11 22.45.40.jpg
    156.1 KB · Views: 579
  • 2019-09-11 22.45.11.jpg
    2019-09-11 22.45.11.jpg
    86.5 KB · Views: 492
  • 2019-09-11 22.45.07.jpg
    2019-09-11 22.45.07.jpg
    183.5 KB · Views: 487
  • 2019-09-11 22.44.57.jpg
    2019-09-11 22.44.57.jpg
    171 KB · Views: 1,369
Last edited:

nem

Legendary
Joined
May 29, 2016
Messages
4,352
Reaction score
3,636
Location
Finland
Good info. The Lindbergh Universal is from 2007, so the original monitor is well outdated. It's a nice cab apart from the screen.


markedkiller78

Student
Joined
Nov 14, 2017
Messages
76
Reaction score
19
Location
Glasgow / UK
Great job and very useful post. I’ve got a Lindy on the way and even if the monitors are ok, I can see me doing this right away.

Can I ask, How did you extend the remote? Is there enough ribbon cable, or whatever it is, internally to snip and add the desired length in between to extend?


ArcadeMachinist

Enthusiast
Joined
Nov 30, 2018
Messages
105
Reaction score
206
Location
WestPalmBeach
Yep, the original remote cable was cut and extended.
First I was going to make "extender cable" with matching plugs, but non of local radio shops had these connectors.

Trust me, your original monitor would not be ok. Sometimes still playable, but mostly they come with defects.
Screen matrix is old one and it is powered by flouriscent backlight! There is a tube inside, not leds :)


Hadouken Arcade

Professional
Joined
Feb 26, 2018
Messages
161
Reaction score
504
Location
Seattle
nice, bet it reduced the power consumption significantly lol I do want to owe a lindbergh sometime.


ArcadeMachinist

Enthusiast
Joined
Nov 30, 2018
Messages
105
Reaction score
206
Location
WestPalmBeach
nice, bet it reduced the power consumption significantly lol I do want to owe a lindbergh sometime.
220 watts -> 35 watts
Those old displays are hungry bastards.

Probably I would replace in all other cabs.
Need to measure NamcoHD's power consumption too.
Full cab eats whopping 440w, I can't imagine where it puts that at.


ArcadeMachinist

Enthusiast
Joined
Nov 30, 2018
Messages
105
Reaction score
206
Location
WestPalmBeach
More improvements.

Capacitive touch screen foil with USB HID (think Pazudora & Theatrhythm).
At the end had to remove metal glass holders and add rubber (window insulation basically) tape, otherwise it affects sensitivity.

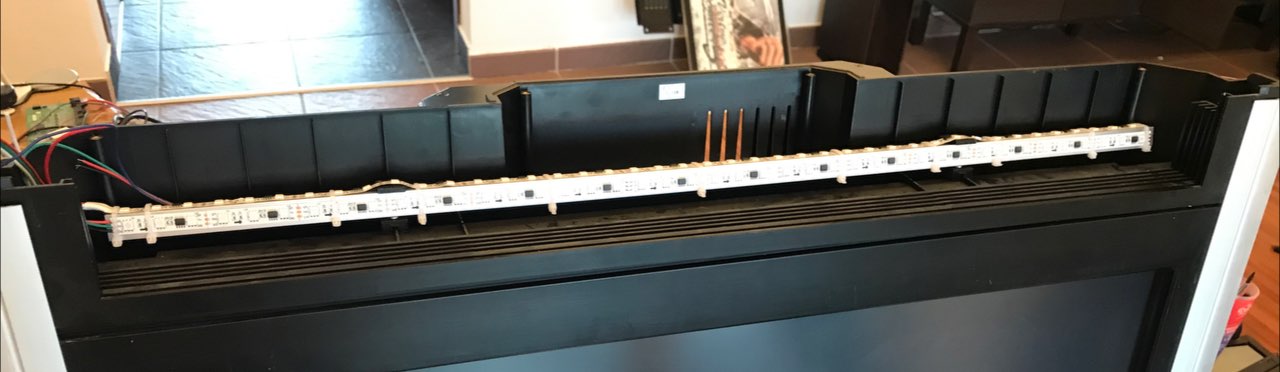

LED marque light.
That's 12v LED stripe, white when power apllied, but controllable with Arduino (or any other MC), NeoPixel compatible.


Attachments

  • 2019-09-27 16.29.30.jpg
    2019-09-27 16.29.30.jpg
    374.9 KB · Views: 327
  • 2019-09-27 16.27.59.jpg
    2019-09-27 16.27.59.jpg
    68.8 KB · Views: 288
  • 2019-09-25 21.58.07.jpg
    2019-09-25 21.58.07.jpg
    255.3 KB · Views: 300

markedkiller78

Student
Joined
Nov 14, 2017
Messages
76
Reaction score
19
Location
Glasgow / UK
I took your advice. I’ve bought the monitors ;) now I need some time :D

Have you used drop in replacement led strips or is there some modification needed?

I really appreciate you sharing the info here. It’s saved me a lot of time.


sugar4salt

Student
Joined
Jul 3, 2017
Messages
159
Reaction score
60
Location
South Korea
Do you have disassemble the entire monitor to take jog stick pcb out??


ArcadeMachinist

Enthusiast
Joined
Nov 30, 2018
Messages
105
Reaction score
206
Location
WestPalmBeach
Have you used drop in replacement led strips or is there some modification needed?
I took a square shaped hollow aluminium tube and placed 2 LED strips on 2 sides (up and front), then 3D printed 2 mounts, so tube can be mounted using original screwholes on the bottom of the lamp compartment. I can share 3d model in OpenSCAD.

You can use a drop-in LED tube, that works just instead of normal lamp, but it is hard to find 100v version in Europe.
Also my strips are controllable.


Do you have disassemble the entire monitor to take jog stick pcb out??
Just the bottom. The are few screws behind stand mount, and then - just latches on all the edges.
Joystick part is not screwed, it can be slided from it's mounting place with the square plastic panel around it.


Attachments

  • aluminum-square-tube-250x250.jpeg
    3.6 KB · Views: 237

nem

Legendary
Joined
May 29, 2016
Messages
4,352
Reaction score
3,636
Location
Finland
You can use a drop-in LED tube, that works just instead of normal lamp, but it is hard to find 100v version in Europe.
I looked in to this, and it just happens that the working voltage of a 240V fluorescent light ballast is around 100V. LED tubes can be used with or without the ballast.

So, I removed the ballast altogether, wired up AC straight to the connectors and bought two different brands of "240V" LED tubes. One flickered, one worked great. Bought more of the one that worked great.

https://forum.arcadeotaku.com/viewtopic.php?t=34479


tronbaby

Student
Joined
Jun 10, 2018
Messages
63
Reaction score
9
Location
Manchester UK
Hi all, I’m about to do the same thing to my Lindbergh. I’ve got a question about game resolution - what will an original Lindbergh or RingEdge game look like on a 1080p monitor? Does it scale up ok or cause any problem with performance?

Joined
Oct 8, 2019
Messages
142
Reaction score
79
Location
Australia

Attachments

  • 2DFC5CC4-0F11-486B-ACC5-BB3C3A77114E.jpeg
    86.6 KB · Views: 152

ArcadeMachinist

Enthusiast
Joined
Nov 30, 2018
Messages
105
Reaction score
206
Location
WestPalmBeach
Untill you are very good in electronics it would not work.
Monitor has custom made pcb with a digital joystick (aka 5 way buttons - 4 sides and center-press)
Joystick in your picture is analog.

Your best choice is just to move original joypad PCB (it is very small and stand alone) from monitor to whatever place in the cabinet you want.
