Whenever Model 2 or 3 conversions come up the biggest problem usually ends up being unclear on the proper jumper configurations. So I've started a spreadsheet to capture this:

https://docs.google.com/spreadsheets/d/1X0yhBgxWGy56PX7o1nM0SoOtj4pfSgu5r3gYe_EGfTU/edit?usp=sharing

There is still a lot more to be captured / if anyone has jumper settings to add or finds any errors let me know.

---------------------
Some useful information about Model 2B ROM Board jumpers:
JP03/04/05/06 never seen a different configuration for those
JP13/14 CPU eprom size
JP15 Main Data Size
JP16/17 always the same configuration
JP18 Polygon eprom size
JP19 Texture eprom size
JP20 Co-Processor eprom size
JP21/22 Audio PGM eprom size
JP23 Sample eprom size


davidcoolman

Student
Joined
Jun 24, 2020
Messages
48
Reaction score
16
Location
France
Hi
I have some Model2 / 3 boards i can take pics of 'cause i dont quite understand jumper codification in the spreadsheet.
best
dav


twistedsymphony

Enlightened
Staff member
Immortal
Joined
Jul 21, 2015
Messages
10,342
Reaction score
10,076
Location
NH, USA
i dont quite understand jumper codification in the spreadsheet.
it's just the jumpers in order. so: 31-3111-313311111-11-1-13-11-3

is:
3 = JP1 2&3 jumped
1 = JP2 1&2 jumped
- = we're moving to a new jumper bank
3 = JP3 2&3 jumped
1 = JP4 1&2 jumped
1 = JP5 1&2 jumped
1 = JP6 1&2 jumped
- = we're moving to a new jumper bank
3 = JP7 2&3 jumped
... etc.


nnap

Professional
Joined
Aug 28, 2018
Messages
231
Reaction score
249
Location
Switzerland
great idea, I have a couple of pinouts

Tested
Virtua Striker 31-3111-133111113-11-1-13-33-3
Dead or Alive 11-3111-313333331-11-3-33-11-3
Pilot Kids 11-3111-313333331-11-3-33-11-3

From Manual or Picture online
Dynamite Baseball 97 11-3111-313333331-11-3-33-11-3
Dynamite Cop 11-3111-313333331-11-3-33-11-3
Fighting Vipers 31-3111-313311111-11-1-13-11-3
Indy 500 11-3111-313333331-11-3-33-13-3
Rail Chase 2 31-3111-133133333-11-1-13-11-3
Virtua On 11-3111-313333331-11-3-13-11-1

Derived from eprom size
Last Bronx 11-3111-313333331-11-3-13-11-1
Sonic Fighters 11-3111-313333331-11-3-33-11-3
Zero Gunner 11-3111-313333331-11-3-13-11-3

I also figured out some of the jumper logic

JP03/04/05/06 never seen a different configuration for those
JP13/14 CPU eprom size
JP15 Main Data Size
JP16/17 always the same configuration
JP18 Polygon eprom size
JP19 Texture eprom size
JP20 Co-Processor eprom size
JP21/22 Audio PGM eprom size
JP23 Sample eprom size


Mrhide

Grand Master
Joined
Aug 17, 2016
Messages
884
Reaction score
1,160
Location
Montréal, Canada
so which jumpers are we talking about ? all boards? the ROM board? the CPU?

Top ROM board on Rally championship Twin:

JP1-2-3-4-5-6-7-8-9-10-15-18-20-22-23-26-27 : 3
JP11-12-13-16-17-19-21-24-25: 1


top ROM board on Virtual Fighter 3

JP 2-3-4-5-6-7-8-9 : 3
JP1-10 : 1

Last edited:

twistedsymphony

Enlightened
Staff member
Immortal
Joined
Jul 21, 2015
Messages
10,342
Reaction score
10,076
Location
NH, USA
Dead or Alive 11-3111-313333331-11-3-33-11-3
Pilot Kids 11-3111-313333331-11-3-33-11-3
Dynamite Cop 11-3111-313333331-11-3-33-11-3
Which version of the game are these? these were released on multiple hardware versions.

Very cool on deriving the jumper config too.


twistedsymphony

Enlightened
Staff member
Immortal
Joined
Jul 21, 2015
Messages
10,342
Reaction score
10,076
Location
NH, USA
Pilot Kids 11-3111-313333331-11-3-33-11-3

Last Bronx 11-3111-313333331-11-3-13-11-1
Can you double check these two, they don't match the PCB photos I've found.


Attachments

  • last_bronx.jpg
    202.4 KB · Views: 89
  • pilot_kids.jpg
    350.1 KB · Views: 92

nnap

Professional
Joined
Aug 28, 2018
Messages
231
Reaction score
249
Location
Switzerland
Pilot Kids 11-3111-313333331-11-3-33-11-3

Last Bronx 11-3111-313333331-11-3-13-11-1
Can you double check these two, they don't match the PCB photos I've found.
the only difference in Pilot Kids is the co-proc jumper. As the co-proc area is not populated, it does not matter. So both setings will work.

Your last bronx picture is of a Indy 500 rom board.


davidcoolman

Student
Joined
Jun 24, 2020
Messages
48
Reaction score
16
Location
France
manx tt twin
33-1111-13-33-1111-3-1-131-1311-11-33


Attachments

  • manxtt_jumpers.jpg
    921.9 KB · Views: 79

biggestsonicfan

Enthusiast
Joined
Jun 28, 2017
Messages
182
Reaction score
70
Location
Southern California

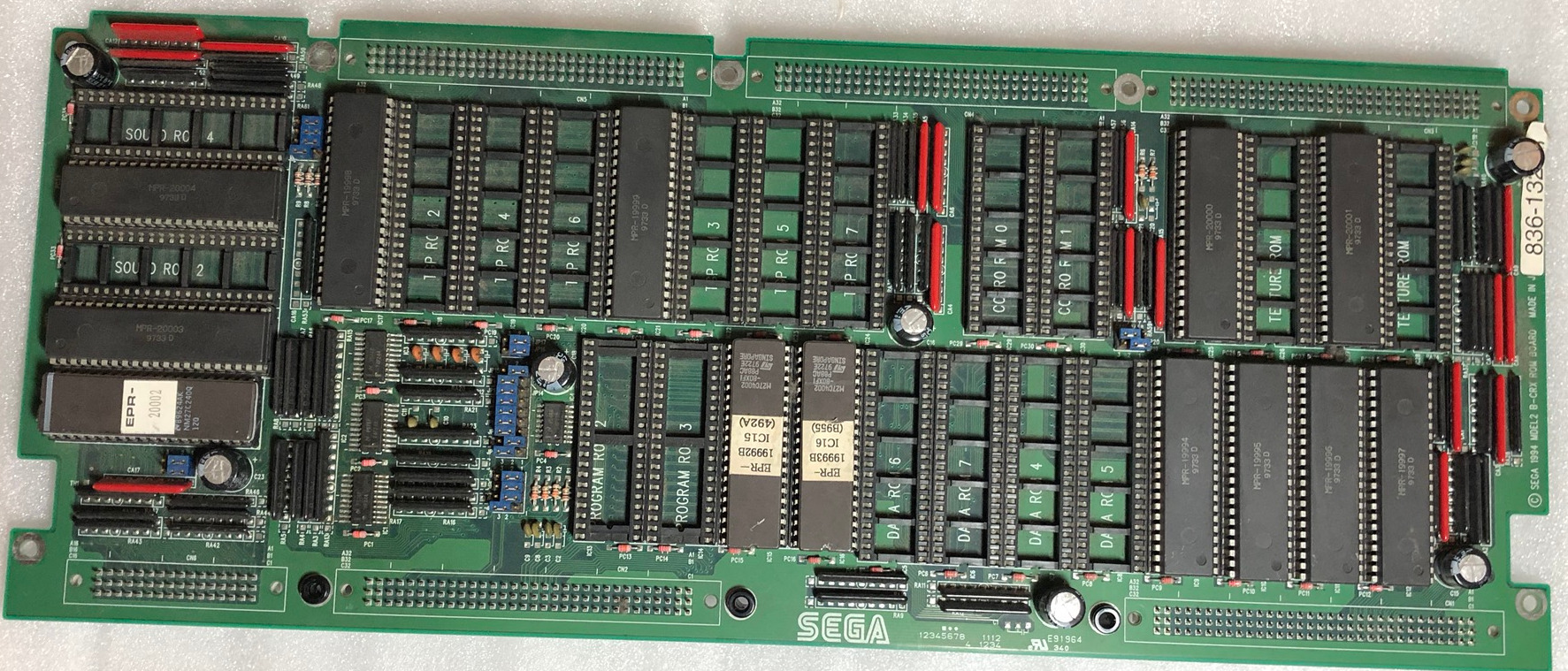

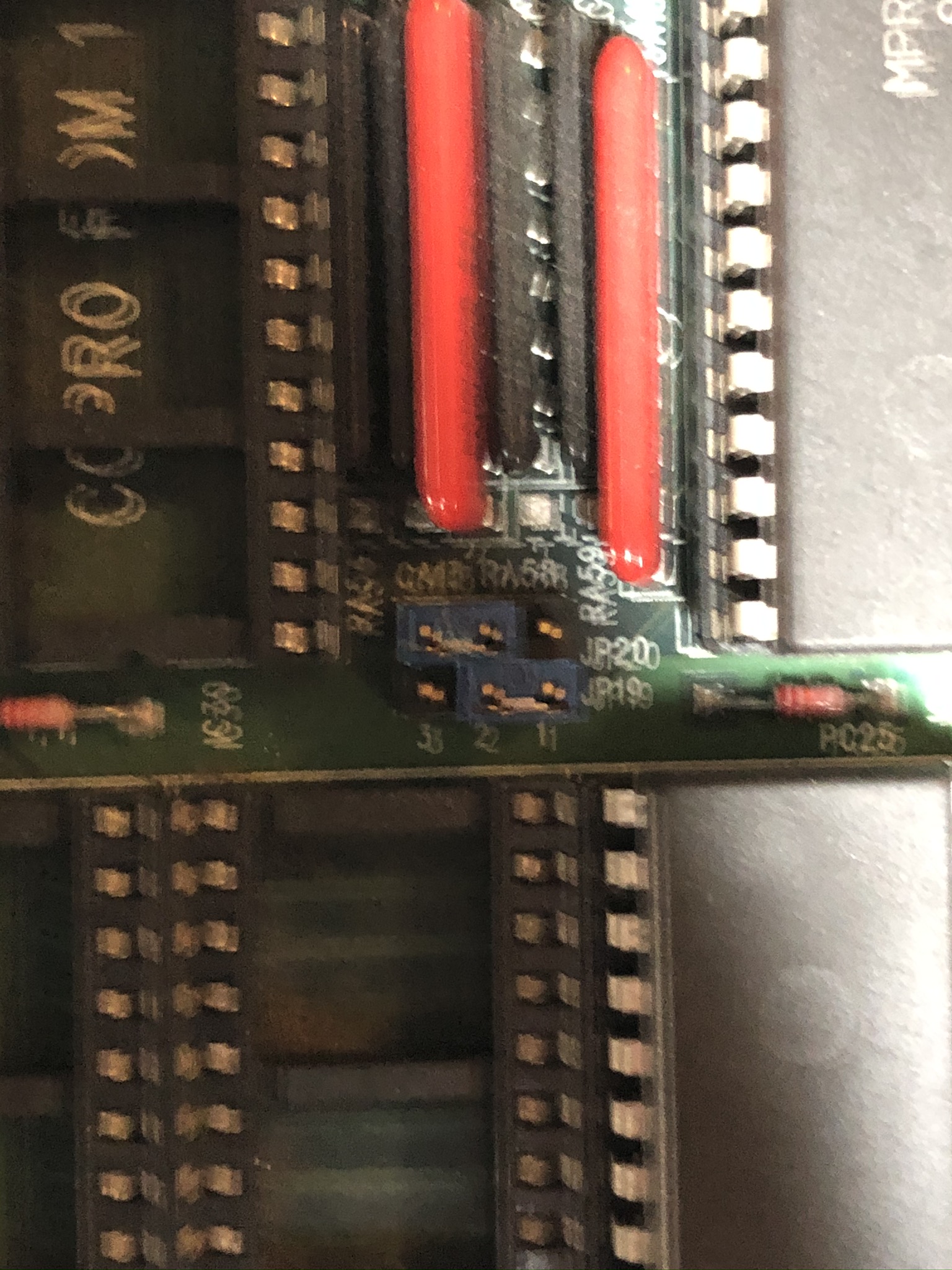

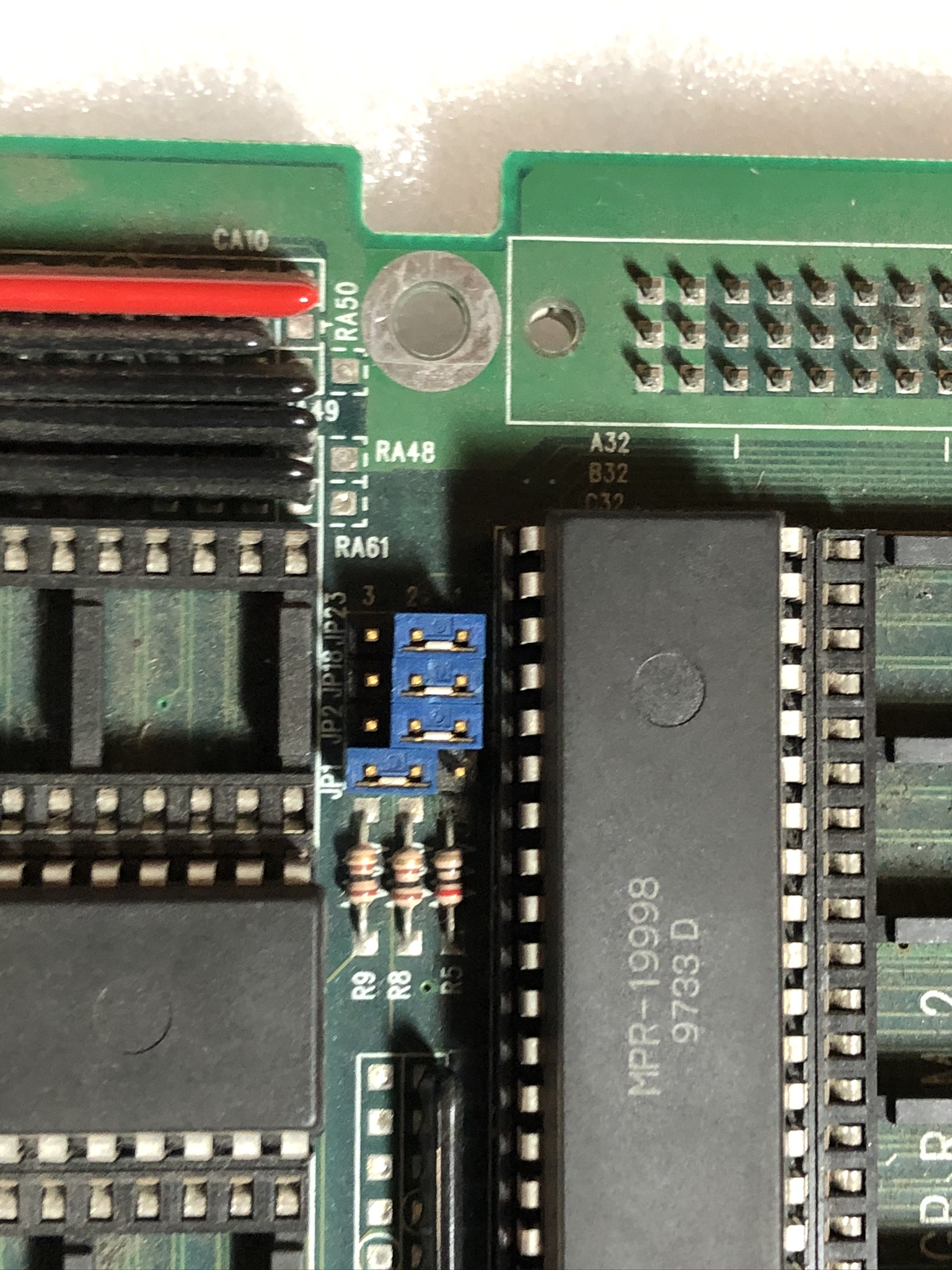

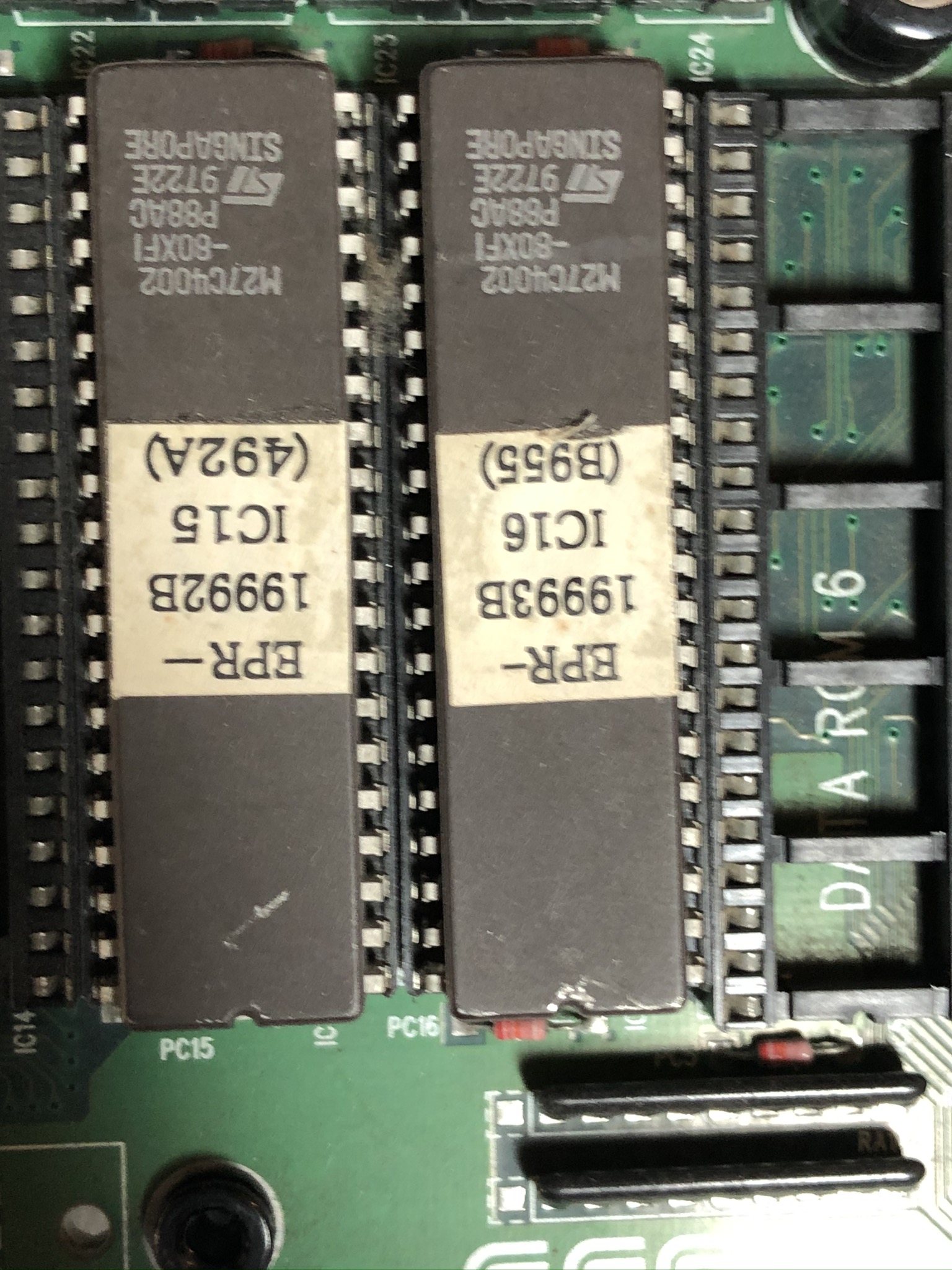

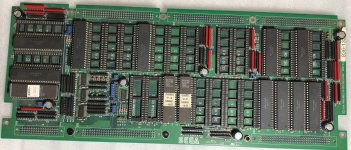

Here are pictures of my Over Rev (2B). The board's number is 836-13275.



Attachments

  • IMG_5308.JPEG
    706.8 KB · Views: 73
  • IMG_5312.JPEG
    610.4 KB · Views: 72
  • IMG_5311.JPEG
    698.9 KB · Views: 72
  • IMG_5310.JPEG
    663.4 KB · Views: 72
  • IMG_5309.JPEG
    930.3 KB · Views: 68

Rick1974

New User
Joined
Jul 6, 2021
Messages
3
Reaction score
0
Location
Netherlands
great idea, I have a couple of pinouts

Tested
Virtua Striker 31-3111-133111113-11-1-13-33-3
Dead or Alive 11-3111-313333331-11-3-33-11-3
Pilot Kids 11-3111-313333331-11-3-33-11-3

From Manual or Picture online
Dynamite Baseball 97 11-3111-313333331-11-3-33-11-3
Dynamite Cop 11-3111-313333331-11-3-33-11-3
Fighting Vipers 31-3111-313311111-11-1-13-11-3
Indy 500 11-3111-313333331-11-3-33-13-3
Rail Chase 2 31-3111-133133333-11-1-13-11-3
Virtua On 11-3111-313333331-11-3-13-11-1

Derived from eprom size
Last Bronx 11-3111-313333331-11-3-13-11-1
Sonic Fighters 11-3111-313333331-11-3-33-11-3
Zero Gunner 11-3111-313333331-11-3-13-11-3

I also figured out some of the jumper logic

JP03/04/05/06 never seen a different configuration for those
JP13/14 CPU eprom size
JP15 Main Data Size
JP16/17 always the same configuration
JP18 Polygon eprom size
JP19 Texture eprom size
JP20 Co-Processor eprom size
JP21/22 Audio PGM eprom size
JP23 Sample eprom size
Can you tell me how to set jumpers from 2 players to 1 player ? I have a indy 500 that does not work without it's twin.
