Hello people
im working on Naomi Filter board. Tracing and drawing the schematics.

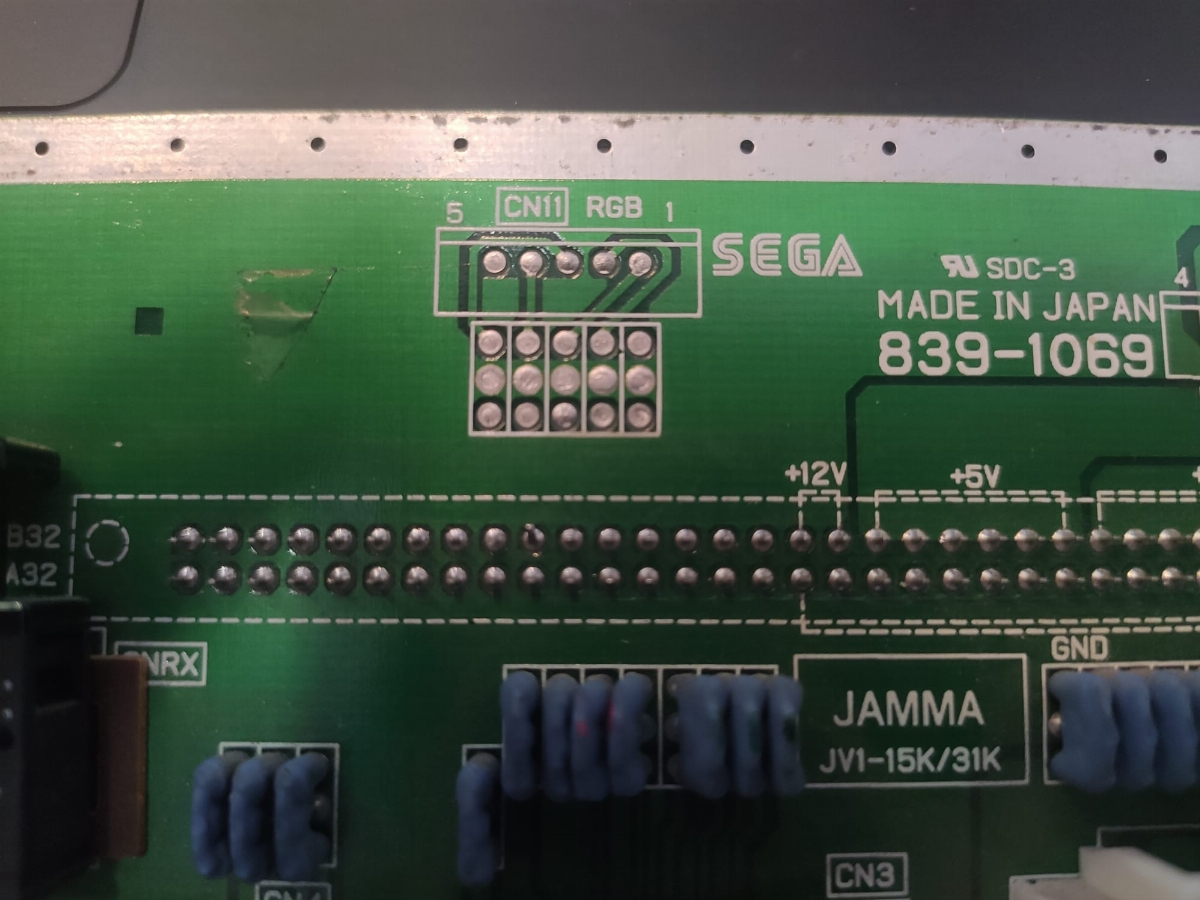

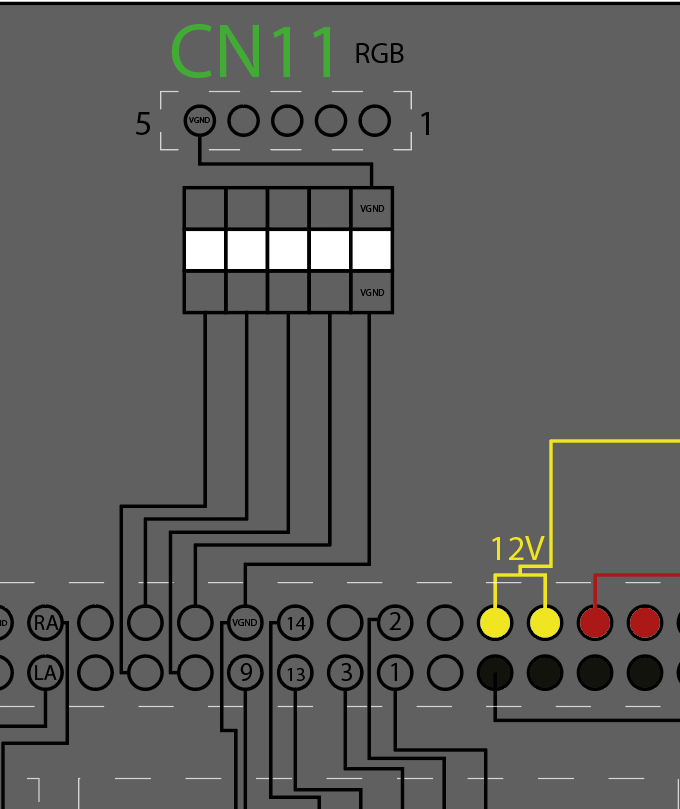

There is a RGB output on the filter board like this.



My questions are :
These are can be use for RGB output ?
if yes, which one is RGB and SYNC. I have found the last one is Video GND

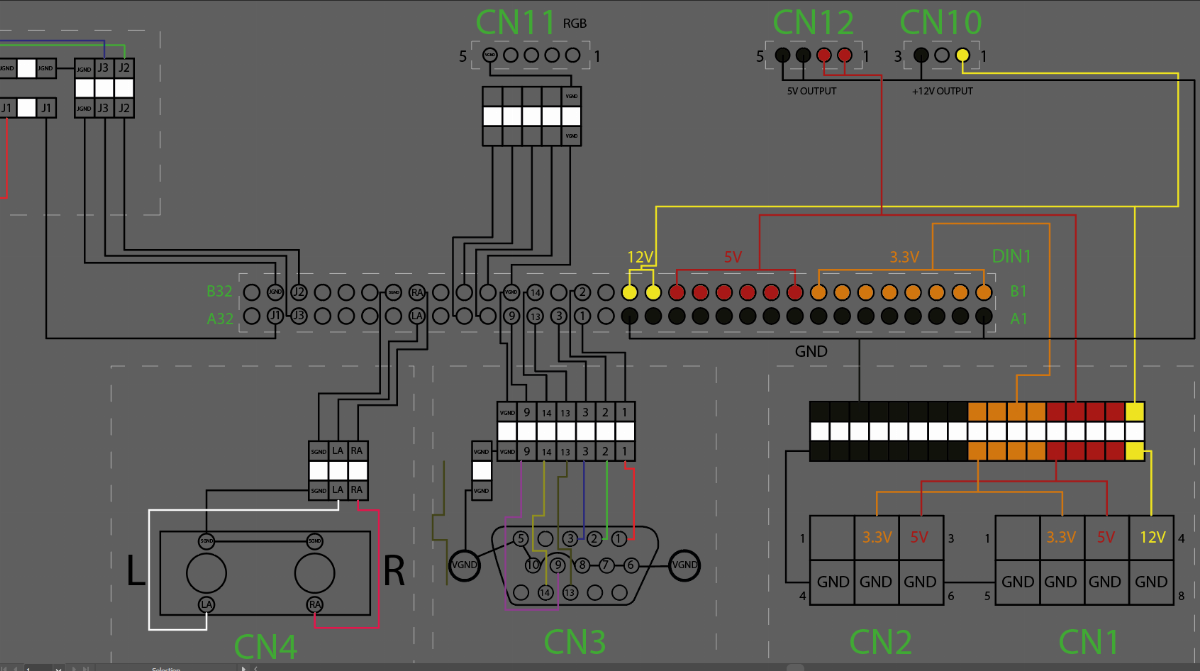

You can see the VGA pinouts on my drawing





biggestsonicfan

Enthusiast
Joined
Jun 28, 2017
Messages
227
Reaction score
118
Location
Southern California
Unrelated but what drawing software are you using? I'm interested in doing this for the Model2b/2c filter board!


biggestsonicfan

Enthusiast
Joined
Jun 28, 2017
Messages
227
Reaction score
118
Location
Southern California
It's just an unused 5-pin header. Starting from pin 1, pinout would be red, green, blue, sync & gnd.
Yes but what about the filter caps? I'm assuming they'd be similar, if not identical to the Model2's RGB out, no?
