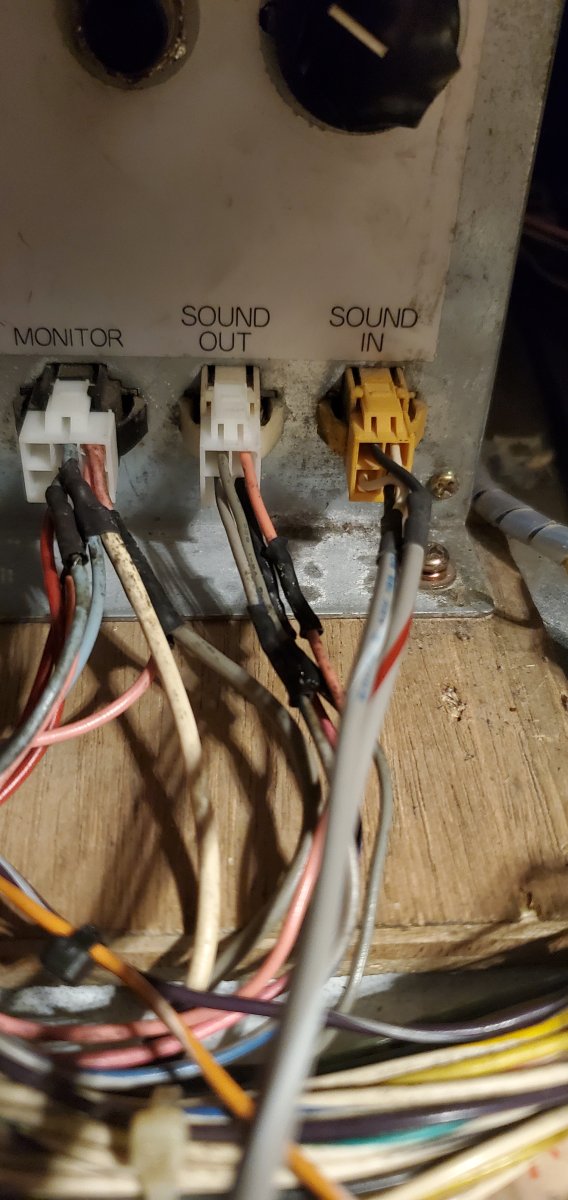

Having some sound problems with my nvs4000. Stereo sound is okay. If I raise it up in stereo is gets choppy and distorted and with mono it's very low and has static to it. Do I have this wired wrong? Have a astro jvs loom for stereo.


Attachments

  • 20220517_153904.jpg
    111.6 KB · Views: 20
Last edited:

triforce7770

Student
Joined
Jun 9, 2021
Messages
51
Reaction score
17
Location
Texas
Nope checked r1 and it's good at 10ohms out of circuit and in circuit. Also recapped the board as well. Sorry forgot to put this in main post.


triforce7770

Student
Joined
Jun 9, 2021
Messages
51
Reaction score
17
Location
Texas
Ok so I found out about af+ and af-. Tapped those into speaker - and speaker + on the jamma end. but now on mono the audio is low but audible but sounds choppy. When I try stereo with my sega astro jvs loom i get nothing but hum. I recapped the sound board and changed both op amps and still nothing. only thing i see left on the board is the amp and another sound ic is M5283P which is a dual VCA IC for volume control.


triforce7770

Student
Joined
Jun 9, 2021
Messages
51
Reaction score
17
Location
Texas
Update! Got another nvs4000 for my new astro city. Tried with the astro city and same issue. Mono is choppy/static and the amp on the game board gets hot to the touch.

Decided to put the new nvs4000 into my new astro and works good both mono and stereo. Originally had a 5198-01x psu only had to change one plug. Easy enough. Put the yellow jumper into sound in and works good. So what gives? I checked the pinout on sound in/sound out and dc1 for af +,- and it's matches and check continuity with cables as well. No difference.

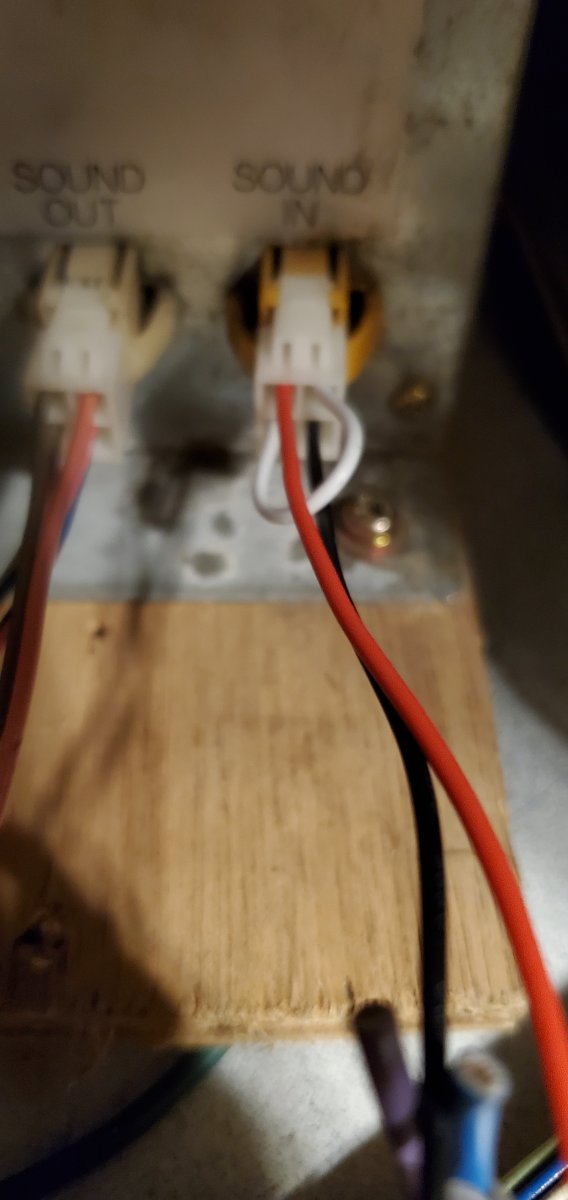

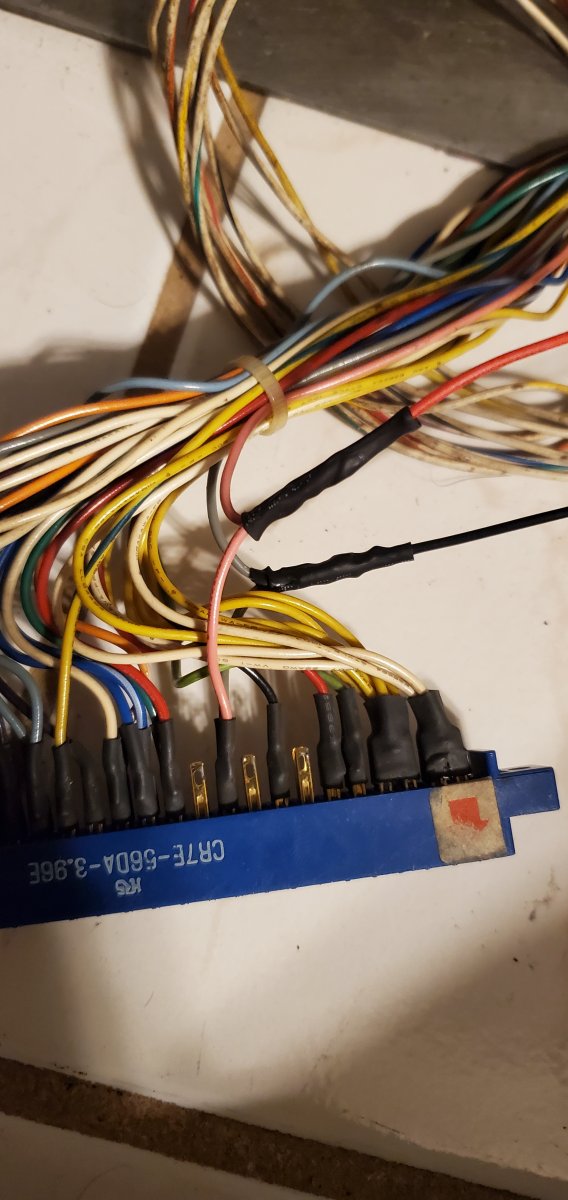

Pics of the jamma wires going into af +,- and the others going into sound in.


Attachments

  • 20220608_171109.jpg
    61.8 KB · Views: 12
  • 20220608_171105.jpg
    93.7 KB · Views: 13
  • 20220608_171037.jpg
    106.3 KB · Views: 13
Last edited:

triforce7770

Student
Joined
Jun 9, 2021
Messages
51
Reaction score
17
Location
Texas

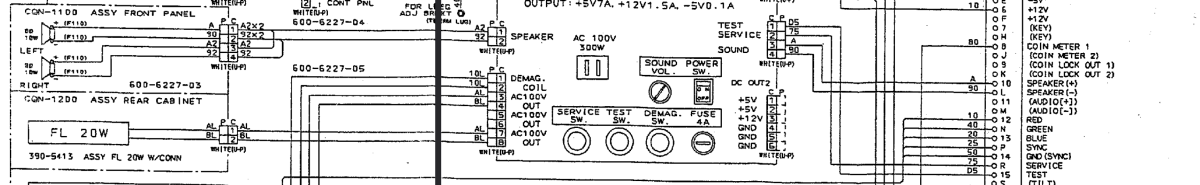

Been looking at the Astro City and New Astro City manuals and noticed something. Astro speaker wiring is wired in parallel. 2 8 ohm speakers.

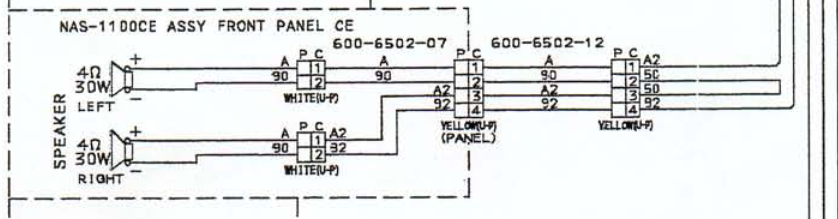

Where as New Astro City speakers are wired in series with 4 Ohm speakers.
Astro on Left and New Astro on Right.

I wonder if the difference in wiring between the two cabs is causing me this issue. It sounds like an impedance issue from the sound coming out the cabinet.

I did make a mono jumper cable that should make the speakers into series that goes into sound in.


Attachments

  • Capture.PNG
    153 KB · Views: 9
  • Capture2.PNG
    215.4 KB · Views: 8
Last edited:

triforce7770

Student
Joined
Jun 9, 2021
Messages
51
Reaction score
17
Location
Texas

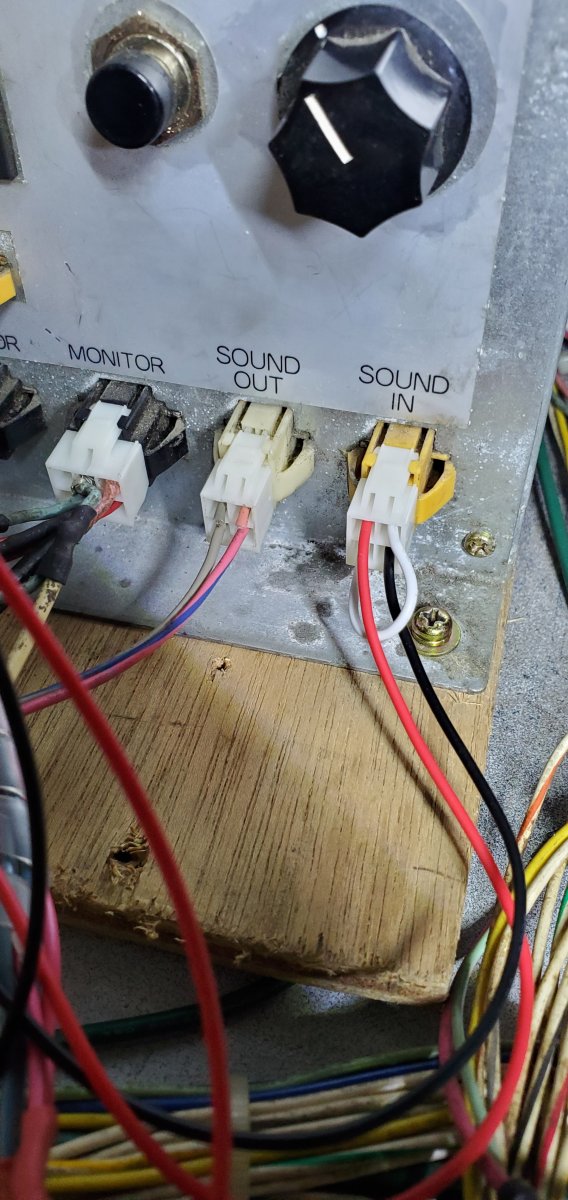

Figured out my issue! Turns out I had my speaker (+) and (-) jamma l and pin 10 running to the top two pins on sound in! And also running it to af + and - !! So I cut my two wires on sound in and re ran them to af + and - . Now I get awesome mono! @opt2not
Here's a vid of it in glorious mono now! I do have a astro jvs for stereo so I'm all set!!
View: https://youtube.com/shorts/Cxa5BzeeiCg?feature=share


Attachments

  • 20220622_154118.jpg
    144.3 KB · Views: 14

opt2not

Multi Boyz Pixeler
Legendary
Multi Boyz
Joined
Nov 10, 2015
Messages
2,328
Reaction score
4,211
Location
California
Hah! Well that will do it! Glad you got it sorted. I was thinking it must’ve been a wiring issue.
