Sega STV Terminator connector C5

chacal231077

chacal231077

Grand Master
Joined
Dec 21, 2017
Messages
861
Reaction score
359
Location
France
Hi!:)

Someone made a reproduction of this connector, but I can't remember where I saw it ;(



Does anyone know if they've seen it before ?

Or I am looking for a CAD file of the PCB if someone has already made this file

Thank you ;)

I don't remember seeing a reproduction for this so it would be good if someone posted, but you can use a bunch of header jumpers if you can't find the termination connector. I tested it once and it worked fine. Definitely a cheaper option since that Omron connector is about $10 alone.

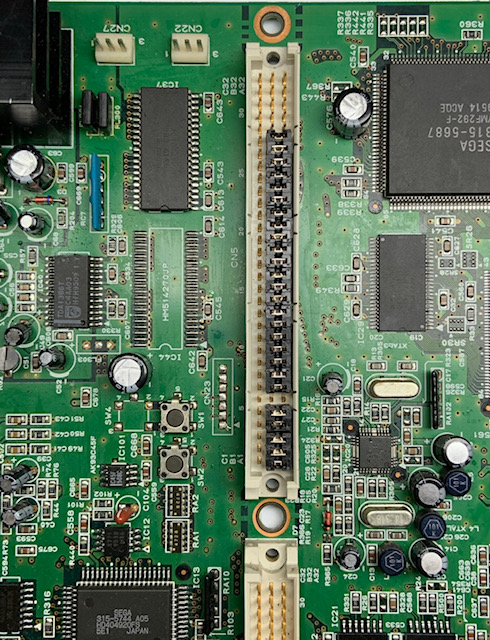

I believe you jumper:
A1-A5 to B1-B5
A7-A27 to B7-B27

Edit: added photos of termination part and jumper configuration.

Last edited:
everten said:
I don't remember seeing a reproduction for this so it would be good if someone posted, but you can use a bunch of header jumpers if you can't find the termination connector. I tested it once and it worked fine. Definitely a cheaper option since that Omron connector is about $10 alone.

I believe you jumper:
A1-A5 to B1-B5
A7-A27 to B7-B27

Edit: added photos of termination part and jumper configuration.
Click to expand...
Thank you everteen :)

if someone can already draw the PCB that would be a good thing.

After for the connector we can find a cross reference 8)

you dont need a pcb, just bend the pins together and solder them
i had to do this when i got a board with it missing - luckily i got a loan of one to draw the connections :)

the connector btw is under $2 and a standard part
DIN41612
https://www.aliexpress.com/item/32810915959.html

this is a good seller - i get lots of connectors from them :)

Last edited:

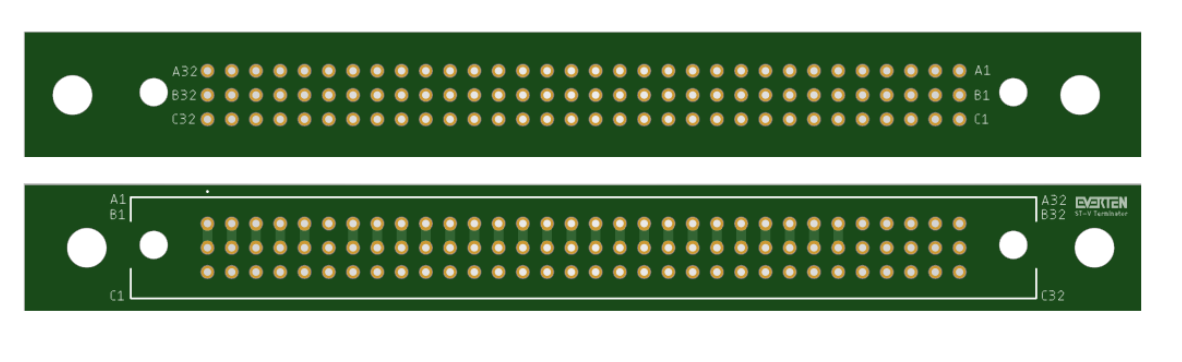

Attached is the gerber file. This has not been tested so go in at your own risk. It should work with the connector listed by @stj above or the original Omron XC5D-9621. If anyone tries it out please report back.

I'll have a few made up when I do another PCB order.


Attachments

everten said:
Attached is the gerber file. This has not been tested so go in at your own risk. It should work with the connector listed by @stj above or the original Omron XC5D-9621. If anyone tries it out please report back.

I'll have a few made up when I do another PCB order.
Click to expand...

Thank you everten :thumbup:

Hi! :)

I received the PCBs quickly :thumbup:



I just forgot to choose golden holes



What is the name of this retention pin inside connector?
is it available on Aliexpress ?




Thanks You :thumbup:

Ain't scared everten :thumbup:this connector was sold to me from one by neoarcadia forum member ^^

I haven't welded yours yet, thank you I'll correct the direction :thumbup:



i dont know what the retention pin is, i dont use any - if 96 solder joints cant hold it together then a couple of pins wont change much! :D

Hi! everten :)

Sorry i forgot to answer you ;(

yes it's perfect nothing to modify, it works perfectly thank you :thumbup:
