@pbjr Yes please, that would really help me out.

Specifically I'm interested in how fat the front faces of the bezel are - I've tried to draw some green lines to show what I mean. The sides, top and bottom. At the moment the sides are 9mm and the top/bottom are 19mm - how does that compare to the real thing?
Screen Shot 2022-08-04 at 8.02.51 PM.png

Overall starting to feel good - think I've found a way to split the model up and make it printable on my printer at home - Then when I've confirmed the sizing is right I might splash the cash as @Nimmers suggested and add to my next PCB order.
Screen Shot 2022-08-04 at 8.02.24 PM.pngScreen Shot 2022-08-04 at 8.01.35 PM.png

Also, if anyone knows anything about painting for 3D printed stuff now would be the time...

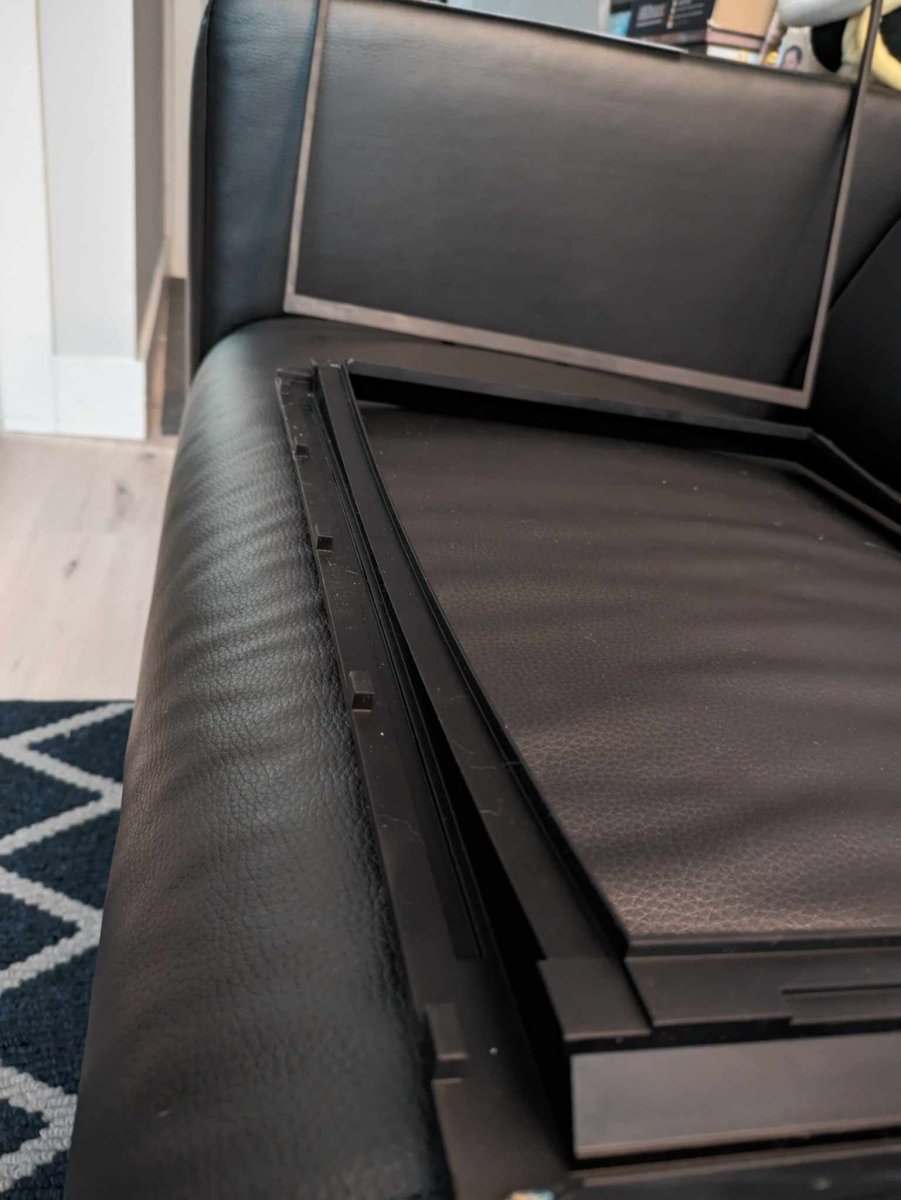

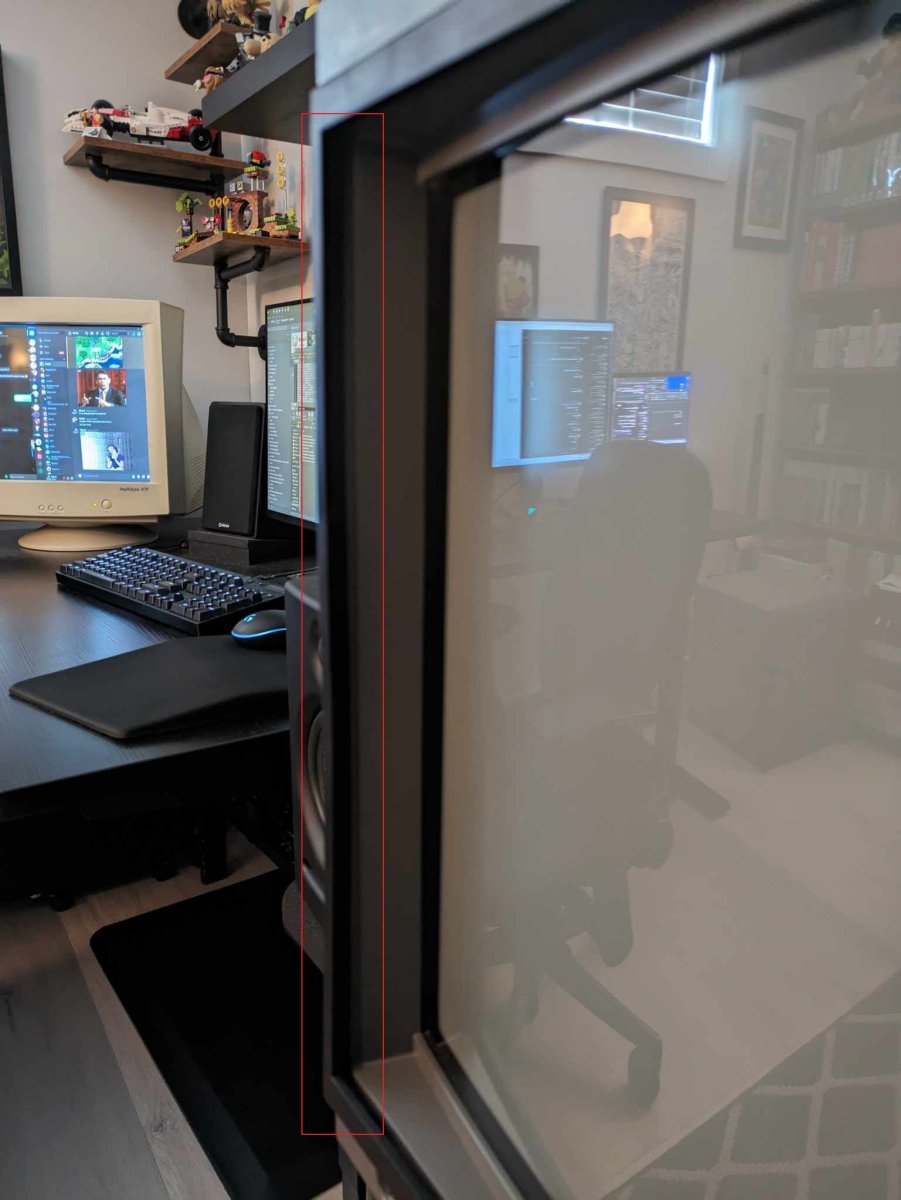

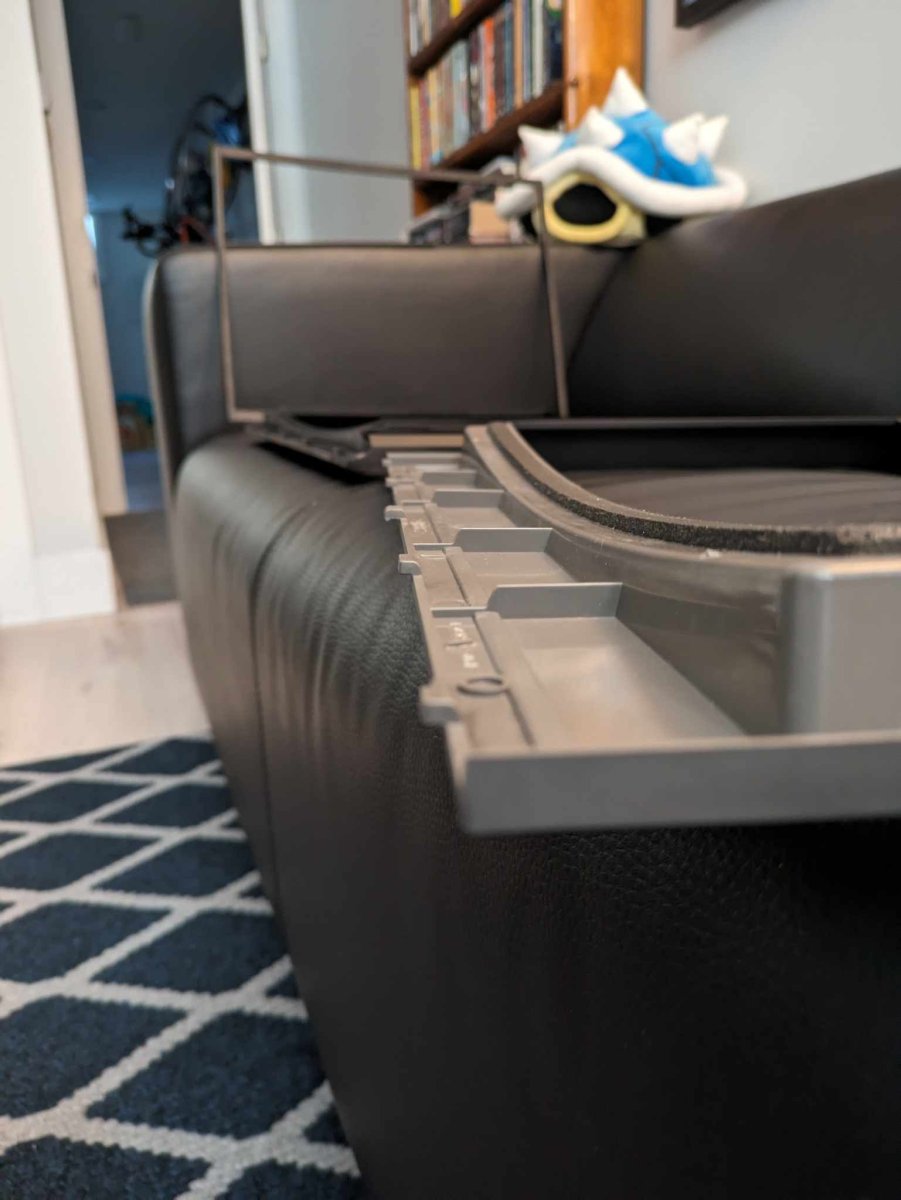

Here we are. looks like
top 12.75mm
bottom 13
sides 5.3
If you need feel free to ask. First time I’m using this tool. Lol.


Attachments

  • 642E28F6-DA6C-4C09-BB07-C7A6E6EE17D5.jpeg
    202.1 KB · Views: 20
  • 985E27A7-9CB6-4C74-8756-4948CE98A2A8.jpeg
    238.6 KB · Views: 21
  • C0E1ACFF-AFE4-41B2-8BA4-DC9ECA7EACFC.jpeg
    228.8 KB · Views: 22
  • B7D63240-C3F7-4023-809B-613D7C02113F.jpeg
    236.7 KB · Views: 22

hatmoose

Champion
Joined
Mar 25, 2021
Messages
712
Reaction score
1,452
Location
Auckland
Here we are. looks like
top 12.75mm
bottom 13
sides 5.3
If you need feel free to ask. First time I’m using this tool. Lol.
Awesome, thankyou. I’m going to struggle to make them that thin, injection moulded is stronger than 3D printed and the walls are already thinner than I would like…
Let me have a fiddle…


hatmoose

Champion
Joined
Mar 25, 2021
Messages
712
Reaction score
1,452
Location
Auckland
Absolutely no progress whatsoever on the 4:3 mask recently - I need to do a whole bunch of printing and gluing and I've got a bad case of the CBF's (can't be f*cked) so taking some time out on that

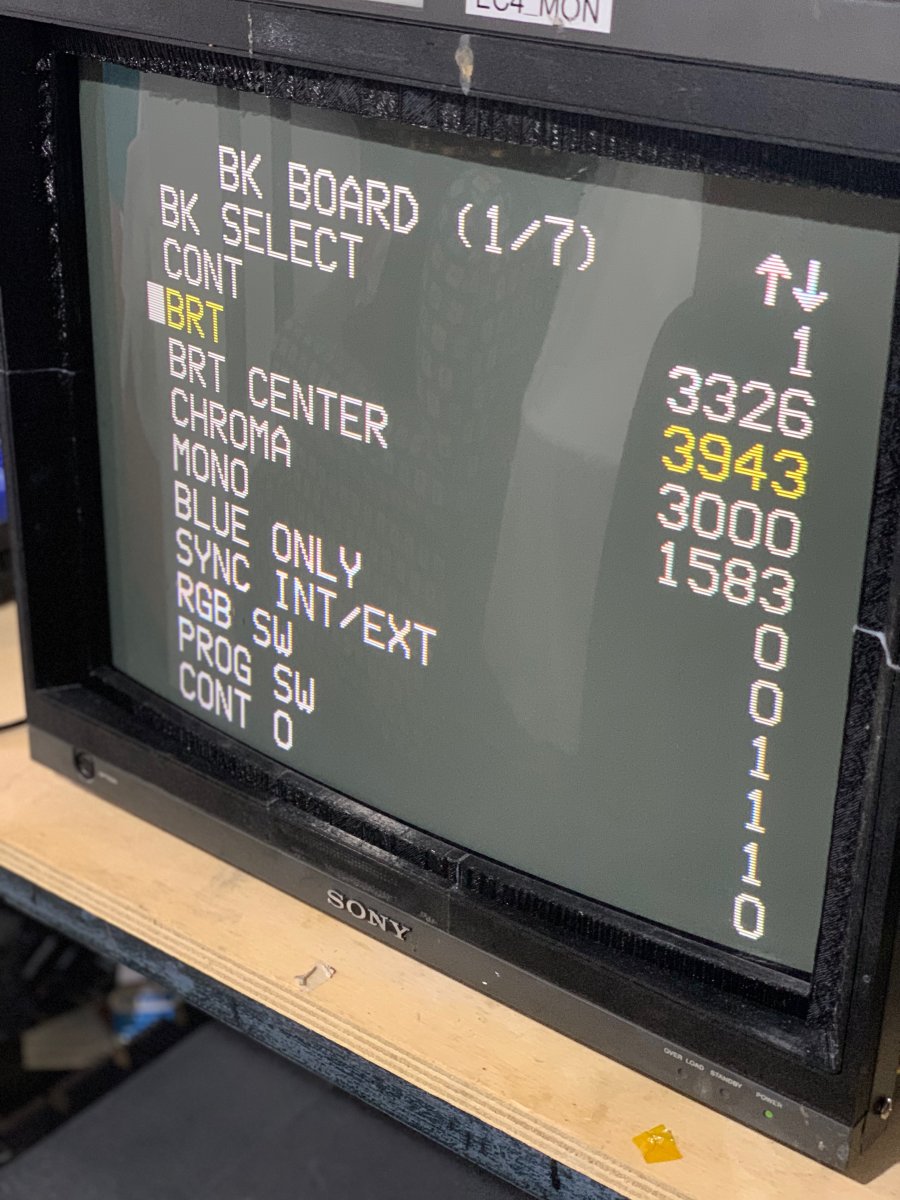

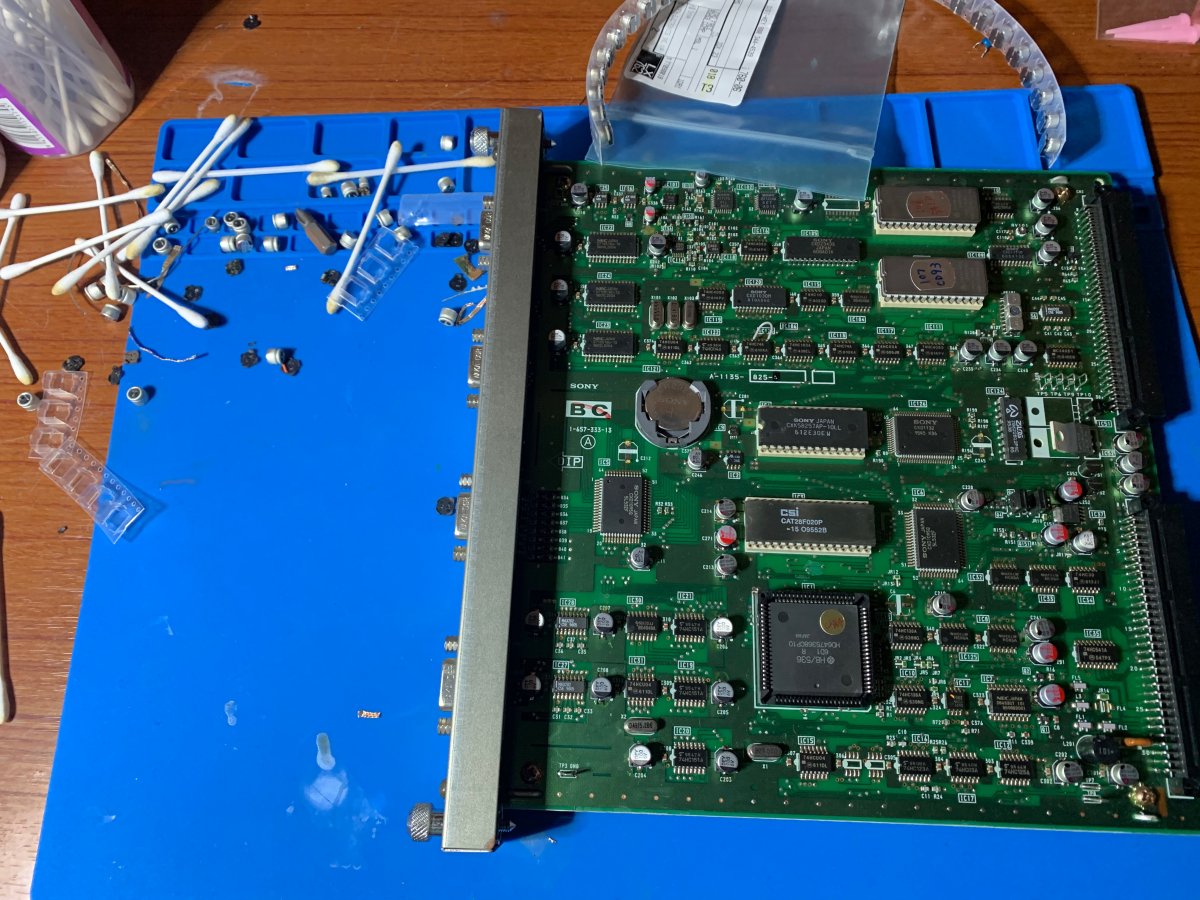

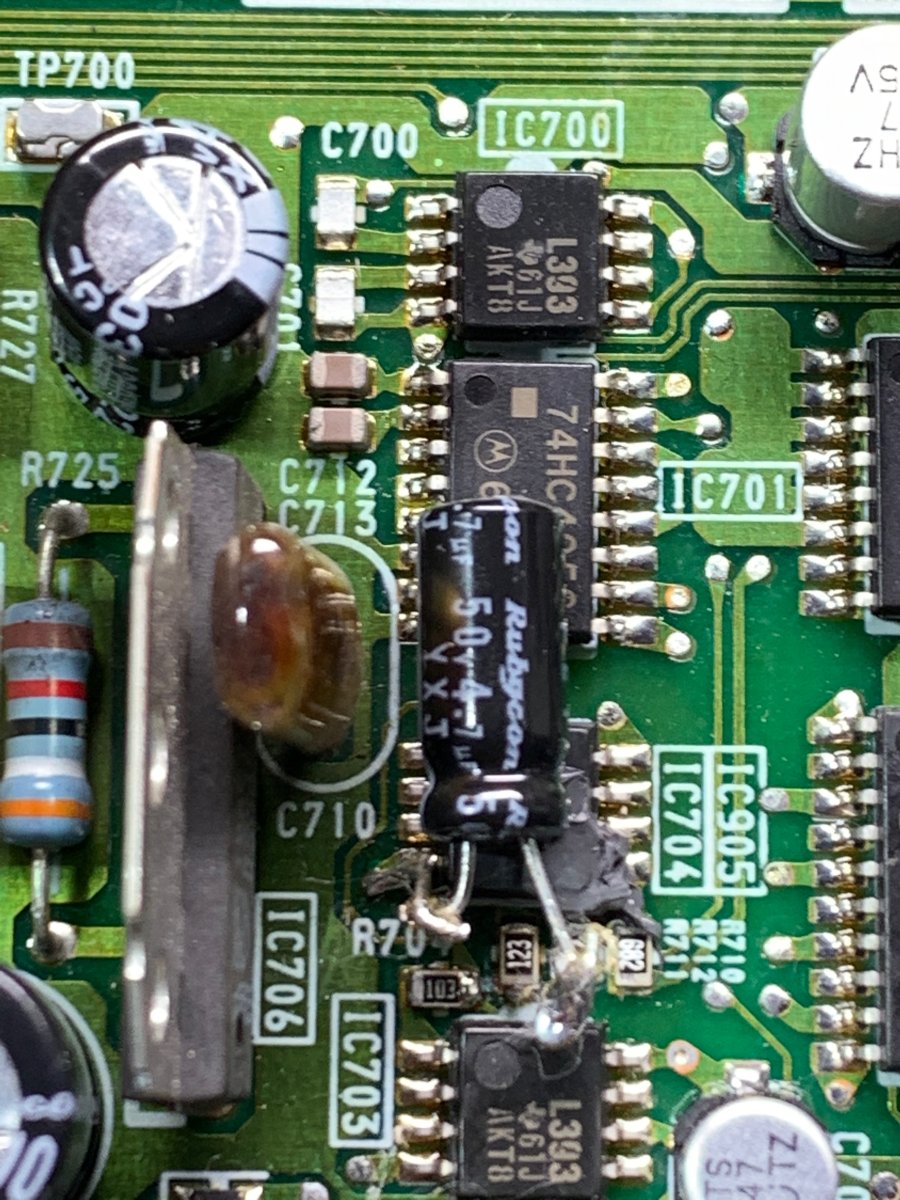

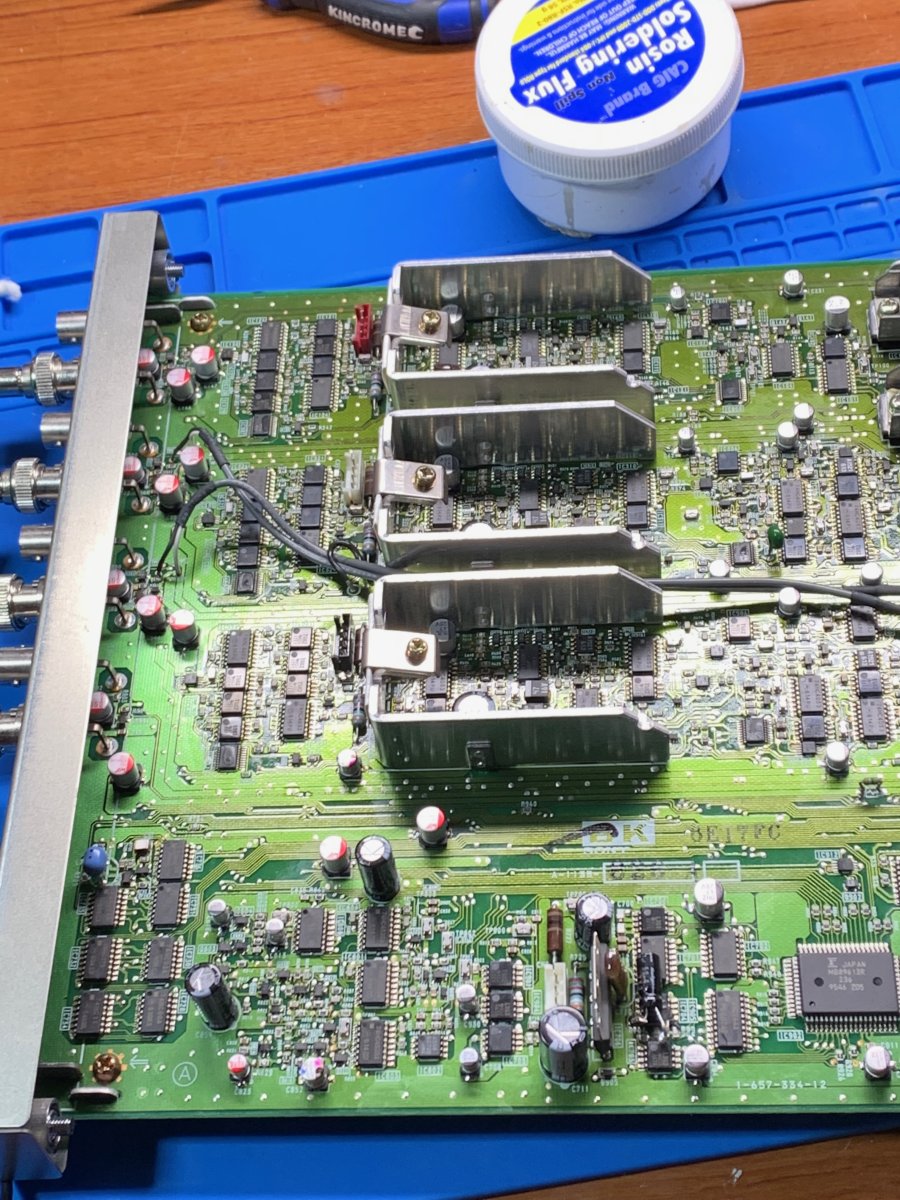

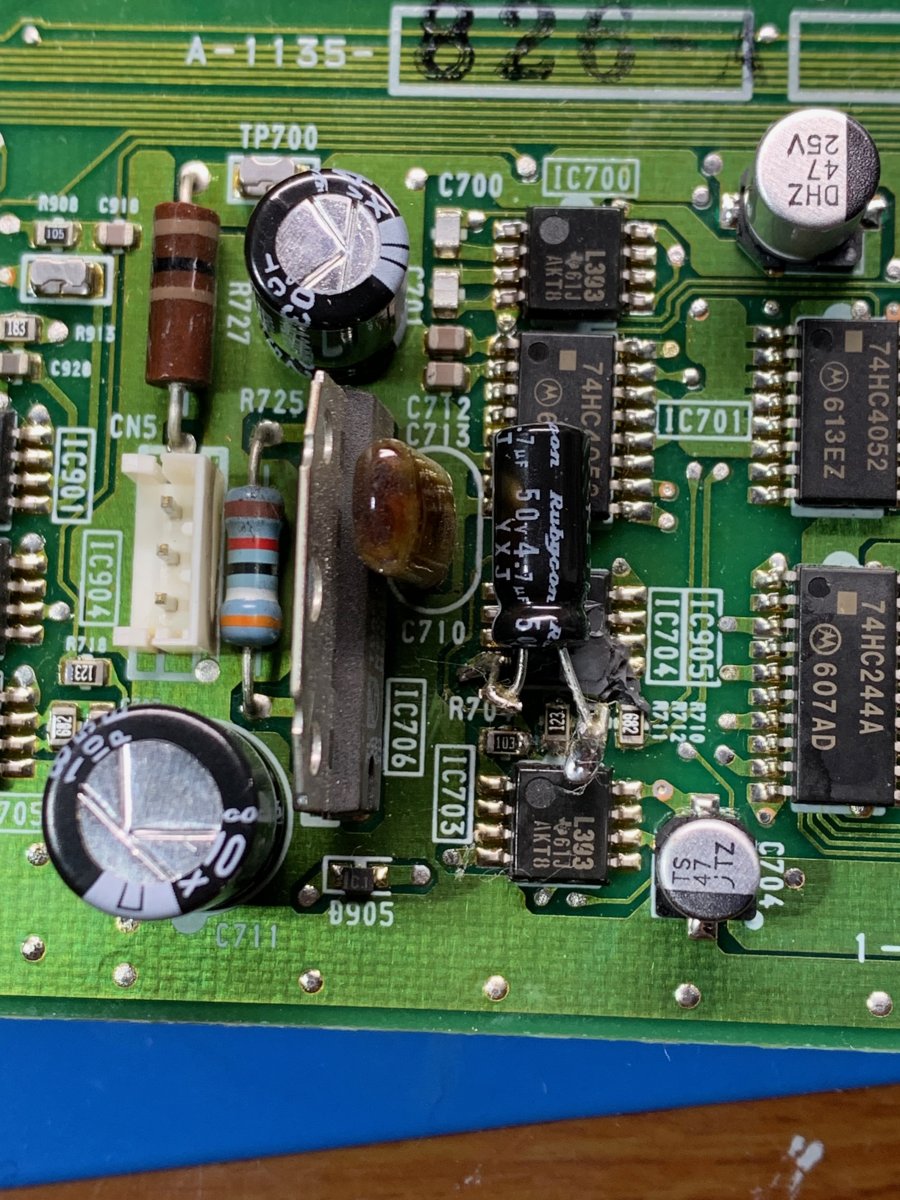

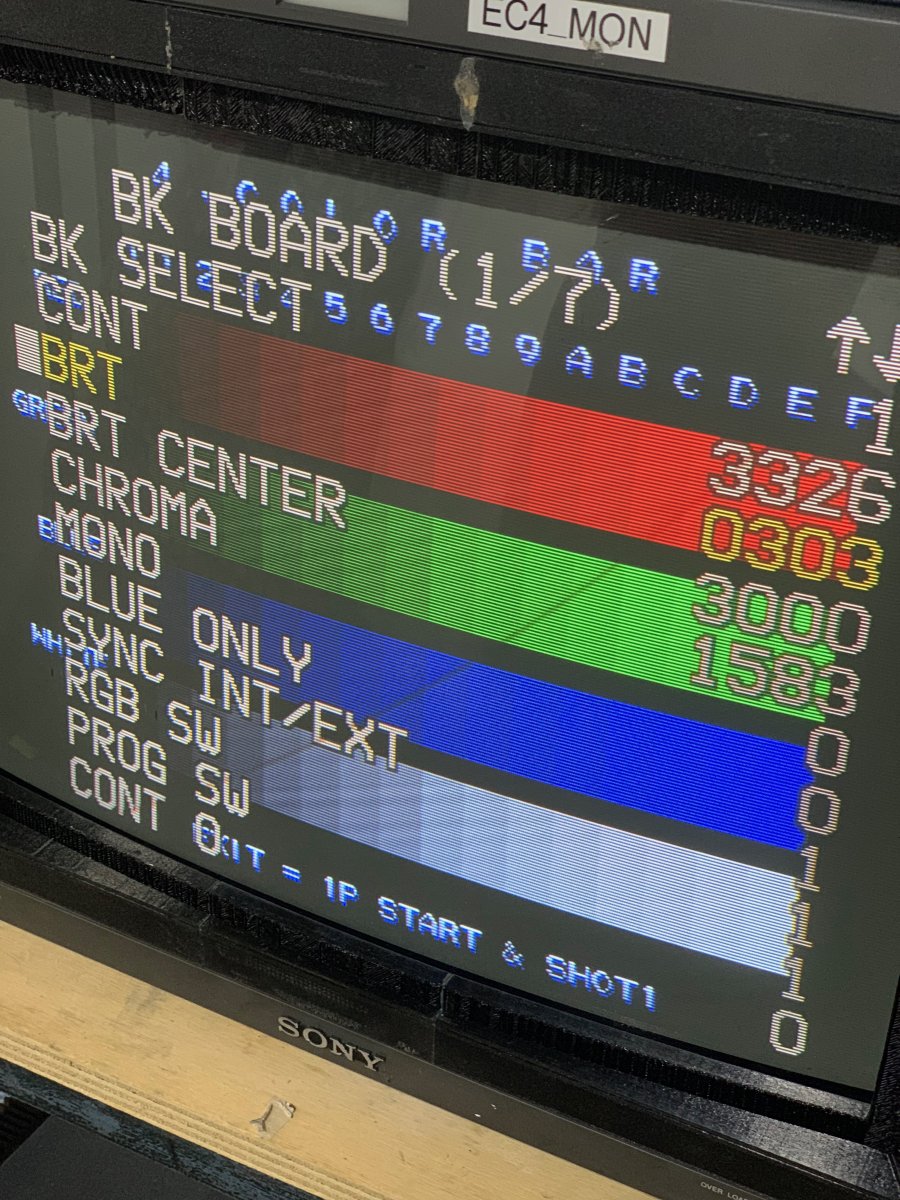

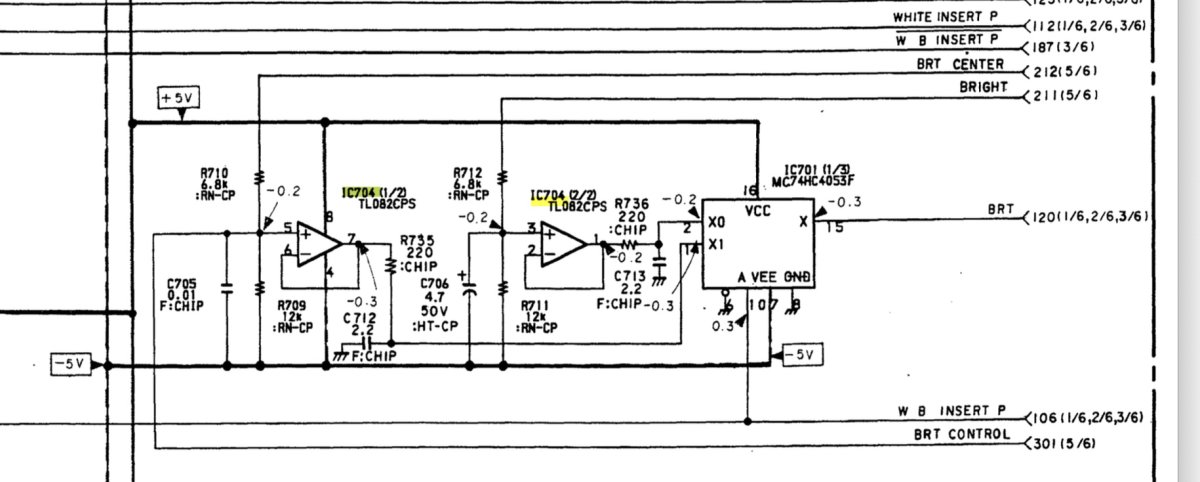

The BC board (also called ISR) does fun stuff like generate test patterns, manage a lot of control functions, store the firmware and etc. There are about 50 SMD caps on this board and most of them are big 100/6.3's - I needed some practise with my new Iron so doing a full recap now. Normally there BC board does not give much trouble - but if certain functions are greyed out in the menu it's because of problems here.


I want to change that battery - but I'm scared :)


hatmoose

Champion
Joined
Mar 25, 2021
Messages
712
Reaction score
1,452
Location
Auckland

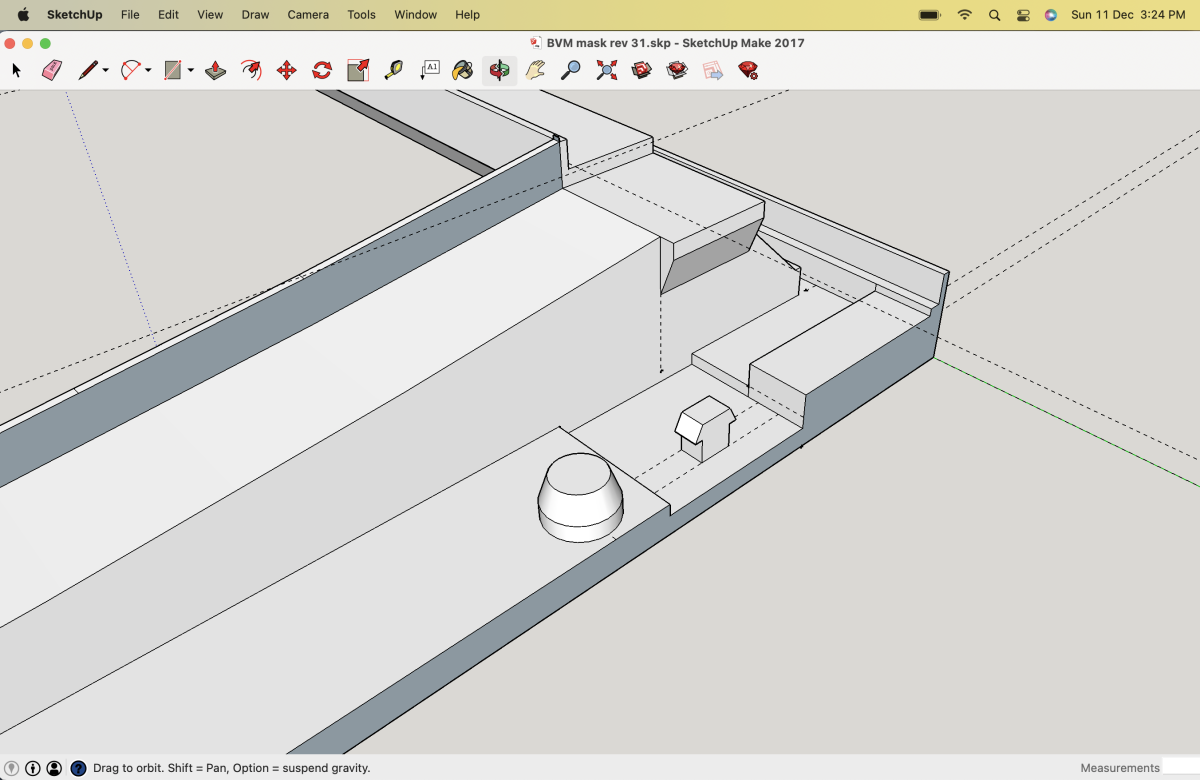

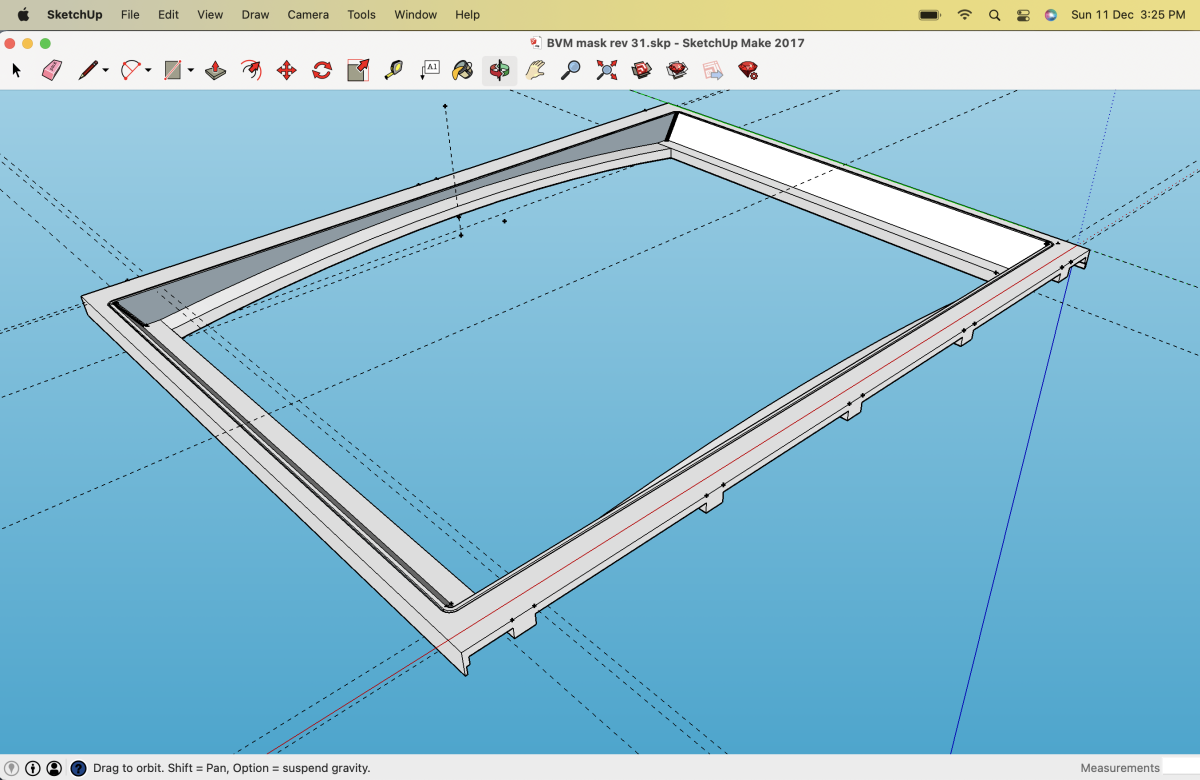

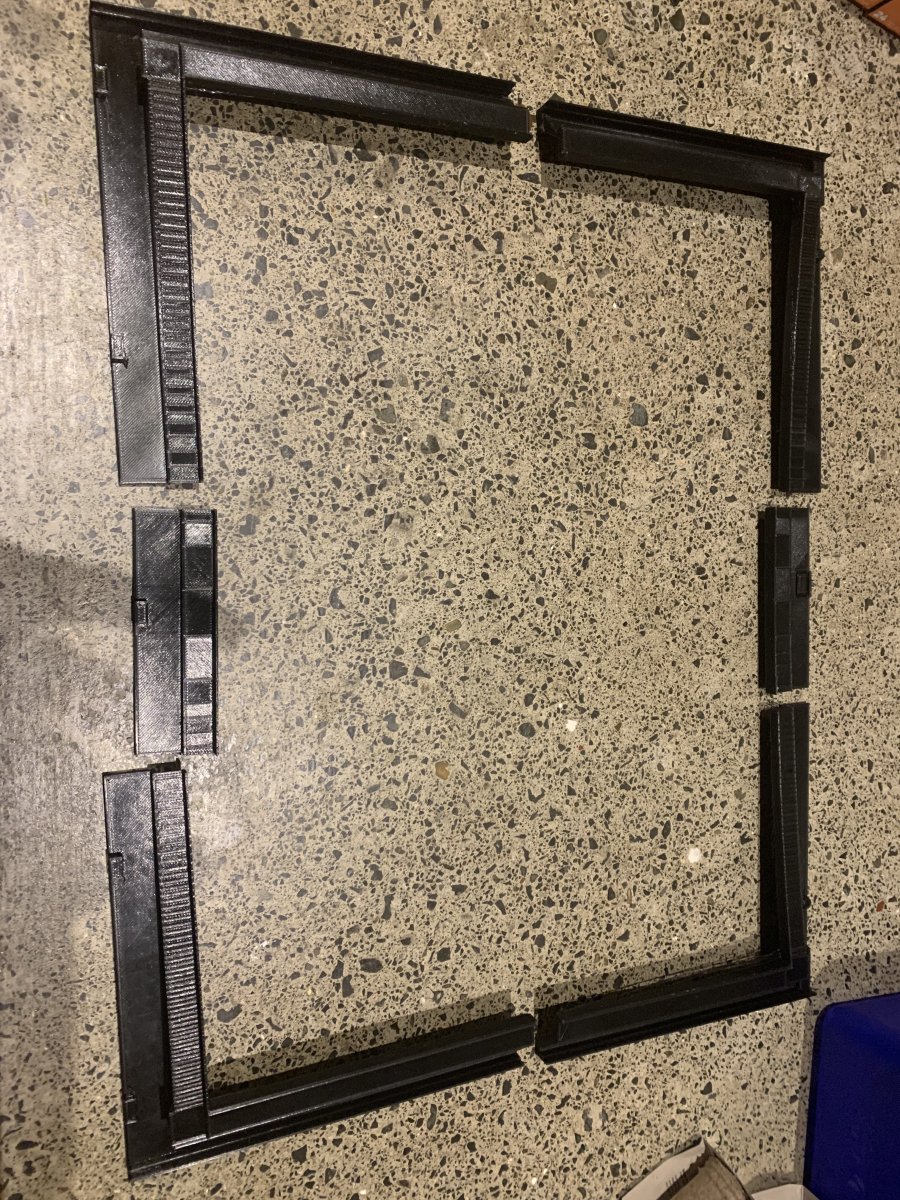

Revision number 28 (I kid you not)


Now to glue it together and confirm I have the dimensions correct, then some final tweaks and learning how to prime/paint PLA


hatmoose

Champion
Joined
Mar 25, 2021
Messages
712
Reaction score
1,452
Location
Auckland

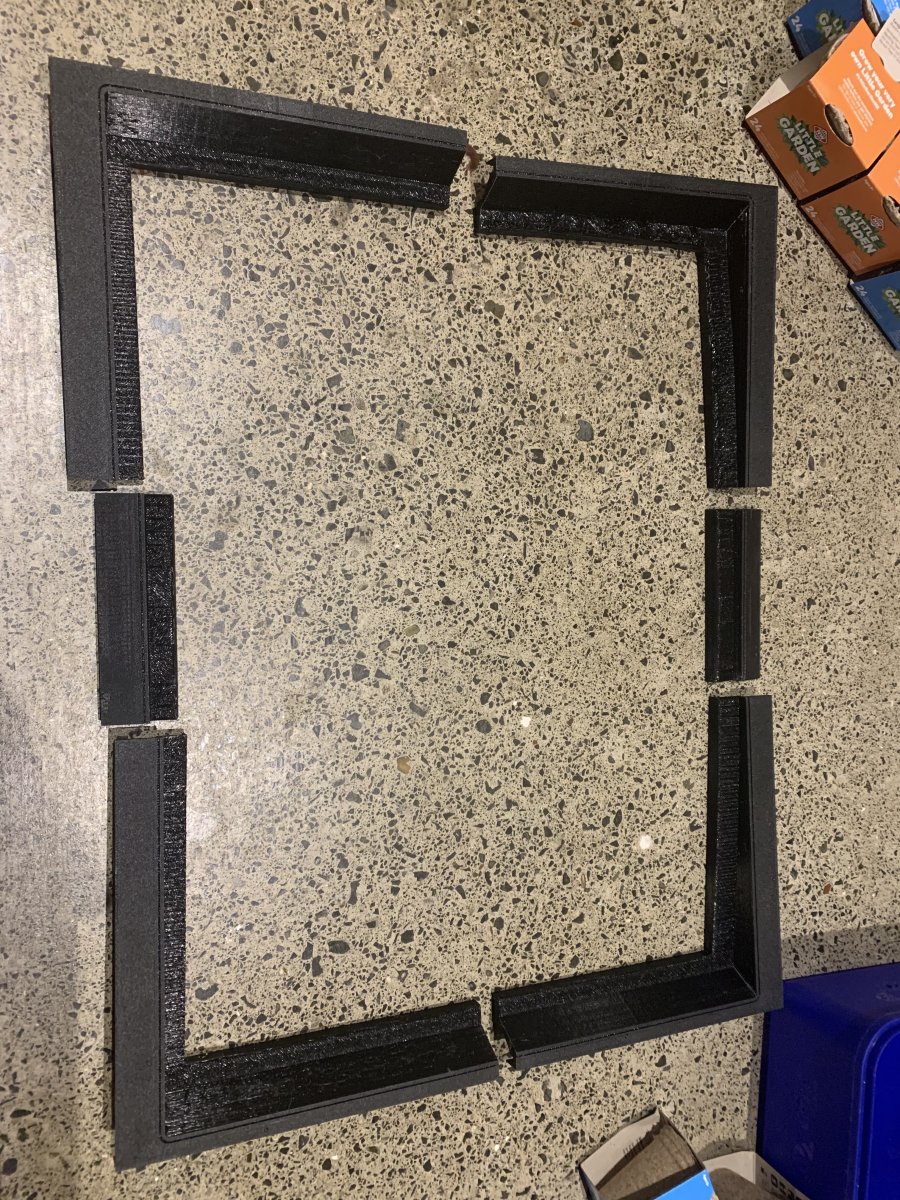

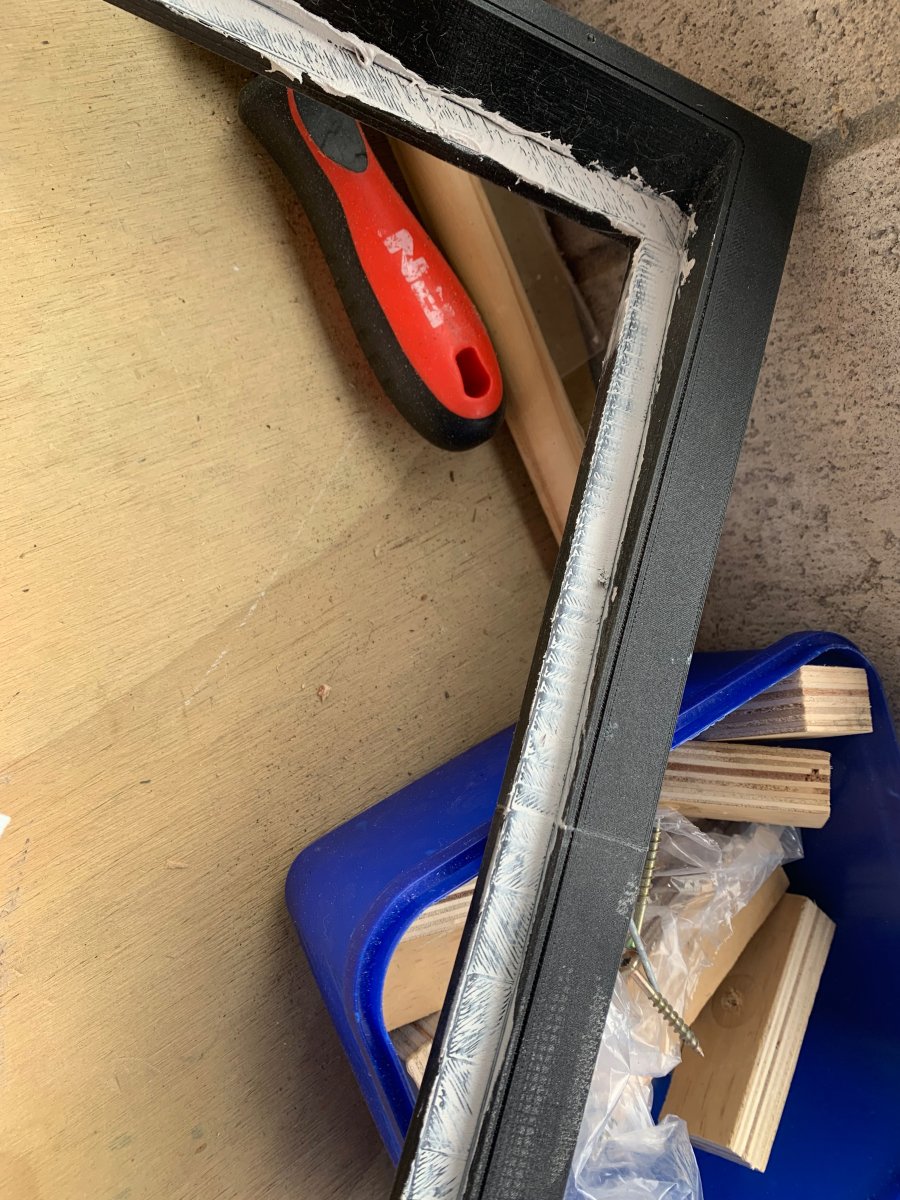

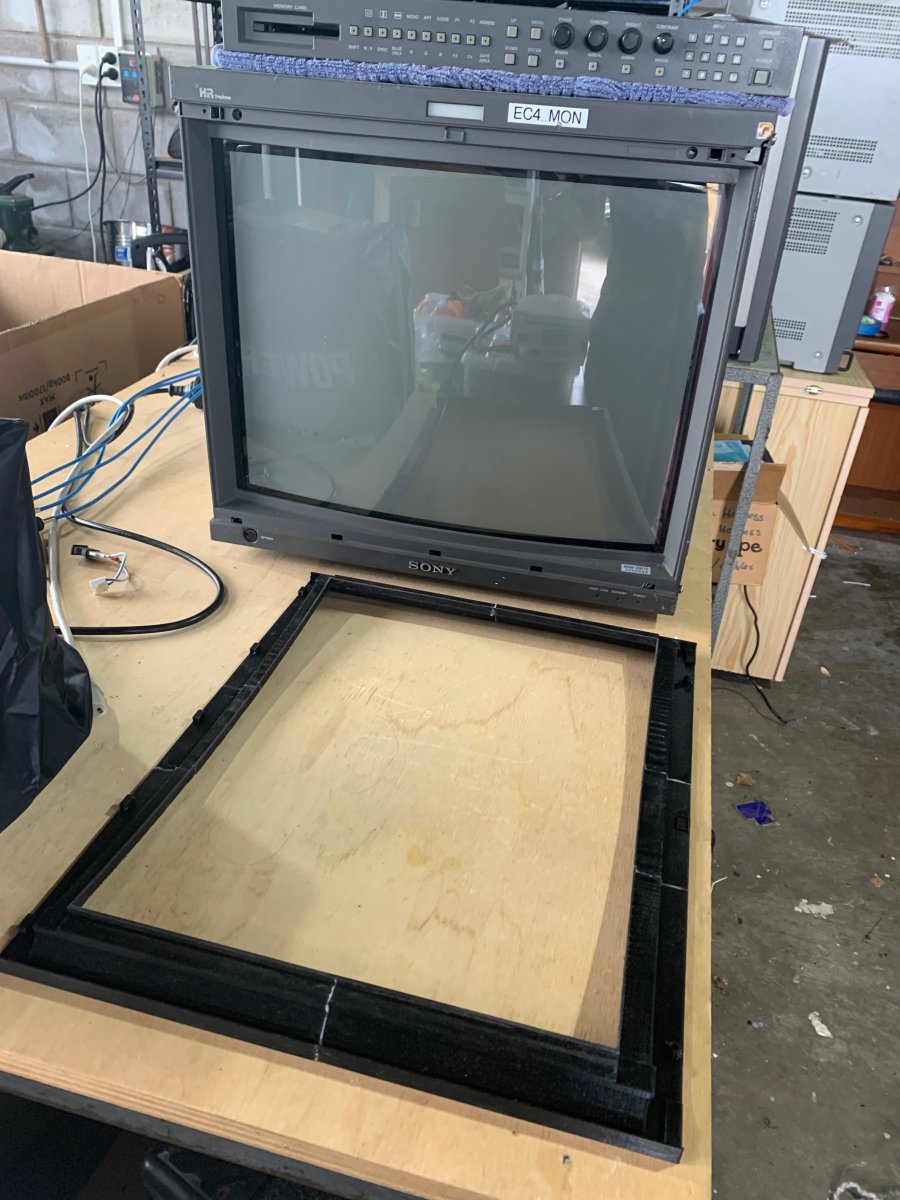

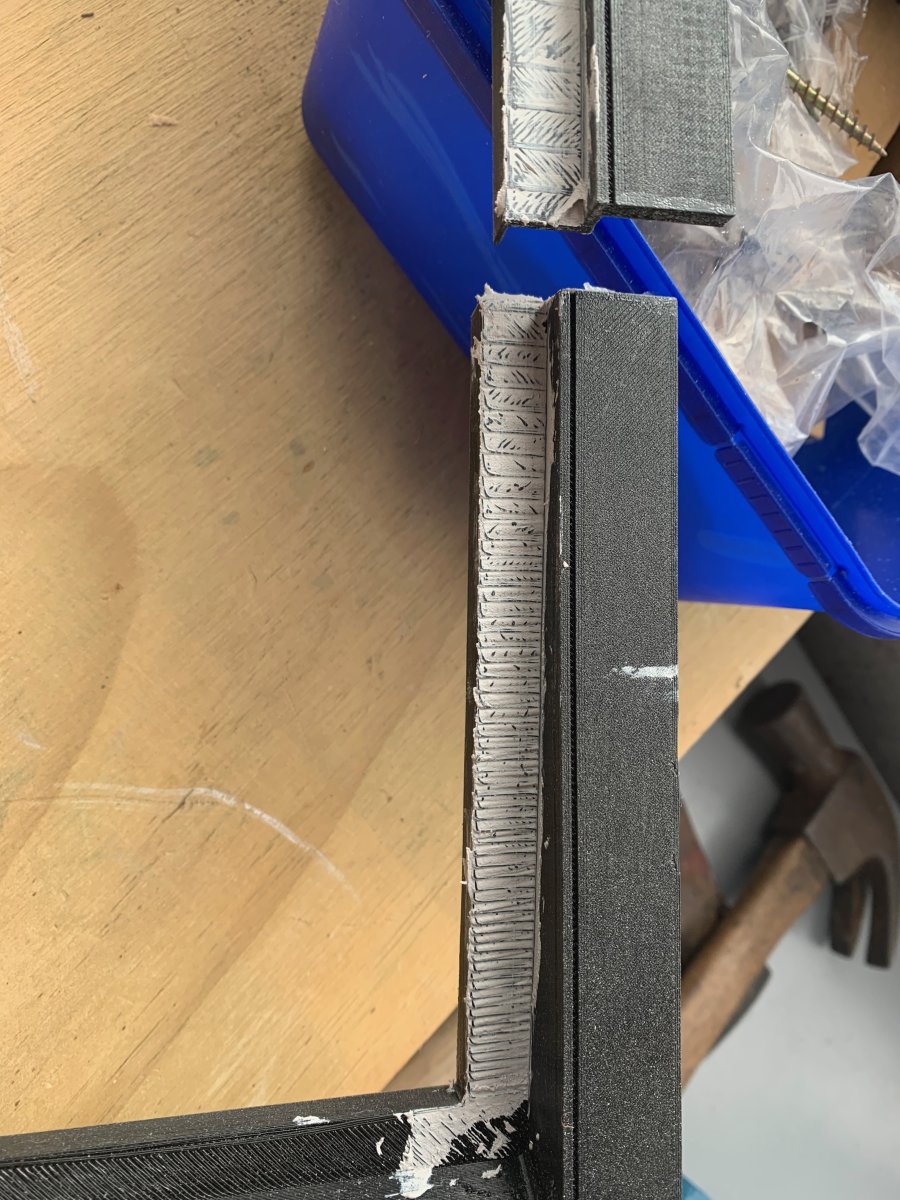

Just a rough glue-up to confirm dimensions. The finish with supports is so rotten that I might have to print it in different parts, key thing is to get the model right, then I can start on how to actually make it IRL


Attachments

  • BB333924-D531-48FD-95FA-9907FD5AEA6C.jpeg
    196.1 KB · Views: 7

hatmoose

Champion
Joined
Mar 25, 2021
Messages
712
Reaction score
1,452
Location
Auckland

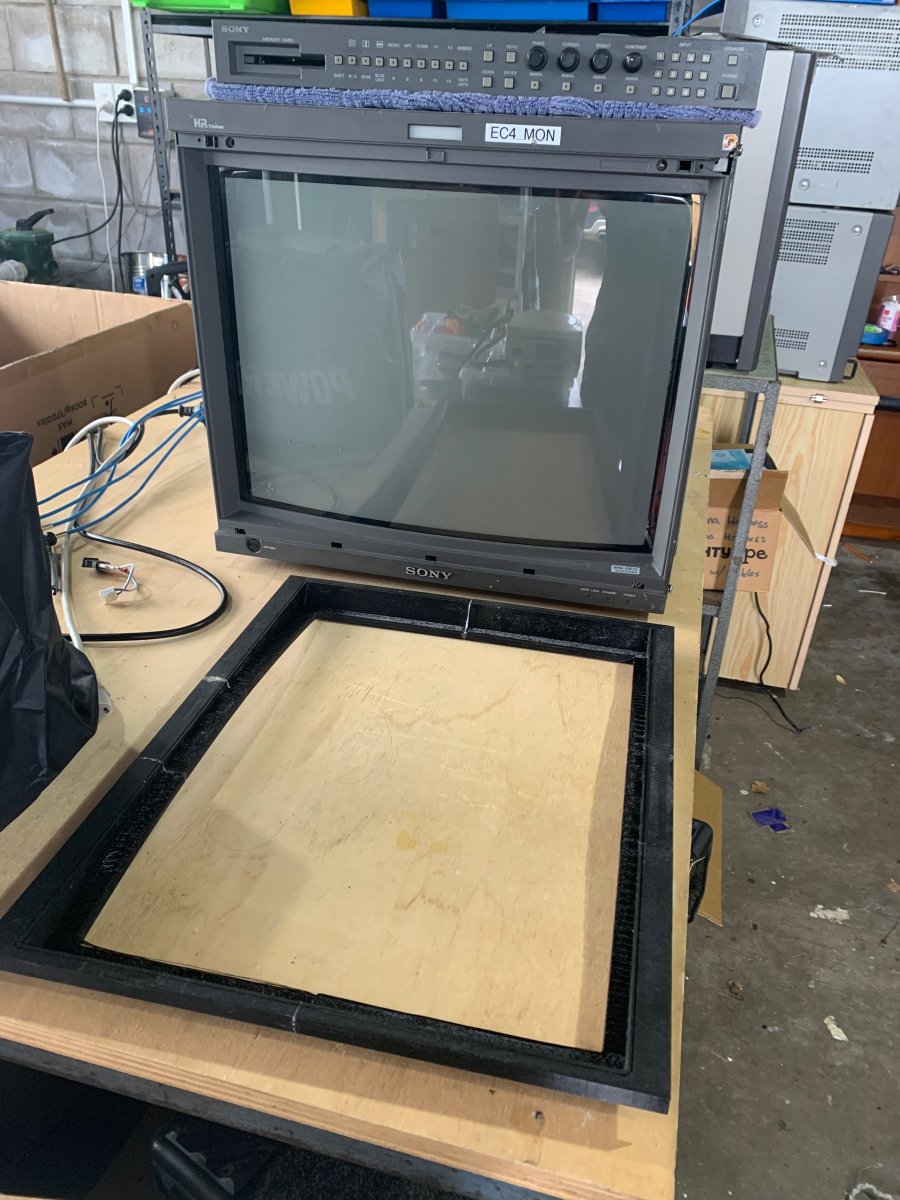

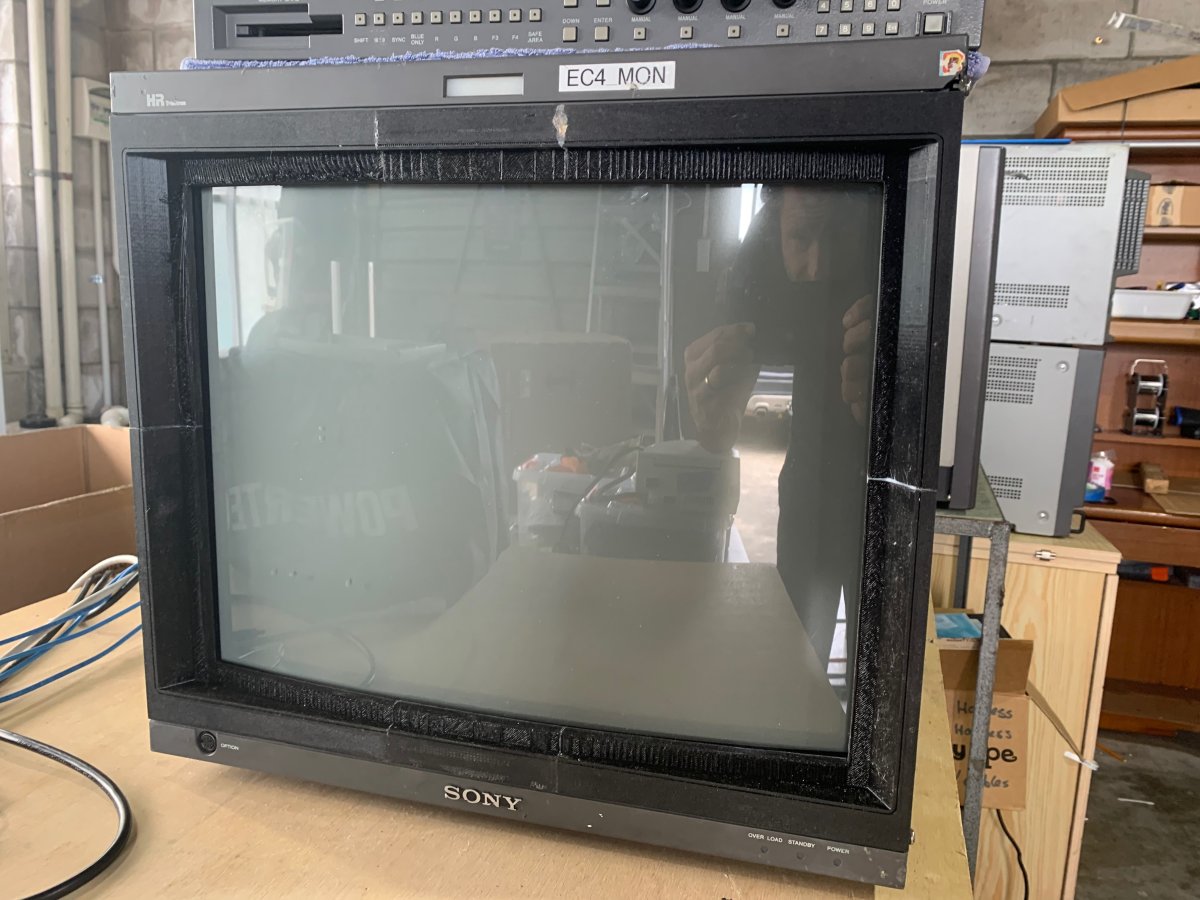

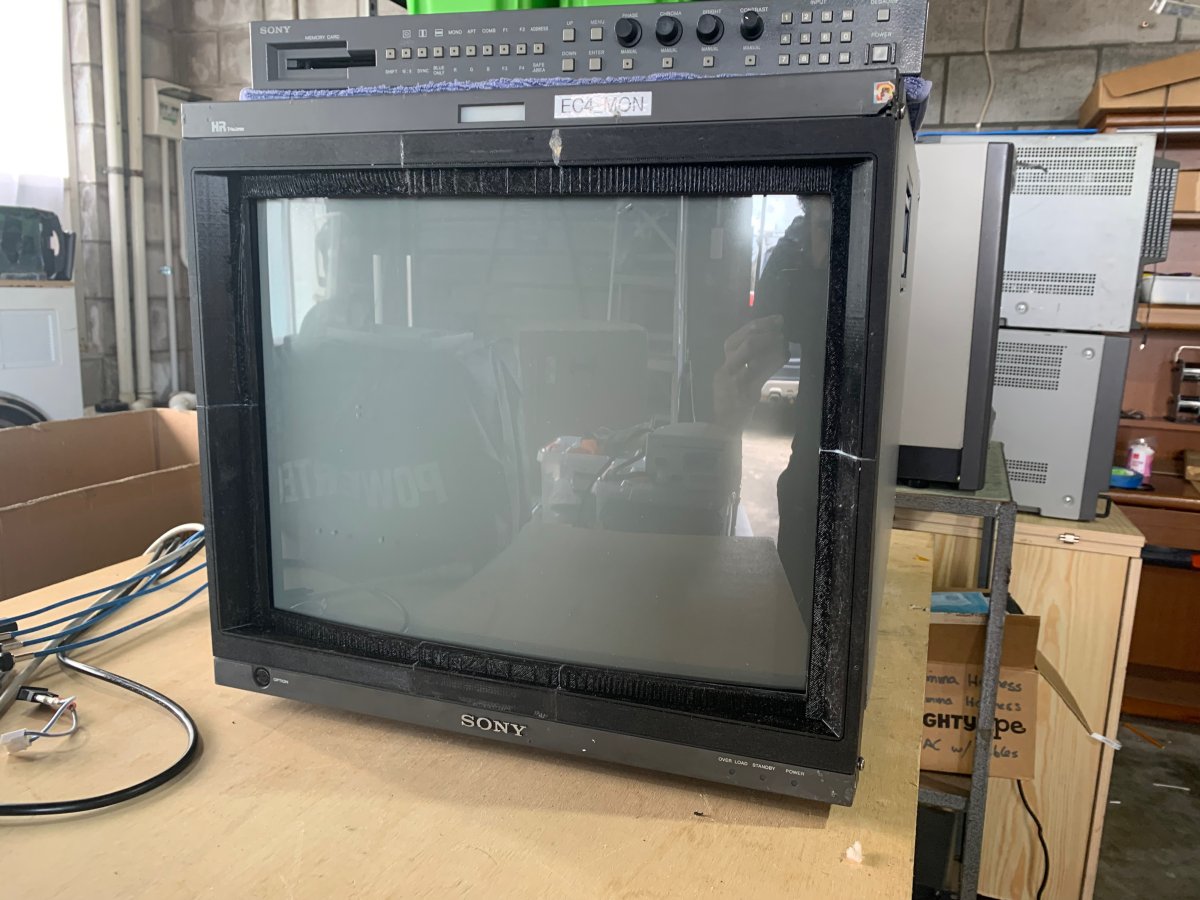

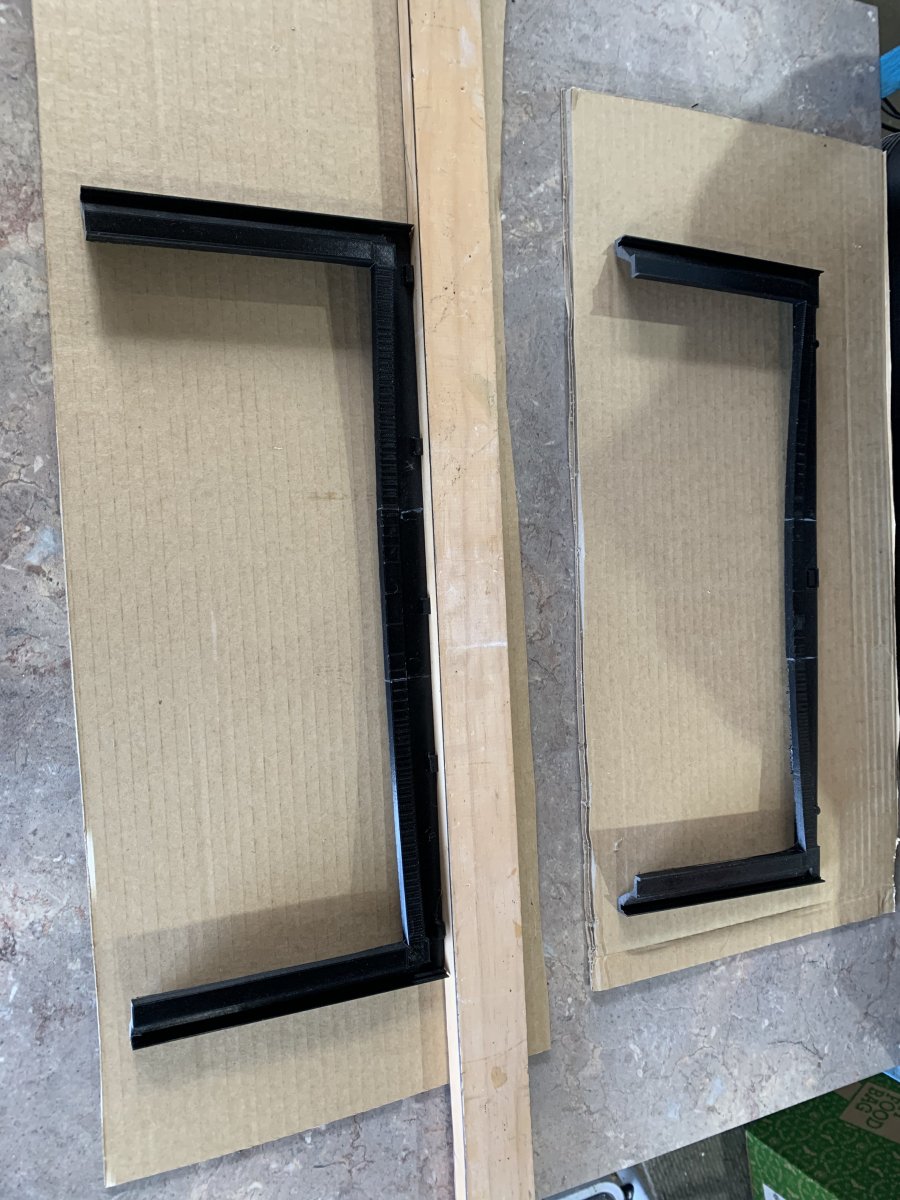

They said it could not be done; Actually they said it could be done, but no-one would be silly enough to waste the time and energy required to do it.

I said "Nothing is foolproof for a sufficiently talented fool" and this is the result.

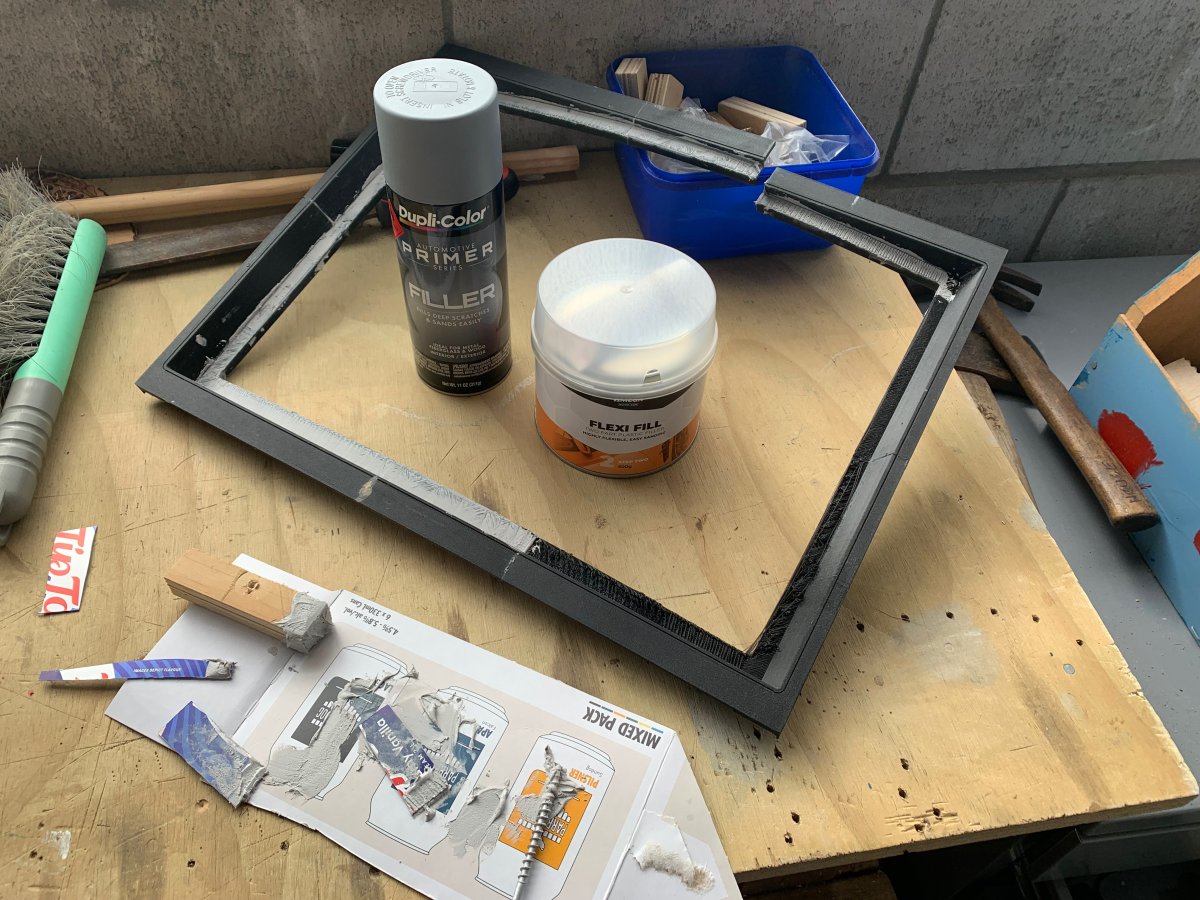

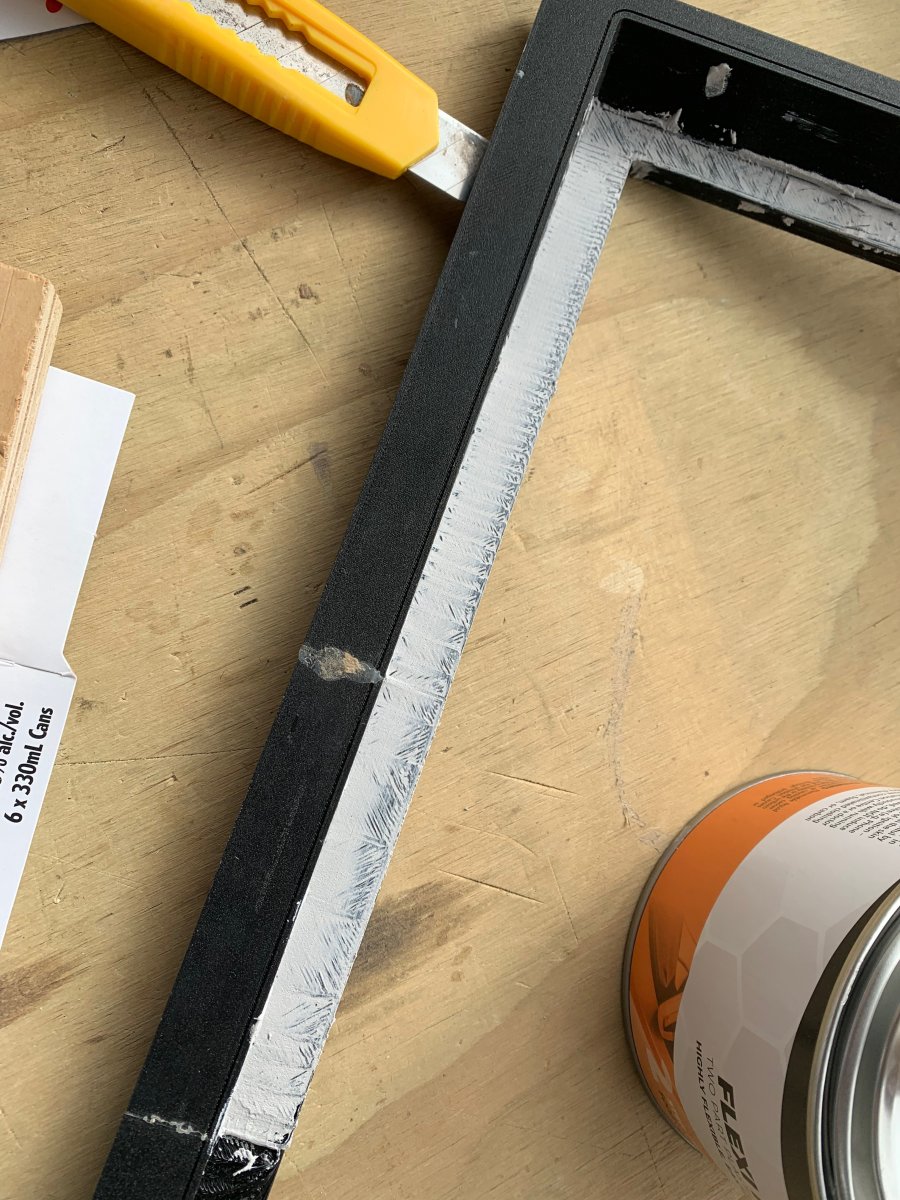

The white lines are where I glued it with cheap epoxy (actually holds really well). And in the top left section I forgot to print with supports (amazed it printed at all) and it needs a MASSIVE amount of post processing for the finish before painting. But other than those minor issues it's better than I really expected.

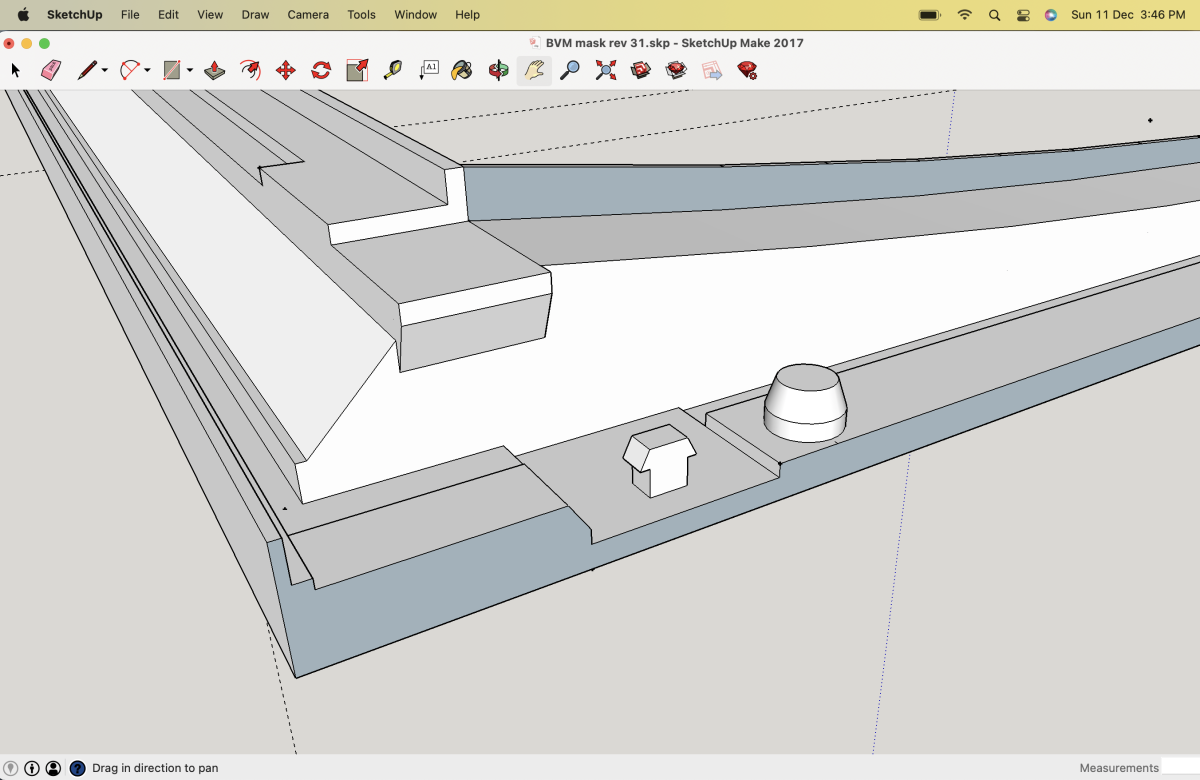

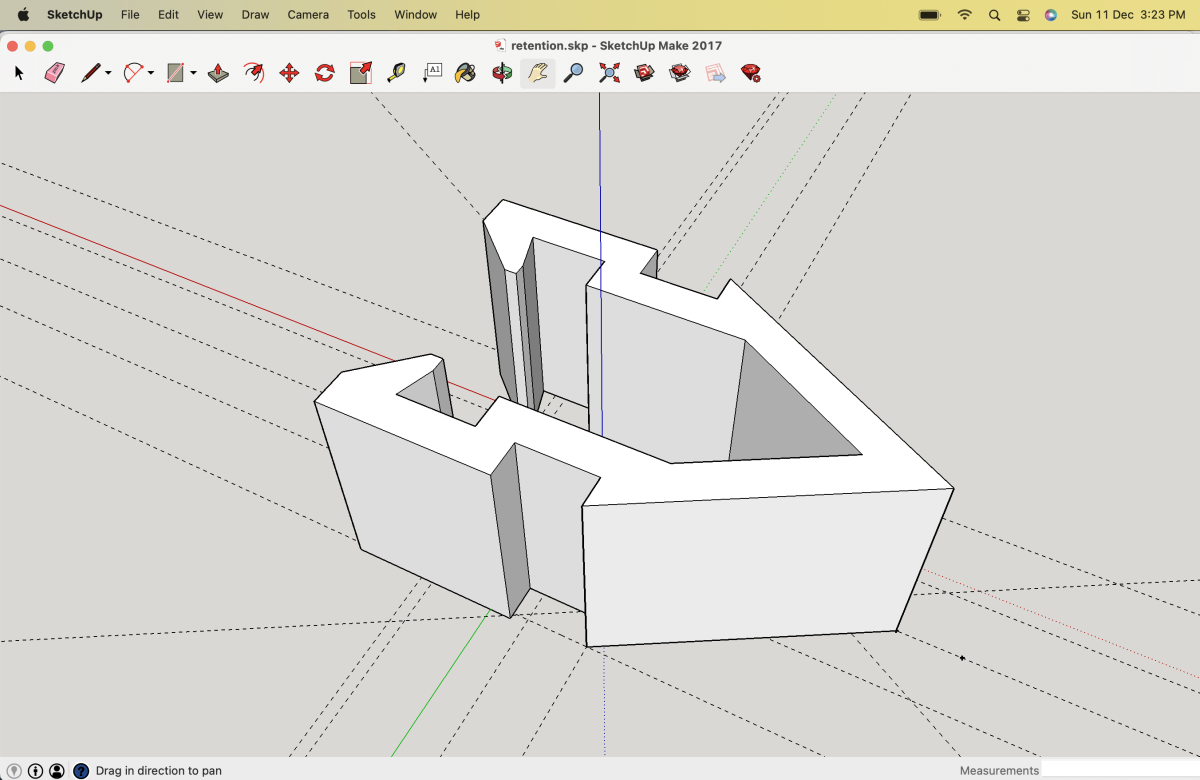

Model needs a couple of changes so that if fits properly, then I need to work on the retention.

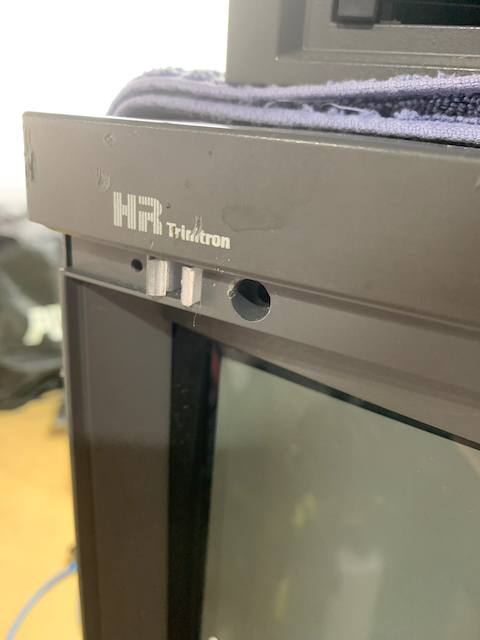

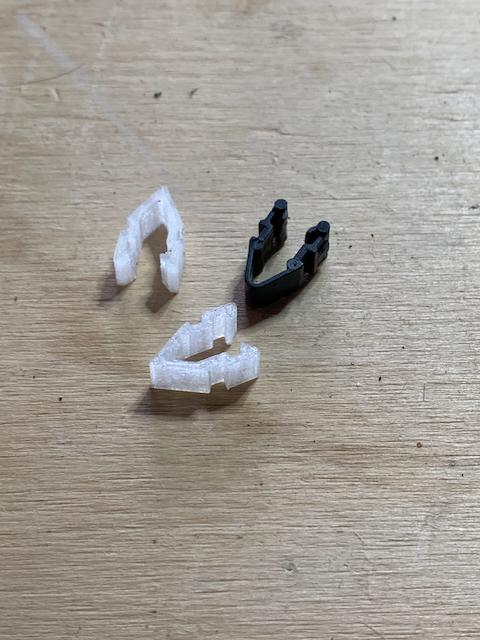

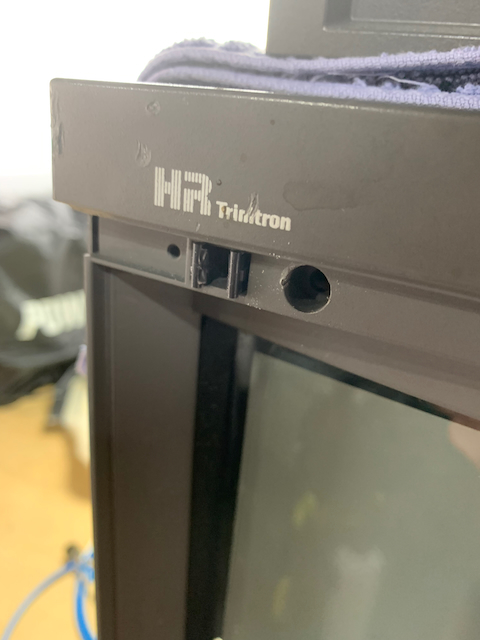

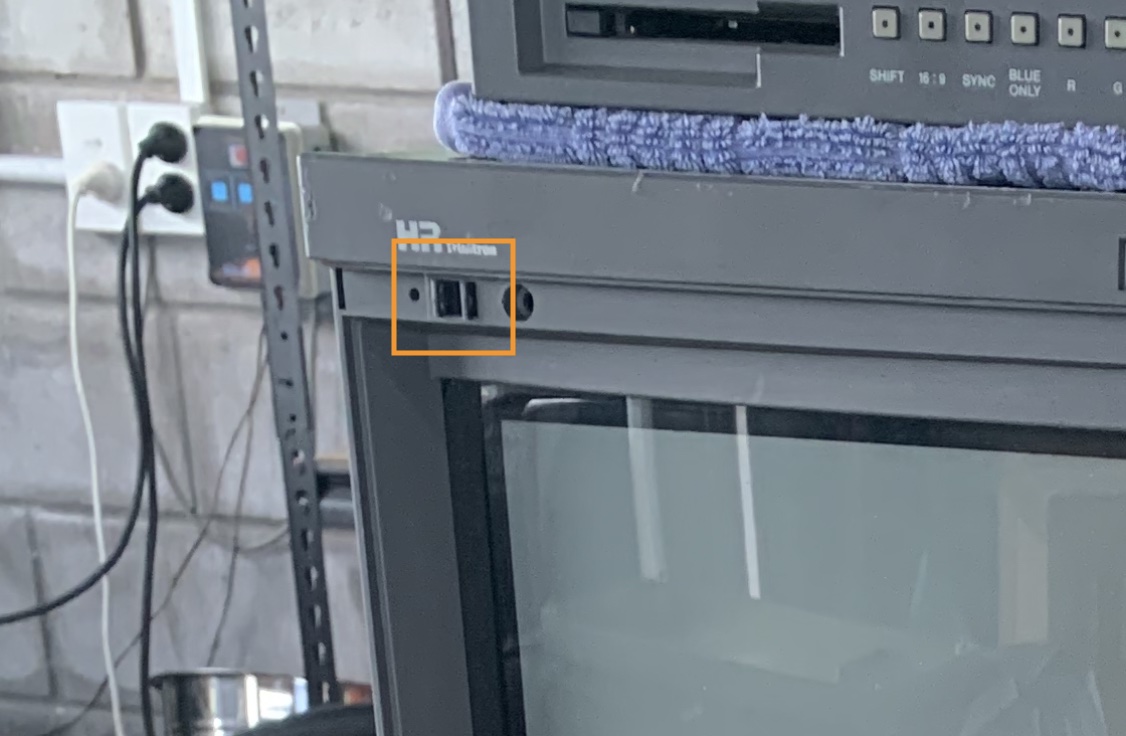

Does anyone know what these things are called? You kind of push them in to lock, then push them in again to unlock.
what is this called.jpg


hatmoose

Champion
Joined
Mar 25, 2021
Messages
712
Reaction score
1,452
Location
Auckland

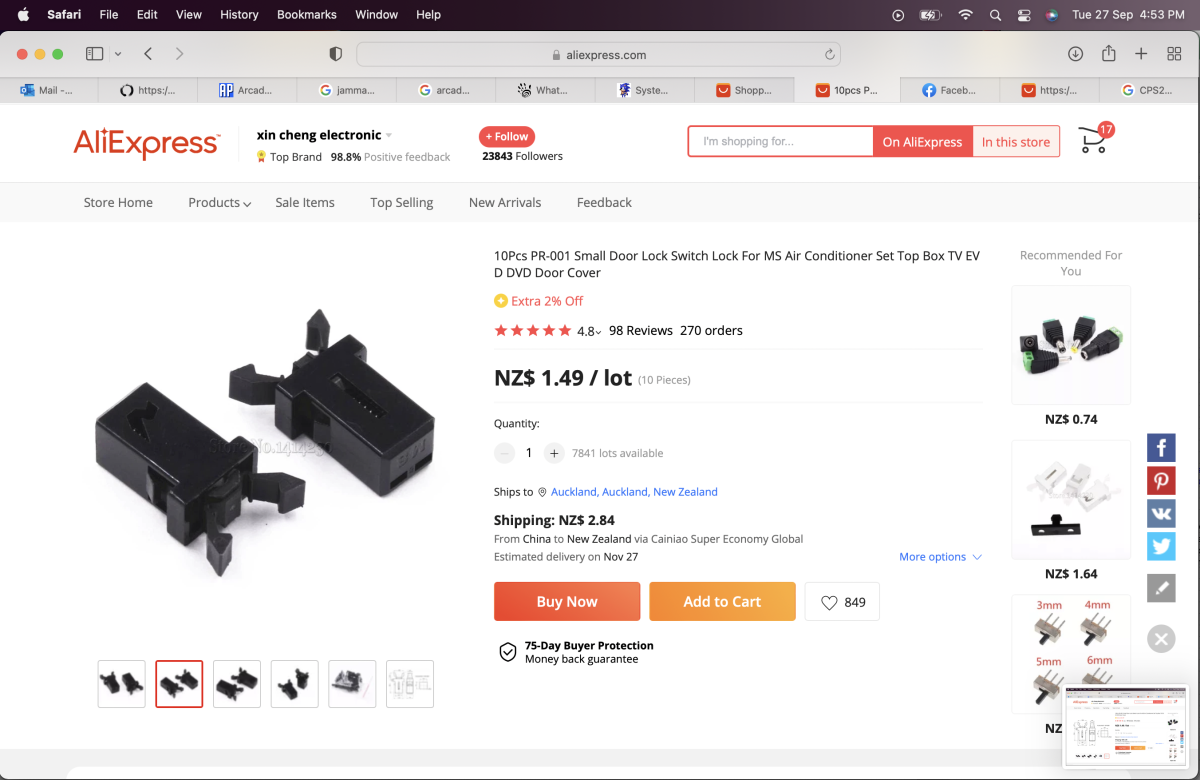

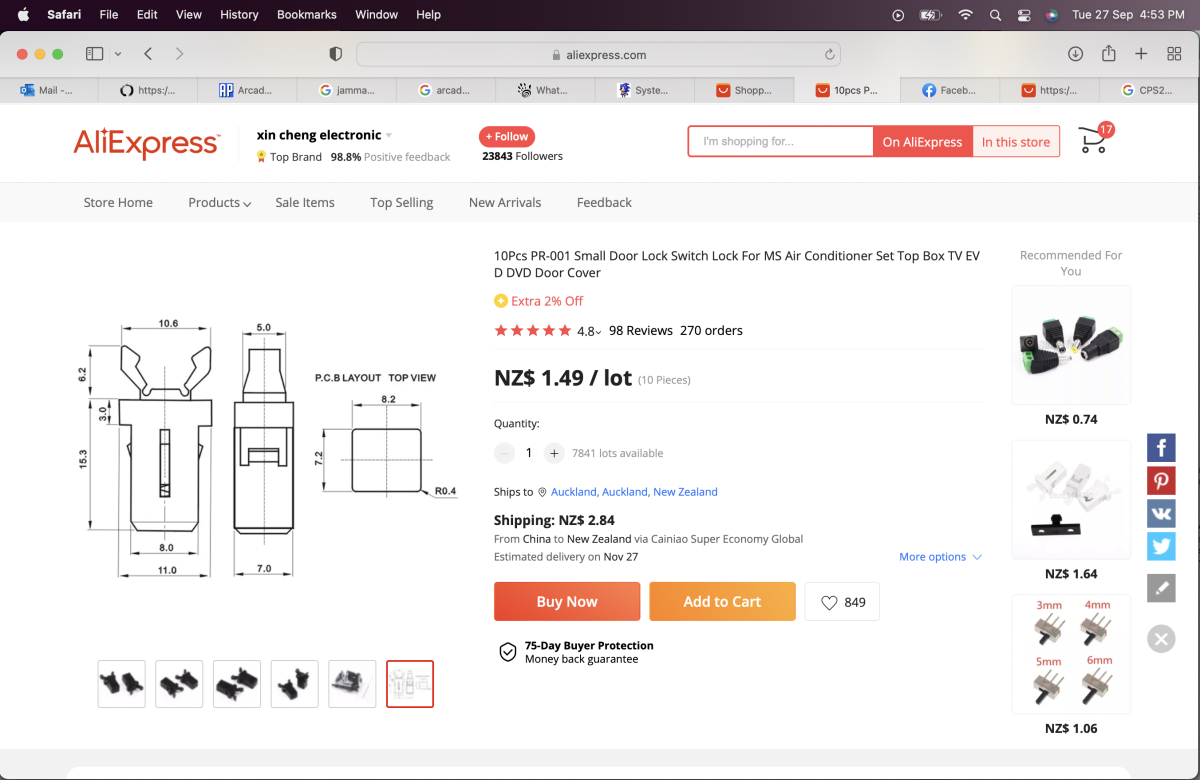

In case anyone comes afterwards and is looking for the same thing - these are all over aliexpress called "small door lock switch" or "push lock switch"

Ten for one US dollar, quite a lot more NZ dollars
Screen Shot 2022-09-27 at 4.53.30 PM.pngScreen Shot 2022-09-27 at 4.53.34 PM.png

I need both the male and female elements. Now a short wait of 30 working days...
