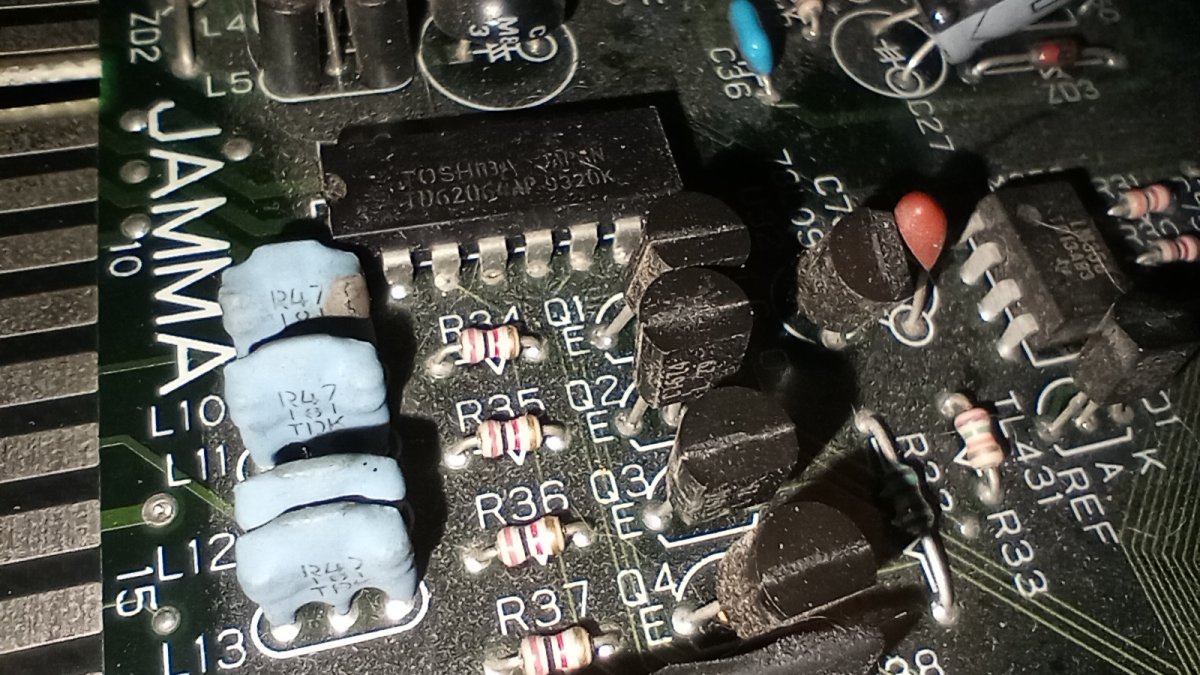

I've got an SSV PCB (nothing fancy - Eagle Shot Golf) I had used to test a cab with a wiring issue. Long story short, there was a short, and I believe it smoked up an R47-181-TDK, who h I believe is a color driver or pre-driver transistor/scr (I could be wrong on that.) Doesn't look this is a commonly available component, but does anyone happen to know of a suitable replacement, or have a source for one?


Attachments

  • IMG_20220920_012739653.jpg
    204.9 KB · Views: 27

Astro X

Student
Joined
Jan 30, 2018
Messages
106
Reaction score
56
Location
Germany
that should only be a passive RC filter,
to test you can bridge the input and output 1-3.

1 input
2 GND
3 output

please check before,
without warranty ;)


MmSadda

Professional
Joined
Jul 24, 2017
Messages
156
Reaction score
135
Location
Columbus, OH
Got it, so you're saying I can just bypass the RC filter to test everything else still works (and as a dirty hack on a permanent basis?)

I may be assuming too much, but the smoke came out of that piece (see the toasted one toward the top of the pic, toasted on the right side.)


Astro X

Student
Joined
Jan 30, 2018
Messages
106
Reaction score
56
Location
Germany
correct,
if a color is missing, the color driver transistor Q1 is probably destroyed..........
