nem

Legendary
Joined
May 29, 2016
Messages
5,443
Reaction score
5,429
Location
Finland

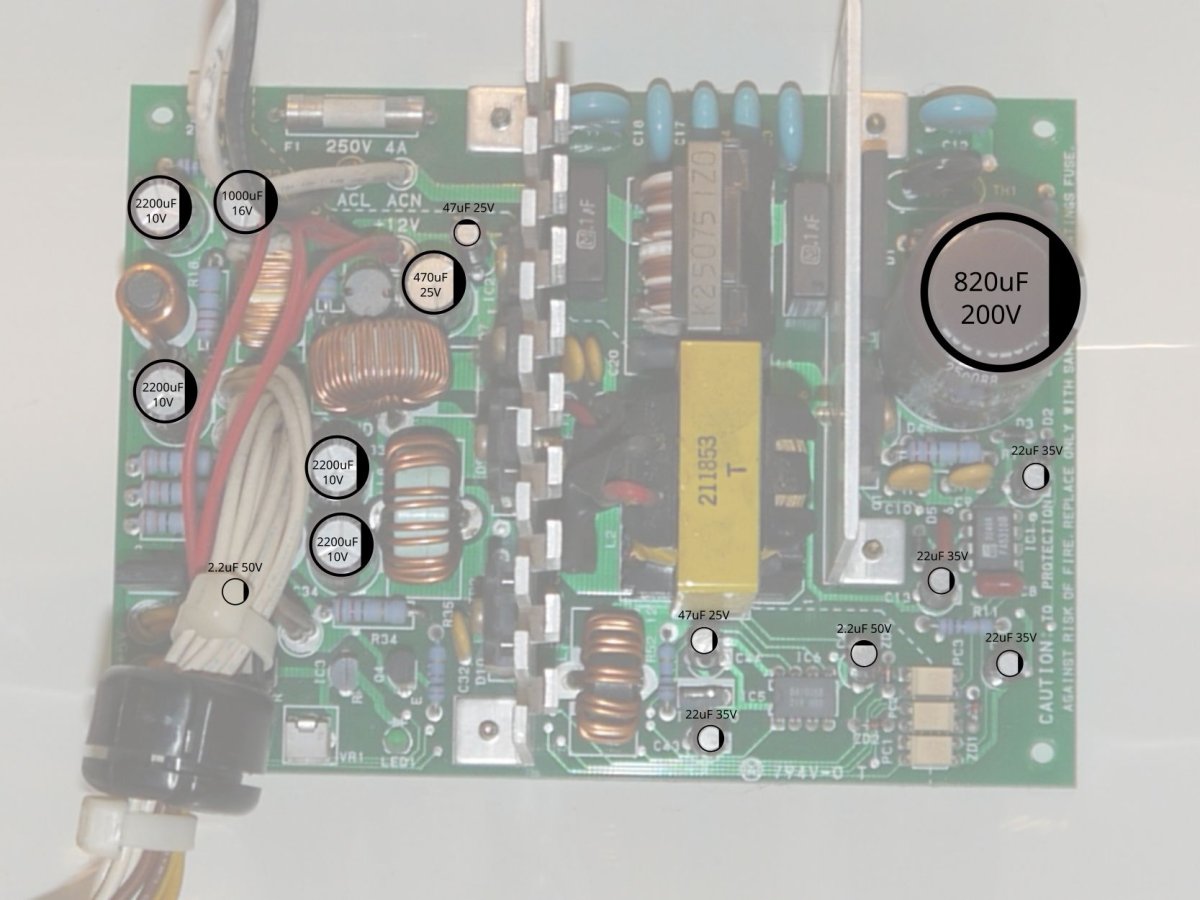

400-5397

Input: AC100-120V 3A
Output: DC 3.3V 12A, 5V 10A, 12V 2A


Code:
Capacitor        Diameter    Qty     Location

2.2uF  50V       ?mm         1       C41
22uF   35V       ?mm         4       C5, C13, C16, C43
47uF   25V       ?mm         2       C24, C44
470uF  25V       ?mm         1       C23
820uF  200V      ?mm         1       C11
1000uF 16V       ?mm         2       C22, C28
2200uF 10V       ?mm         3       C29, C33, C34

---

400-5397-01

Input: AC100-120V 3A
Output: DC 3.3V 12A, 5V 10A, 12V 2A


Code:
Capacitor        Diameter    Qty     Location

0.47uF 50V       5mm         1       C37
1uF    50V       5mm         1       C17
2.2uF  50V       5mm         2       C18, C36
3.3uF  50V       5mm         2       C24, C38
4.7uF  25V       5mm         1       C34
4.7uF  50V       5mm         1       C19
10uF   50V       5mm         2       C15, C41
22uF   50V       5mm         1       C14
47uF   50V       6mm         1       C9
220uF  25V       8mm         1       C23
330uF  16V       8mm         1       C25
680uF  200V      22mm        1       C5
1000uF 10V       10mm        1       C21
2200uF 10V       13mm        5       C28, C29, C31, C32, C35

---

400-5443

Input: AC100-120V 4A
Output: DC 3.3V 12A, 5V 15A, 12V 4A


Code:
Capacitor        Diameter    Qty     Location

2.2uF  50V       5mm         1       C26
10uF   50V       5mm         1       C3
22uF   35V       5mm         3       C11, C13, C15
47uF   25V       5mm         1       C16
1000uF 16V       10mm        1       C41
1200uF 200V      25mm        1       C10
1500uF 10V       10mm        1       C32
2200uF 10V       10mm        3       C33, C34, C35
2200uF 16V       12mm        1       C40

Cap list updated thanks to @PascalP in post #25. Thanks!

---

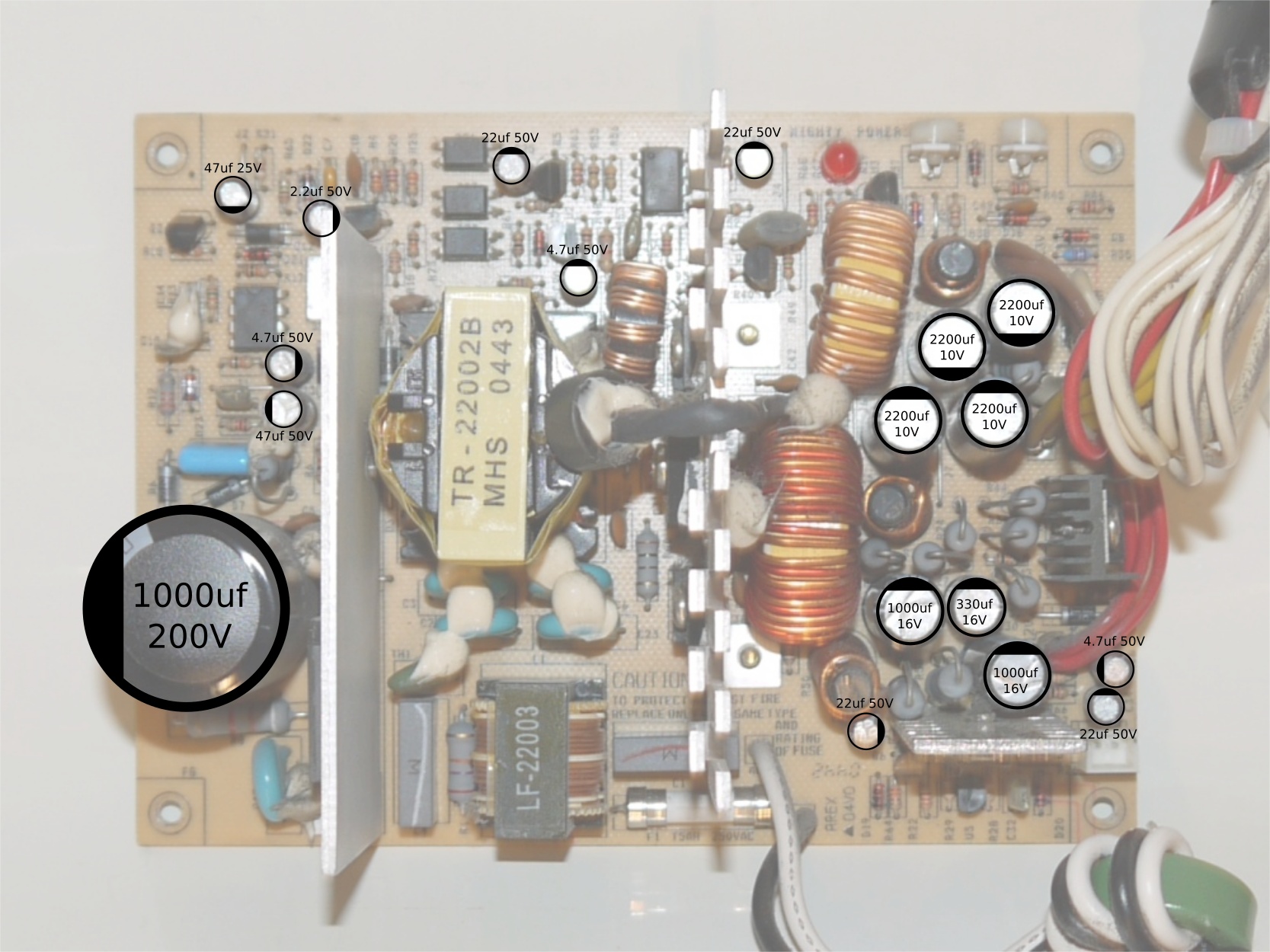

400-5443-01

Input: AC100-120V 4A
Output: DC 3.3V 12A, 5V 15A, 12V 4A


Code:
Capacitor        Diameter    Qty     Location

2.2uF  50V       5mm         1       C45
4.7uF  50V       5mm         3       C13, C20, C26
22uF   50V       5mm         4       C25, C34, C35, C40
47uF   25V       5mm         1       C17
47uF   50V       6mm         1       C10
330uF  16V       8mm         1       C27
1000uF 16V       10mm        2       C8, C30
1000uF 200V      26mm        1       C9
2200uF 10V       10mm        4       C24, C28, C29, C33

---

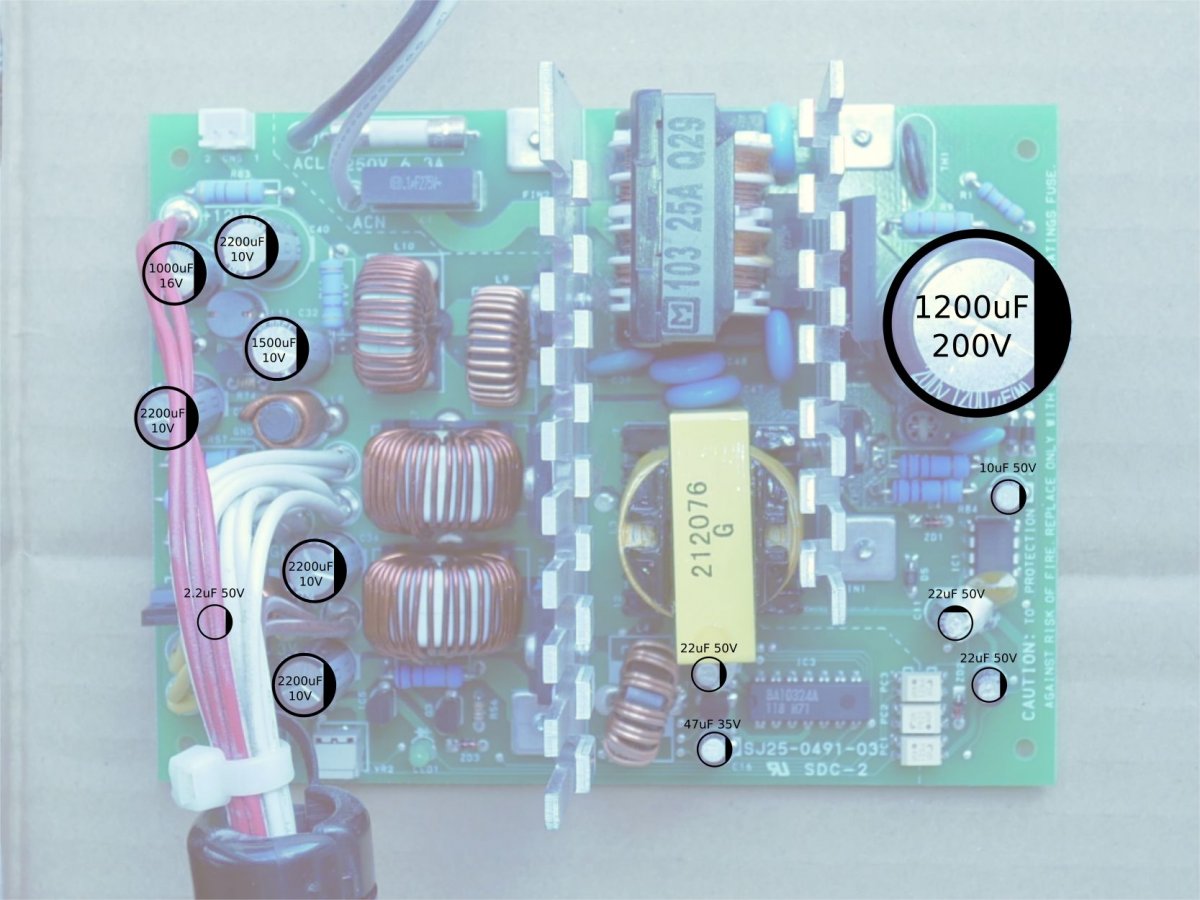

400-5443-02

Input: AC100-120V 4A
Output: DC 3.3V 12A, 5V 15A, 12V 4A


Code:
Capacitor        Diameter    Qty     Location

2.2uF  50V       5mm         1       C26
10uF   50V       5mm         1       C3
22uF   50V       5mm         3       C11, C13, C15
47uF   35V       5mm         1       C16
1000uF 16V       10mm        1       C41
1200uF 200V      25mm        1       C10
1500uF 10V       10mm        1       C32
2200uF 10V       10mm        3       C33, C34, C35
2200uF 16V       10mm        1       C40

---

Reguired reading:
SUN (NAOMI) Power Supply Re-Cap by @twistedsymphony

Let me know if I made any mistakes.

Last edited:

twistedsymphony

Enlightened
Staff member
Immortal
Joined
Jul 21, 2015
Messages
10,959
Reaction score
11,572
Location
NH, USA
it's nice to see all of these in one place. Thanks for posting!

it couldn't hurt to also have a text list of the caps and quantities to go with each one it make it easier to place orders.


This is a really good guide on Power Supply Repair: https://www.mikesarcade.com/cgi-bin/spies.cgi?action=url&type=info&page=psrepair.txt

TLDR: If your PSU is blowing fuses it's generally because one of the transistors has gone, and usually the transistors fail due to bad caps.

Last edited:

stj

Grand Master
Joined
May 4, 2017
Messages
1,721
Reaction score
874
Location
England
it's not much use tbh unless it includes the diameters.
otherwise you could buy caps that wont fit!!


twistedsymphony

Enlightened
Staff member
Immortal
Joined
Jul 21, 2015
Messages
10,959
Reaction score
11,572
Location
NH, USA
it's not much use tbh unless it includes the diameters.
that's quite a bit of exaggeration right there. There's plenty of useful information here without diameters.

honestly for any given cap list there is usually only one or 2 cabs that are in such a tight spot that it matters, and even then you can usually make it work by simply leaving the lead a little longer so you can shift it out of the way.

While it can be useful to leave a note on the specific caps where height or with may be an issue I don't believe I've ever seen a cap list or map that included diameters for all the caps.


stj

Grand Master
Joined
May 4, 2017
Messages
1,721
Reaction score
874
Location
England
if you extend the leads, you increase inductance.
and if you bend them against the rubber bung you compromise the seal and shorten the lifespan.

have a few usefull pdf's
this is pretty much all i use for psu repair.


Attachments

  • FR.pdf
    90.7 KB · Views: 71
  • FM.pdf
    76.4 KB · Views: 37
  • FK.pdf
    85.8 KB · Views: 39

nem

Legendary
Joined
May 29, 2016
Messages
5,443
Reaction score
5,429
Location
Finland
I recapped all four PSUs with 105°C Nichicon brand caps. I didn't have any issues fitting anything anywhere. All the caps were either the same size or smaller in diameter.

However, should go without saying if you can choose between a short and wide cap or a tall and thin cap, choose the latter as height will not be an issue.


hallucid

Student
Joined
Jan 13, 2017
Messages
87
Reaction score
25
Location
McAllen Texas
I actually have a Sun PSU that stopped working.

anyone here offer services to get it fixed ?


invzim

Champion
Joined
Apr 9, 2016
Messages
972
Reaction score
2,308
Location
Oslo, Norway
I opened my 400-5397-01 Sun PSU today, as I've been having issues with it smelling burnt during summer. Turns out yours truly had wired up the replacement fan wrong and it barely moved. Fixed that, and had a peek at the caps - and they look fine. Hopefully the fan was the only issue. While I was in there, I took out my trusty 10$ ebay caliper and measured the cap diameters.

They all seem to be Rubicon brand, I didn't bother looking up the values as info earlier in thread and @twistedsymphony 's post seem to be spot on (http://solid-orange.com/1465).

Code:
Designator	Diameter	Height
C5	22.3
C9	6.23
C14	5.19
C15	5.19
C17	5.25
C18	5.25
C19	5.25
C21	10.6
C23	8.6
C24	5.3
C25	8.3
C28	10.3	28
C29	10.3	28
C31	10.3	28
C32	10.3	28
C34	5.35
C35	10.3	28
C36	5.3
C37	5.22
C38	5.2
C41	5.3


MoppelTheWhale

Grand Master
Joined
Feb 16, 2018
Messages
839
Reaction score
800
Location
Nuremberg, Gemany
hey guys,sorry if it's not exactly the right thread but i figured the sun experts are reading here and people with the same question stumble across this thread as well...

Recently i bought a sun psu on ebay, so far everything works. Should i proactively replace the caps, or should i wait until i run into problems.

I haven't opened it up so far, but the metal case shows signs of corrosion...

Thanks for your assessment :D


PascalP

Legendary
Joined
Jan 17, 2016
Messages
5,609
Reaction score
3,729
Location
The Netherlands
Then it should be good, if your caps where bad the voltages would either fluctuate or be out of spec :)


MoppelTheWhale

Grand Master
Joined
Feb 16, 2018
Messages
839
Reaction score
800
Location
Nuremberg, Gemany
how much would be out of spec? :P

But i remember somebody said my voltages were ok...


Geddon

Professional
Joined
Jun 1, 2018
Messages
708
Reaction score
342
Location
USA
How do you adjust voltage on these psus? I have one that is working with Naomi 1. I’m not looking at it at the moment but are there pots to adjust? Where are they? I’m just curious because I bought a Naomi 2 as “working” and connected it exactly the same as my Naomi 1 and it didn’t work. Seller is accusing me of frying it. I already got a refund so he can’t screw me but I’m curious if it’s even a possibility. I’ve ran the Naomi 1 for hours with no issue connected the exact same way.


nem

Legendary
Joined
May 29, 2016
Messages
5,443
Reaction score
5,429
Location
Finland

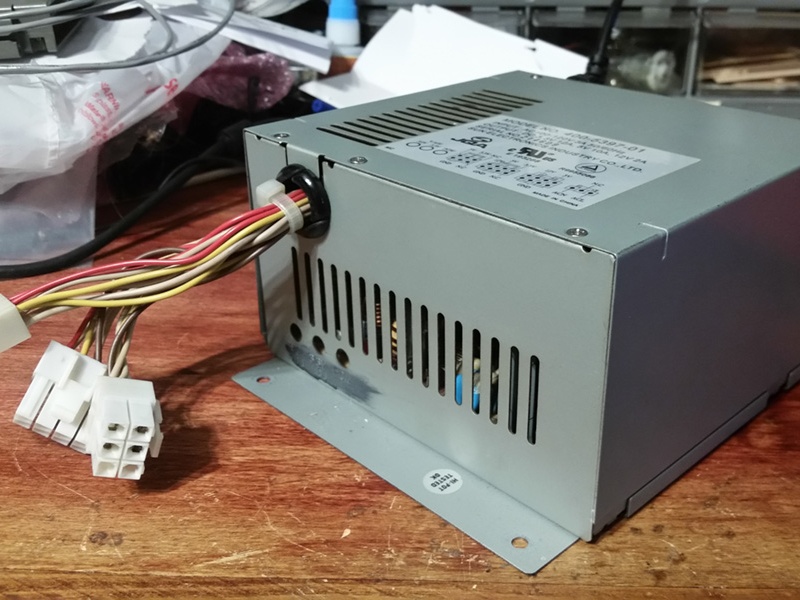

Here's a pic from TwistedSymphony's page:


See the three holes? First one is for the pot to adjust 5V, the second one is for 3.3V and the last one is for the power LED. You need a small screwdriver to adjust the pots and a multimeter to check voltages. Don't just blindly turn them.


twistedsymphony

Enlightened
Staff member
Immortal
Joined
Jul 21, 2015
Messages
10,959
Reaction score
11,572
Location
NH, USA
also note that the three holes are labeled with some etching on the metal. in the picture you can see there some black ink below them because someone at one point used that for contrast to make them easier to read.
