Recently I've been asked to look at the Taito 'PC050CM' in order to study a replacement.It's another custom IC you can find on arcade PCBs from '80 like Rastan, Rainbow Islands, Operation Wolf, Chuka Taisen, Dr. Toppel Tankenkai, Kuri Kinton, Continental Circus and others.The chip has a SIL28 ceramic package coated by epoxy :

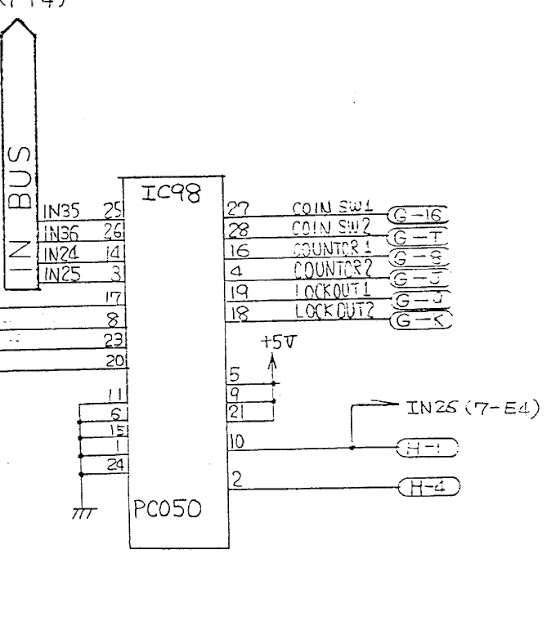

Regarding its functionality, the 'PC050CM' handles coin inputs and counters/lockouts as Rastan schematics shows :



If you encounter a bad 'PC050CM' the board won't boot and you will get an error message on screen:


I took on the task to study a replacement for this chip.First of all I tried to "decap" it but it was useless because there are only bare silicon dies under the coating.So, I used a different approach and tried to reproduce the functions building my guess on previous Taito hardware.I made a design based off the 'PC030CM' which is a similar Taito custom IC which I aready reproduced in the past :

Taito 'PC030CM' reproduction

After some time I came up with a prototype on breadboard that worked fine :



The next step was to route a proper board which I did being careful to respect the dimensions of original part :



Testing was successful on my boards :

View: https://youtu.be/nlBUeF8TKV8


View: https://youtu.be/UJtLFKQiy38
