I was going to wait for the final version (1.6) PCB to be built, but I decided to just go ahead and release this now! :D





This device is NOT endorsed or recommended by the creator of the Jammafier!

Its purpose/my intention was to provide cheap (currently @ 14.40$ per-PCB-build price) arcade PCB video attenuation to use with OSSC's SCART port.
Designed by @Frank_fjs using as many thru-via components as possible for ease of assembly.
Beta tested by @wigsplitta and myself (a 3rd beta unit was also sent to @rewrite but I never heard back from him).

It can be ordered here at OSH Park, BoM can be ordered from Digi-Key.

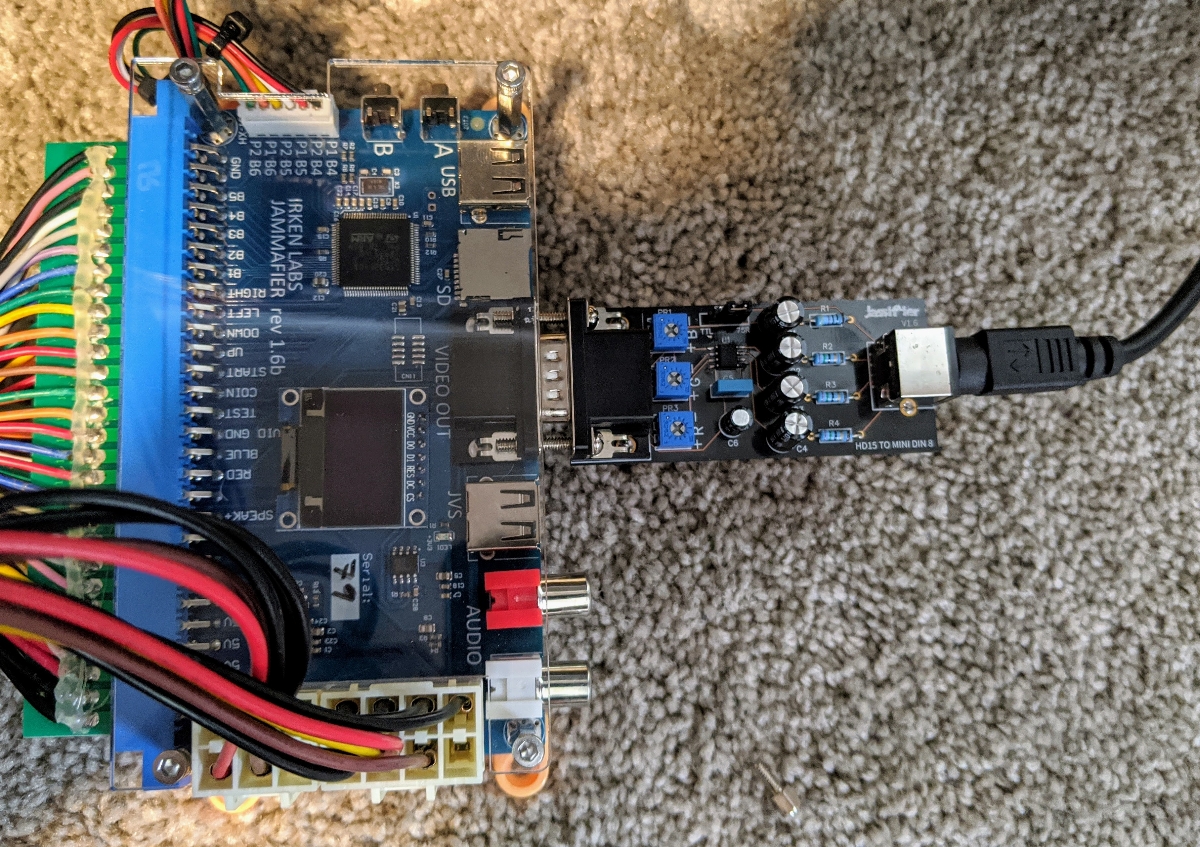

Pictures of the beta (1.2) version/test with a Jammaifier+OSSC in a Taito Vewlix Diamond (PCB on the right).


The 1.2 beta revision had optional power input via mini-USB, it has been removed from 1.6



Recommended (what I'm using with this setup/OSSC) accessory: etim nesrgb/2600 rgb adapter


First batch orders closed:
@KingSopz 2x
@ekorz 2x
@jassin000 2x

Potential future pre-assembled orders based on mutual expressed interest, however project is best when you DIY. :)

Last edited:

XtraSmiley

Enlightened
Joined
Sep 18, 2016
Messages
3,285
Reaction score
2,365
Location
Washington, DC
Looks cool, but can you explain with it does? Like, as if I'm a 3 year old, b/c I am, when it comes to this stuff!


jassin000

Immortal
Multi Boyz
Joined
Jul 21, 2015
Messages
8,552
Reaction score
7,527
Location
Nashua, NH USA
Arcade video attenuation to SCART levels, suitable for OSSC's SCART port.
NO sync processing only attenuation TTL/75ohm output (supports Taito F3 work-around).

Last edited:

jassin000

Immortal
Multi Boyz
Joined
Jul 21, 2015
Messages
8,552
Reaction score
7,527
Location
Nashua, NH USA
Basically the video (RGBS) signal path from a supergun, broken out into a separate PCB?
If you have a Jammafier you can't connect it directly to a OSSC because Jammafier isn't processing the video portion at all.
The signal is too strong/colors too bright/washed out, and its unsafe for the OSSC.

CPS3 test menu when connected directly to the Jammafier (notice how bright/washedout the colors are/no separation lines A~F)


Officially Zim intends you to use a Tri-sync Helper to attenuate the video signal, I see two problems with that design...
  1. TSH process/regenerates the sync, altering it (PCBs that never needed special OSSC settings now need them, and some can't ever be adjusted to work like Midway)
  2. TSH outputs via DSUB (if you use the DSUB connector of the OSSC you can't use its onboard low-pass filtering options)
Sync shouldn't be processed at all (not with OSSC it hates that)! Only attenuated with TTL/75ohm optional output to support Taito F3.
I ran a brief test without the tri-sync helper and the OSSC was able to sync correctly which leads me to believe it's the tri-sync helper's sync processing that's acting up. I don't suppose there's a way I could bypass the sync processing while getting the attenuation, is there?
This device is IMO the perfect solution for arcade PCBs when used with the OSSC via Jammafier (or custom SG DIY project).

Last edited:

meybarra

Professional
Joined
Jul 28, 2018
Messages
242
Reaction score
279
Location
VA
What are your thoughts on using this to attenuate video output from an Extron Crosspoint to the OSSC scart input, or any other scart device?


jassin000

Immortal
Multi Boyz
Joined
Jul 21, 2015
Messages
8,552
Reaction score
7,527
Location
Nashua, NH USA
What are your thoughts on using this to attenuate video output from an Extron Crosspoint to the OSSC scart input
Don't let the DSUB connector dissuade you (is was selected to easily connect with the Jammafier) it can be used for any supergun like application.
As pointed out by @the Goat this is basically the video only portion of a supergun design.

Input looks like this...

Last edited:

wigsplitta

Professional
Joined
Jul 23, 2015
Messages
217
Reaction score
293
Location
UK
Sorry for the late reply, work's been a bit busy the past few weeks!

I've given this a good few hours of play and am happy to confirm that it works nicely in my JAMMAfier - OSSC - Vewlix C setup. (I'm using a RGC 8pin din --> rgb scart cable)
I've tried various boards and not had an issue with anything.

I need to re-read up the PM thread, but I was under the impression that the concerns Zim had about the original design were addressed, and his and other peoples recommendations were implemented into an updated design?


jassin000

Immortal
Multi Boyz
Joined
Jul 21, 2015
Messages
8,552
Reaction score
7,527
Location
Nashua, NH USA
I need to re-read up the PM thread, but I was under the impression that the concerns Zim had about the original design were addressed, and his and other peoples recommendations were implemented into an updated design?
@Frank_fjs has done in my amateur view a fantastic job, with thicker traces and ground pour.
I welcome any pros to chime in and make recommendations/criticisms however so we can continue to evolve the design.

I wanted something optimal for folks like us (aka VLX owners who play JAMMA boards with a Jammafier+OSSC combo).
This isn't about egos for me, optimal is optimal.


Derick2k

Immortal
Joined
Nov 14, 2015
Messages
9,849
Reaction score
10,618
Location
NYC, USA
Im all for it being optimal :)

Are we still planning to do one that mounts over the taito scaler?

Another thing Ive been tinkering with is mounting supports for jammafier, ossc, jassifier etc. and I guess will need some type of switcher.


jassin000

Immortal
Multi Boyz
Joined
Jul 21, 2015
Messages
8,552
Reaction score
7,527
Location
Nashua, NH USA
Well the Jassifier when used directly with the Jammafier needs no additional mounting... ie the connector we selected for the 1.6 revision plugs right in just like the TSH.
Also like the TSH it draws power from the Jammafier so it requires no additional connections, it simply outputs attenuated MD8 at SCART levels.

As for the overlay design I'm still all about it, and this time I have the complete design to offer you so it can be adapted modified into whatever you need.
I always imagined a "pro" version that used SMD components making it far more compact in addition to the special shape to overlay with the OG Taito JAMMA kit.

Last edited:

Brentradio

Champion
Joined
Apr 6, 2016
Messages
2,156
Reaction score
1,827
Location
Las Vegas
Please put me down for one fully built Jassifier whenever they are available.

:D


ekorz

Multi Boyz 4 Pi
Legendary
Multi Boyz
Joined
Aug 21, 2016
Messages
4,467
Reaction score
5,810
Location
Boston, MA
I am PUMPED! Can’t wait to build this bad boy and run some jamma in the Vewlix. I’m gonna pick something with stupid sync too just for fun.


Frank_fjs

Multi Boyz 4 Lyfe
Legendary
Multi Boyz
Joined
Mar 3, 2018
Messages
3,410
Reaction score
5,812
Location
Australia - Adelaide
I love the PCB finish, looks sweet.

Definitely very streamlined, I like it. Sometimes simple is best.

Have you tested one?


KinG_SoPa

Grand Master
Joined
Aug 21, 2018
Messages
854
Reaction score
618
Location
Florida
Damm i wanna pick that beauty up todayyy, lol but Saturday is the day :/ 3 more days.


Derick2k

Immortal
Joined
Nov 14, 2015
Messages
9,849
Reaction score
10,618
Location
NYC, USA
@Frank_fjs @jassin000 Any chance you can send me the editable schematics/files, etc... I want to make the version we discussed that mounts over the stock Taito jamma kit scaler. Ofcourse will share stuff on here in case anyone is interested and wants to order their own.
