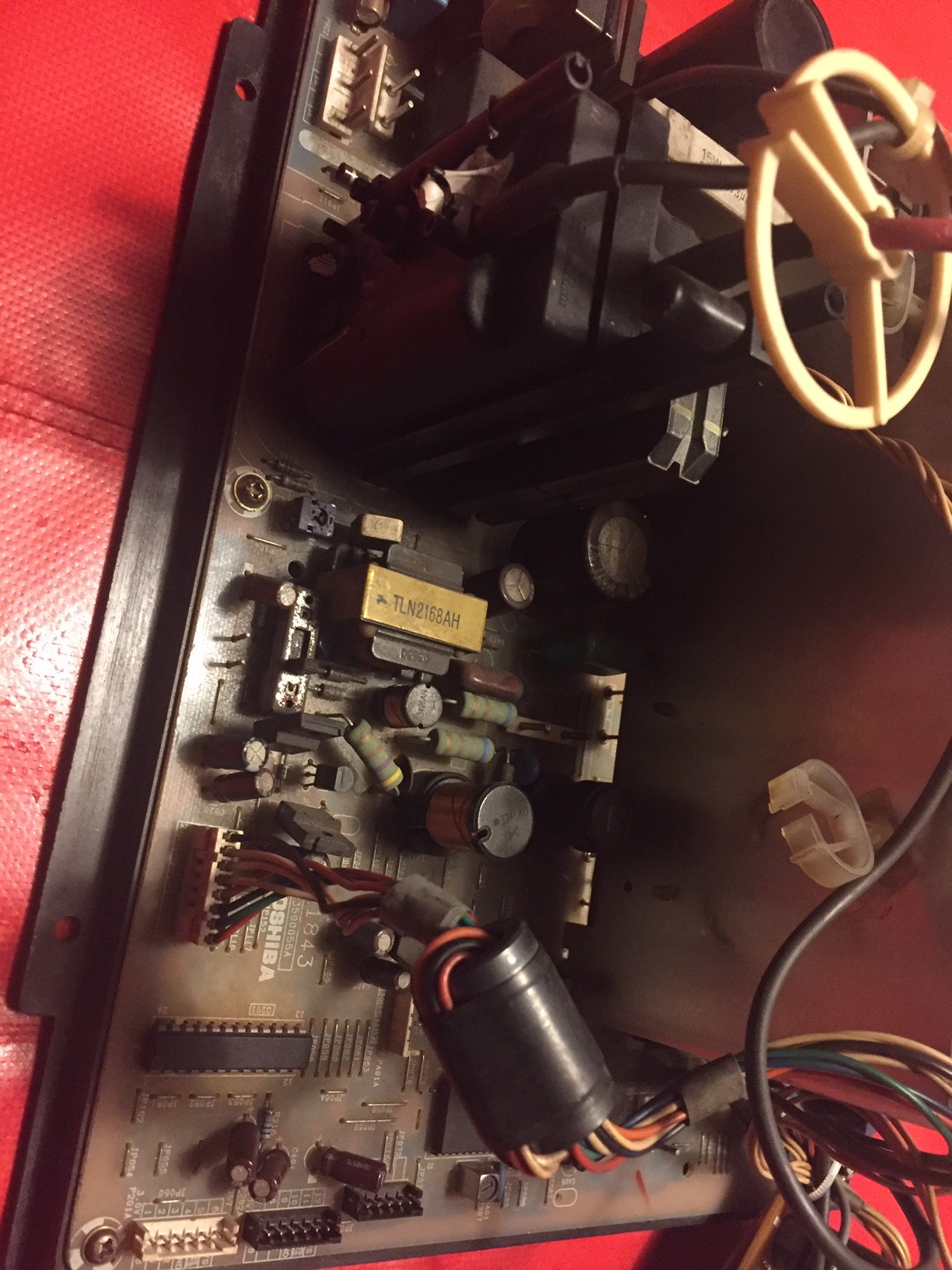

So...... I finally got my backup Toshiba PD1843 chassis today from Yaton 2.0 (scarlet-1661 on ebay)

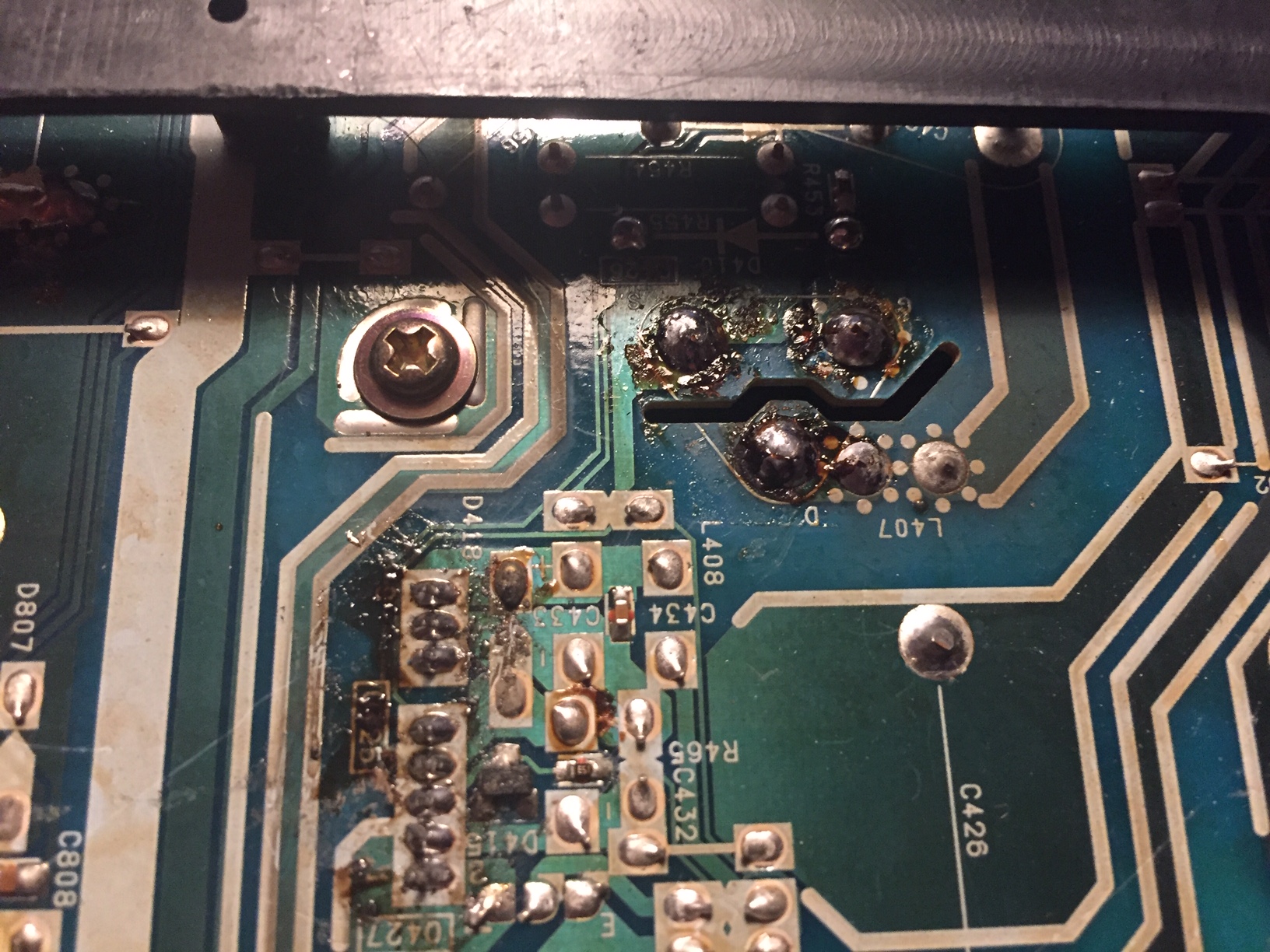

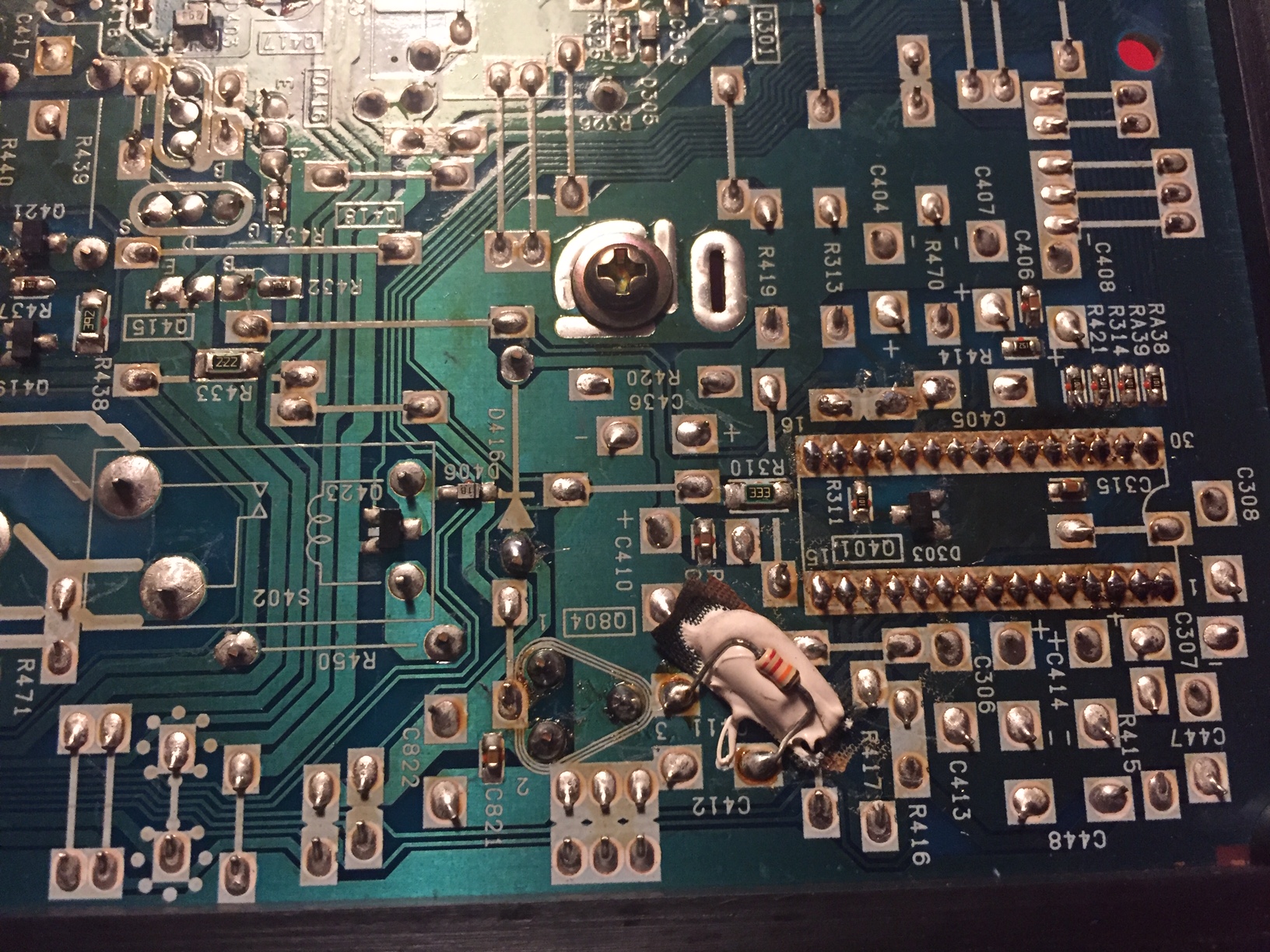

Well packed, but damn..... Not sure if this is safe to hook up and try even though it is sold as “good working”.... Try to reflow and repair or just ask the seller for a refund? Feel free to chip in!



Attachments

  • 65AB3E6D-0BD4-476B-9B6E-73630F417F6E.jpeg
    695.8 KB · Views: 77
  • 320BFA5F-AB70-487C-98E0-E8CC06A5C879.jpeg
    867.1 KB · Views: 73
  • A140C855-1B92-44CC-B8F9-5A429E9807F1.jpeg
    422.5 KB · Views: 68

BuddyC

Professional
Joined
Sep 17, 2018
Messages
294
Reaction score
561
Location
Oslo, Norway

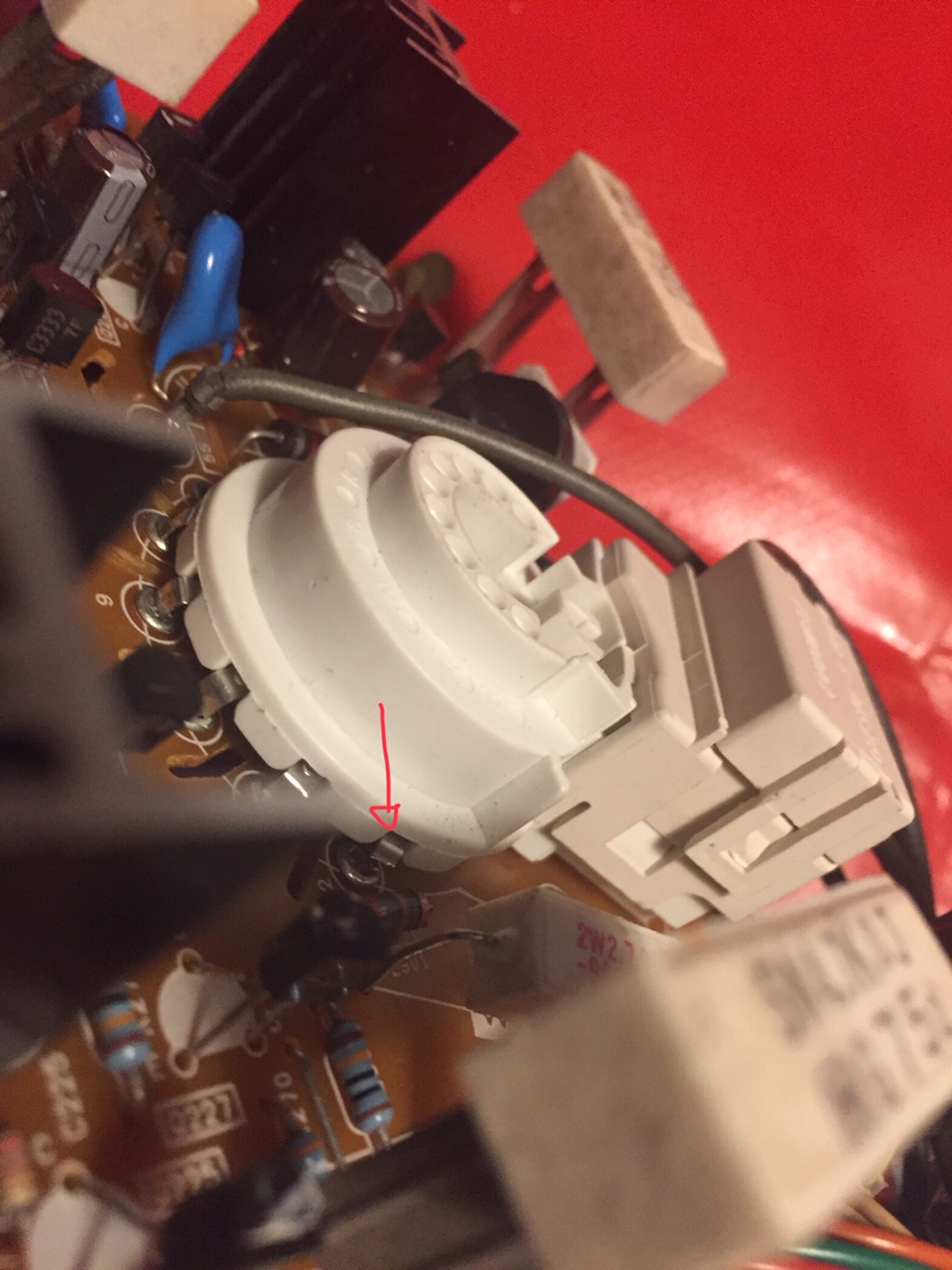

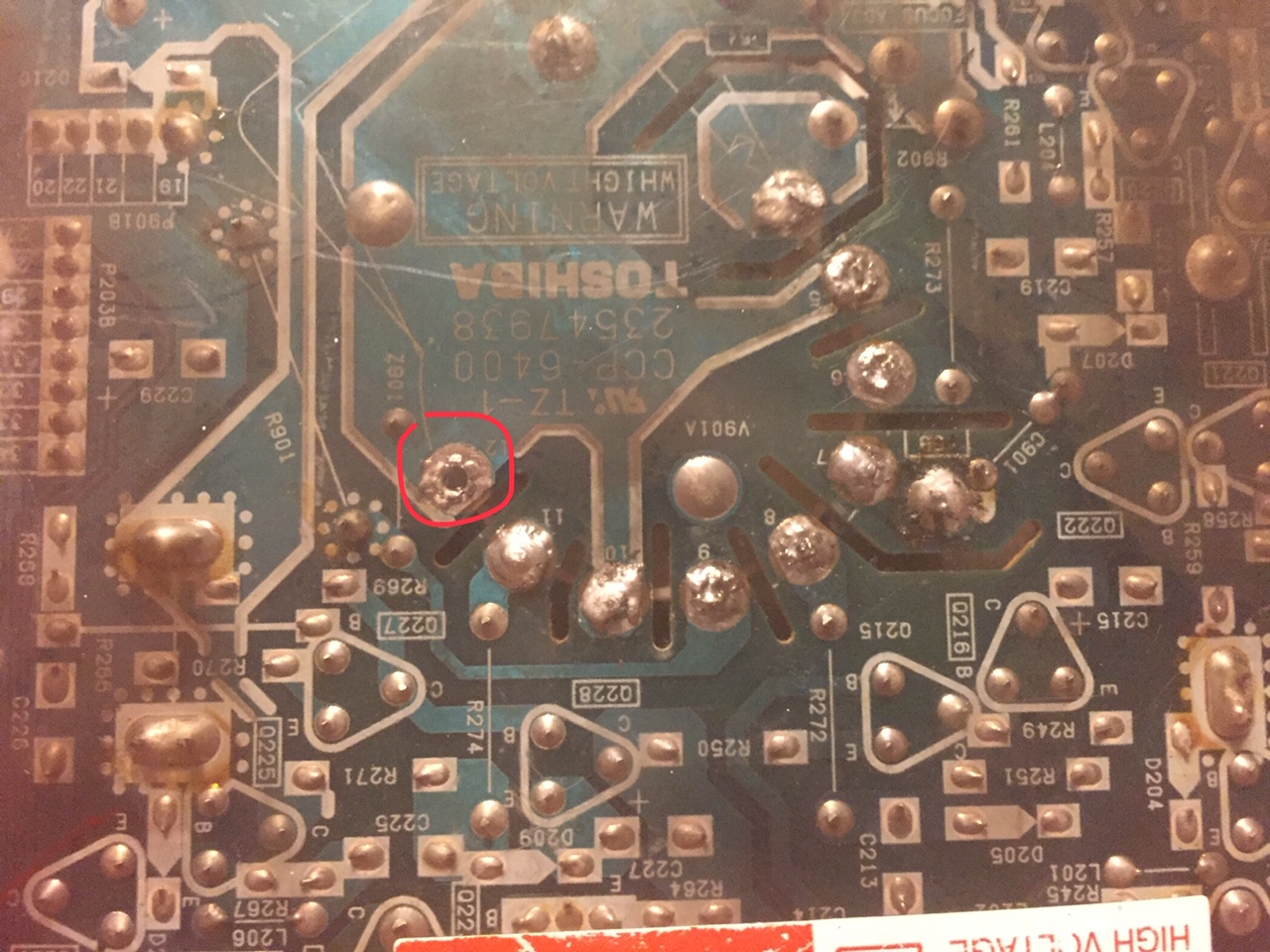

Pin 12 on the neck board is also missing.... I guess that’s not how it’s meant to look? ^^


Attachments

  • B7EECF2B-565E-4FA6-A62B-30A6B7D680C8.jpeg
    435.7 KB · Views: 67
  • EA2E3183-D2ED-49BA-B719-68BED32FF62C.jpeg
    317.3 KB · Views: 70

benime

Professional
Joined
Aug 8, 2015
Messages
287
Reaction score
307
Location
Portland, OR
Pin 12 is not connected, that's normal. You might want to reflow the pins on the CRT socket, as well as the flyback. They both look like they could use it.

The rest of the chassis looks like there's just flux residue from heating/usage.



nem

Enlightened
Joined
May 29, 2016
Messages
3,853
Reaction score
2,909
Location
Finland

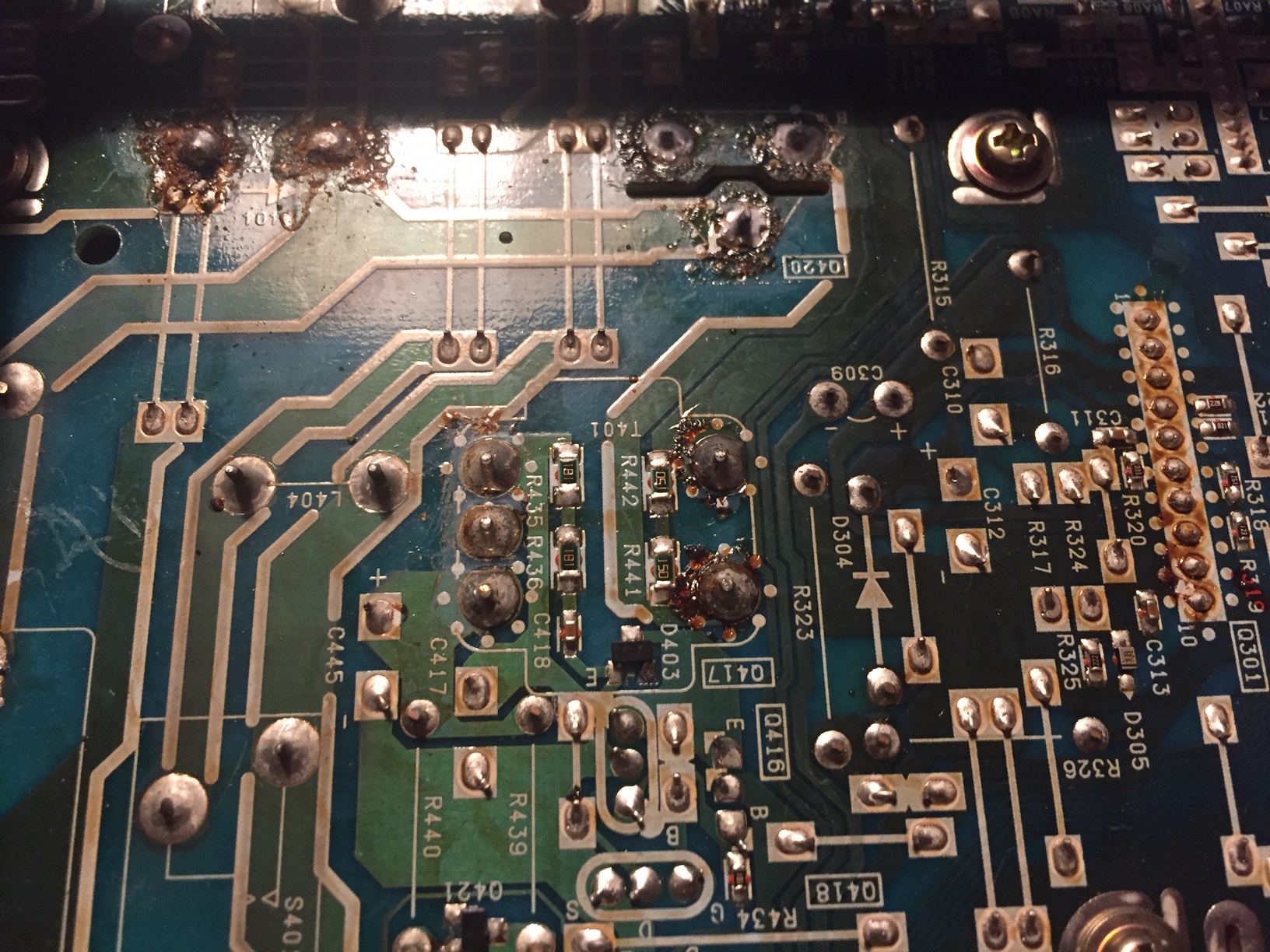

Man, someone was short on solder when installing that flyback.


nem

Enlightened
Joined
May 29, 2016
Messages
3,853
Reaction score
2,909
Location
Finland
Otherwise the chassis doesn't look too bad. Just touch up some of the soldering and it should be fit for testing.


BuddyC

Professional
Joined
Sep 17, 2018
Messages
294
Reaction score
561
Location
Oslo, Norway
Otherwise the chassis doesn't look too bad. Just touch up some of the soldering and it should be fit for testing.
Cool! Thanks!

Any tips for giving this type of chassis a good clean? I have seen some dunk it in Simple Grean and hose i down with the garden hose.... Don’t know if I would be comfortable with that..


gunblade

Student
Joined
Apr 1, 2017
Messages
116
Reaction score
84
you can see the exact work done on that chassis and they have looked at/replaced all the general issues on that model
the unsoldered legs on the flyback are not actually connected to anything in any case

that chassis is used on pure flat tubes, normally found in games like max tune 3

i am quite sure this chassis is matched to a different yoke than the earlier verson digital chassis although i do test these on 0.300mh yokes and they seem fine


BuddyC

Professional
Joined
Sep 17, 2018
Messages
294
Reaction score
561
Location
Oslo, Norway
Thanks for great info! Based on info from arcade otaku wiki, at least the neck board comes from a
MATSUSHITA tube since the C228 Cap is 220uf, 200V.

Would this be a issue if I try to hook it up to the Toshiba tube on my NNC?


hoagtech

Champion
Joined
Mar 28, 2019
Messages
1,112
Reaction score
1,123
Location
Bellingham WA
Awesome. I just got the same chassis from an NNC that wont turn on. Best of luck to you.
