Triforce graphic problem

[olum64]

Hello have a Triforce what stripes in the picture!

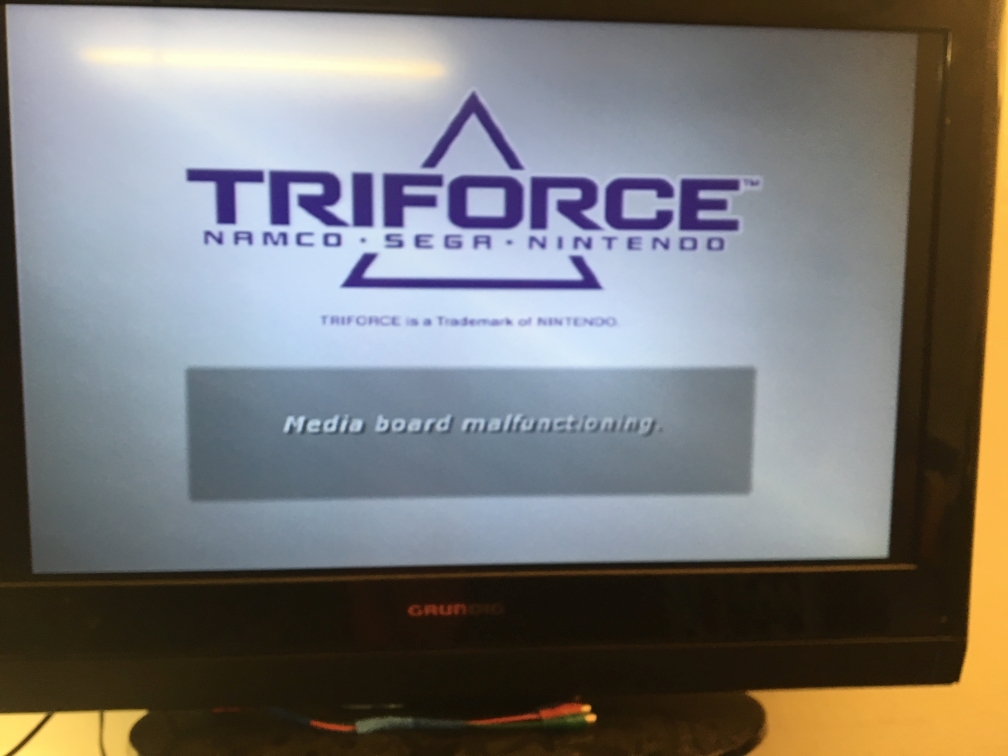

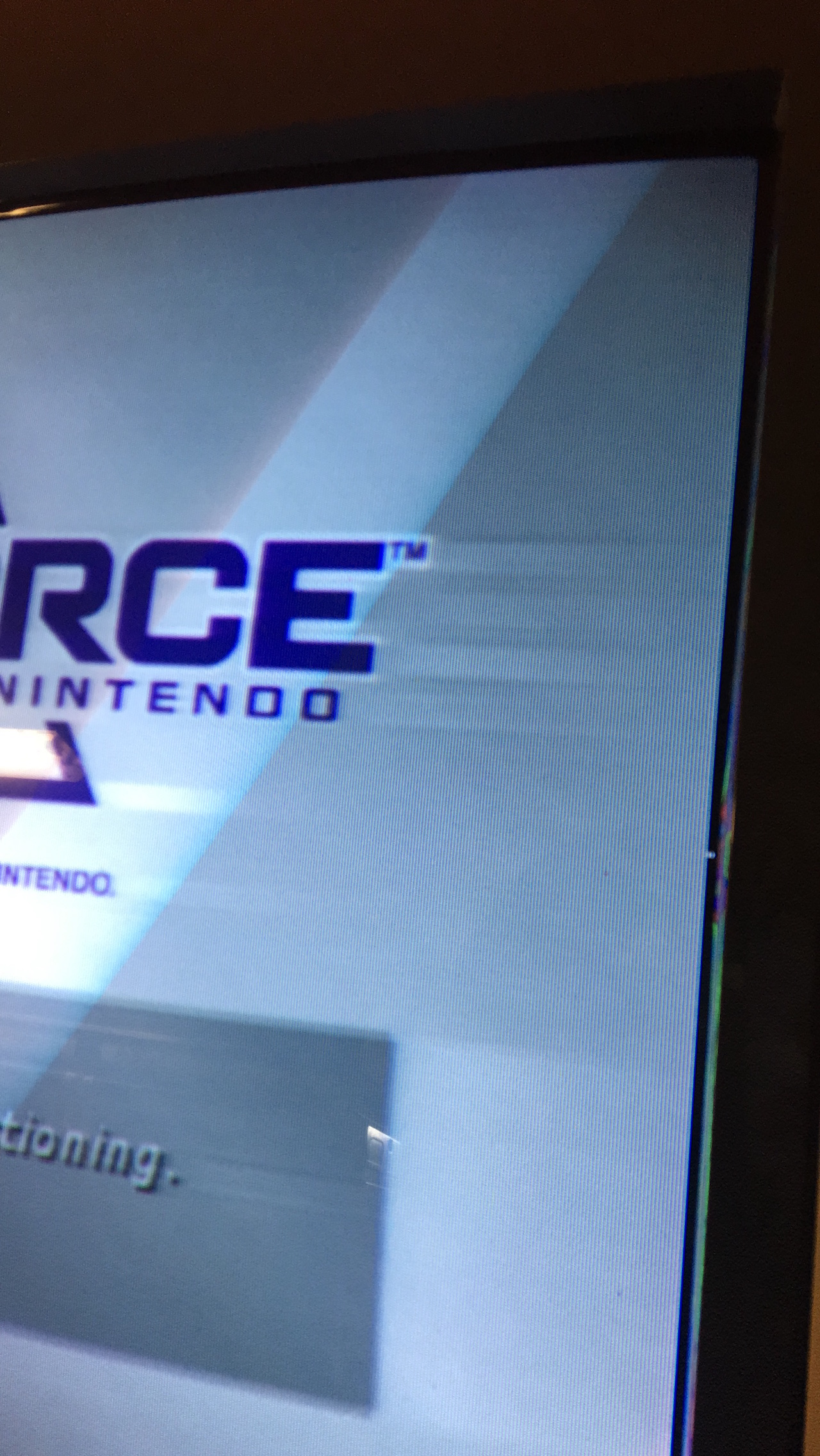

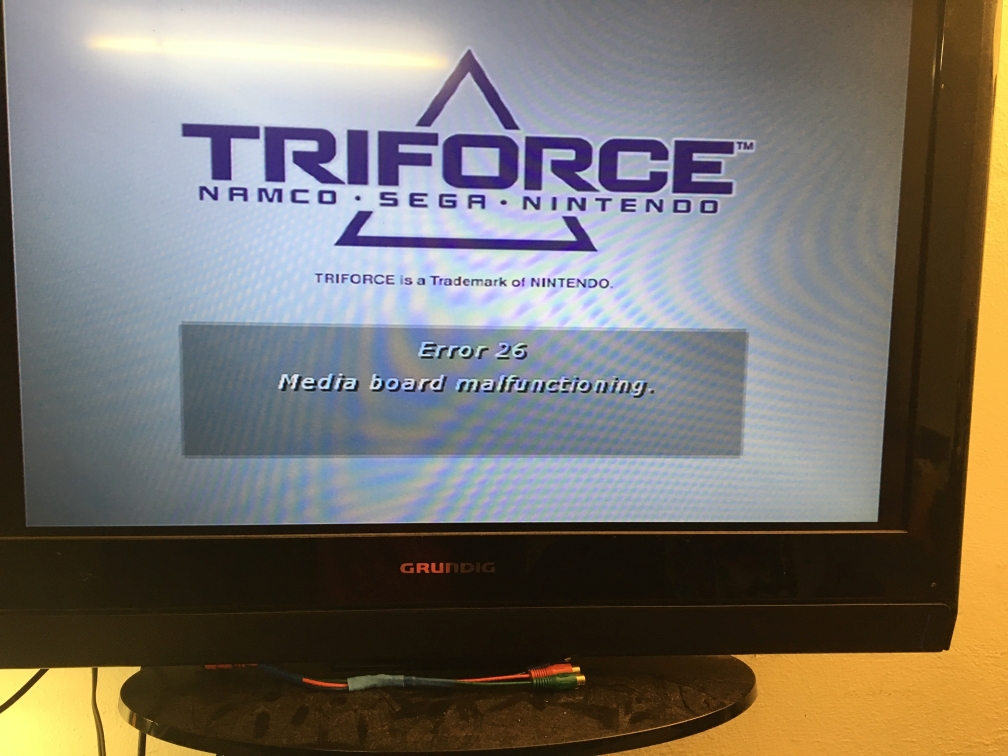

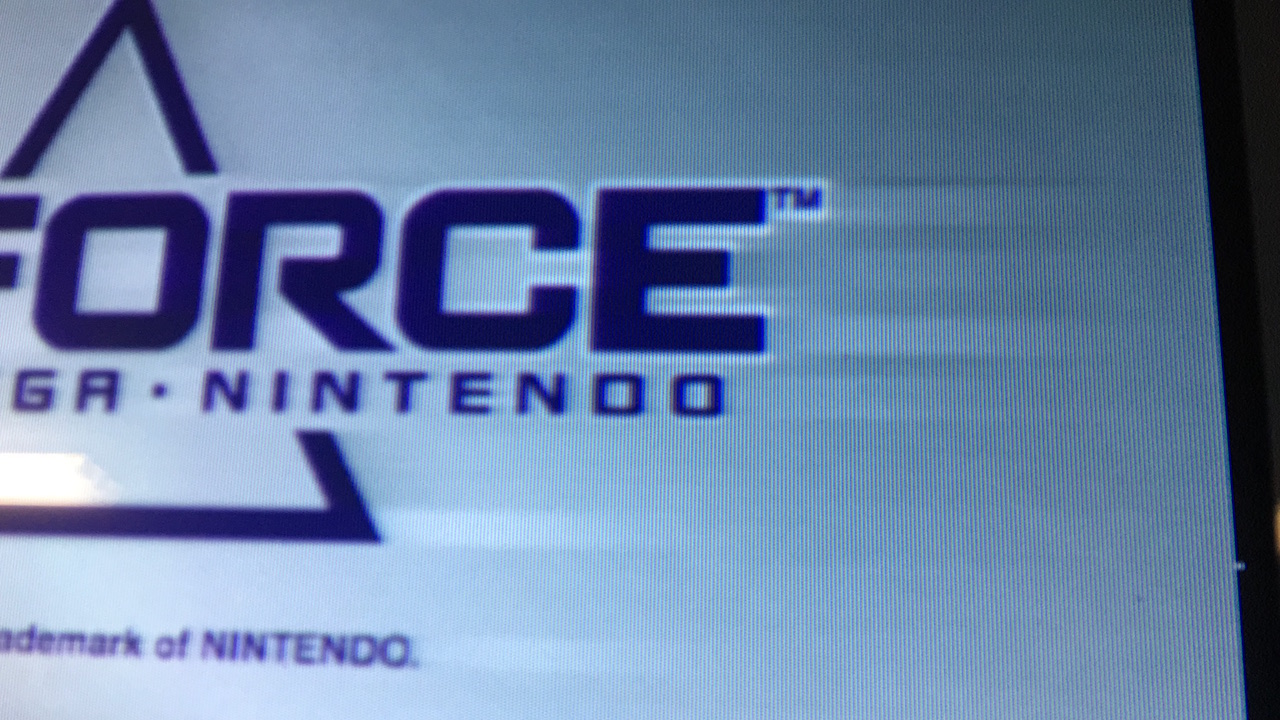

here are pictures of the problem

what I have already done is the gamecube replaced by another Triforce but the same error still, it can only be on the VGA board?

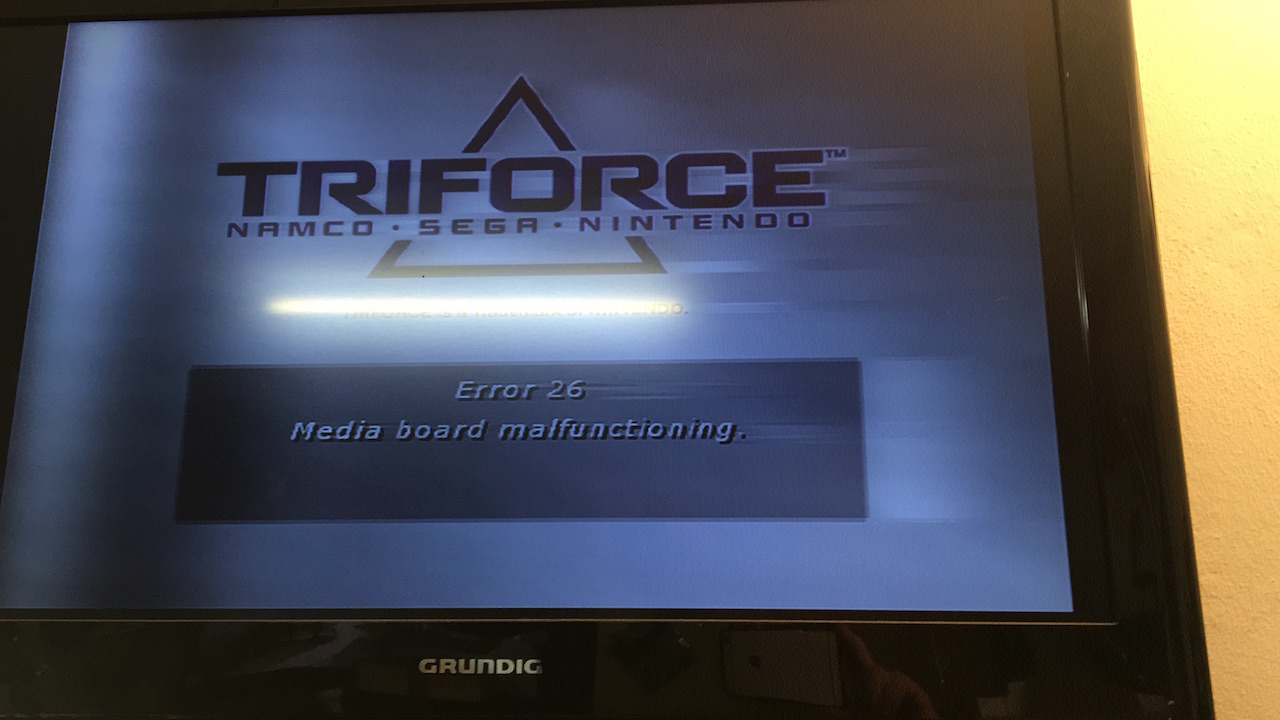

the first two pictures are from a naomi cabinet screen

pictures



[Mitsurugi-w]

Honestly looks like your monitor is not compatible with the image the triforce puts out.



[olum64]

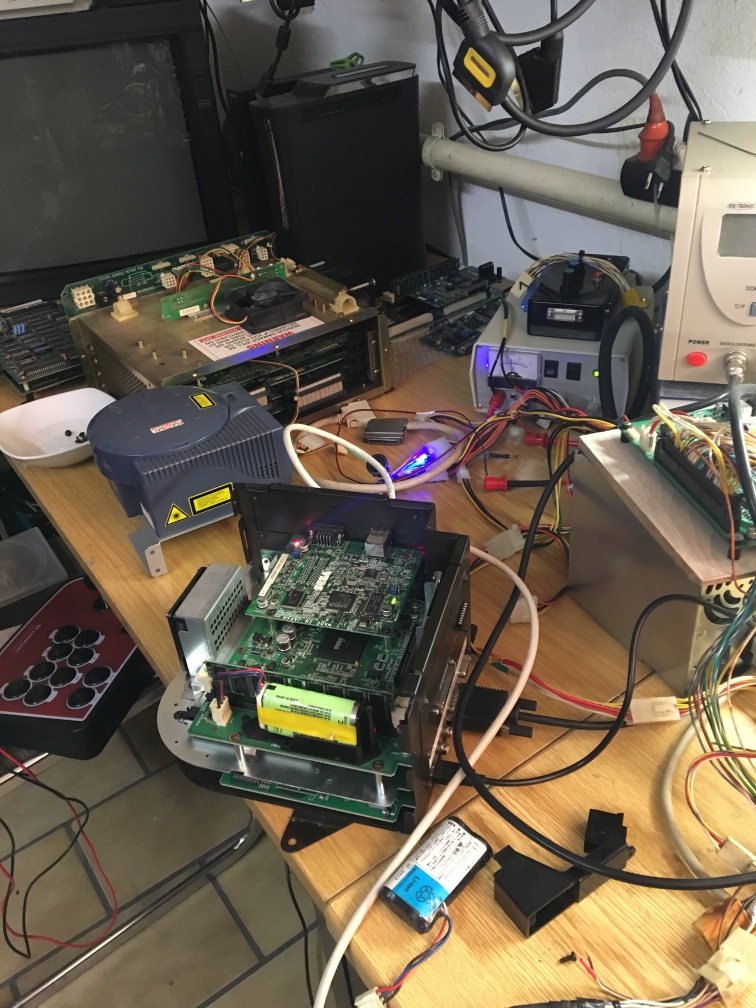

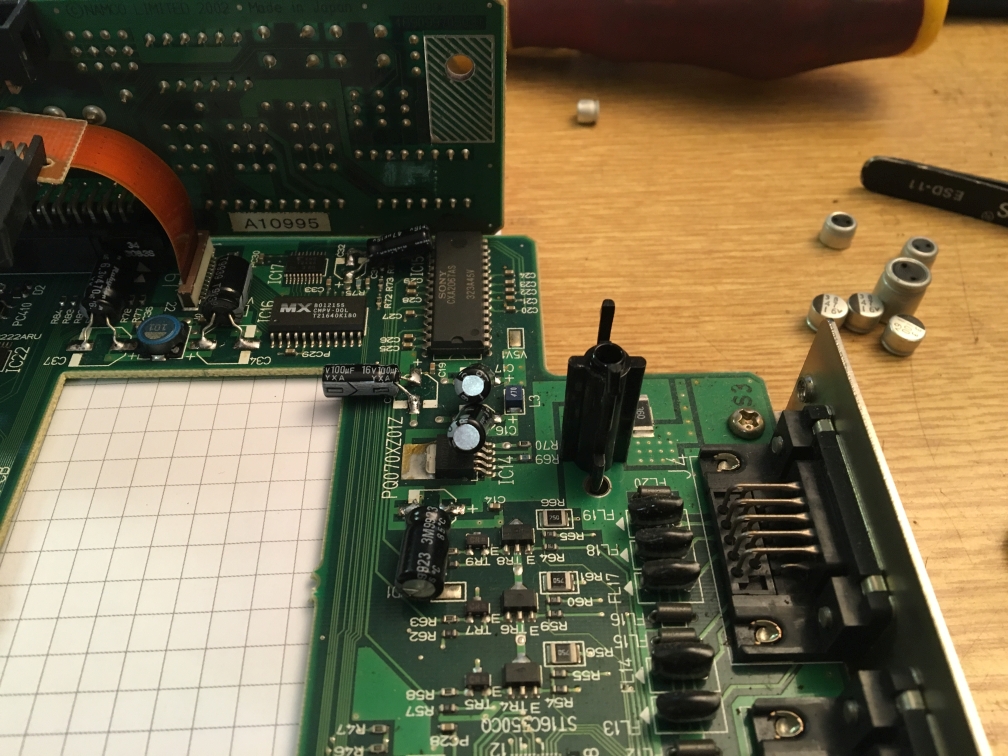

Hello no that was not, it the Elkos was the problem they have swapped away!


But nothing scold the SMD only because no other available exchanged with normal




Pictures same screen



[Mitsurugi-w]

Nice. Looks like I'll add a recap to my list as well. Can you list all of the cap values?



[olum64]

Hello here is the list

Triforce Hardware Revision 3

Original :

470uF 6V 9x
47uF 16v 3x
47uF 6,3V 2x
100uF 6V 1x
100uF 16V 2x
220uF 6,3V 6x

replaced with:

470uF 10v 9x
47uF 16V 5x
100uF 6V 3x
220uF 16V 6x



[Mitsurugi-w]

Good stuff. Thanks!
